Introduction

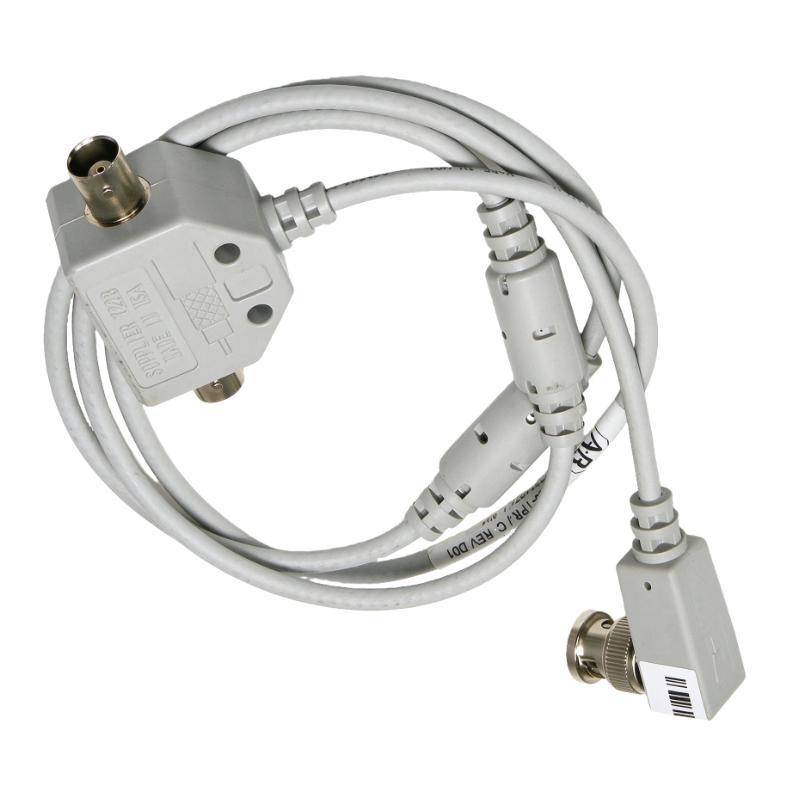

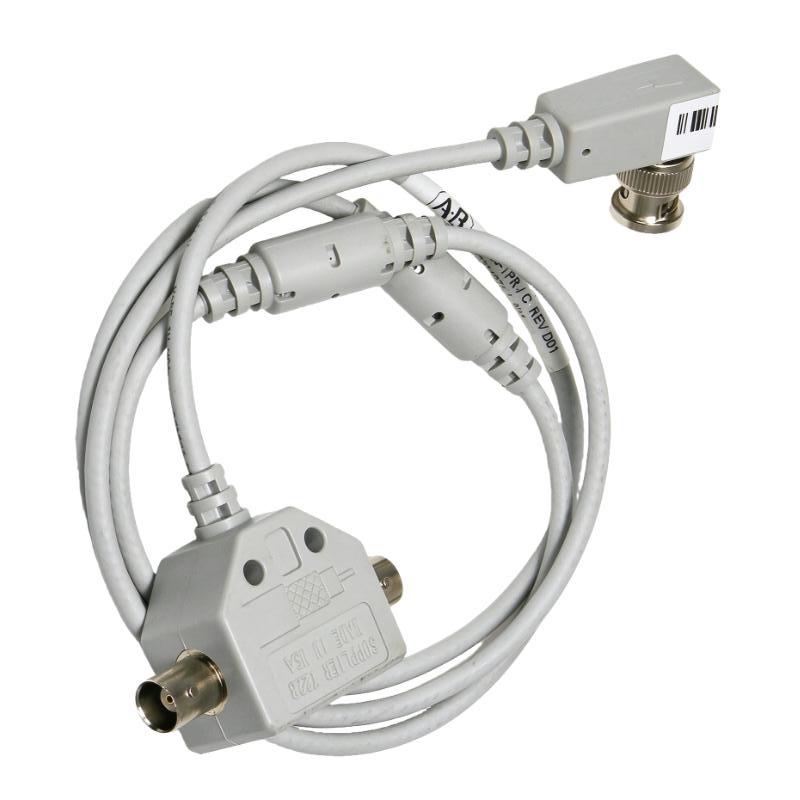

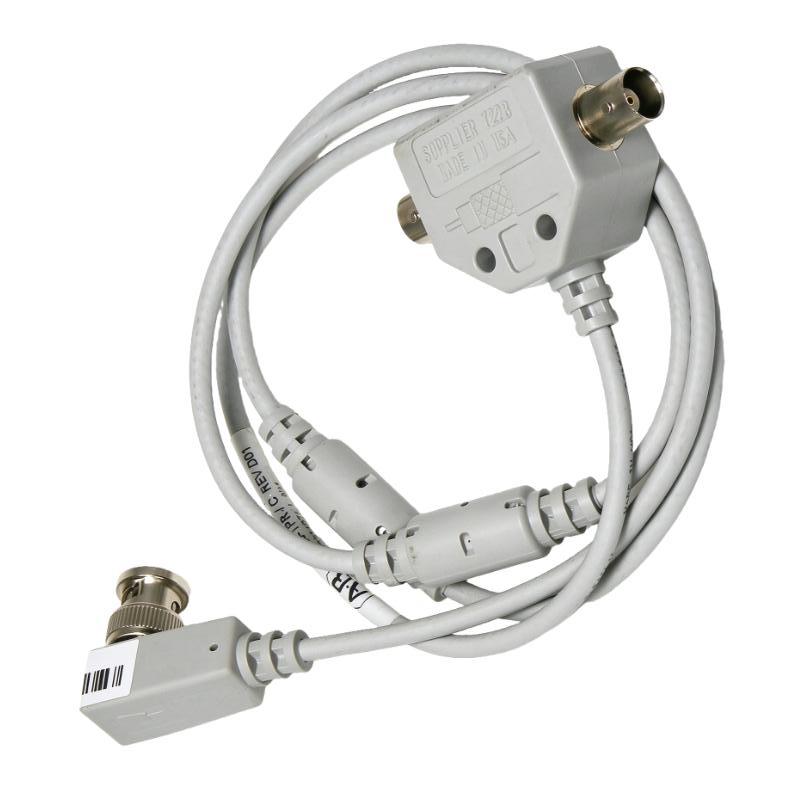

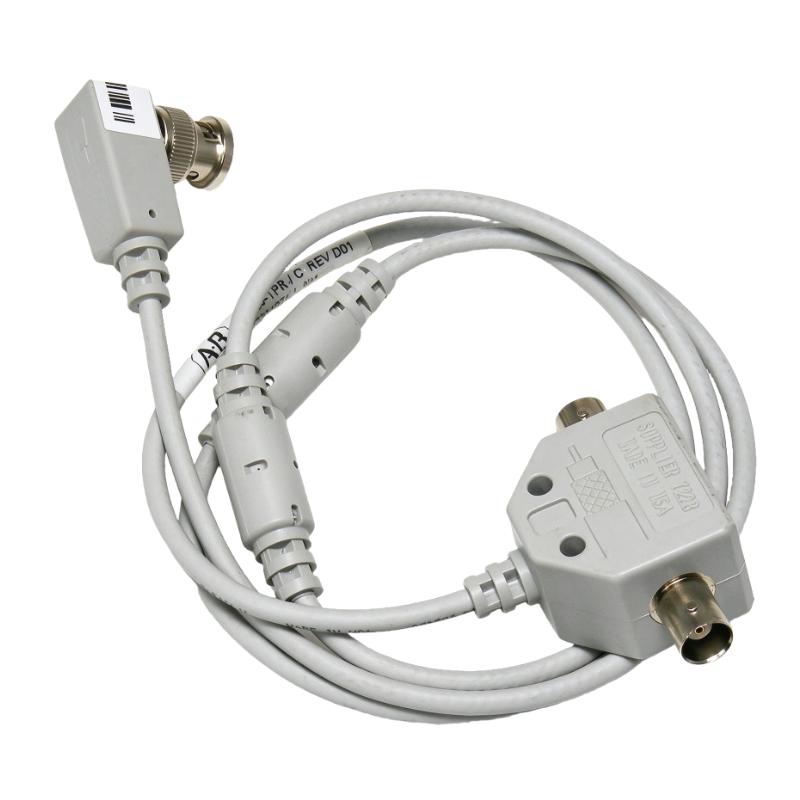

The Allen Bradley 1786-TPST2T ControlNet Coaxial Cable Tap is described as an accessory for industrial ControlNet communication installations. In these systems, physical-layer components must be correctly matched to maintain the intended network topology and support dependable data transmission.

ControlNet infrastructure can remain in service for extended periods in manufacturing plants, process facilities, and other industrial environments. Over time, connectors and cable assemblies may require inspection or replacement due to mechanical damage, environmental exposure, or routine maintenance. Choosing the correct accessory helps preserve the original network configuration and reduces unnecessary modifications.

For maintenance engineers and automation equipment buyers, distinguishing between a coaxial tap, terminator, and repeater is essential. Although these accessories may belong to the same communication product family, their electrical functions differ. A replacement should therefore be selected according to its verified catalog designation rather than appearance alone.

The supplied product data lists a cable length of 1 meter and a shipping weight of 3 kg. These figures should be checked against the actual package contents to establish whether the cable is included and whether the weight represents the complete packaged shipment.

For industrial automation suppliers, accurate product identification and transparent specification checks help customers make better purchasing decisions and reduce the risk of ordering unsuitable network components.

Technical Specifications

Parameter	Specification
Brand	Allen-Bradley
Manufacturer	Rockwell Automation
Model Number	1786-TPST2T
Product Type	ControlNet Coaxial Cable Tap — supplied description, requires verification
Network Family	ControlNet
Component Category	Coaxial Network Accessory
Cable Length	1 meter, as supplied
Shipping Weight	3 kg / 6.61 lb
Connector Configuration	Requires verification
Electrical Characteristics	Verify against applicable product documentation
Network Compatibility	Subject to catalog and installation verification
Typical Applications	Industrial PLC and ControlNet communication infrastructure

Note: Cable length and shipping weight are based on the supplied information. Confirm the exact product designation, connector configuration, and function before publication or installation.

Recommended Related Models

The following Allen-Bradley products are associated with ControlNet networking. Their functions differ, so confirm compatibility before selecting any component as a replacement.

Model	Product Type	Application
1786-TPS	ControlNet Coaxial Tap	Network connection accessory
1786-RG6	ControlNet Coaxial Cable	Coaxial network cabling
1786-BNC	ControlNet BNC Connector Accessory	Coaxial connection hardware
1786-RPFS	ControlNet Fiber-Optic Repeater Module	Fiber-optic network extension in compatible installations

Popular Related Models

For ControlNet maintenance and spare-parts planning, the following models may be relevant when reviewing associated communication accessories.

Model	Product Description
1786-TPST2T	ControlNet Coaxial Cable Tap — verify exact catalog designation
1786-TPS	ControlNet Coaxial Tap
1786-RG6	ControlNet Coaxial Cable
1786-BNC	ControlNet BNC Connector Accessory
1786-RPFS	ControlNet Fiber-Optic Repeater Module

When requesting a quotation for the Allen Bradley 1786-TPST2T ControlNet Coaxial Cable Tap, provide the complete catalog number and verify the product's exact function, cable arrangement, and connector configuration. These checks help ensure that the selected accessory is appropriate for the intended ControlNet network and support reliable industrial automation maintenance.

Applications

The Allen Bradley 1786-TPST2T ControlNet Coaxial Cable Tap is specified for industrial ControlNet communication infrastructure. ControlNet is used in automation systems to exchange data between programmable logic controllers (PLCs), remote I/O devices, drives, and other compatible control equipment.

Coaxial network taps provide connection points within a network's physical infrastructure. Selecting the correct tap and cable assembly is important for maintaining the required network topology, signal characteristics, and communication reliability.

Potential application areas include:

PLC communication networks: Supporting physical connections between compatible ControlNet devices and coaxial network infrastructure.
Manufacturing automation: Maintaining network connectivity in automated production lines and machinery.
Process control facilities: Supporting communication infrastructure for compatible controllers and distributed devices.
Industrial network upgrades: Helping maintain existing ControlNet installations when components require replacement.
Maintenance and spare-parts management: Providing a specific catalog reference for identifying the required network accessory.

Before ordering the 1786-TPST2T, verify the exact catalog number, connector arrangement, and intended function. A coaxial tap, network terminator, and repeater have different roles and should not be treated as interchangeable components.

Advantages

Purpose-Specific ControlNet Connectivity

A correctly selected coaxial tap supports the physical connection arrangement required by a compatible ControlNet network. Matching the accessory to the original installation helps maintain the intended network architecture.

Support for Reliable Signal Transmission

ControlNet coaxial networks depend on suitable cables, connectors, taps, and termination components. Correct component selection helps preserve impedance matching and reduce signal reflections.

Organized Network Installation

Dedicated connection accessories help technicians maintain a structured cabling arrangement, making network connections easier to identify during inspections and maintenance.

Convenient Replacement-Part Identification

The complete 1786-TPST2T catalog number provides a clear reference for quotation requests, purchasing records, and inventory management.

Practical for Existing Automation Systems

Industrial facilities often retain established ControlNet infrastructure for many years. Identifying the correct accessory can help maintenance teams replace components without unnecessary changes to the wider communication system.

Improved Procurement Accuracy

Confirming the product designation, cable configuration, and connector requirements before ordering helps reduce the likelihood of purchasing an incompatible component.

Technical FAQs

Q1. What is the Allen Bradley 1786-TPST2T used for?

The supplied description identifies it as a ControlNet coaxial cable tap. Its precise function and configuration should be verified against the product label and applicable technical documentation.

Q2. What is the purpose of a ControlNet coaxial network?

ControlNet provides industrial communication between compatible controllers, I/O devices, and other automation equipment. It supports the exchange of control and diagnostic information over a defined network architecture.

Q3. How does a coaxial tap differ from a coaxial terminator?

A tap provides a connection point for network equipment, whereas a terminator supplies a specified electrical impedance at the appropriate end of the network trunk. They perform different functions.

Q4. Why is impedance matching important in ControlNet installations?

Impedance matching helps minimize signal reflections and maintain communication quality. The cable, connectors, taps, and termination components must meet the requirements of the network design.

Q5. Can the 1786-TPST2T be used with any coaxial cable?

No. Compatibility depends on the approved cable type, connector interface, electrical characteristics, and network configuration. Verify these requirements before installation.

Q6. Is a coaxial tap interchangeable with a repeater?

No. A tap provides a network connection point, while a repeater regenerates signals to support an appropriate network arrangement. Each component must be used for its intended purpose.

Q7. What can cause communication faults in a ControlNet network?

Possible causes include damaged cable, loose connectors, incorrect termination, incompatible accessories, electrical interference, or faults in connected equipment.

Q8. How should a network tap be inspected?

Check the housing, connector interfaces, cable connections, and mechanical coupling for damage, contamination, corrosion, or looseness. Follow approved maintenance procedures before disconnecting network hardware.

Q9. Can the tap be replaced while the network is operating?

Do not assume live replacement is permissible. Disconnecting a network connection may interrupt communication and affect system operation. Follow the approved maintenance procedure and evaluate the operational impact before servicing.

Q10. What information should be checked before purchasing the 1786-TPST2T?

Verify the complete catalog number, actual product function, connector arrangement, cable requirements, and compatibility with the installed network. Confirm whether the supplied cable length refers to an included cable assembly.
