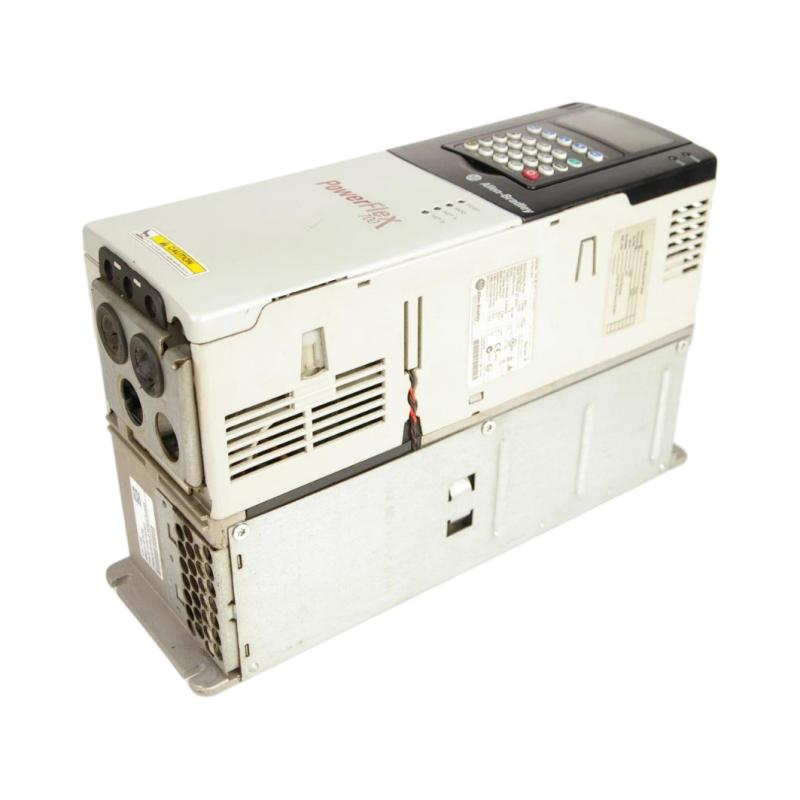

Allen Bradley 20BC8P7A0AYNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BC8P7A0AYNANC0 PowerFlex 700 AC Drive is intended for industrial motor-control applications where adjustable speed, controlled acceleration, and reliable operation are important. As part of the PowerFlex 700 drive family, it can be considered for integration into automation systems that require variable-speed AC motor control. The exact electrical ratings and available functions should be confirmed against the complete catalog number before installation or replacement.

Typical application areas include:

• Conveyor Systems: Adjust motor speed to suit production flow and material-handling requirements.

• Pumps and Fans: Support variable-speed operation in industrial process and utility systems, subject to motor and drive compatibility.

• Manufacturing Machinery: Provide adjustable motor control for production equipment and automated machinery.

• Material Handling: Help coordinate motor operation in equipment used for moving products and materials.

• Industrial Processing: Support controlled motor operation in process lines where operating speed must be adjusted.

• OEM Equipment: Serve as a potential drive component in machinery designs that require compatible PowerFlex 700 equipment.

Before using this model in a new installation, verify the motor rating, supply voltage, load characteristics, environmental conditions, and required control interfaces.

Advantages

1. Adjustable AC Motor Speed

Variable-frequency drive technology allows motor speed to be adjusted to match changing process requirements, provided the application falls within the drive's rated operating limits.

2. Controlled Acceleration and Deceleration

Appropriate drive configuration can help manage motor starting and stopping, reducing abrupt mechanical transitions in compatible applications.

3. Integration with Industrial Automation

The PowerFlex 700 family is designed for industrial motor-control systems. Compatibility with the existing control architecture should be checked using the exact drive configuration and installed options.

4. Flexible Application Potential

A properly selected drive can support different motor-driven processes, including conveying, pumping, and general industrial machinery.

5. Support for Equipment Maintenance

Accurate identification of the catalog number, firmware, installed options, and wiring configuration helps maintenance teams assess replacement compatibility and troubleshoot operating issues.

6. Practical Replacement Planning

For an existing installation, matching the full catalog number and verifying electrical and control specifications can help reduce the risk of selecting an incompatible replacement.

Technical FAQs

Q1: What is the primary function of the Allen Bradley 20BC8P7A0AYNANC0?

Its intended role is AC motor speed control as a member of the PowerFlex 700 drive family. Confirm the exact electrical configuration and functions associated with this catalog number before commissioning.

Q2: How does a PowerFlex 700 AC drive control motor speed?

A variable-frequency drive adjusts the frequency supplied to an AC motor. The resulting motor speed depends on the motor design, output frequency, load, and drive configuration.

Q3: What information is required before connecting a motor?

Check the motor nameplate, rated voltage, current, frequency, power, wiring arrangement, and operating requirements. These values must be compatible with the drive's verified ratings.

Q4: Can this drive be used with any AC motor?

No. Motor compatibility depends on the motor type, electrical ratings, control method, load profile, and the drive's supported operating modes. Confirm these factors before use.

Q5: What should be checked if the drive fails to start?

Inspect the incoming power supply, protective devices, control wiring, start command, enable conditions, configured operating mode, and any active fault or inhibit indication.

Q6: Why might a connected motor run at an unexpected speed?

Possible causes include incorrect speed references, parameter settings, control-source selection, analog signal scaling, or communication command issues. Compare the configured values with the application's control requirements.

Q7: What can cause an overcurrent fault?

Potential causes include excessive mechanical load, motor or cable faults, unsuitable acceleration settings, incorrect motor data, or a problem in the drive's power section. Isolate the cause before restarting.

Q8: How should drive overheating be investigated?

Check ventilation, enclosure temperature, cooling-air paths, contamination, load conditions, and installation clearances. Follow the applicable product documentation for environmental and thermal limits.

Q9: What precautions are necessary before maintenance?

Disconnect and isolate all relevant power sources, follow the site's lockout/tagout procedures, and wait for the specified DC-bus discharge period. Verify the absence of hazardous voltage with suitable test equipment before touching electrical components.

Q10: What should be verified when replacing an existing PowerFlex 700 drive?

Confirm the full catalog number, voltage class, current and power ratings, enclosure requirements, control interfaces, installed options, parameter settings, and motor compatibility. A similar-looking drive is not necessarily a suitable replacement.
