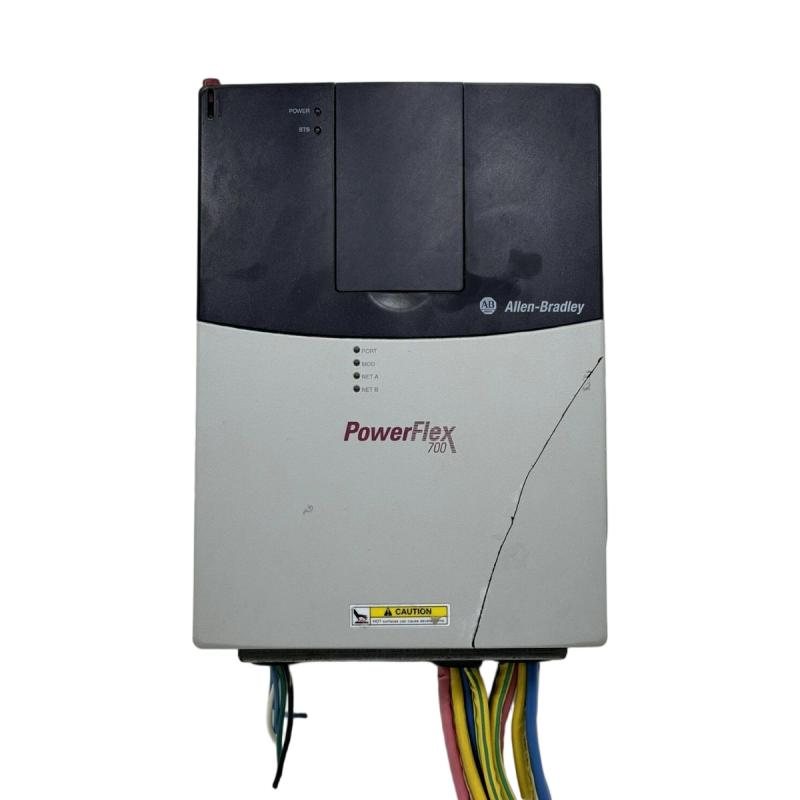

Allen Bradley 20BC030A0AYNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BC030A0AYNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for motor-control applications where operating speed and acceleration need to be managed according to process requirements. As part of the PowerFlex 700 product family, it can be evaluated for use in automated machinery and industrial systems that rely on adjustable-speed AC motor operation.

Potential application areas include:

• Conveyor and Material-Handling Systems: Regulate motor speed to match production flow and material-transfer requirements.

• Pumping Equipment: Support variable-speed process control when the motor and drive ratings are suitable for the application.

• Industrial Fans and Blowers: Enable adjustable motor operation in compatible ventilation and air-handling systems.

• Manufacturing Machinery: Provide motor-speed control for production equipment and automated processes.

• Process-Control Systems: Work as part of a wider automation system where motor operation follows process commands.

• Maintenance and Replacement Projects: Offer a model for evaluation when servicing existing PowerFlex 700 installations, subject to configuration and rating verification.

Before installing this drive, confirm the electrical supply, motor requirements, load characteristics, environmental conditions, and control-system interface for the specific application.

Advantages

1. Flexible Motor-Speed Regulation

Variable-frequency control allows the operating speed of a compatible AC motor to be adjusted to meet changing process demands.

2. Configurable Acceleration and Deceleration

Appropriate parameter settings can provide controlled motor ramping, helping manage transitions during startup and stopping.

3. Industrial Automation Integration

The PowerFlex 700 family is intended for industrial motor-control environments. Integration with a PLC or plant control system depends on the available terminals, installed communication options, and configured control method.

4. Adaptability to Different Loads

Adjustable-speed drives can support a range of motor-driven applications when selected according to the load profile and required operating conditions.

5. Support for Maintenance Planning

Recording the full catalog number, nameplate data, and installed options helps maintenance personnel identify equipment and evaluate replacement compatibility.

6. Configuration-Based Selection

A structured review of the drive's ratings and interfaces helps engineers avoid selecting a unit based solely on its product-family name or physical appearance.

Technical FAQs

Q1: What is the main purpose of the Allen Bradley 20BC030A0AYNANC0?

It is identified as a PowerFlex 700 AC Drive for industrial motor-control applications. Confirm its precise electrical ratings and supported functions using the complete catalog number and product nameplate.

Q2: How does a variable-frequency drive adjust motor speed?

The drive changes the frequency supplied to a compatible AC motor. Motor speed also depends on the motor's design, load, and the control method configured in the drive.

Q3: What motor information should be entered during commissioning?

Use the motor nameplate and applicable documentation to verify rated voltage, current, frequency, power, and other parameters required by the selected control method. Enter only values appropriate for the actual motor and drive.

Q4: Can the drive be connected to a PLC-controlled system?

Potentially, depending on the selected command method and installed interface options. Verify the available control terminals or communication hardware and configure the drive and PLC consistently.

Q5: Why might the drive power up but not run the motor?

Possible causes include a missing start command, an incorrect command source, an unmet enable condition, an active fault, an open interlock, or incorrect control wiring. Check the status indications and configured operating mode.

Q6: What can cause repeated overcurrent faults?

Investigate excessive load, motor or cable problems, incorrect motor data, acceleration settings, mechanical binding, and possible drive hardware faults. Correct the underlying cause before returning the equipment to service.

Q7: Why might motor speed fluctuate unexpectedly?

Review the speed reference, analog input scaling, parameter configuration, control mode, and communication commands where applicable. Also check whether process-load changes are contributing to the variation.

Q8: How should an overheating problem be diagnosed?

Inspect enclosure ventilation, cooling-air paths, ambient temperature, contamination, load conditions, and installation clearances. Compare operating conditions with the limits specified for the exact drive configuration.

Q9: What precautions are required before inspecting the drive?

Disconnect and isolate power sources, apply the site's lockout/tagout procedures, and allow the specified DC-bus discharge time. Use suitable test equipment to verify the absence of hazardous voltage before touching electrical components.

Q10: What information is essential when replacing an existing PowerFlex 700 drive?

Confirm the full catalog number, supply-voltage class, output ratings, motor compatibility, enclosure requirements, control interfaces, installed options, and parameter settings. A replacement should be selected on verified technical compatibility rather than model-family similarity alone.
