Introduction

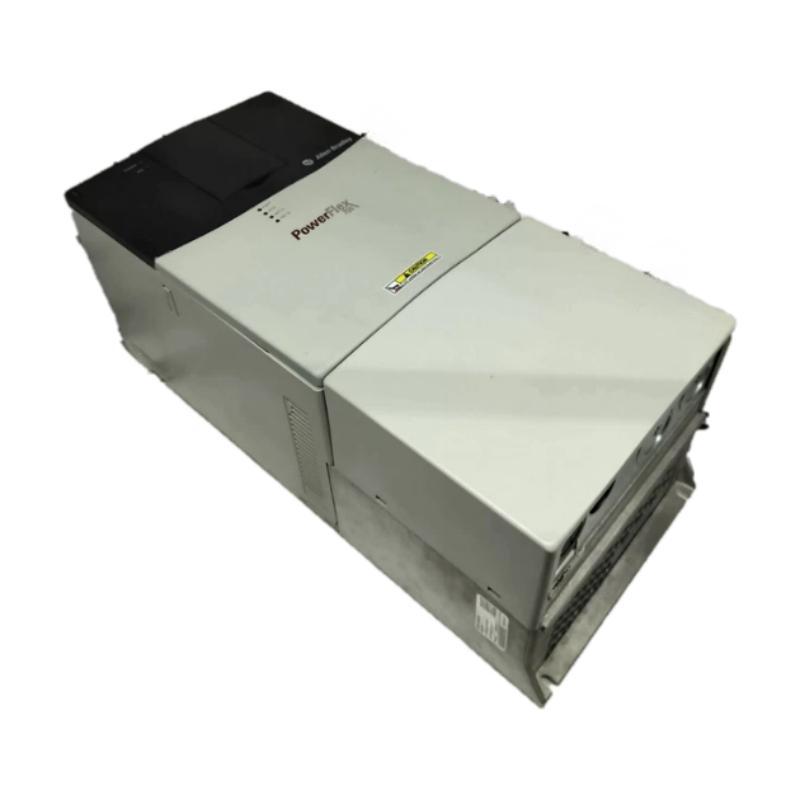

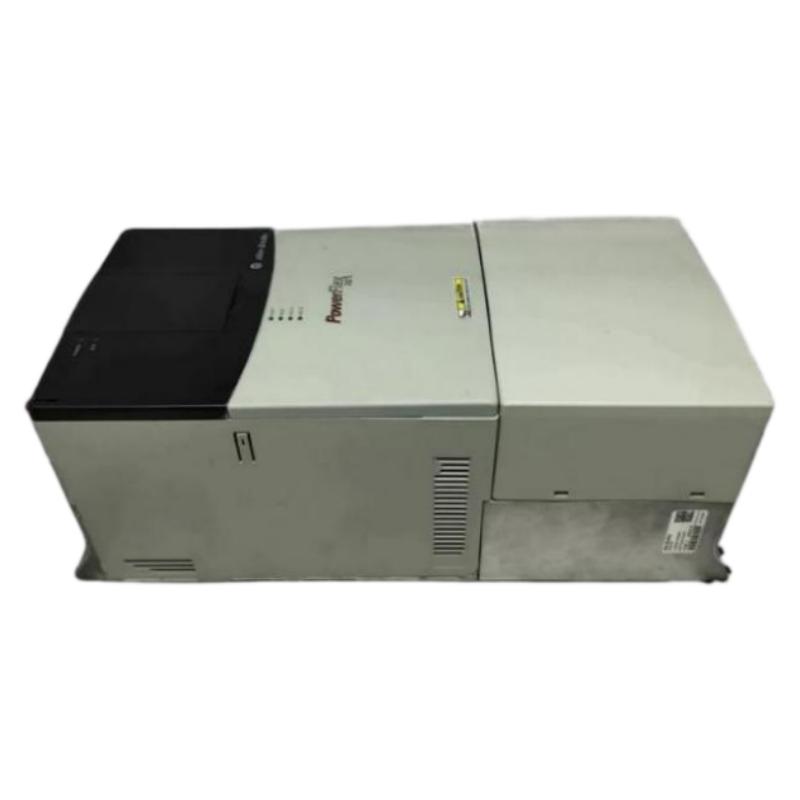

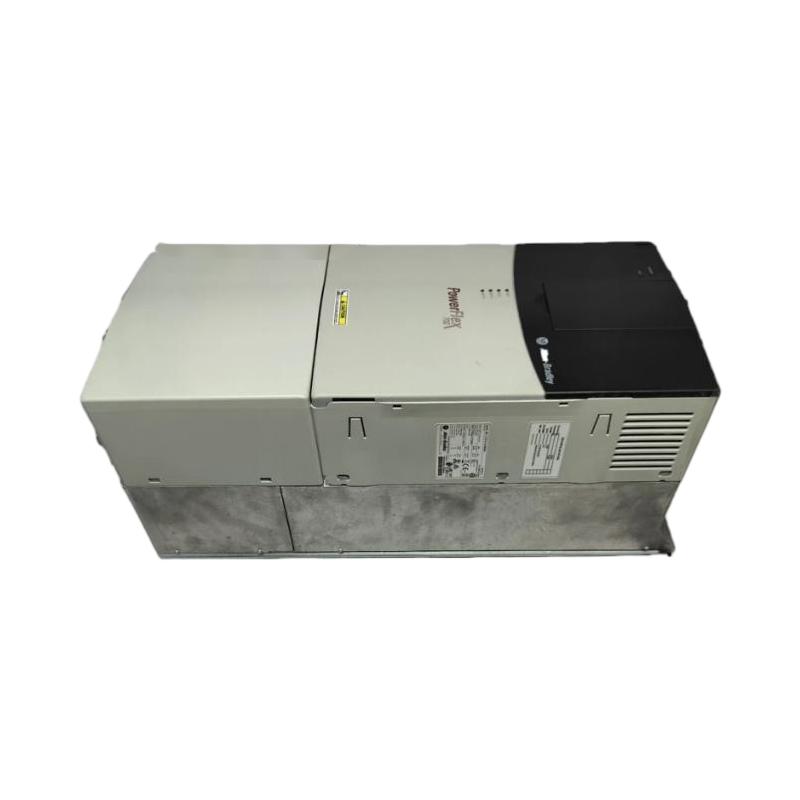

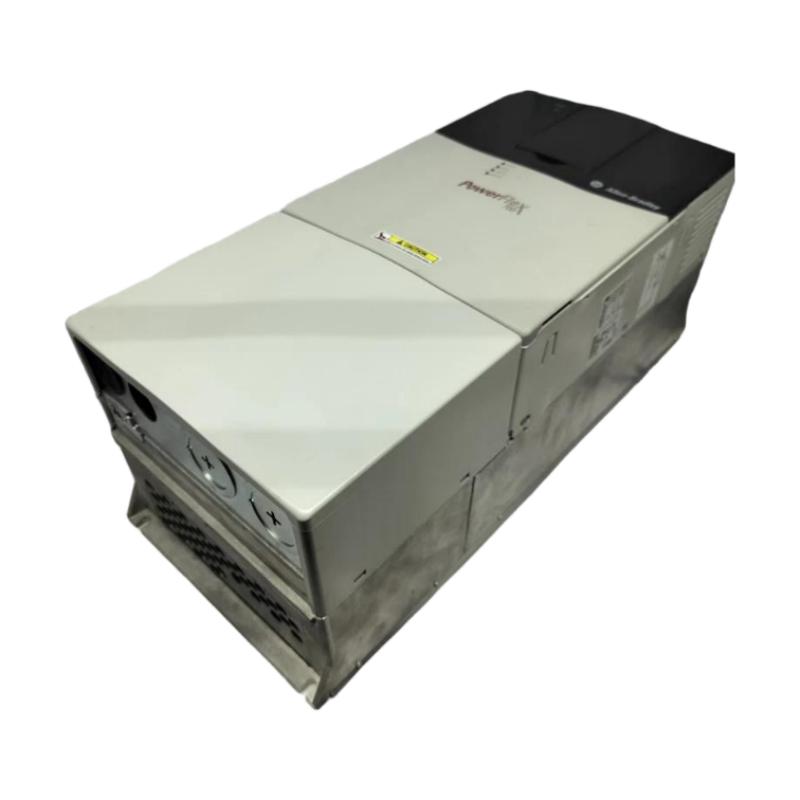

The Allen Bradley 20BC072A0AYNANC0 PowerFlex 700 AC Drive is a model within the PowerFlex 700 industrial drive family. Variable-frequency drives are commonly used in automation systems to control AC motor operation and adjust speed according to production requirements, machine sequences, and process conditions.

Selecting the correct drive for an industrial installation requires careful attention to its complete catalog number and configuration. Electrical ratings, available control interfaces, and installed communication options should be verified for the exact unit rather than inferred from the PowerFlex 700 family name.

For maintenance teams, equipment integrators, and industrial spare-parts suppliers, this verification is particularly important when replacing a drive in an existing control cabinet. The incoming supply, motor nameplate, driven load, protective devices, cooling arrangements, and control-system requirements should all be reviewed before installation.

Correct commissioning also involves checking the drive configuration, confirming the control source, validating motor parameters, and carrying out controlled operational tests. These steps help establish compatibility with the wider automation system and reduce avoidable startup problems.

For industrial equipment sourcing, accurate model identification and clear technical records make it easier to evaluate replacement requirements and manage spare parts for installed machinery.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	20BC072A0AYNANC0
Product Family	PowerFlex 700
Product Type	AC Drive
Primary Function	Adjustable-frequency AC motor control
Dimensions	517.5 × 222 × 200 mm
Weight	18.55 kg / 40.90 lb
Input Voltage	Verify against the complete catalog number and product nameplate
Output Current and Power	Confirm using the applicable drive rating information
Control Interface	Verify installed hardware and configured control method
Communication Options	Confirm installed options and system compatibility
Installation Requirements	Follow the applicable installation instructions for the exact configuration

Specification note: Dimensions and weight are based on the information supplied for this product listing. Confirm electrical ratings and configuration details against the actual unit before installation or replacement.

Recommended Related Models

The following models may be useful when comparing equipment in the PowerFlex 700 family. They should not be considered direct substitutes until their ratings and configurations have been checked.

Model	Product Type	Selection Consideration
Allen Bradley 20BC1P3A0AYNANC0	PowerFlex 700 AC Drive	Verify electrical ratings and motor compatibility
Allen Bradley 20BC2P1A0AYNANC0	PowerFlex 700 AC Drive	Compare drive and application requirements
Allen Bradley 20BC3P5A0AYNANC0	PowerFlex 700 AC Drive	Confirm configuration and control compatibility
Allen Bradley 20BC5P0A0AYNANC0	PowerFlex 700 AC Drive	Check operating ratings and installed options

Popular Related Models

Other Allen Bradley variable-frequency drive families may also be relevant when evaluating industrial motor-control equipment or considering a system upgrade.

Model or Family	Product Type	Typical Evaluation Focus
Allen Bradley 20BC072A0AYNANC0	PowerFlex 700 AC Drive	Catalog identification and replacement compatibility
Allen Bradley PowerFlex 700 Series	Industrial AC Drives	Existing installation requirements and electrical ratings
Allen Bradley PowerFlex 40 Series	Compact AC Drives	Suitability for simpler variable-speed applications
Allen Bradley PowerFlex 753 Series	Industrial AC Drives	Application needs and automation integration

Selection reminder: Verify the full catalog number, product nameplate, electrical ratings, installed options, and motor requirements before ordering or installing a replacement. Models from the same product family are not automatically interchangeable.

Applications

The Allen Bradley 20BC072A0AYNANC0 PowerFlex 700 AC Drive is an industrial motor-control product intended for applications that require adjustable-speed operation of compatible AC motors. As part of the PowerFlex 700 family, it can be considered for automation systems where motor speed, acceleration, and operating behavior need to be coordinated with machine or process requirements.

Potential application areas include:

Conveyor Systems: Adjust motor speed to match production rates and material-handling demands.
Pumping Systems: Support variable-speed operation in compatible industrial fluid-handling applications.
Fans and Blowers: Regulate motor operation in suitable ventilation and air-handling equipment.
Manufacturing Machinery: Provide adjustable motor control for production lines and automated equipment.
Material-Handling Equipment: Coordinate motor-driven transport and transfer processes.
Industrial Process Systems: Support motor-speed control where equipment operation must respond to changing process conditions.

Application suitability depends on the exact drive ratings, motor characteristics, load profile, control method, and environmental conditions. Verify these requirements before installation or replacement.

Advantages

1. Adjustable Motor-Speed Operation

Variable-frequency control allows compatible AC motors to operate at different speeds according to process requirements, supporting more flexible machine operation.

2. Controlled Acceleration and Deceleration

When configured appropriately, drive ramp settings can manage motor speed changes and help reduce abrupt mechanical transitions.

3. Integration with Automation Systems

The PowerFlex 700 family is designed for industrial motor-control applications. Integration with PLCs and other control equipment depends on the drive's available interfaces and installed options.

4. Adaptability to Industrial Loads

Adjustable-speed control can be useful across different motor-driven applications, provided the selected drive is correctly rated for the motor and load.

5. Easier Equipment Identification

Maintaining accurate catalog-number and configuration records helps technicians identify the correct drive when troubleshooting or planning a replacement.

6. Support for Maintenance Planning

Checking the electrical ratings, control interfaces, and installation requirements before replacement helps reduce the risk of compatibility problems and commissioning delays.

Technical FAQs

Q1: What is the purpose of the Allen Bradley 20BC072A0AYNANC0?

It is identified as a PowerFlex 700 AC Drive intended for industrial motor-control applications. Its precise electrical ratings and supported functions should be verified against the complete catalog number and product nameplate.

Q2: How does a PowerFlex 700 drive regulate motor speed?

A variable-frequency drive adjusts the frequency supplied to a compatible AC motor. Motor speed depends on the output frequency, motor design, load, and selected control method.

Q3: What information should be checked before connecting the motor?

Confirm the motor's rated voltage, current, frequency, power, wiring arrangement, and operating requirements. Ensure these values are compatible with the drive's verified ratings.

Q4: Can the drive receive commands from a PLC?

The available control method depends on the installed hardware and configuration. Check the drive's supported terminal signals or communication options and ensure the PLC is configured accordingly.

Q5: What should be checked if the drive will not start?

Inspect the power supply, active fault indications, start command, enable conditions, interlocks, command-source selection, and control wiring. Verify that the configured operating mode matches the system design.

Q6: What can cause an overcurrent fault?

Potential causes include excessive load, motor or cable faults, mechanical binding, incorrect motor parameters, unsuitable acceleration settings, or an internal drive issue. Identify and correct the cause before restarting.

Q7: Why might the motor speed differ from the reference command?

Check the speed reference, command source, parameter settings, analog signal scaling, communication commands, and load conditions. Confirm that configured operating limits are not restricting the requested speed.

Q8: What maintenance checks can help prevent overheating?

Inspect cooling-air paths, ventilation, enclosure temperature, contamination, load conditions, and required installation clearances. Follow the limits specified for the exact drive configuration.

Q9: What safety precautions are required before servicing?

Isolate all relevant power sources, follow lockout/tagout procedures, and wait for the specified DC-bus discharge period. Verify that hazardous voltage is absent with appropriate test equipment before touching electrical components.

Q10: How should a replacement drive be selected?

Compare the complete catalog number, voltage class, output ratings, motor requirements, control interfaces, installed options, enclosure conditions, and parameter configuration. Confirm technical compatibility before ordering or commissioning a replacement.
