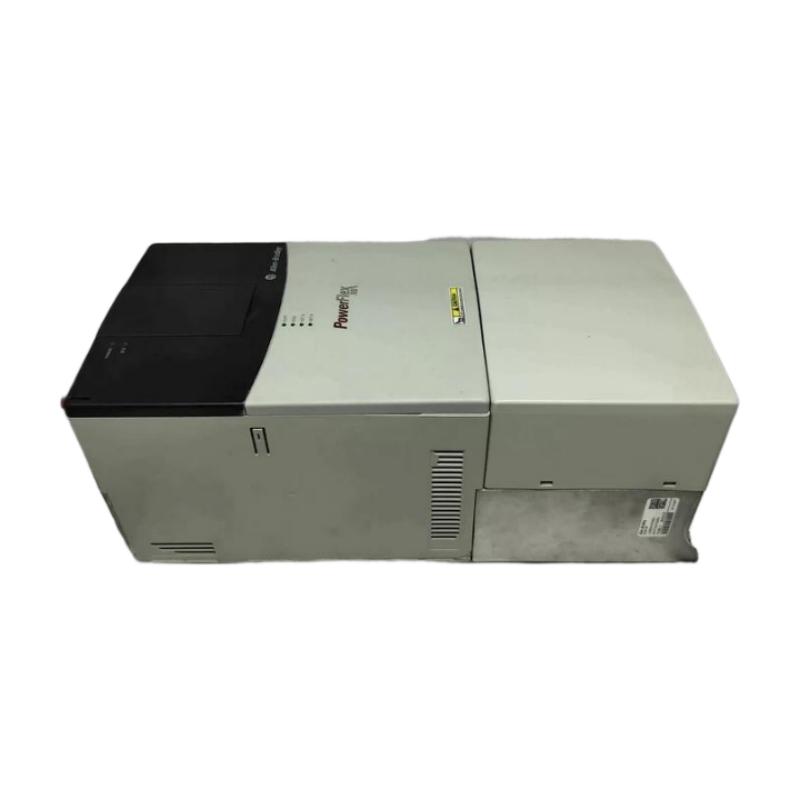

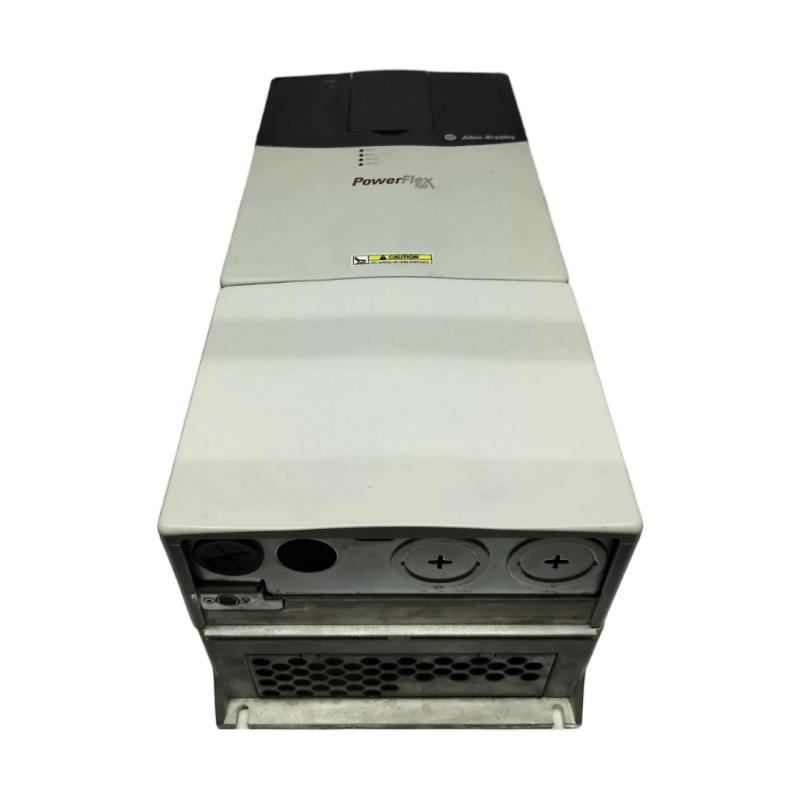

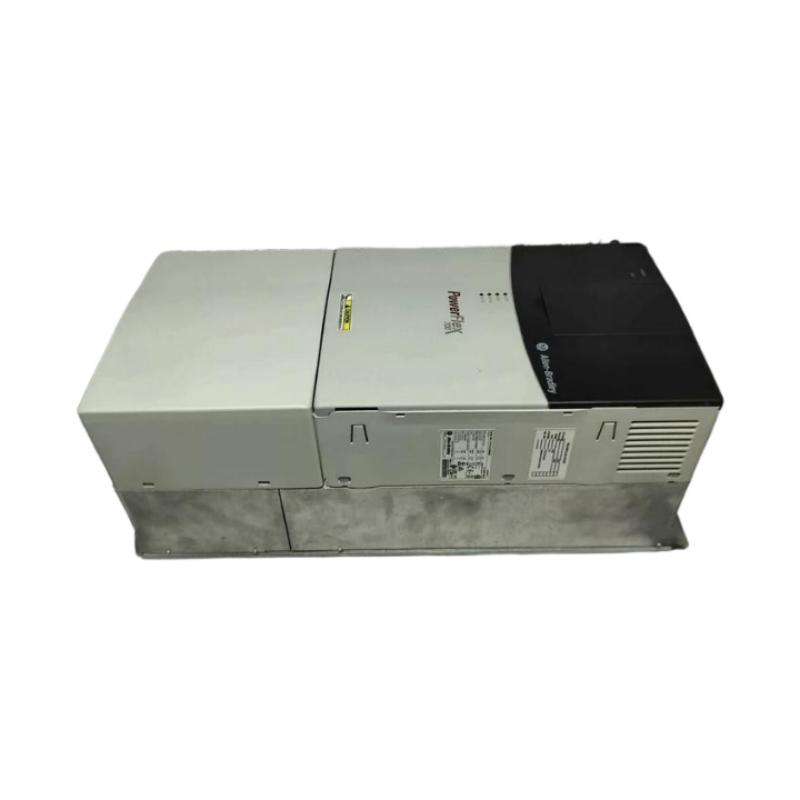

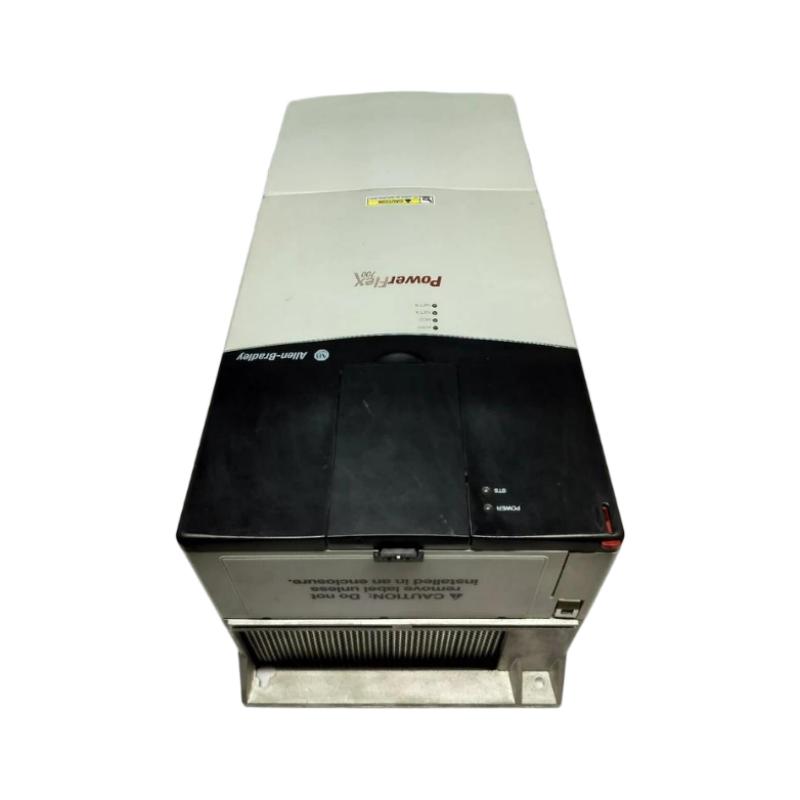

Allen Bradley 20BC105A0AYNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BC105A0AYNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive intended for applications that require adjustable AC motor operation within automated production and process systems. The PowerFlex 700 family supports industrial motor-control applications, where appropriate drive selection and configuration are essential for reliable equipment performance.

Potential application areas include:

• Industrial Conveyor Systems: Coordinate motor speed with production flow, material transfer, and equipment operating sequences.

• Pumping and Fluid Handling: Support adjustable-speed operation when the motor, pump, and drive ratings are compatible.

• Fans and Blowers: Regulate motor operation in suitable ventilation and industrial air-handling systems.

• Manufacturing Equipment: Provide variable-speed motor control for production machinery and automated processes.

• Material-Handling Systems: Support controlled motor operation in conveying and transfer applications.

• Process Automation: Work as part of a broader control system where motor operation must respond to process demands.

The suitability of this exact model depends on its verified voltage class, output ratings, control configuration, and the requirements of the connected motor and load.

Advantages

1. Adjustable AC Motor-Speed Control

Variable-frequency drive technology allows compatible motors to operate at different speeds, helping equipment match its operation to process requirements.

2. Configurable Acceleration and Deceleration

Appropriate drive settings can manage motor speed transitions during startup and stopping, supporting controlled operation in compatible mechanical systems.

3. Industrial Control-System Integration

The PowerFlex 700 family is intended for industrial automation environments. Integration with PLCs and other controllers depends on the installed interface options and selected control method.

4. Adaptability to Different Industrial Processes

Adjustable-speed control can support a range of motor-driven applications when the drive is correctly selected for the motor's electrical requirements and load characteristics.

5. Configuration-Based Maintenance

Recording the full catalog number, nameplate information, and installed options helps maintenance personnel identify equipment and evaluate replacement suitability.

6. More Reliable Replacement Planning

Checking electrical ratings, control interfaces, installation conditions, and parameter requirements before replacement can reduce avoidable compatibility issues.

Technical FAQs

Q1: What is the primary function of the Allen Bradley 20BC105A0AYNANC0?

It is identified as a PowerFlex 700 AC Drive for industrial motor-control applications. Verify the exact electrical ratings and supported features against the complete catalog number and the product nameplate.

Q2: How does a variable-frequency drive control AC motor speed?

It adjusts the frequency supplied to a compatible AC motor. The resulting speed depends on the motor design, output frequency, load conditions, and selected control method.

Q3: What should be checked before connecting a motor to the drive?

Verify the motor's rated voltage, current, frequency, power, wiring arrangement, and operating characteristics. Ensure the motor requirements fall within the drive's confirmed ratings.

Q4: Can the drive be integrated with a PLC?

Integration depends on the available control terminals, installed communication options, and automation architecture. The drive and PLC must be configured for compatible command and reference signals.

Q5: What should technicians investigate if the drive does not start?

Check the incoming power, active fault indications, start command, enable conditions, interlocks, command-source selection, and control wiring. Confirm that the selected control mode matches the application.

Q6: What can cause an overcurrent trip?

Potential causes include excessive mechanical load, motor or cable faults, incorrect motor data, unsuitable acceleration settings, or a drive hardware problem. Determine the cause before resetting and restarting the equipment.

Q7: Why might the motor fail to follow its speed reference?

Check the reference source, parameter configuration, analog signal scaling, communication commands, operating limits, and mechanical load. Verify that the drive is receiving the intended command.

Q8: How can overheating problems be investigated?

Inspect ventilation, cooling-air paths, enclosure temperature, contamination, load conditions, and installation clearances. Compare actual operating conditions with the requirements for the exact drive configuration.

Q9: What safety steps are required before maintenance?

Isolate all relevant power sources, follow lockout/tagout procedures, and wait for the specified DC-bus discharge period. Verify the absence of hazardous voltage using suitable test equipment before handling electrical components.

Q10: What information is required to select a replacement drive?

Confirm the full catalog number, voltage class, output ratings, motor compatibility, control interfaces, installed options, enclosure requirements, and parameter settings. Verify the replacement against the existing system before installation.
