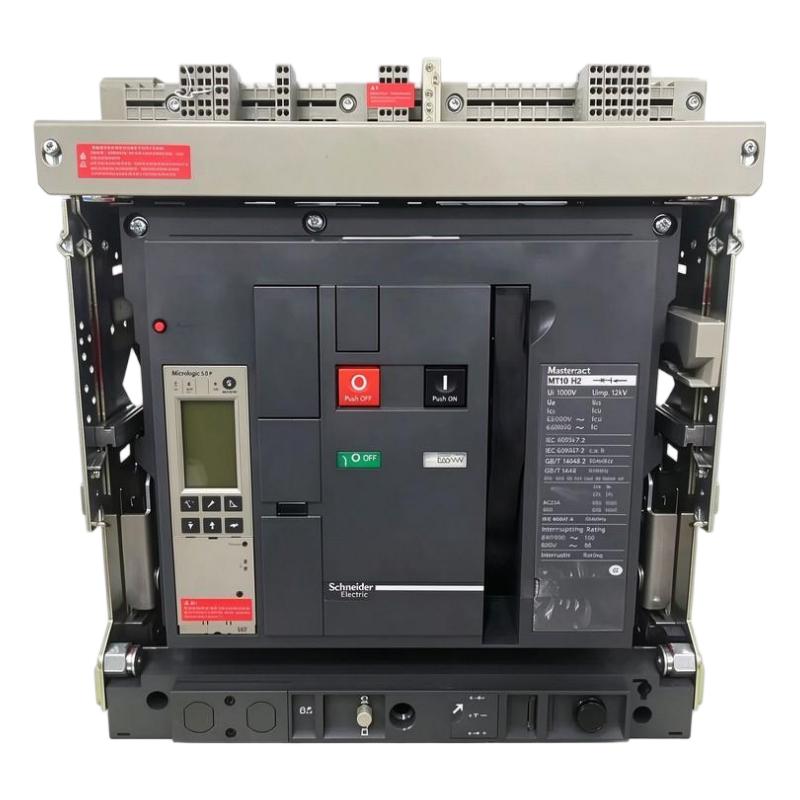

Schneider MT10H2 Breaker

Applications

The Schneider MT10H2 Breaker is an industrial circuit protection product identified by its model designation. In industrial electrical distribution systems, circuit breakers help protect electrical circuits and connected equipment against specified fault conditions, depending on the device's rated characteristics and protection settings.

Potential application areas include:

• Industrial Power Distribution: Use in electrical distribution assemblies where the breaker's ratings match the system requirements.

• Manufacturing Facilities: Support electrical protection arrangements for industrial equipment and production infrastructure.

• Motor Control Panels: Serve as part of a properly engineered protection system, subject to motor starting characteristics and coordination requirements.

• Industrial Switchboards: Integrate into compatible switchboard assemblies according to the manufacturer's installation requirements.

• Equipment Maintenance: Support maintenance and replacement projects where the existing breaker configuration has been correctly identified.

• Electrical Infrastructure Upgrades: Provide a component for evaluation during system refurbishment, subject to verified electrical compatibility.

Before selecting the MT10H2 for an installation, confirm its complete product reference, rated current, rated operational voltage, breaking capacity, trip-unit configuration, and mounting arrangement. The model designation alone is not sufficient to establish these specifications.

Advantages

1. Circuit Protection

A correctly selected circuit breaker helps interrupt current under specified fault conditions, reducing the risk of damage to electrical equipment and distribution systems.

2. Integration into Industrial Distribution Systems

Industrial breakers can be incorporated into switchboards and electrical panels designed for their mechanical dimensions, connection arrangements, and electrical ratings.

3. Support for Equipment Isolation

Depending on the device design and applicable operating procedures, a breaker can provide a means of switching a circuit off for maintenance and operational control. It must not be treated as a substitute for required safe-isolation procedures.

4. Coordination with Protection Devices

Appropriate selection and coordination with upstream and downstream protective devices help ensure that faults are cleared in accordance with the system's protection design.

5. Maintenance and Replacement Planning

Accurate model identification, inspection records, and verified electrical specifications help maintenance teams select suitable replacement components.

6. Application-Specific Configuration

Verifying trip-unit characteristics, accessories, terminal arrangements, and mounting requirements helps ensure that the selected breaker meets the needs of the installation.

Technical FAQs

Q1: What is the primary function of the Schneider MT10H2 Breaker?

Its intended role is circuit switching and protection, subject to the exact product configuration. Confirm the manufacturer's documentation for the precise functions and protection characteristics of the MT10H2.

Q2: How does an industrial circuit breaker protect an electrical circuit?

A circuit breaker detects specified abnormal current conditions through its protection mechanism and interrupts the circuit when its operating criteria are met. The response depends on the breaker's design and protection settings.

Q3: What is the difference between rated current and breaking capacity?

Rated current describes the current a breaker is designed to carry under specified conditions. Breaking capacity indicates the fault current it can safely interrupt under defined test conditions. Both must be suitable for the installation.

Q4: How should the correct breaker rating be selected?

Consider the system voltage, expected load current, conductor ampacity, prospective short-circuit current, environmental conditions, and applicable electrical codes. Protection settings must also suit the equipment being protected.

Q5: What is a trip unit, and why does its configuration matter?

A trip unit evaluates current conditions and determines when the breaker should trip. Depending on the design, its protection functions and settings affect overload and short-circuit response. Verify the trip-unit type and settings for the exact model.

Q6: Why might a circuit breaker trip repeatedly?

Possible causes include overload, short circuits, ground faults, unsuitable settings, excessive starting current, or a faulty connected component. Identify the cause before attempting to re-energize the circuit.

Q7: What should be checked if the breaker cannot be closed?

Check for an active trip condition, a mechanical interlock, an incomplete reset sequence, an undervoltage release, or another installed accessory that prevents closing. Follow the device-specific operating instructions and never force the mechanism.

Q8: How can technicians assess breaker contact condition?

Follow the manufacturer's inspection and maintenance procedures. Depending on the breaker design, assessment may involve checking for visible damage, abnormal heating, wear indicators, and connection integrity. Internal inspection should be performed only by qualified personnel.

Q9: Can the MT10H2 replace another Schneider circuit breaker?

Not based on the model name or physical dimensions alone. Verify the electrical ratings, breaking capacity, trip characteristics, mounting, terminal arrangement, accessories, and manufacturer-approved compatibility.

Q10: What safety precautions are required during breaker maintenance?

Isolate the equipment, apply lockout/tagout procedures, and verify the absence of hazardous voltage using appropriate test equipment. Follow site electrical-safety rules and applicable manufacturer instructions. Only qualified personnel should perform electrical inspection or servicing.
