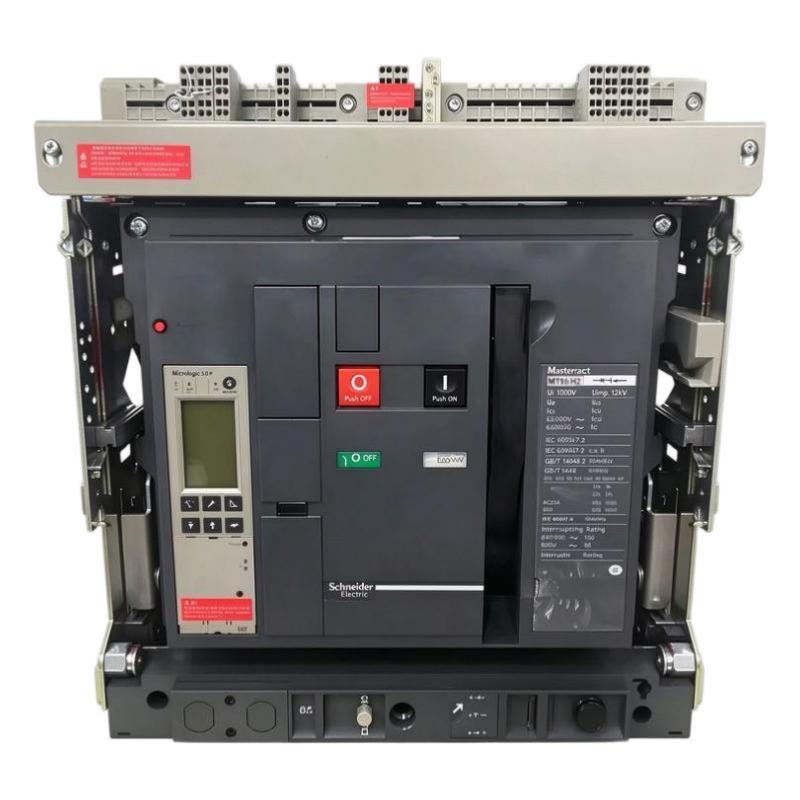

Schneider MT16H2 Breaker

Applications

The Schneider MT16H2 Breaker is intended for use in industrial and commercial electrical distribution systems where dependable circuit protection and reliable power isolation are essential. Before integrating this breaker into an existing installation, engineers should confirm its complete product reference and electrical ratings to ensure compatibility with the application.

Potential application areas include:

• Industrial power distribution: Supporting electrical distribution arrangements in manufacturing plants and industrial facilities.

• Machinery protection: Serving as part of a properly engineered protection system for industrial machinery and production equipment.

• Electrical control panels: Integration into compatible switchboards and power distribution assemblies.

• Building electrical infrastructure: Supporting distribution systems in commercial and industrial buildings.

• Maintenance and replacement projects: Replacing an existing breaker when the electrical characteristics, mounting arrangement, and accessories are confirmed to match.

The final application must be determined by the manufacturer's specifications for the exact MT16H2 reference and the requirements of the installation.

Advantages

1. Designed for industrial distribution applications

The MT16H2 designation identifies a product reference that should be checked against the applicable Schneider Electric documentation before its protection characteristics are specified.

2. Supports organized electrical protection systems

When correctly selected and installed, a compatible circuit breaker helps protect electrical circuits against specified fault conditions.

3. Suitable for equipment maintenance planning

Maintaining accurate model and configuration records helps technicians identify replacement components and reduce errors during servicing.

4. Facilitates replacement-part identification

Using the complete model designation alongside the original nameplate information helps distinguish the required breaker from products with similar model numbers.

5. Integration depends on verified compatibility

Electrical ratings, terminal arrangements, mounting dimensions, trip-unit characteristics, and accessory requirements should all be checked before installation.

6. Supports maintenance and lifecycle management

Recording the installed model, commissioning information, and inspection history can improve maintenance planning and replacement traceability.

Technical FAQs

Q1: What is the primary function of a circuit breaker in an industrial electrical system?

A circuit breaker interrupts electrical current when specified fault conditions are detected. Its protection functions depend on the breaker design, trip mechanism, and rated characteristics.

Q2: How can I confirm the rated current of the Schneider MT16H2?

Check the product nameplate and the technical documentation corresponding to the complete catalog number. Do not determine rated current from the MT16H2 designation alone.

Q3: How do I verify the rated operating voltage?

Confirm the rated voltage listed in the manufacturer's documentation and ensure it is suitable for the system's nominal voltage and grounding arrangement.

Q4: What is breaking capacity, and why is it important?

Breaking capacity indicates the maximum prospective fault current a breaker can interrupt under specified test conditions. The selected value must meet or exceed the applicable fault-current requirements at the installation point.

Q5: Can the MT16H2 replace another Schneider Electric breaker?

Not automatically. Replacement suitability depends on electrical ratings, protection characteristics, physical mounting, connection interfaces, and any required accessories.

Q6: How should the breaker be selected for motor circuits?

Selection must account for motor starting current, overload protection requirements, short-circuit protection, coordination with other protective devices, and the applicable electrical standards.

Q7: What should be checked before energizing the breaker?

Verify the wiring, terminal tightness according to manufacturer instructions, mounting security, insulation condition, protective coordination, and the suitability of upstream and downstream equipment.

Q8: What can cause a breaker to trip repeatedly?

Possible causes include overloads, short circuits, ground faults, incorrect protection settings, or equipment faults. Investigate the underlying cause instead of repeatedly resetting the breaker.

Q9: Can accessories from another breaker model be used with the MT16H2?

Only when compatibility is explicitly confirmed by the manufacturer. Similar appearances or dimensions do not establish electrical or mechanical compatibility.

Q10: What information is needed to verify the exact breaker configuration?

Useful information includes the full catalog number, nameplate ratings, trip-unit details, accessory codes, terminal configuration, and mounting requirements.
