Introduction

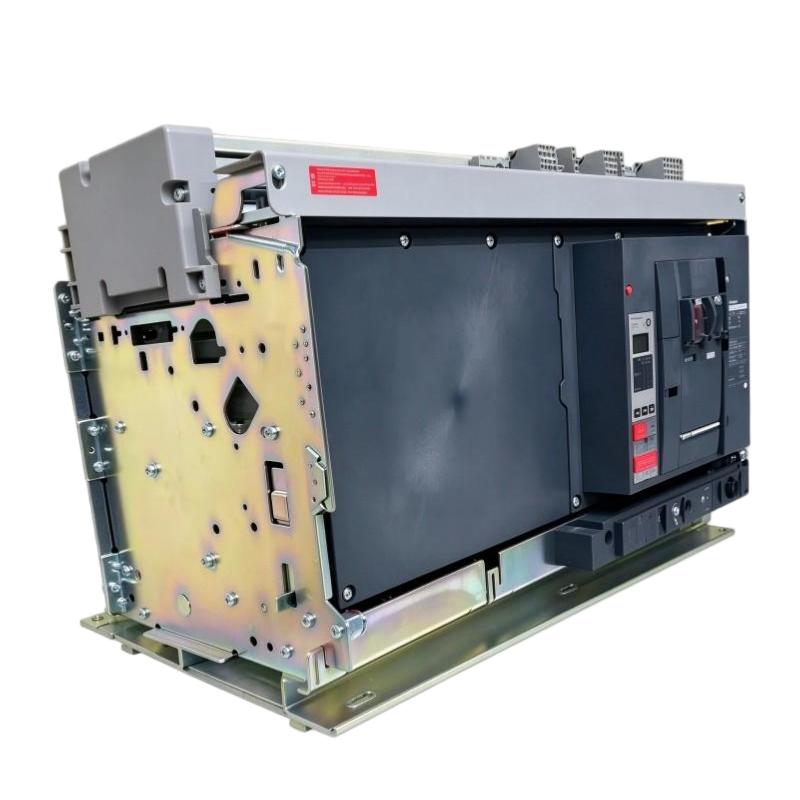

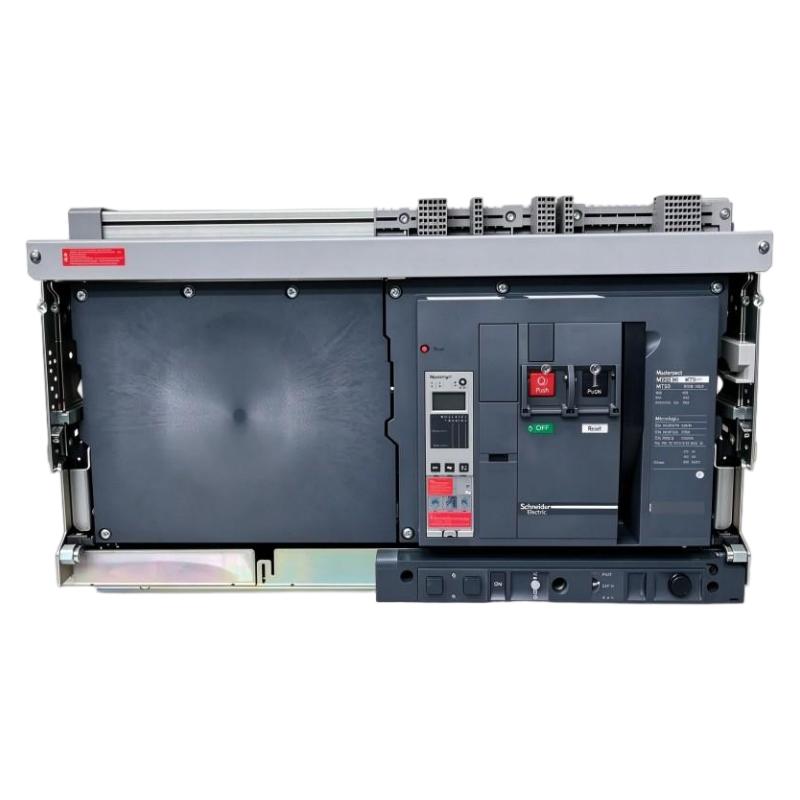

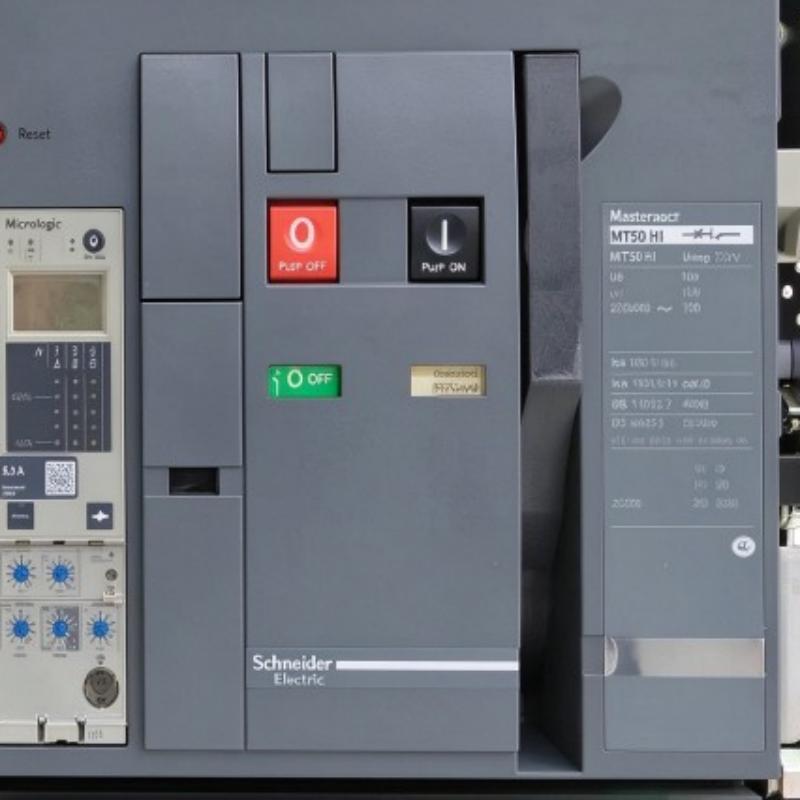

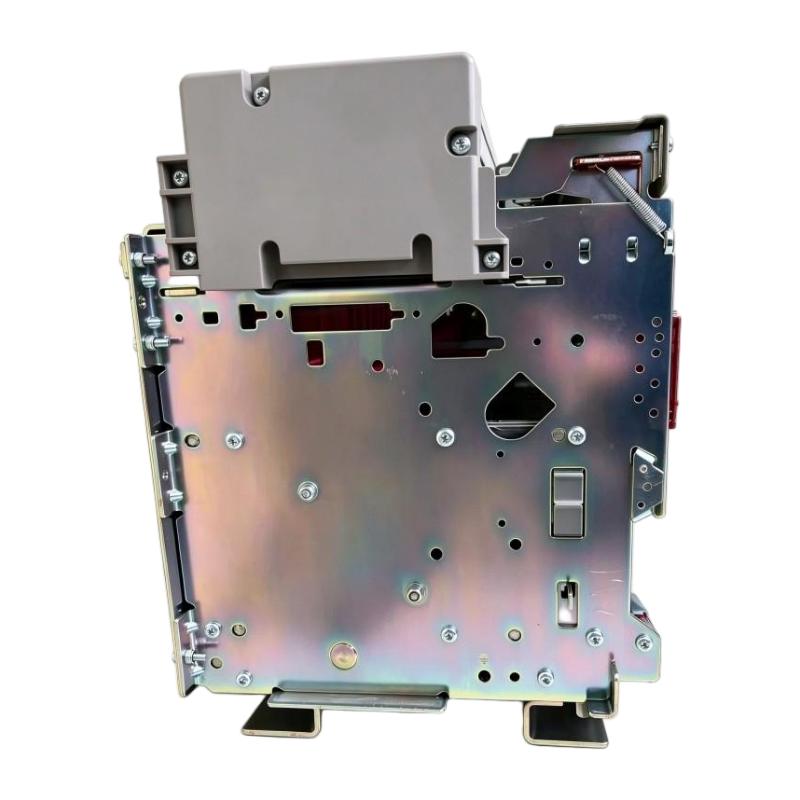

The Schneider MT50H1 Breaker is associated with the Masterpact M family of low-voltage air circuit breakers used in high-current power distribution systems. Equipment from this legacy product family may remain in service in industrial plants, commercial facilities, and electrical infrastructure installations.

For maintenance teams and industrial equipment buyers, identifying the exact configuration is essential when sourcing a replacement breaker or planning a switchgear refurbishment. The product designation alone may not establish every electrical and mechanical characteristic required for a safe replacement.

When purchasing a Schneider MT50H1 Breaker, buyers should verify the nameplate, rated current, breaking capacity, trip unit, pole arrangement, and mounting configuration. Particular attention should be paid to compatibility with the existing switchboard and the electrical protection scheme.

For legacy equipment, accurate identification helps reduce procurement errors, avoid unnecessary modification work, and support reliable operation throughout the service life of the electrical distribution system.

Technical Specifications

Parameter	Specification
Brand	Schneider Electric
Model	MT50H1
Product Type	Air Circuit Breaker (ACB)
Product Family	Masterpact M
Frame Rating Reference	5000 A
Dimensions (H × W × D)	819 × 311 × 290 mm
Dimensions (inches)	32.24 × 12.24 × 11.42 in
Weight	120 kg (264.55 lb)

Dimensions and weight are supplied reference values. Confirm them against the exact breaker configuration and nameplate before ordering or installation.

Recommended Related Models

Schneider MT40H1 Breaker
Schneider MT50H2 Breaker
Schneider MT63H1 Breaker
Schneider MT32H1b Breaker
Schneider Masterpact NW40N1 Breaker

Popular Related Models

Schneider MT40H1
Schneider MT50H1
Schneider MT50H1b
Schneider MT63H1
Schneider NW40N1

When sourcing legacy Schneider Electric circuit breakers, confirm the full model designation and configuration to ensure electrical and mechanical compatibility with the intended installation.

Applications

The Schneider MT50H1 Breaker is designed for low-voltage power distribution systems that require reliable circuit protection and dependable switching performance. It is suitable for industrial facilities, commercial buildings, electrical distribution panels, and infrastructure installations where high-current circuit protection is essential.

Typical applications include:

Industrial power distribution and main switchboards
Protection of transformers, generators, and large electrical feeders
Manufacturing plants and process automation facilities
Commercial buildings and critical infrastructure
Electrical systems requiring reliable isolation and maintenance access

Advantages

High-current capability: Designed for demanding power distribution applications.
Reliable circuit protection: Supports protection against electrical faults when equipped with the appropriate trip unit and settings.
Industrial durability: Suitable for installation in demanding electrical distribution environments.
Maintenance flexibility: Supports inspection and maintenance procedures appropriate to the installed configuration.
System integration: Can be incorporated into compatible low-voltage switchgear and distribution assemblies.
Replacement potential: May be suitable for maintaining legacy Masterpact installations when the complete model and configuration are verified.

Technical FAQs

Q1: What type of circuit breaker is the Schneider MT50H1?

The MT50H1 is associated with Schneider Electric's legacy Masterpact M air circuit breaker family. The exact product configuration should be verified using its nameplate and complete catalog reference.

Q2: What is the rated current of the MT50H1?

The MT50H1 designation is associated with a 5000 A frame rating. Confirm the actual rated current and applicable operating conditions from the original nameplate and technical documentation.

Q3: What protection functions can the MT50H1 provide?

Protection functions depend on the installed trip unit. Depending on the configuration, these may include long-time, short-time, instantaneous, and ground-fault protection.

Q4: Can the MT50H1 protect a transformer feeder?

It may be suitable for a transformer feeder when its rated current, interrupting capacity, protection settings, and coordination with upstream and downstream devices meet the system design requirements.

Q5: What causes nuisance tripping?

Possible causes include incorrect protection settings, overload conditions, short circuits, ground faults, or a malfunctioning trip unit. Review event records and perform qualified electrical testing before changing settings.

Q6: How should the trip unit be checked?

A qualified technician should inspect the trip unit, verify its settings against the protection study, and conduct the appropriate functional tests using approved procedures and equipment.

Q7: Can the MT50H1 be used in a modern switchboard?

Integration depends on the switchboard design, electrical ratings, mounting arrangement, busbar connections, clearances, and applicable safety standards. Compatibility must be established before installation.

Q8: What maintenance does this breaker require?

Maintenance typically includes visual inspection, checking connections according to manufacturer procedures, examining operating mechanisms, and performing electrical tests at the recommended intervals.

Q9: Can the MT50H1 replace another Masterpact breaker?

Not automatically. Verify the frame, rated current, breaking capacity, trip unit, pole configuration, mounting arrangement, and connection dimensions before selecting a replacement.

Q10: What information is needed when sourcing an MT50H1 replacement?

Provide the complete catalog number, nameplate details, pole configuration, fixed or drawout arrangement, trip unit information, and any available photographs to help verify compatibility.
