Brand:Schneider PLC Item No.:MVS10H Product Origin:France Product Dimensions:352 x 422 x 297 mm Product Weight:40 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

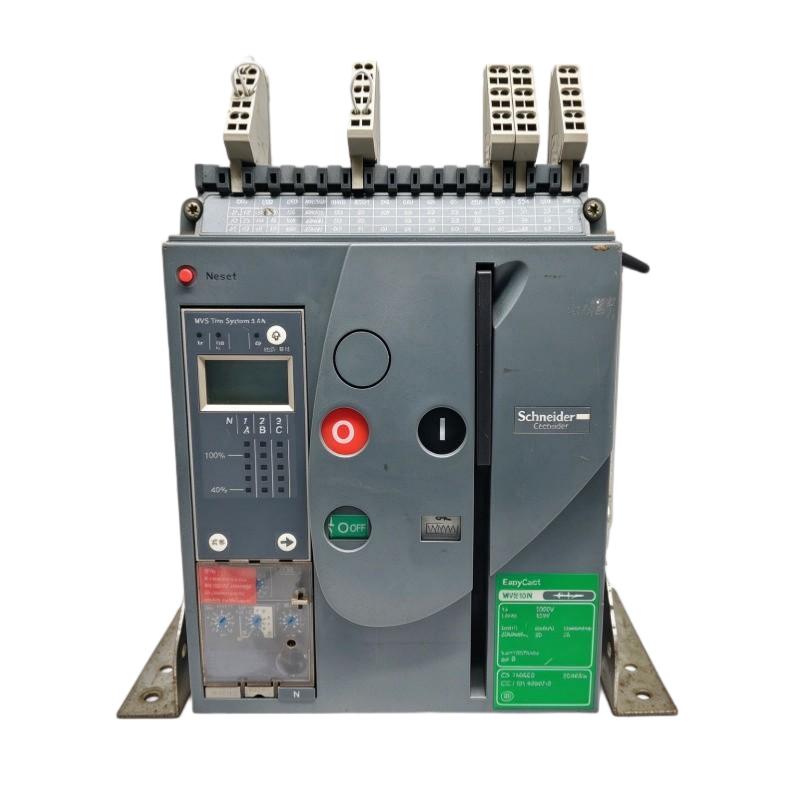

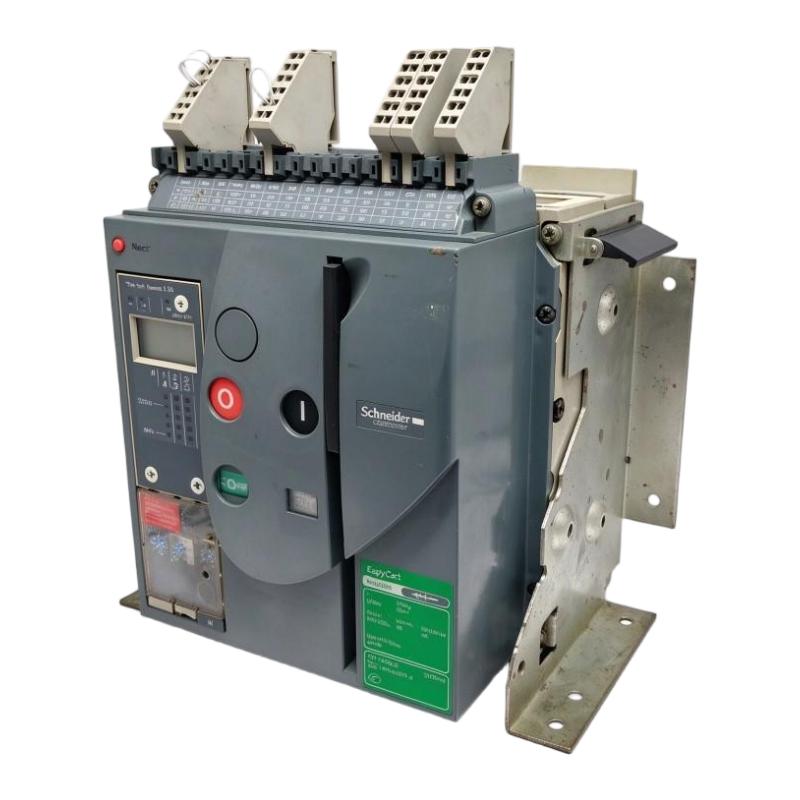

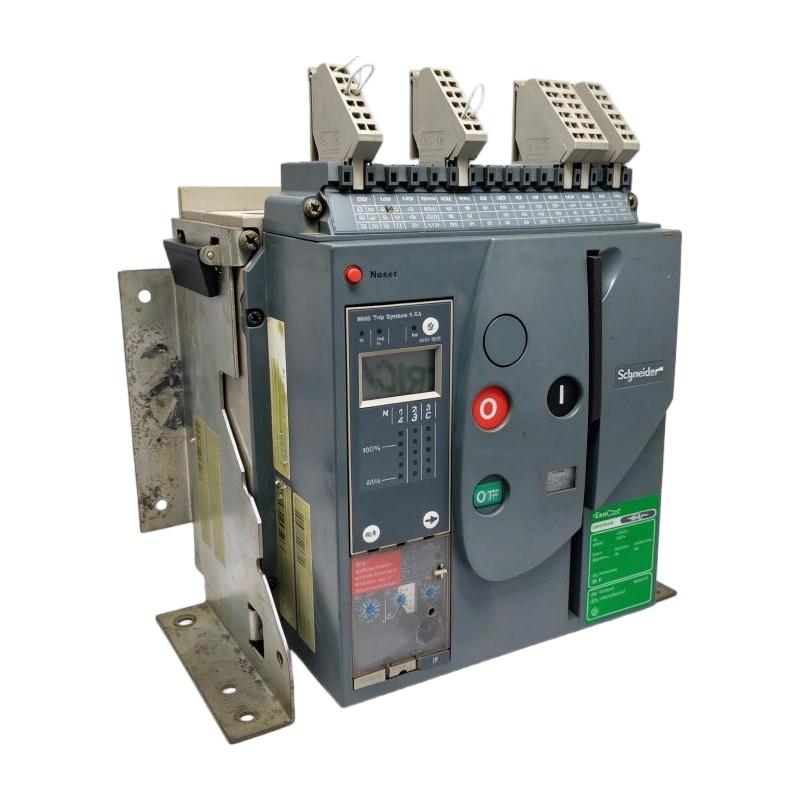

The Schneider MVS10H Breaker is associated with the EasyPact MVS range of low-voltage air circuit breakers. This product family is used in electrical distribution systems that require dependable switching, isolation, and protection for industrial and commercial loads.
For maintenance engineers, system integrators, and industrial equipment buyers, the MVS10H may be relevant to power distribution upgrades, switchgear servicing, and replacement projects. Correct model identification is important because circuit breakers with similar current ratings can have different interrupting capacities, connection arrangements, trip units, and mounting dimensions.

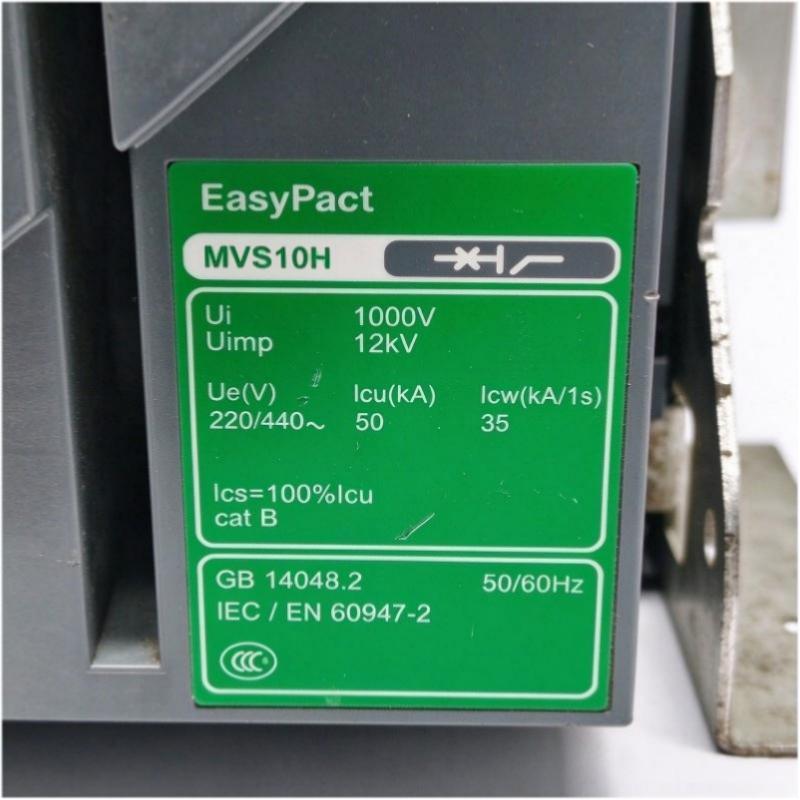

Before ordering, verify the full catalog reference and the information printed on the product nameplate. Confirm rated current, operating voltage, breaking capacity, pole configuration, and mounting type against the existing switchgear.
Careful specification matching helps reduce procurement errors and supports safe, reliable operation of the electrical distribution system.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model
MVS10H
Product Type
Air Circuit Breaker (ACB)
Product Family
EasyPact MVS
Rated Current Reference
1000 A
Dimensions (H × W × D)
352 × 422 × 297 mm
Dimensions (inches)
13.86 × 16.61 × 11.69 in
Weight
40 kg (88.18 lb)
Dimensions and weight are supplied reference values. Actual specifications may vary with pole count, mounting arrangement, and the complete catalog number. Verify the exact configuration before ordering or installation.
Recommended Related Models
Schneider MVS08H Breaker
Schneider MVS12H Breaker
Schneider MVS16H Breaker
Schneider MVS20H Breaker
Schneider NW10N1 Breaker
Popular Related Models
Schneider MVS08H
Schneider MVS10H
Schneider MVS12H
Schneider MVS16H
Schneider NW10N1
When sourcing Schneider Electric circuit breakers, confirm the complete catalog number and technical configuration to ensure the selected product is suitable for the intended installation.
Applications
The Schneider MVS10H Breaker is a low-voltage air circuit breaker designed for power distribution systems that require reliable switching and electrical protection. As part of the Schneider Electric EasyPact MVS family, it is suitable for industrial facilities, commercial buildings, and infrastructure projects where dependable power distribution is essential.
Typical applications include:
Main incoming protection for industrial distribution panels
Power distribution in manufacturing plants and production lines
Transformer feeder and generator distribution systems
Commercial buildings and large electrical installations
Industrial utilities and infrastructure facilities
The appropriate application depends on the breaker's rated voltage, breaking capacity, trip-unit configuration, and electrical system requirements.
Advantages
Dependable circuit protection: Supports protection against overloads and short circuits when equipped with a compatible trip unit.
High-current distribution: The MVS10H designation is associated with a 1000 A frame rating, subject to confirmation against the product nameplate.
Industrial-grade construction: Designed for use in low-voltage distribution assemblies.
Flexible system integration: Can be incorporated into compatible switchboards and electrical distribution panels.
Maintenance support: Allows inspection and testing according to applicable manufacturer procedures.
Legacy equipment replacement: May be suitable for maintenance projects involving existing EasyPact MVS installations after compatibility checks.
Technical FAQs
Q1: What type of circuit breaker is the Schneider MVS10H?
The MVS10H is associated with Schneider Electric's EasyPact MVS family of low-voltage air circuit breakers.
Q2: What is the rated current of the MVS10H?
The model designation generally corresponds to a 1000 A frame rating. Confirm the actual rated current and operating conditions using the nameplate and product documentation.
Q3: What protection functions can the MVS10H provide?
Depending on the installed trip unit, protection may include long-time overload, short-time overcurrent, and instantaneous short-circuit functions.
Q4: Can the MVS10H be used as a main incoming breaker?
It may be suitable for a main incoming application when its electrical ratings, breaking capacity, and protection coordination meet the requirements of the distribution system.
Q5: What causes unexpected tripping?
Potential causes include overloads, short circuits, ground faults where applicable, incorrect protection settings, or a malfunctioning trip unit. The underlying fault should be investigated before resetting the breaker.
Q6: Can the MVS10H protect a transformer feeder?
It can be considered for transformer feeder protection if its interrupting capacity and protection characteristics are appropriate for the transformer and the prospective short-circuit current.
Q7: How can the trip unit be checked?
A qualified technician should inspect the trip unit, verify protection settings against the coordination study, and perform appropriate functional tests using approved equipment.
Q8: Can the MVS10H replace another 1000 A circuit breaker?
Not automatically. Rated voltage, breaking capacity, pole count, terminal configuration, mounting arrangement, and trip-unit compatibility must all be verified.
Q9: What maintenance is recommended?
Maintenance may include visual inspection, mechanism checks, connection inspections, and trip-unit testing according to the manufacturer's instructions for the installed configuration.
Q10: What details are needed when purchasing an MVS10H replacement?
Provide the complete catalog number, nameplate information, pole count, fixed or drawout arrangement, and trip-unit details to help establish compatibility.
