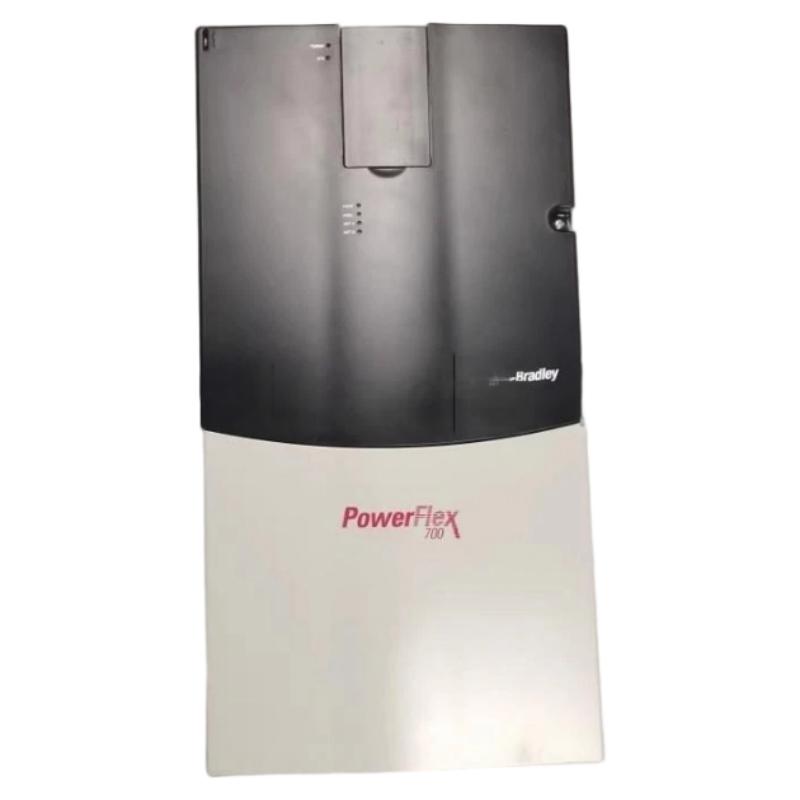

Allen Bradley 20BC125A0AYNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BC125A0AYNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive designed for motor speed control in compatible automation and power conversion systems. By regulating motor operation according to application requirements, an AC drive can help improve process control, reduce unnecessary energy consumption in suitable loads, and support smoother equipment operation.

Typical application areas include:

• Industrial manufacturing: Controlling compatible AC motors used in production machinery and automated equipment.

• Pumping systems: Adjusting motor speed to meet process flow and pressure requirements when the pump and system are designed for variable-speed operation.

• Fan and ventilation systems: Supporting adjustable airflow and process ventilation in suitable installations.

• Conveyor systems: Managing motor speed in material handling and production lines.

• Process automation: Integrating motor speed control into industrial control architectures.

• Equipment modernization: Replacing or maintaining existing drive systems after confirming motor, electrical, and control-interface compatibility.

• Industrial machinery: Supporting speed regulation for compatible motor-driven equipment in manufacturing and processing facilities.

Before selecting this drive, verify its input voltage, output current, horsepower or kilowatt rating, enclosure and protection requirements, control interfaces, and exact configuration using the product nameplate and manufacturer documentation.

Advantages

1. Adjustable Motor Speed

Variable-frequency drives regulate motor speed by controlling output frequency and voltage according to the drive's operating method. This allows compatible motor-driven equipment to operate at speeds suited to changing process demands.

2. Flexible Industrial Applications

The PowerFlex 700 product family is intended for industrial motor-control applications. The suitability of the specific 20BC125A0AYNANC0 configuration depends on its electrical ratings and installed options.

3. Potential Energy Savings

In applications such as fans and pumps, reducing motor speed can lower energy consumption when process demand permits. Actual savings depend on the load profile, system design, and operating conditions.

4. Improved Process Control

Adjustable speed can help equipment respond to changing production requirements, supporting more controlled operation than fixed-speed arrangements in suitable applications.

5. Integration with Automation Systems

The drive can be evaluated for integration into industrial control systems. Supported communication options, control terminals, and feedback functions should be confirmed for the exact catalog configuration.

6. Practical Installation Planning

The supplied dimensions of 689.6 × 308.9 × 275.4 mm help engineers plan cabinet space, mounting arrangements, and installation clearances. Ventilation and heat-dissipation requirements must also be considered.

7. Support for Maintenance and Replacement

The complete catalog number helps maintenance teams identify the intended drive configuration when sourcing replacement equipment, checking spare-parts availability, or preparing maintenance plans.

Technical FAQs

Q1: What is the Allen Bradley 20BC125A0AYNANC0 PowerFlex 700 used for?

It is an AC drive intended for variable-speed motor control in compatible industrial applications. The exact motor capacity and operating limits must be verified from the unit's nameplate and technical documentation.

Q2: How do I determine whether this drive is compatible with my motor?

Compare the motor's rated voltage, full-load current, power rating, frequency, and operating characteristics with the drive's specifications. Also consider the load type, acceleration requirements, and any required overload capability.

Q3: What input power supply does the 20BC125A0AYNANC0 require?

Confirm the input voltage, phase arrangement, frequency, and supply requirements from the exact product nameplate and documentation. Do not infer these values from the catalog number alone.

Q4: Can the PowerFlex 700 control pumps and fans?

The PowerFlex 700 family is used in industrial motor-control applications, including suitable pump and fan systems. Confirm that the specific drive configuration supports the motor rating, control method, and application requirements.

Q5: How should the drive's acceleration and deceleration times be configured?

Set ramp times according to the driven machine, motor characteristics, load inertia, and process requirements. Ramp settings that are too aggressive can cause overcurrent or overvoltage faults, while excessively long ramps may affect production performance.

Q6: What can cause an overcurrent fault during startup?

Possible causes include excessive acceleration demand, mechanical binding, incorrect motor data, unsuitable control settings, wiring faults, or a motor problem. Review the fault code and diagnostic information before changing parameters or restarting the equipment.

Q7: Why might the drive trip because of overvoltage during deceleration?

Rapid deceleration can return energy from the motor to the drive's DC bus. Depending on the configuration, adjusting the deceleration ramp or reviewing the applicable braking arrangement may help. Follow the manufacturer's troubleshooting guidance and do not change braking components without confirming compatibility.

Q8: What communication options are available for the drive?

Communication capabilities depend on the installed interface and drive configuration. Check the catalog information and physical hardware for supported network options, protocol compatibility, and configuration requirements before integrating the drive with a PLC or DCS.

Q9: What maintenance is recommended for a PowerFlex 700 drive?

Follow the manufacturer's maintenance schedule. Typical checks may include inspecting cooling paths, fans, electrical connections, signs of overheating, contamination, and abnormal operating conditions. Isolate the equipment and follow the required DC-bus discharge and electrical safety procedures before servicing.

Q10: What information should I provide when ordering a replacement drive?

Provide the complete catalog number, nameplate photographs, input and output ratings, required quantity, and details of any installed communication or control options. For a replacement project, compare the motor data, application settings, enclosure requirements, and system connections before installation.
