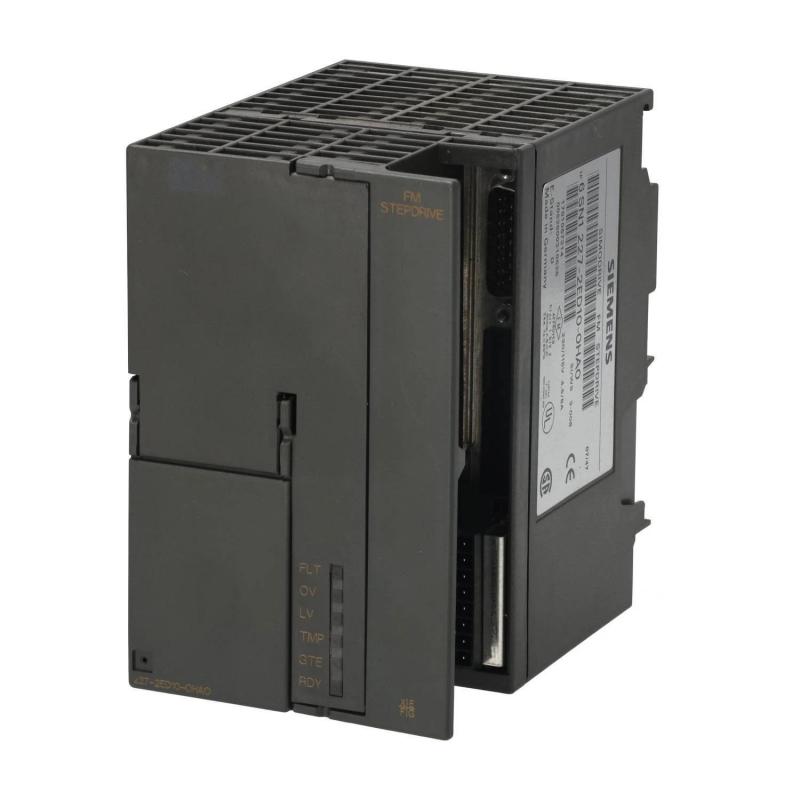

Siemens 6SN1227-2ED10-0HA0 Stepper Driver

Applications

The Siemens 6SN1227-2ED10-0HA0 Stepper Driver is identified as a stepper drive component for industrial automation applications. Stepper drive systems are used in applications that require controlled incremental movement, repeatable positioning, and coordinated motion. The exact function and compatibility of this Siemens model should be verified against its product documentation and the equipment in which it is installed.

Potential application areas for compatible stepper drive equipment include:

• Industrial positioning systems: Supports motion-control arrangements requiring controlled positioning.

• Automated machinery: Used in equipment where repeatable movement is part of the operating sequence.

• Packaging equipment: Stepper drive technology can support controlled movement in feeding, indexing, and positioning mechanisms.

• Material handling systems: May be relevant to machinery that requires incremental movement or positioning.

• Machine tool auxiliary axes: Can be considered for compatible motion-control configurations.

• Industrial equipment maintenance: Provides a specific model reference when identifying a replacement component for an existing installation.

Before selecting this model for an application, confirm the motor type, electrical interface, control method, and compatibility requirements specified by the equipment manufacturer.

Advantages

1. Model-Specific Identification

The full part number, 6SN1227-2ED10-0HA0, helps maintenance teams identify the required component and distinguish it from other drive products with similar appearances.

2. Supports Controlled Motion Applications

Stepper drive technology is commonly used where controlled incremental movement and repeatable positioning are required. The achievable performance depends on the drive, motor, control signals, and mechanical system.

3. Compact Form Factor

The listed dimensions of 127 × 102 × 127 mm provide a useful reference for equipment planning and replacement-part assessment.

4. Lightweight Construction

With a listed weight of 0.9 kg, the unit is convenient to handle during storage, installation preparation, and maintenance activities.

5. Practical for Spare Parts Management

A complete model number simplifies inventory identification, purchasing communication, and maintenance documentation.

6. Supports Equipment Maintenance

Replacing a component with the correctly verified model can help preserve the intended configuration of an existing automation system and reduce the risk of installation mismatch.

Technical FAQs

1. What is the Siemens 6SN1227-2ED10-0HA0?

It is identified in the supplied product information as a stepper driver. Its precise technical function, electrical characteristics, and supported equipment should be confirmed using the model-specific Siemens documentation.

2. What does a stepper driver do?

A stepper driver controls the electrical current supplied to a compatible stepper motor in response to control inputs. Depending on the design, it regulates motor phase current and determines movement in coordination with the controller.

3. Which stepper motors are compatible with this model?

Motor compatibility depends on the driver's output ratings, motor winding characteristics, connection arrangement, and control requirements. Verify these details before connecting a motor.

4. What control signals may a stepper driver use?

Stepper drives may use pulse-and-direction signals or other controller-specific interfaces. The supported input signals for the 6SN1227-2ED10-0HA0 must be confirmed from its documentation.

5. Can this driver replace another Siemens drive unit?

Not automatically. Different drive units may have different voltage ratings, current capabilities, control interfaces, and motor compatibility. Confirm the approved replacement and system requirements before substitution.

6. What symptoms may indicate a stepper driver fault?

Possible symptoms include a motor that does not move, irregular stepping, unexpected stops, overheating, or a drive fault indication. These symptoms can also arise from motor wiring, controller signals, power supply issues, or mechanical problems.

7. How should motor movement problems be diagnosed?

Check the system's fault indications, supply conditions, motor wiring, control signals, and mechanical load. Use the approved troubleshooting procedure and isolate power before inspecting or changing electrical connections.

8. What causes a stepper motor to lose steps?

Possible causes include excessive mechanical load, unsuitable acceleration settings, inadequate drive current, electrical interference, or incorrect motor configuration. Confirm that the motor and driver are configured within their specified operating limits.

9. What precautions should be taken during installation?

Verify the wiring diagram, motor connections, control interface, grounding, and electrical ratings before energizing the equipment. Follow the manufacturer's installation instructions and applicable electrical safety procedures.

10. How should the driver be maintained?

Inspect the installation for loose connections, contamination, signs of overheating, and inadequate ventilation where applicable. Follow the equipment manufacturer's service instructions and avoid unauthorized internal repairs.
