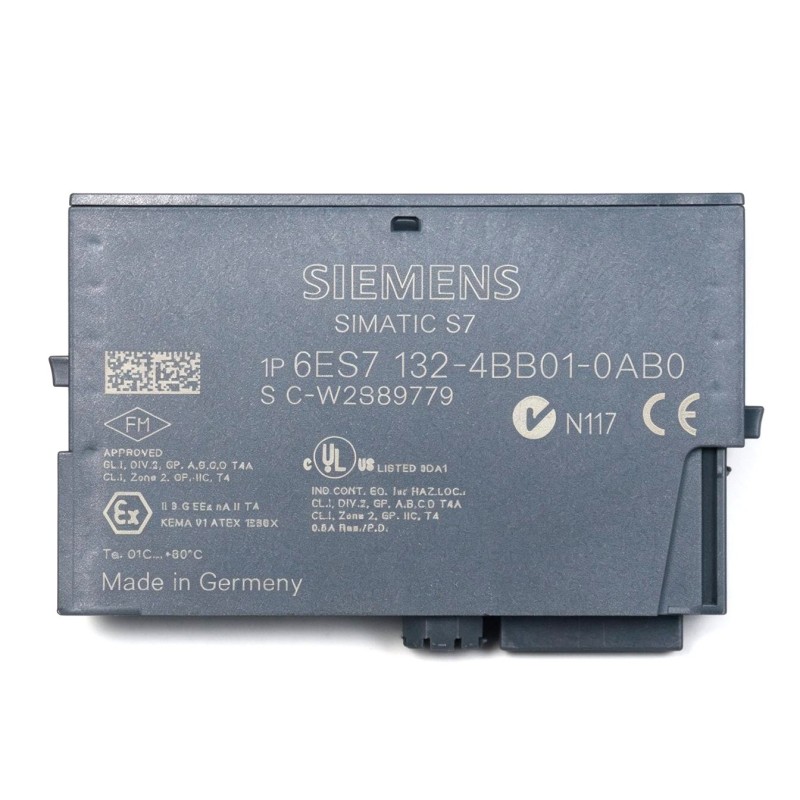

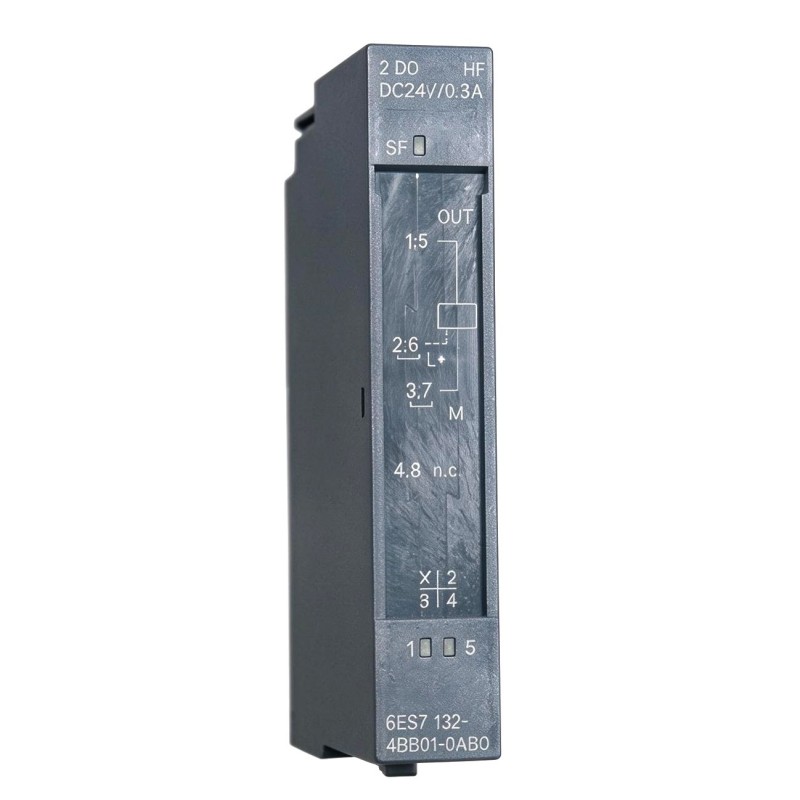

Product Introduction
The Siemens 6ES7132-4BB01-0AB0 is a SIMATIC ET 200S digital electronic module designed for reliable discrete output control in distributed automation systems. It provides two high-feature 24V DC outputs with a rated current of 0.5 A per channel, making it suitable for operating compatible industrial actuators and control devices.
As a PNP sourcing module, it supplies positive voltage to connected loads when the corresponding output is switched on. Its integrated short-circuit protection and diagnostic functions support system monitoring and maintenance. Engineers can use diagnostic information to investigate channel-level short circuits and wire-break conditions, while configurable substitute-value behavior helps define output responses during supported controller STOP conditions.

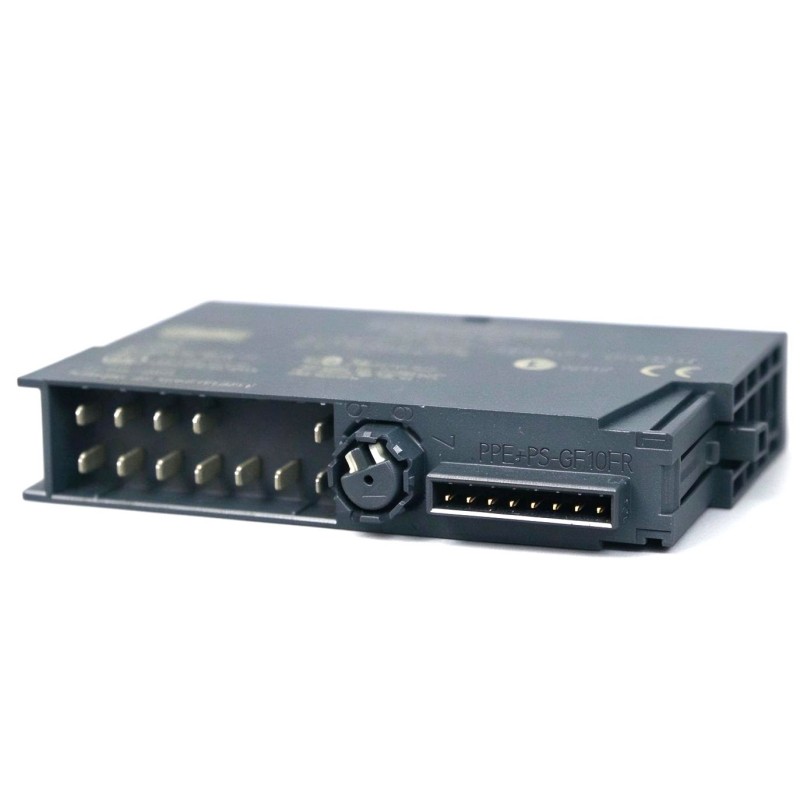

The module is designed for installation within the SIMATIC ET 200S system and requires the appropriate terminal module and power supply arrangement. Its compact 15 mm width supports space-efficient distributed I/O configurations in industrial control cabinets.

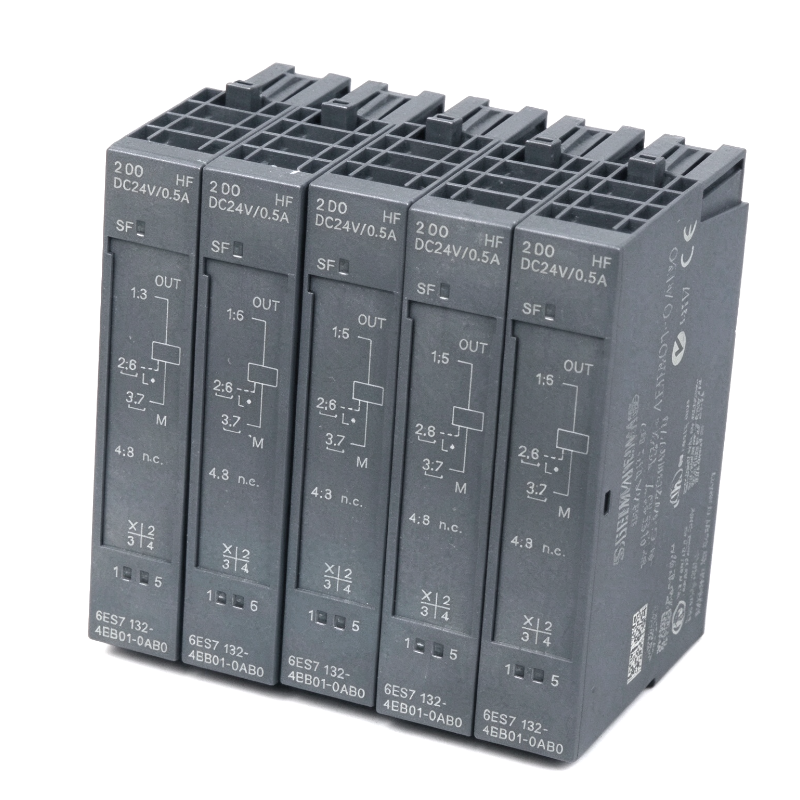

The 6ES7132-4BB01-0AB0 is supplied as part of a five-piece packaging unit in its Siemens product description. When purchasing individual replacement modules, confirm the packaging arrangement, product condition, and exact catalog number to avoid confusion with similar ET 200S output modules.
Technical Specifications
Parameter | Specification |
|---|---|
Brand | Siemens |
Model | 6ES7132-4BB01-0AB0 |
Product Family | SIMATIC ET 200S |
Product Type | Digital Output Electronic Module |
Module Version | 2 DO High Feature |
Number of Digital Outputs | 2 |
Output Type | PNP, Sourcing |
Rated Load Voltage | 24V DC |
Rated Output Current | 0.5 A per channel |
Maximum Total Output Current | 1 A per module |
Short-Circuit Protection | Yes, per channel |
Wire-Break Diagnostics | Yes |
Short-Circuit Diagnostics | Yes |
Output Status Indicators | Green LEDs |
Group Fault Indicator | Red SF LED |
Output Delay (OFF to ON) | Max. 100 μs with resistive load |
Output Delay (ON to OFF) | Max. 400 μs with resistive load |
Switching Frequency | 100 Hz resistive / 2 Hz inductive / 10 Hz lamp load |
Power Dissipation | Typically 0.4 W |
Module Width | 15 mm |
Dimensions | 15 × 81 × 52 mm |
Weight | 0.186 kg / 0.41 lb |
Packaging Quantity | 5 modules per packaging unit |
Recommended Related Models
The following Siemens SIMATIC ET 200S digital output modules provide alternative channel counts and output configurations:
6ES7132-4BB01-0AA0 – 2-channel standard digital output module, 24V DC / 0.5 A.
6ES7132-4BD00-0AB0 – 4-channel high-feature digital output module, 24V DC / 0.5 A.
6ES7132-4BD02-0AA0 – 4-channel standard digital output module, 24V DC / 0.5 A.
6ES7132-4BD30-0AB0 – 4-channel high-feature digital output module, 24V DC / 2 A.
6ES7132-4BF00-0AB0 – 8-channel high-feature digital output module, 24V DC / 0.5 A.
These modules belong to the ET 200S digital output family, but their channel counts and electrical characteristics differ. Check the system configuration before selecting an alternative.
Popular Related Models
Other Siemens SIMATIC ET 200S modules and accessories commonly used in distributed I/O installations include:
6ES7131-4BB00-0AA0 – 2-channel digital input electronic module.
6ES7131-4BD01-0AA0 – 4-channel digital input electronic module.
6ES7132-4BF00-0AA0 – 8-channel digital output electronic module, 24V DC / 0.5 A.
6ES7134-4GB01-0AB0 – Analog input electronic module.
6ES7135-4GB01-0AB0 – Analog output electronic module.
6ES7193-4CA50-0AA0 – ET 200S terminal module.
When purchasing the 6ES7132-4BB01-0AB0, verify the High Feature version, two-channel configuration, terminal-module compatibility, and five-piece packaging details to ensure the correct replacement for your ET 200S system.
