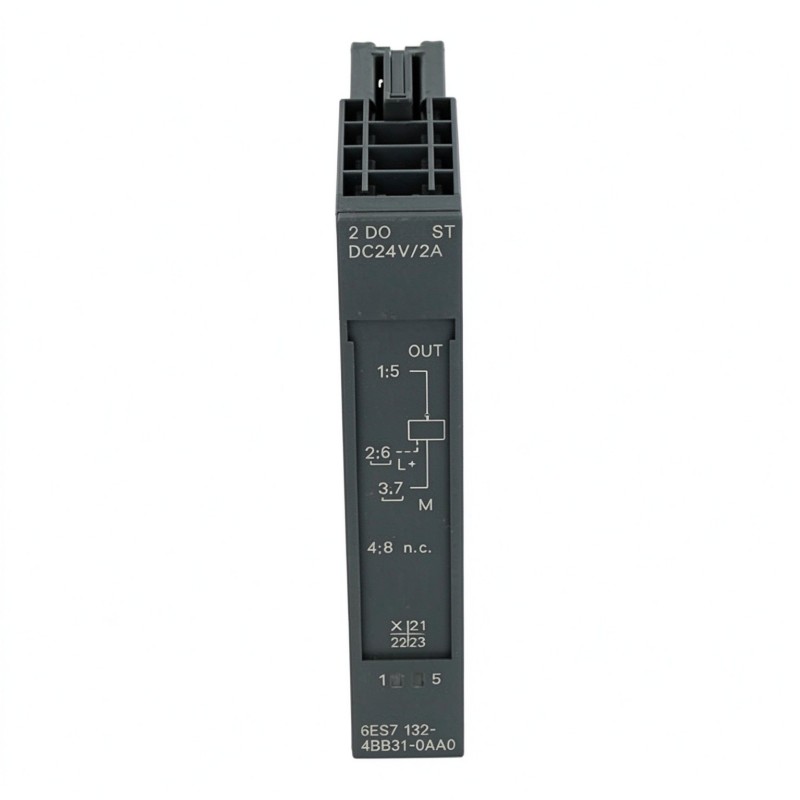

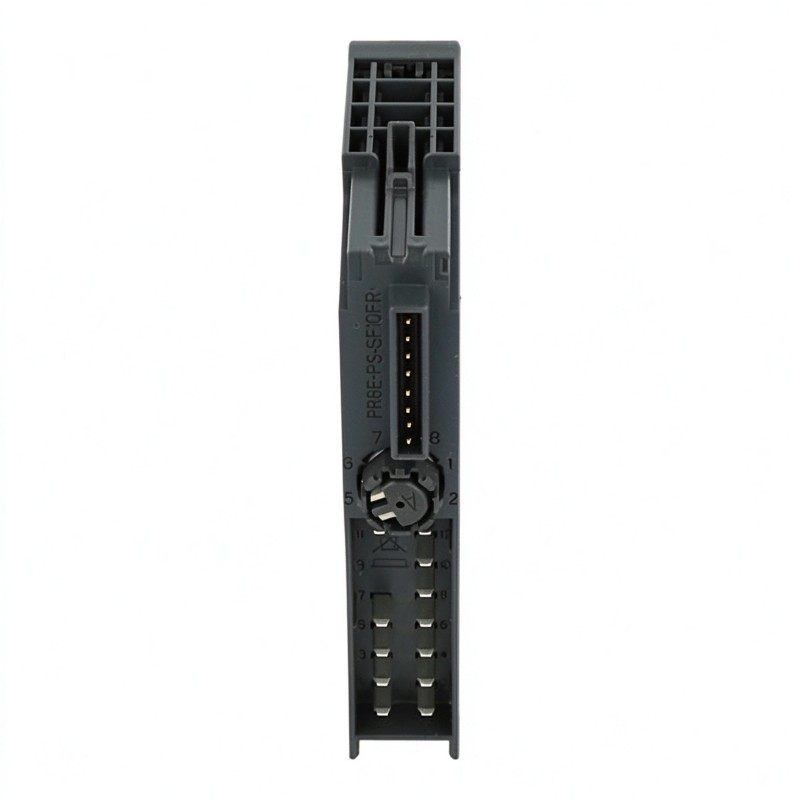

Siemens 6ES7132-4BB31-0AA0 Digital Output Electronic Module
Siemens 6ES7132-4BB31-0AA0 Digital Output Electronic Module
0.0
Points
Brand:Siemens Item No.:6ES7132-4BB31-0AA0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.178 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6ES7132-4BB31-0AA0 is a SIMATIC ET 200S standard digital output electronic module designed for industrial distributed automation systems. It features two 24V DC transistor outputs, each with a rated current of 2 A, providing a practical interface between PLC control logic and higher-current field devices.
The module uses PNP sourcing output technology and includes short-circuit protection for both channels. Its output switching performance supports resistive, inductive, and lamp loads within the specified electrical limits. Green channel indicators provide straightforward visual feedback, making it easier for technicians to monitor output activity and perform routine maintenance.
As part of the ET 200S distributed I/O platform, the 6ES7132-4BB31-0AA0 is installed with the appropriate terminal module and power module. Its compact 15 mm width makes it suitable for installations where cabinet space and output density are important considerations.
This model is the standard version, rather than the High Feature variant. It does not provide the advanced channel-level diagnostic functions available on selected ET 200S modules. Buyers should distinguish it from the similarly numbered 6ES7132-4BB31-0AB0 and verify the complete order number before purchasing.
The following Siemens SIMATIC ET 200S modules offer alternative output configurations and performance characteristics:
6ES7132-4BB01-0AA0 – 2-channel standard digital output module, 24V DC / 0.5 A.
6ES7132-4BB01-0AB0 – 2-channel High Feature digital output module, 24V DC / 0.5 A.
6ES7132-4BB31-0AB0 – 2-channel High Feature digital output module, 24V DC / 2 A.
6ES7132-4BD00-0AA0 – 4-channel standard digital output module, 24V DC / 0.5 A.
6ES7132-4BD30-0AB0 – 4-channel High Feature digital output module, 24V DC / 2 A.
Popular Related Models
Other Siemens ET 200S modules and accessories commonly used in distributed automation systems include:
6ES7131-4BB00-0AA0 – 2-channel digital input electronic module.
6ES7131-4BD01-0AA0 – 4-channel digital input electronic module.
6ES7132-4BF00-0AA0 – 8-channel digital output electronic module.
6ES7134-4GB01-0AB0 – Analog input electronic module.
6ES7135-4GB01-0AB0 – Analog output electronic module.
6ES7193-4CA50-0AA0 – ET 200S terminal module.
When selecting a replacement, verify the output current, channel count, standard or High Feature version, and terminal-module compatibility. The 6ES7132-4BB31-0AA0 is particularly relevant when an existing ET 200S system requires two 24V DC outputs rated at 2 A each.
Applications
The Siemens 6ES7132-4BB31-0AA0 Digital Output Electronic Module is a standard digital output module designed for the SIMATIC ET 200S distributed I/O system. It provides two 24V DC transistor outputs, each rated at 2 A, making it suitable for controlling industrial actuators and other compatible DC loads.
Typical applications include:
Industrial Machine Control: Switching solenoid valves, contactors, and other 24V DC devices.
Production Automation: Providing output signals for automated manufacturing equipment.
Conveyor Systems: Controlling compatible motors, actuators, and auxiliary switching devices.
Packaging Machinery: Managing discrete control signals for machine operations.
Distributed Control Systems: Expanding the output capacity of existing SIMATIC ET 200S installations.
Key Features and Advantages
1. Two High-Current Digital Outputs
The module provides two digital output channels, each with a rated current of 2 A. This configuration supports applications requiring higher output current than standard low-current digital modules.
2. 24V DC PNP Output Design
Both channels use sourcing transistor outputs, supplying positive voltage to compatible field loads when activated.
3. Integrated Short-Circuit Protection
Each output channel includes short-circuit protection to help protect the module under specified fault conditions.
4. Fast Switching Performance
With a maximum switching frequency of 100 Hz for resistive loads, the module supports responsive digital control in industrial automation applications.
5. Individual Channel Indicators
Green LEDs provide visual indication of output status, helping technicians monitor channel activity during commissioning and maintenance.
6. Compact ET 200S Construction
The 15 mm-wide design helps reduce control cabinet space requirements while providing two relatively high-current output channels.
Technical FAQs
Q1: What is the primary function of the Siemens 6ES7132-4BB31-0AA0?
It provides two digital output channels for the SIMATIC ET 200S distributed I/O system, allowing a controller to switch compatible 24V DC field loads.
Q2: How many output channels are available?
The module has two digital output channels.
Q3: What is the rated output voltage?
The rated load voltage is 24V DC, supplied through the associated ET 200S power module.
Q4: What is the rated current per output?
Each output is rated at 2 A. The maximum total output current per module is 4 A.
Q5: Are the outputs sourcing or sinking?
The module uses PNP sourcing outputs. When activated, an output supplies positive voltage to its connected load.
Q6: Does the module support short-circuit protection?
Yes. Both output channels have integrated short-circuit protection, with a typical response threshold in the range of 2.8–7.2 A.
Q7: Can the two outputs be connected in parallel?
Parallel connection is permitted for redundant control of a load under the specified configuration. However, the outputs must not be connected in parallel to increase the available output current.
Q8: What is the maximum switching frequency?
The maximum switching frequencies are 100 Hz for resistive loads, 2 Hz for inductive loads, and 10 Hz for lamp loads.
Q9: Does this module provide channel-level diagnostic functions?
No. The standard version provides green output status indicators but does not offer the advanced channel-level short-circuit and wire-break diagnostics found on certain High Feature versions.
Q10: What should be checked if an output does not switch correctly?
Inspect the 24V DC load supply, terminal connections, field wiring, connected load, output status LED, and short-circuit protection condition. Confirm that the load current and switching frequency remain within the specified limits.
