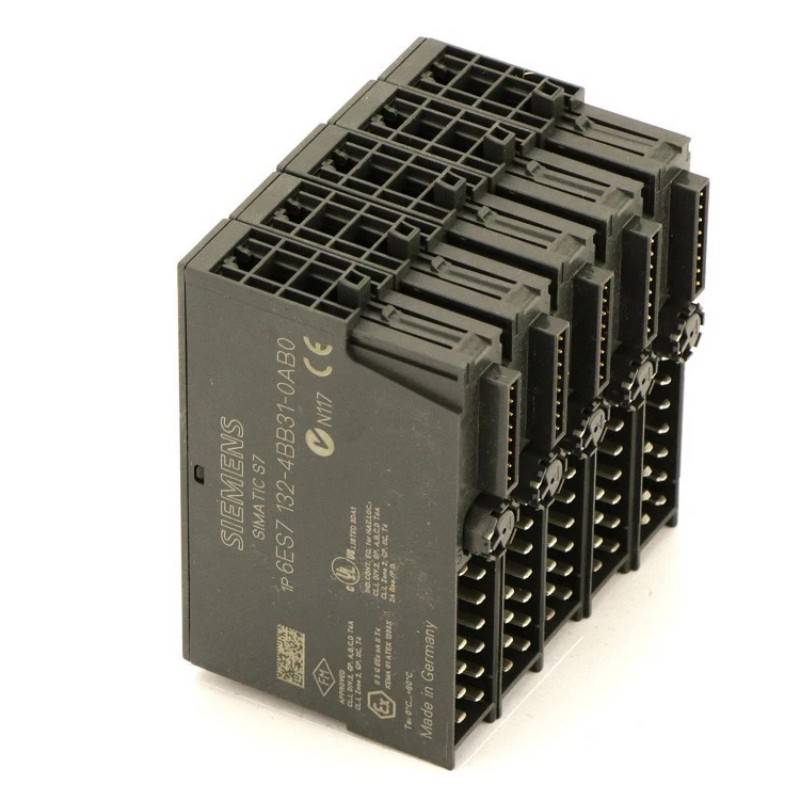

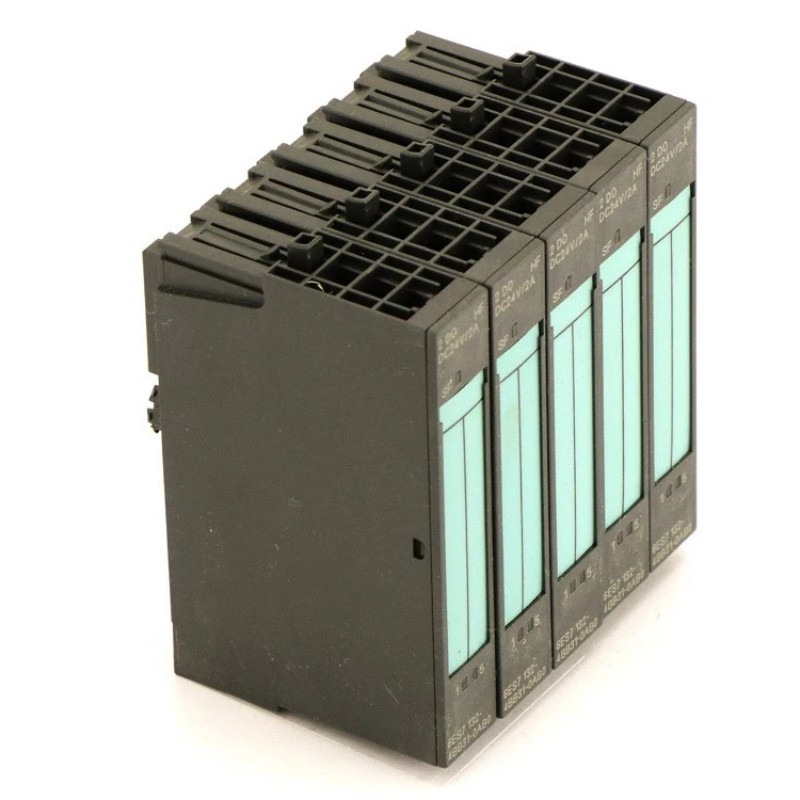

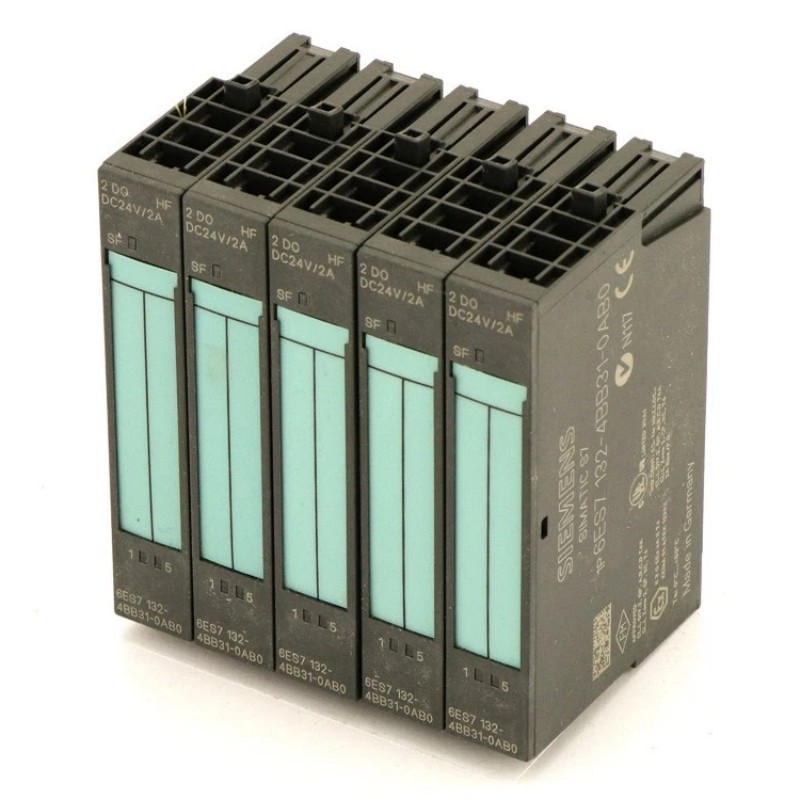

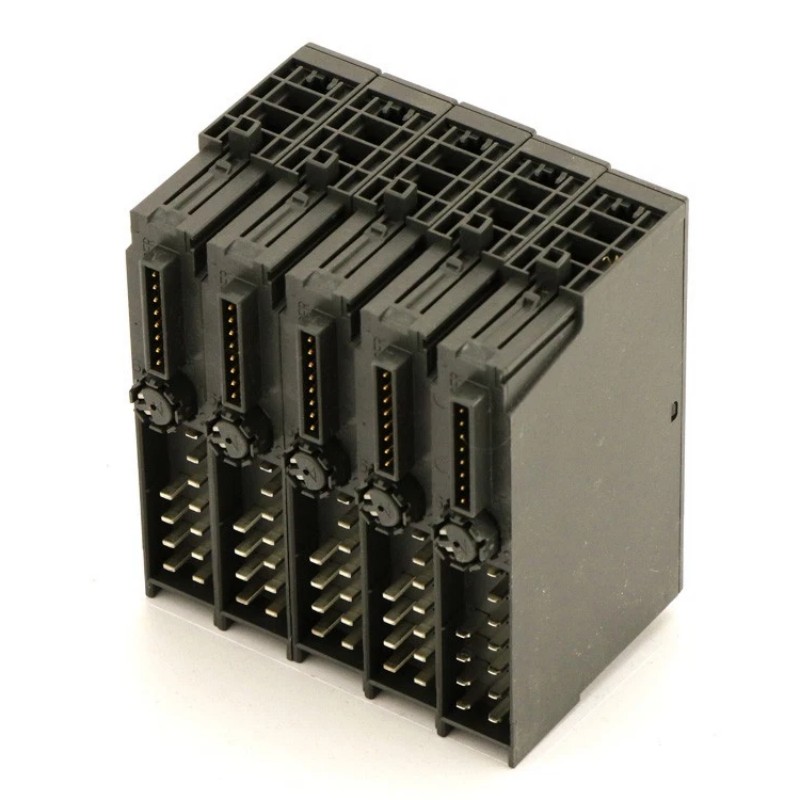

Siemens 6ES7132-4BB31-0AB0 Digital Output Electronic Module
Siemens 6ES7132-4BB31-0AB0 Digital Output Electronic Module
0.0
Points
Brand:Siemens Item No.:6ES7132-4BB31-0AB0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6ES7132-4BB31-0AB0 is a SIMATIC ET 200S high-feature digital output electronic module developed for distributed industrial automation systems. It provides two 24V DC transistor outputs with a rated current of 2 A per channel, making it suitable for controlling solenoid valves, DC contactors, indicator lights, and other compatible field devices.
Its high-feature design provides diagnostic capabilities beyond basic output switching. The module can detect short-circuit and wire-break conditions and communicate diagnostic information to the automation controller. Green channel indicators and a red group-fault LED provide visual feedback, supporting faster fault identification and maintenance.
The 6ES7132-4BB31-0AB0 also supports configurable substitute-value output behavior and isochronous operation. These functions make it useful in applications where predictable output handling and synchronized control are important.
Designed for the SIMATIC ET 200S platform, the module requires a compatible terminal module and an appropriate 24V DC power supply arrangement. Its compact 15 mm width supports efficient installation in distributed I/O stations.
This model is the High Feature version of the 2DO 24V DC/2A module. It should not be confused with the standard 6ES7132-4BB31-0AA0, which has a different diagnostic feature set. Siemens has announced this product for phase-out, so buyers maintaining existing installations should verify availability, hardware revision, and replacement suitability before procurement.
The following Siemens SIMATIC ET 200S digital output modules offer alternative channel counts and output configurations:
6ES7132-4BB31-0AA0 – 2-channel standard digital output module, 24V DC / 2 A.
6ES7132-4BB01-0AB0 – 2-channel High Feature digital output module, 24V DC / 0.5 A.
6ES7132-4BD32-0AA0 – 4-channel digital output module, 24V DC / 2 A.
6ES7132-4BD02-0AA0 – 4-channel digital output module, 24V DC / 0.5 A.
6ES7132-4BF00-0AA0 – 8-channel digital output module, 24V DC / 0.5 A.
Popular Related Models
Other Siemens SIMATIC ET 200S modules and accessories used in distributed automation systems include:
6ES7131-4BB00-0AA0 – 2-channel digital input electronic module.
6ES7131-4BD01-0AB0 – 4-channel High Feature digital input module.
6ES7134-4GB01-0AB0 – Analog input electronic module.
6ES7135-4GB01-0AB0 – Analog output electronic module.
6ES7138-4CA01-0AA0 – ET 200S power module.
6ES7193-4CA50-0AA0 – ET 200S terminal module.
When purchasing the 6ES7132-4BB31-0AB0, verify the complete part number, High Feature diagnostic requirements, terminal-module compatibility, and packaging quantity. This helps ensure the selected module matches the existing E
Applications
The Siemens 6ES7132-4BB31-0AB0 Digital Output Electronic Module is a high-feature output module for the SIMATIC ET 200S distributed I/O system. It provides two 24V DC transistor outputs, each rated at 2 A, allowing industrial controllers to operate compatible actuators and DC loads.
Typical applications include:
Industrial Machine Automation: Switching solenoid valves, DC contactors, and indicator lights.
Production Lines: Controlling discrete field devices in automated manufacturing processes.
Material Handling: Operating compatible actuators and auxiliary equipment in conveyor systems.
Process Automation: Providing reliable output signals for distributed control applications.
Equipment Maintenance: Replacing existing high-feature ET 200S output modules in installed automation systems.
Key Features and Advantages
1. Two High-Current Digital Outputs
The module provides two 24V DC output channels, each rated at 2 A, supporting industrial loads that require higher switching current.
2. High-Feature Output Architecture
Compared with standard ET 200S output modules, this version provides additional diagnostic functions, including short-circuit and wire-break detection.
3. Integrated Short-Circuit Protection
Both output channels include short-circuit protection to help protect the module and connected circuits under specified fault conditions.
4. Channel-Level Diagnostic Monitoring
The module supports diagnostic reporting for short circuits and wire breaks. A red SF indicator provides group-fault information, helping maintenance personnel identify abnormal operating conditions.
5. Configurable Substitute-Value Output
The module supports substitute-value behavior for defined operating conditions, allowing engineers to configure output responses when the controller or interface enters STOP mode.
6. Isochronous Operation Support
Support for isochronous operation makes the module suitable for automation applications requiring synchronized I/O updates.
7. Compact Installation Design
With a 15 mm module width, the 6ES7132-4BB31-0AB0 helps reduce cabinet space requirements in high-density ET 200S installations.
Technical FAQs
Q1: What is the main function of the Siemens 6ES7132-4BB31-0AB0?
It provides two high-feature digital output channels for the SIMATIC ET 200S distributed I/O system, allowing PLC control signals to operate compatible 24V DC field devices.
Q2: How many output channels does this module provide?
It has two digital output channels.
Q3: What is the rated load voltage?
The rated load voltage is 24V DC, supplied through the associated ET 200S power module.
Q4: What is the rated current per output?
Each output is rated at 2 A. The maximum total output current per module is 4 A.
Q5: Does the module support short-circuit protection?
Yes. Both output channels have integrated short-circuit protection, with a typical response threshold of approximately 4 A.
Q6: Can the module detect wire breaks?
Yes. It supports wire-break diagnostics when the relevant diagnostic function is enabled and the connected circuit meets the detection requirements.
Q7: What diagnostic indicators are available?
The module has a green LED for each output channel and a red SF LED for group-fault indication.
Q8: What is the maximum switching frequency?
The maximum switching frequencies are 100 Hz for resistive loads, 2 Hz for inductive loads, and 10 Hz for lamp loads.
Q9: Can the two outputs be connected in parallel?
Yes, parallel connection is supported for redundant control of a load under the specified configuration. However, the outputs must not be connected in parallel to increase the available output current.
Q10: What should be checked if the module reports an output fault?
Inspect the field wiring, 24V DC supply, connected load, output current, channel indicators, and diagnostic information. Check for short circuits or wire breaks before replacing the module.
