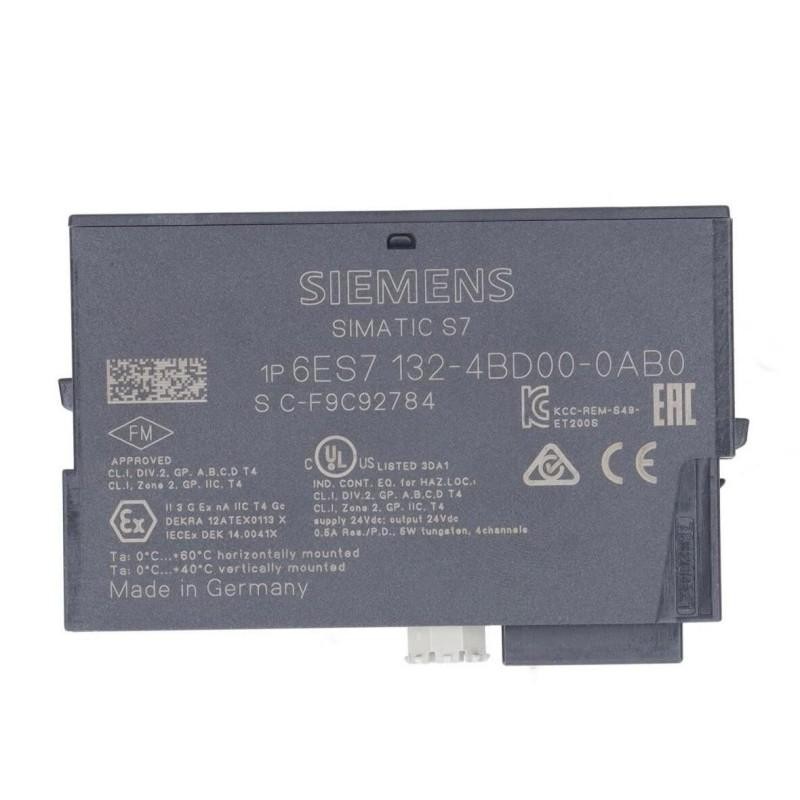

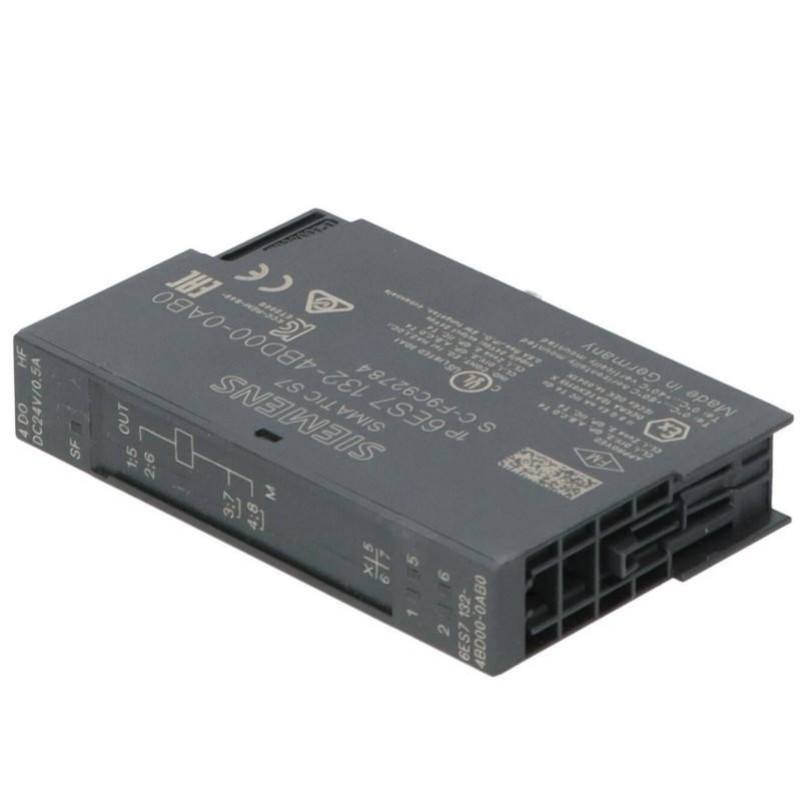

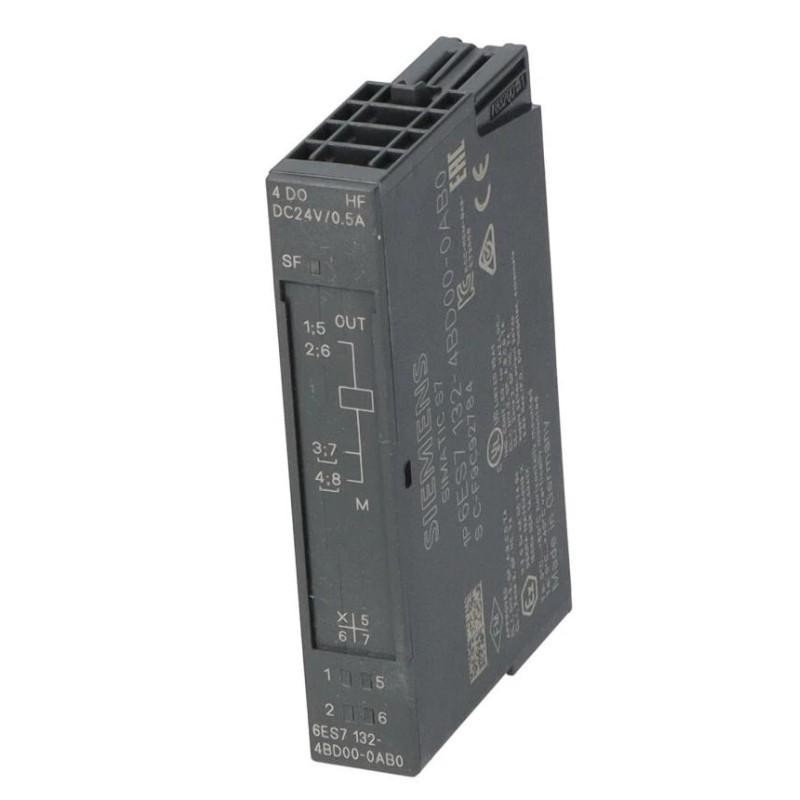

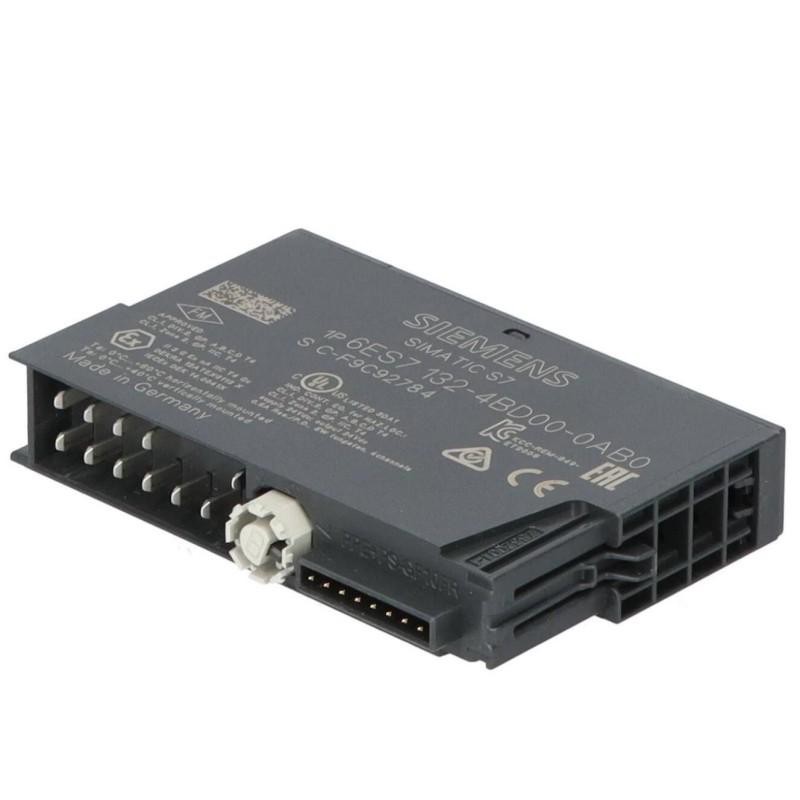

Name: Siemens 6ES7132-4BD00-0AB0 Digital Output Electronic Module
Brand: Siemens
SKU: 23180
Availability: InStock
Rating: 5.0 (1 reviews)

Product Introduction

The Siemens 6ES7132-4BD00-0AB0 is a SIMATIC ET 200S High Feature digital output electronic module designed for distributed industrial automation applications. It provides four 24V DC transistor outputs, each with a rated current of 0.5 A, offering a compact interface between PLC control signals and industrial field devices.

A key characteristic of this model is its integrated diagnostic functionality. The module supports short-circuit detection and provides a red SF group-fault indicator to help technicians identify output-related problems. Individual green channel indicators also make it easier to monitor switching activity during system commissioning and routine maintenance.

The 6ES7132-4BD00-0AB0 supports a maximum total output current of 2 A per module and can operate with compatible resistive, inductive, and lamp loads within its specified switching limits. Its support for isochronous operation also makes it suitable for automation systems requiring synchronized I/O updates.

Designed for the SIMATIC ET 200S platform, this electronic module requires a compatible terminal module and appropriate 24V DC power supply arrangement. Its compact 15 mm width helps save installation space in distributed I/O stations.

This model should be distinguished from the standard 6ES7132-4BD00-0AA0. Although both provide four 24V DC outputs rated at 0.5 A, the -0AB0 version is the High Feature variant with diagnostic functionality. Siemens product information indicates that this model entered phase-out in October 2020, making it particularly relevant to spare-parts procurement and maintenance of existing ET 200S installations.

Technical Specifications

Parameter	Specification
Brand	Siemens
Model	6ES7132-4BD00-0AB0
Product Family	SIMATIC ET 200S
Product Type	Digital Output Electronic Module
Module Version	4 DO High Feature
Number of Digital Outputs	4
Output Technology	Transistor
Output Type	PNP, Sourcing
Rated Load Voltage	24V DC
Rated Output Current	0.5 A per channel
Maximum Total Output Current	2 A per module
Short-Circuit Protection	Yes
Short-Circuit Diagnostics	Yes, module-level
Switching Frequency	100 Hz resistive / 2 Hz inductive / 10 Hz lamp load
Maximum Lamp Load	5 W
Output Delay (OFF to ON)	Max. 100 μs
Output Delay (ON to OFF)	Max. 300 μs
Output Status Indicators	Green LEDs, per channel
Group Fault Indicator	Red SF LED
Isochronous Operation	Supported
Electrical Isolation	Outputs isolated from backplane bus
Typical Power Dissipation	0.8 W
Dimensions	15 × 81 × 52 mm
Weight	0.185 kg / 0.41 lb
Packaging Quantity	5 modules per packaging unit
Product Lifecycle	Phase-out since October 2020

Recommended Related Models

The following Siemens SIMATIC ET 200S modules provide alternative digital output configurations for industrial automation systems:

6ES7132-4BD00-0AA0 – Standard 4-channel digital output module, 24V DC / 0.5 A.
6ES7132-4BD01-0AA0 – Standard 4-channel digital output module, 24V DC / 0.5 A.
6ES7132-4BD02-0AA0 – Standard 4-channel digital output module, 24V DC / 0.5 A.
6ES7132-4BD30-0AB0 – High Feature 4-channel digital output module, 24V DC / 2 A.
6ES7132-4BD32-0AA0 – 4-channel digital output module, 24V DC / 2 A.

These models have different diagnostic functions and electrical characteristics. Confirm the exact replacement requirements before ordering.

Popular Related Models

Other Siemens SIMATIC ET 200S modules and accessories commonly used in distributed automation systems include:

6ES7131-4BB00-0AA0 – 2-channel digital input electronic module.
6ES7131-4BD01-0AB0 – 4-channel High Feature digital input module.
6ES7132-4BB01-0AB0 – 2-channel High Feature digital output module, 24V DC / 0.5 A.
6ES7132-4BB31-0AB0 – 2-channel High Feature digital output module, 24V DC / 2 A.
6ES7134-4GB01-0AB0 – Analog input electronic module.
6ES7135-4GB01-0AB0 – Analog output electronic module.
6ES7193-4CA50-0AA0 – ET 200S terminal module.

When purchasing the Siemens 6ES7132-4BD00-0AB0, verify the complete order number, four-channel configuration, High Feature diagnostic requirements, and compatibility with the existing ET 200S terminal and power modules.

Applications

The Siemens 6ES7132-4BD00-0AB0 Digital Output Electronic Module is a four-channel, 24V DC transistor output module designed for the SIMATIC ET 200S distributed I/O system. As a High Feature module, it combines digital output control with short-circuit protection and diagnostic capabilities.

It is suitable for a range of industrial automation applications, including:

Machine Automation: Controlling solenoid valves, DC contactors, and indicator lights.
Production Lines: Switching field devices in automated manufacturing equipment.
Conveyor Systems: Operating compatible actuators and auxiliary control devices.
Process Automation: Providing distributed digital output signals for industrial processes.
Control Cabinet Expansion: Increasing the output capacity of existing ET 200S installations.

Key Features and Advantages

1. Four Digital Output Channels

The module provides four transistor output channels, each rated at 0.5 A, allowing multiple field devices to be controlled through one compact module.

2. 24V DC PNP Output Technology

Its sourcing output design supplies positive voltage to compatible field loads when the corresponding output is activated.

3. Integrated Short-Circuit Protection

The output circuits include short-circuit protection, helping reduce the risk of damage caused by specified output faults.

4. Diagnostic Monitoring

The High Feature design supports short-circuit diagnostics and provides a red SF group-fault indicator. This helps maintenance personnel identify abnormal operating conditions.

5. Individual Channel Status Indicators

Green LEDs display the switching status of each output, making it easier to monitor the module during commissioning and troubleshooting.

6. Isochronous Operation Support

The module supports isochronous operation for applications requiring synchronized distributed I/O processing.

7. Compact ET 200S Installation

Its 15 mm module width helps optimize control cabinet space while providing four digital output points.

Technical FAQs

Q1: What is the primary function of the Siemens 6ES7132-4BD00-0AB0?

It provides four digital output channels for the SIMATIC ET 200S distributed I/O system, allowing a PLC to control compatible 24V DC field devices.

Q2: How many output channels does this module provide?

It provides four transistor-based digital output channels.

Q3: What is the rated output voltage?

The rated load voltage is 24V DC, supplied through the associated ET 200S power module.

Q4: What is the rated current per output?

Each output is rated at 0.5 A. The maximum total output current per module is 2 A.

Q5: Does the module support short-circuit protection?

Yes. The module has integrated short-circuit protection. The typical response threshold is approximately 0.7–1.5 A.

Q6: Can two output channels be connected in parallel?

Parallel connection is supported for redundant control of a load under the specified configuration. It is not permitted for increasing the available output current.

Q7: What switching frequencies are supported?

The maximum switching frequencies are 100 Hz for resistive loads, 2 Hz for inductive loads, and 10 Hz for lamp loads.

Q8: Does the module provide diagnostic information?

Yes. It supports short-circuit diagnostics at module level. A red SF LED indicates group faults, while green LEDs indicate individual output status.

Q9: Is the module electrically isolated from the backplane bus?

Yes. The digital outputs are electrically isolated from the backplane bus. The individual output channels are not isolated from one another.

Q10: What should be checked if an output channel does not work?

Check the 24V DC load supply, terminal connections, field wiring, connected load, output status LED, and diagnostic information. Also verify that the total output current does not exceed the 2 A module limit.
