Product Introduction

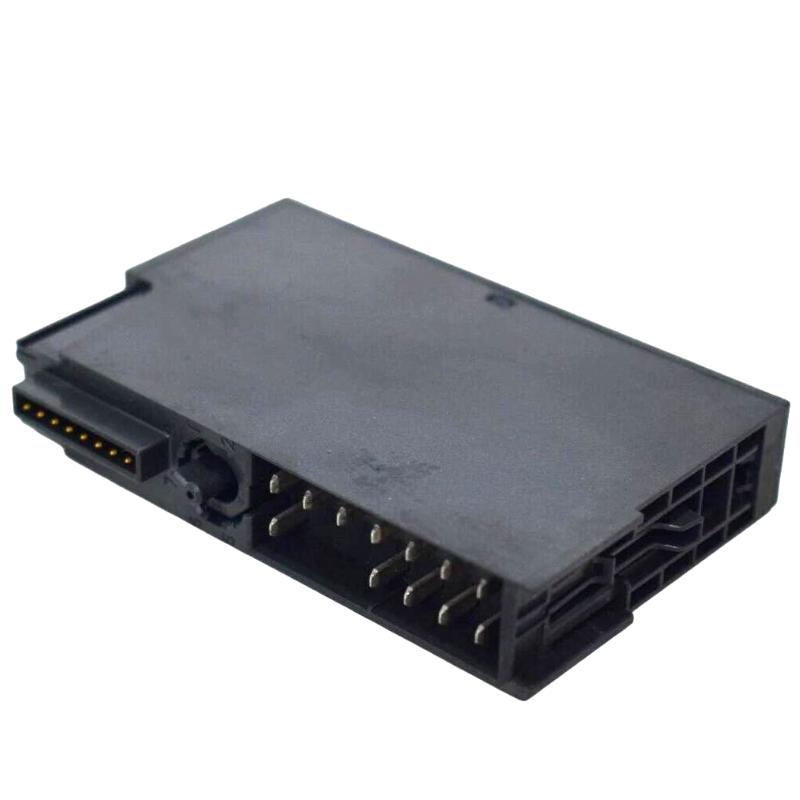

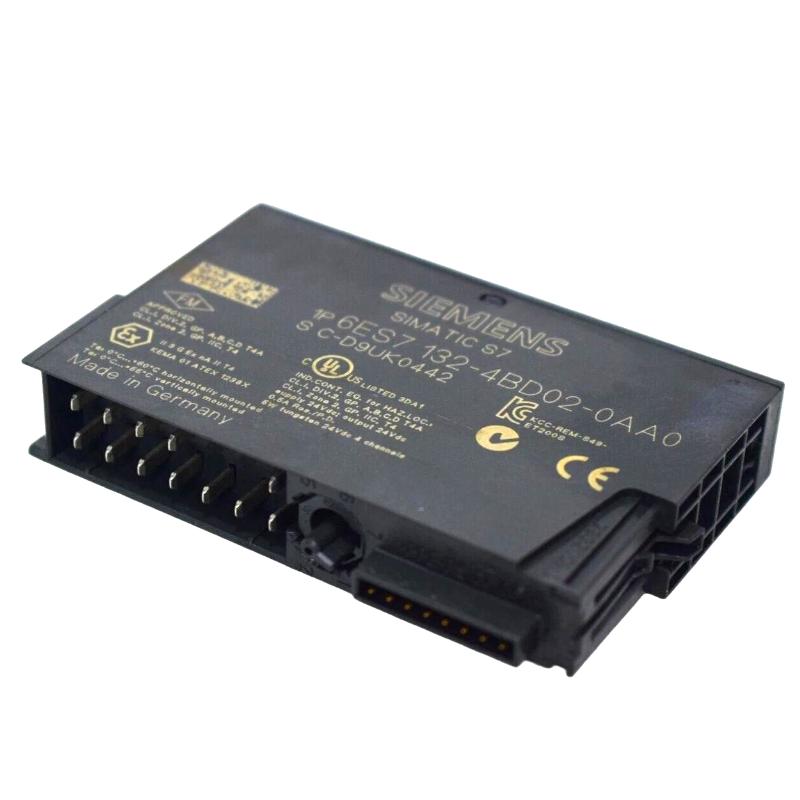

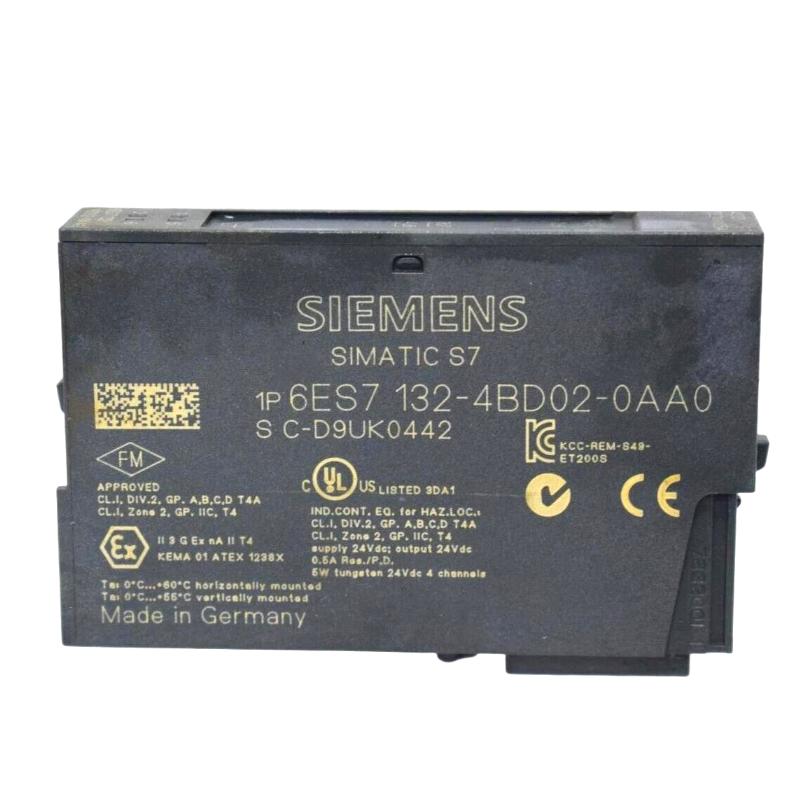

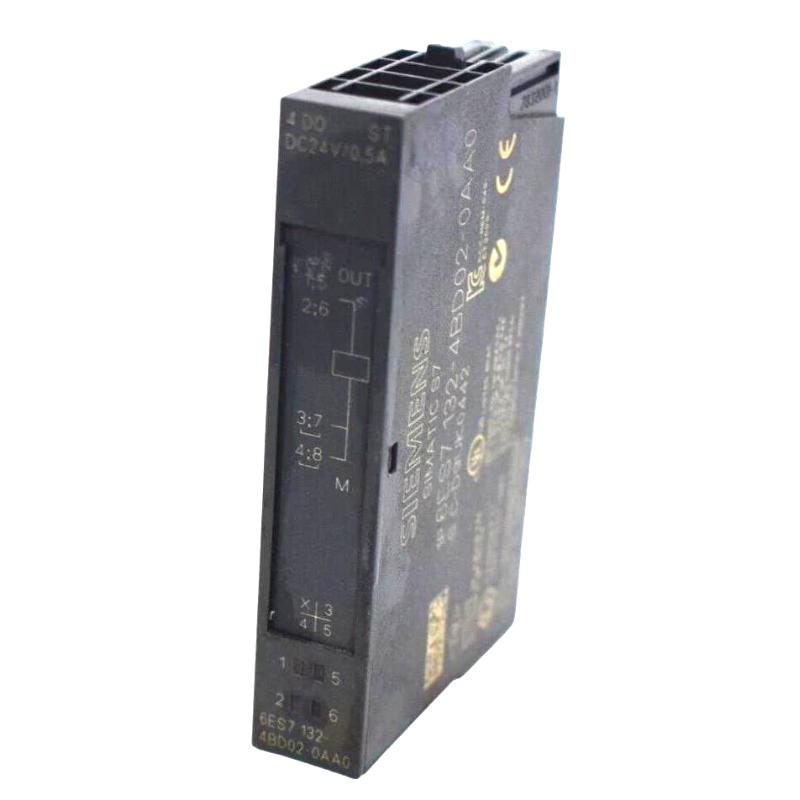

The Siemens 6ES7132-4BD02-0AA0 is a SIMATIC ET 200S standard digital output electronic module developed for distributed industrial automation applications. Featuring four 24V DC transistor outputs rated at 0.5 A per channel, it provides a practical interface between PLC control signals and industrial field devices.
The module uses PNP sourcing technology and includes short-circuit protection for each output. Its fast switching capability supports resistive loads at frequencies of up to 800 Hz, while also accommodating specified inductive and lamp-load applications. Individual green status indicators provide convenient visual feedback for monitoring output activity.
Designed for the SIMATIC ET 200S platform, the 6ES7132-4BD02-0AA0 requires a compatible terminal module and an appropriate 24V DC power supply arrangement. Its outputs are electrically isolated from the backplane bus, helping maintain separation between field-side circuits and the internal communication system.
This model is the standard 4DO 24V DC/0.5 A version and should not be confused with High Feature variants that offer additional diagnostic capabilities. It is particularly relevant for maintenance, spare-parts procurement, and replacement of existing ET 200S installations. Siemens product information identifies it as a discontinued product, so buyers should confirm availability and compatibility before ordering.
Technical Specifications
Parameter | Specification |
|---|---|
Brand | Siemens |
Model | 6ES7132-4BD02-0AA0 |
Product Family | SIMATIC ET 200S |
Product Type | Digital Output Electronic Module |
Module Version | 4 DO Standard |
Number of Digital Outputs | 4 |
Output Technology | Transistor |
Output Type | PNP, Sourcing |
Rated Load Voltage | 24V DC |
Rated Output Current | 0.5 A per channel |
Maximum Total Output Current | 2 A per module |
Permissible Output Current | 7 mA to 0.6 A per channel |
Short-Circuit Protection | Yes, per channel |
Output Delay (OFF to ON) | Max. 50 μs |
Output Delay (ON to OFF) | Max. 120 μs |
Switching Frequency | 800 Hz resistive / 2 Hz inductive / 10 Hz lamp load |
Maximum Lamp Load | 5 W |
Residual Current | Max. 0.3 mA |
Output Status Indicators | 4 Green LEDs |
Advanced Diagnostic Functions | Not supported |
Electrical Isolation | Outputs isolated from backplane bus |
Isolation Test Voltage | 500 V DC |
Typical Power Dissipation | 0.8 W |
Dimensions | 15 × 81 × 52 mm |
Weight | 0.181 kg / 0.40 lb |
Packaging Quantity | 5 modules per packaging unit |
Product Lifecycle | Discontinued |
