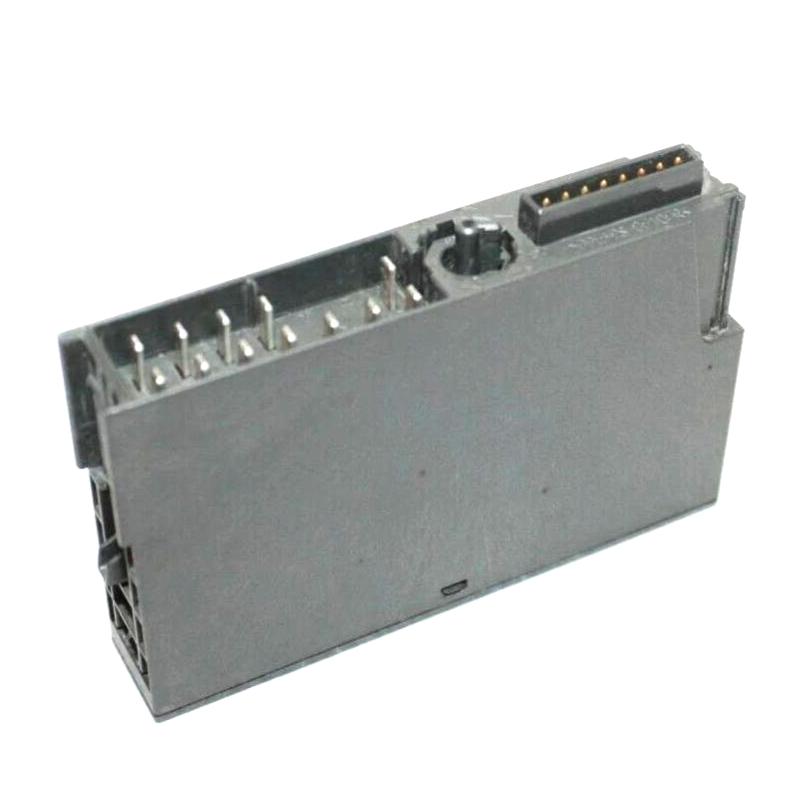

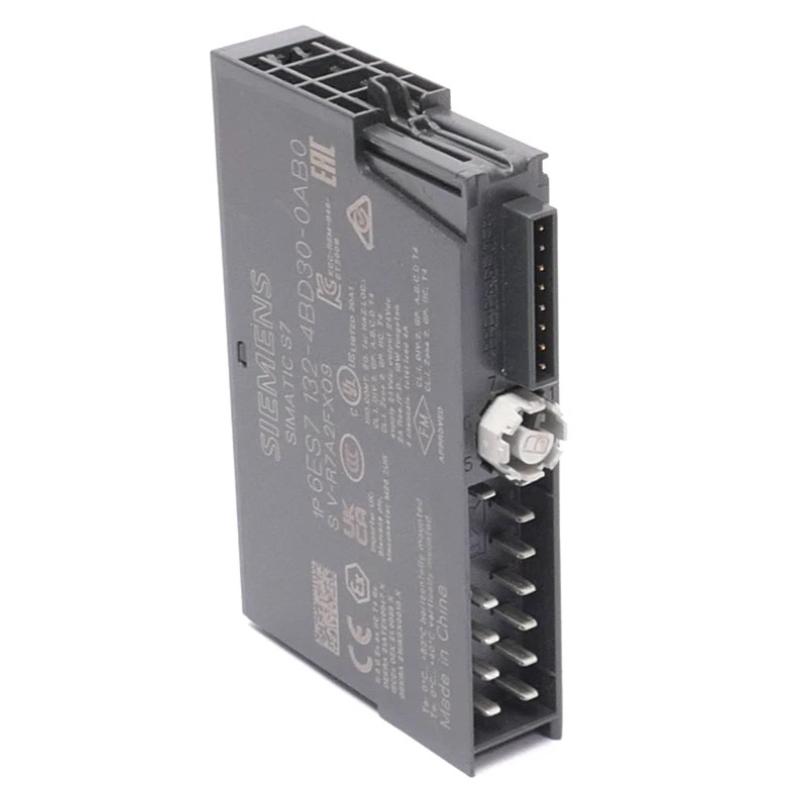

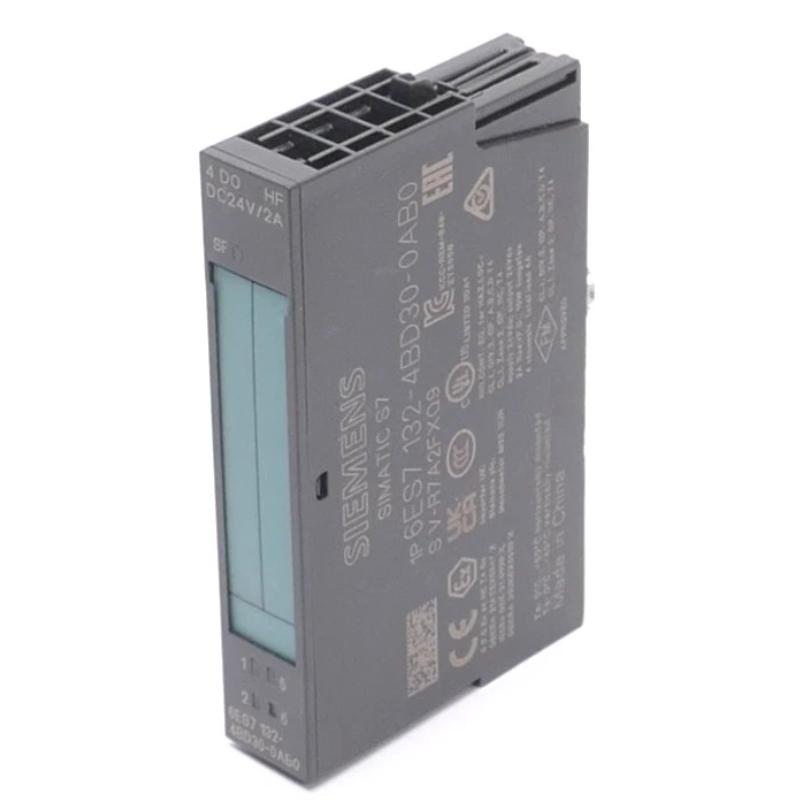

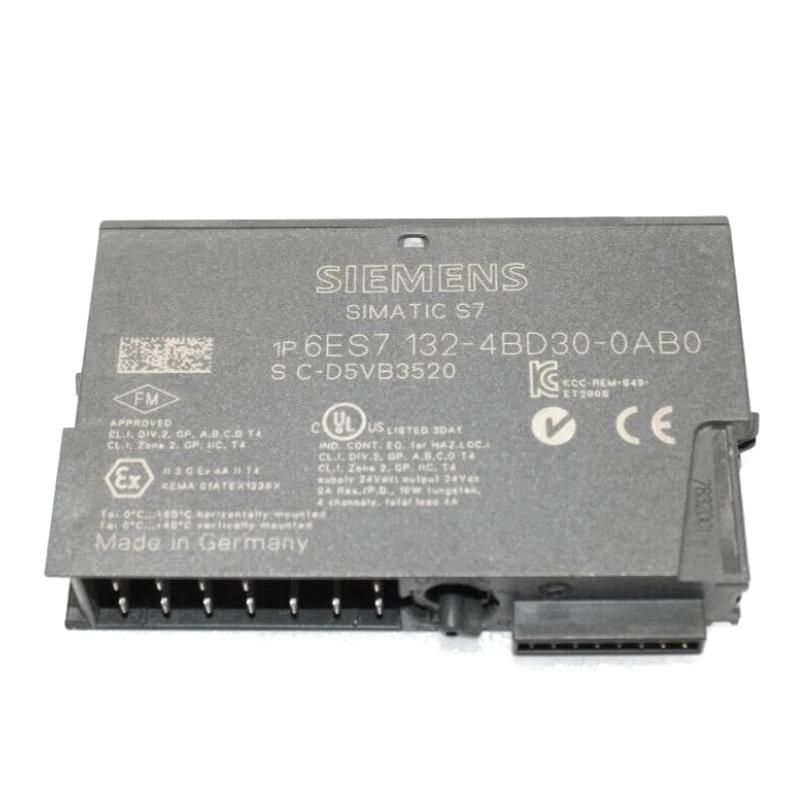

Name: Siemens 6ES7132-4BD30-0AB0 Digital Output Electronic Module
Brand: Siemens
SKU: 23182
Availability: InStock
Rating: 5.0 (1 reviews)

Product Introduction

The Siemens 6ES7132-4BD30-0AB0 is a SIMATIC ET 200S High Feature digital output electronic module developed for industrial distributed automation systems. It provides four 24V DC transistor outputs with a rated current of 2 A per channel, offering a practical interface between PLC control signals and higher-current field devices.

A major characteristic of this module is its combination of high-current output capability and diagnostic functionality. Each output channel includes short-circuit protection, while the module can report short-circuit conditions through the ET 200S diagnostic system. Individual green output indicators and a red SF group-fault LED provide additional visual feedback for maintenance and troubleshooting.

The module supports switching frequencies of up to 100 Hz for resistive loads, 2 Hz for inductive loads, and 10 Hz for lamp loads. It also supports isochronous operation, making it suitable for applications that require synchronized distributed I/O processing.

Designed for the SIMATIC ET 200S platform, the 6ES7132-4BD30-0AB0 requires a compatible terminal module and an appropriate 24V DC power supply arrangement. Its compact 15 mm width allows four high-current output channels to be installed in a relatively small control cabinet space.

Siemens identifies this model as a spare-parts product, with the original product discontinued from October 1, 2023. It remains relevant for maintaining existing ET 200S installations and sourcing replacement components. Buyers should verify the complete catalog number, hardware condition, and system compatibility before procurement.

Technical Specifications

Parameter	Specification
Brand	Siemens
Model	6ES7132-4BD30-0AB0
Product Family	SIMATIC ET 200S
Product Type	Digital Output Electronic Module
Module Version	4 DO High Feature
Number of Digital Outputs	4
Output Technology	Transistor
Output Type	PNP, Sourcing
Rated Load Voltage	24V DC
Rated Output Current	2 A per channel
Maximum Total Output Current	4 A per module
Permissible Output Current	7 mA to 2.4 A per channel
Short-Circuit Protection	Yes, per channel
Short-Circuit Diagnostics	Yes, module-level
Short-Circuit Current Limitation	Typically 6.5 A
Output Delay (OFF to ON)	Max. 250 μs
Output Delay (ON to OFF)	Max. 400 μs
Switching Frequency	100 Hz resistive / 2 Hz inductive / 10 Hz lamp load
Maximum Lamp Load	10 W
Maximum Off-State Leakage Current	0.1 mA
Output Status Indicators	4 Green LEDs
Group Fault Indicator	Red SF LED
Isochronous Operation	Supported
Electrical Isolation	Outputs isolated from backplane bus
Isolation Test Voltage	500 V DC
Typical Power Dissipation	1.6 W
Dimensions	15 × 81 × 52 mm
Weight	0.192 kg / 0.42 lb
Packaging Quantity	5 modules per packaging unit
Product Lifecycle	Discontinued; spare-parts product

Recommended Related Models

The following Siemens SIMATIC ET 200S digital output modules provide alternative channel configurations and electrical characteristics:

6ES7132-4BD00-0AB0 – Four-channel High Feature digital output module, 24V DC / 0.5 A.
6ES7132-4BD00-0AA0 – Four-channel standard digital output module, 24V DC / 0.5 A.
6ES7132-4BD02-0AA0 – Four-channel standard digital output module, 24V DC / 0.5 A.
6ES7132-4BB31-0AB0 – Two-channel High Feature digital output module, 24V DC / 2 A.
6ES7132-4BB31-0AA0 – Two-channel standard digital output module, 24V DC / 2 A.

Popular Related Models

Other Siemens SIMATIC ET 200S modules and accessories commonly used in distributed automation systems include:

6ES7131-4BB00-0AA0 – Two-channel digital input electronic module.
6ES7131-4BD01-0AB0 – Four-channel High Feature digital input module.
6ES7132-4BB01-0AB0 – Two-channel High Feature digital output module, 24V DC / 0.5 A.
6ES7132-4BF00-0AB0 – Eight-channel High Feature digital output module.
6ES7134-4GB01-0AB0 – Analog input electronic module.
6ES7135-4GB01-0AB0 – Analog output electronic module.
6ES7193-4CA50-0AA0 – ET 200S terminal module.

When purchasing the Siemens 6ES7132-4BD30-0AB0, verify the four-channel configuration, 2 A output rating, High Feature diagnostic requirements, and compatibility with the installed ET 200S terminal and power modules.

Applications

The Siemens 6ES7132-4BD30-0AB0 Digital Output Electronic Module is a four-channel High Feature output module designed for the SIMATIC ET 200S distributed I/O system. It provides four 24V DC transistor outputs, each rated at 2 A, making it suitable for controlling industrial actuators and other compatible DC loads.

Typical applications include:

Industrial Machine Automation: Controlling solenoid valves, DC contactors, and other electrical actuators.
Production Line Control: Switching field devices in automated manufacturing equipment.
Material Handling: Operating compatible actuators and auxiliary equipment in conveyor systems.
Packaging Machinery: Managing discrete output signals for automated machine sequences.
Distributed Process Control: Expanding the output capacity of existing SIMATIC ET 200S installations.

Key Features and Advantages

1. Four High-Current Digital Outputs

The module provides four transistor output channels, each with a rated current of 2 A, supporting industrial loads that require higher switching capacity.

2. 24V DC PNP Output Technology

Its sourcing output design supplies positive voltage to connected field loads when the corresponding output is activated.

3. Integrated Short-Circuit Protection

Each output channel features short-circuit protection, helping safeguard the module against specified output-circuit faults.

4. Short-Circuit Diagnostic Function

The High Feature design supports short-circuit diagnostics and provides a red SF group-fault indicator, helping maintenance personnel identify abnormal operating conditions.

5. Individual Channel Status Indicators

Four green LEDs display the switching status of individual outputs, simplifying visual inspection during commissioning and troubleshooting.

6. Isochronous Operation Support

The module supports synchronized I/O operation for automation applications requiring coordinated signal processing.

7. Compact Installation Design

With a 15 mm width, the 6ES7132-4BD30-0AB0 offers four high-current output channels in a space-efficient ET 200S module format.

Technical FAQs

Q1: What is the primary function of the Siemens 6ES7132-4BD30-0AB0?

It provides four digital output channels for the SIMATIC ET 200S distributed I/O system, allowing a PLC to control compatible 24V DC field devices.

Q2: How many output channels does this module provide?

It provides four transistor-based digital output channels.

Q3: What is the rated output voltage?

The rated load voltage is 24V DC, supplied through the associated ET 200S power module.

Q4: What is the rated current per output?

Each output is rated at 2 A, with a maximum total output current of 4 A per module.

Q5: Does the module support short-circuit protection?

Yes. Each output channel has integrated short-circuit protection. The typical short-circuit current limitation is approximately 6.5 A.

Q6: Can two output channels be connected in parallel?

Yes, parallel connection is permitted for redundant control of a load under the specified configuration. It is not permitted to increase the available output current.

Q7: What switching frequencies are supported?

The maximum switching frequencies are 100 Hz for resistive loads, 2 Hz for inductive loads, and 10 Hz for lamp loads.

Q8: Does this module provide diagnostic functions?

Yes. It supports short-circuit diagnostics at module level. The red SF LED indicates group faults, while individual green LEDs display output status.

Q9: Are the output channels electrically isolated from each other?

No. The four output channels are not electrically isolated from one another. However, the output circuits are isolated from the ET 200S backplane bus.

Q10: What should be checked if an output channel stops working?

Inspect the 24V DC supply, field wiring, connected load, output current, channel indicators, and diagnostic information. Check for short circuits and verify that the total module current does not exceed 4 A.
