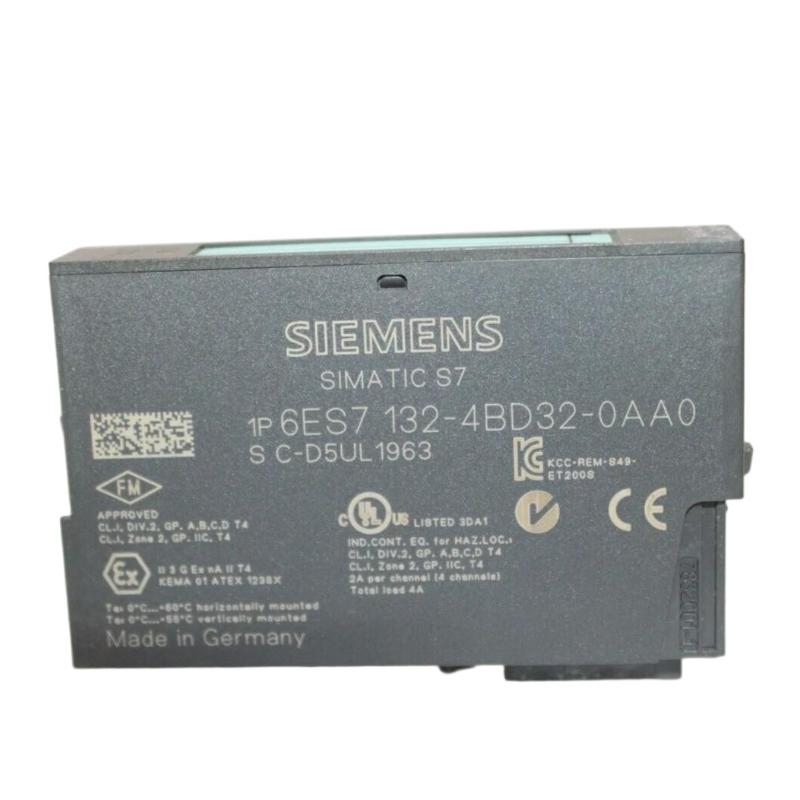

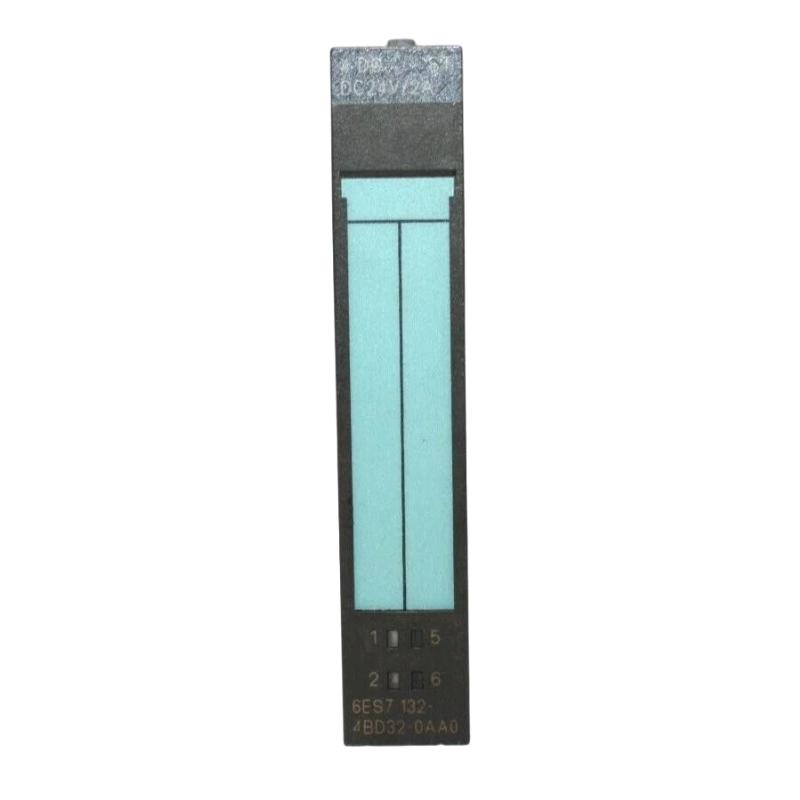

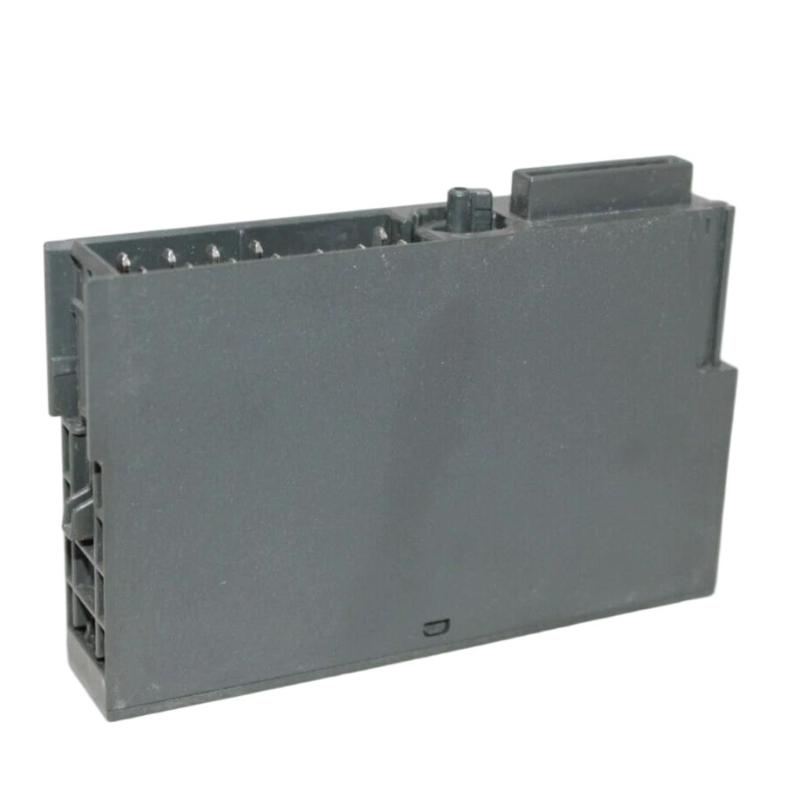

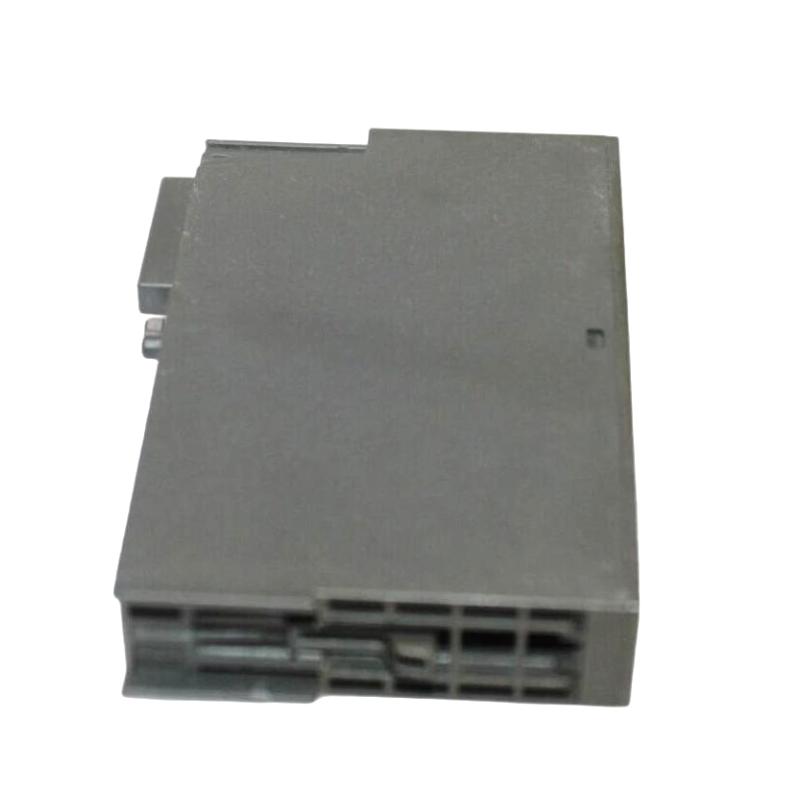

Siemens 6ES7132-4BD32-0AA0 Digital Output Electronic Module
Siemens 6ES7132-4BD32-0AA0 Digital Output Electronic Module
0.0
Points
Brand:Siemens Item No.:6ES7132-4BD32-0AA0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.184 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6ES7132-4BD32-0AA0 Digital Output Electronic Module is a standard digital output component in the SIMATIC ET 200S distributed I/O family. It is designed to convert controller output commands into electrical switching signals for connected field devices.
With four 24 V DC output channels and a rated current of 2 A per channel, the module provides a practical solution for controlling actuators and other industrial electrical loads. Its compact 15 mm width supports high-density I/O arrangements, while its electronic short-circuit protection adds a layer of protection for output circuits.
The module is installed as part of an ET 200S station and requires the appropriate terminal module and power supply arrangement. Its output channels are suitable for standard industrial switching applications where reliable digital signal control and efficient cabinet space utilization are important.
For maintenance teams and industrial equipment purchasers, the 6ES7132-4BD32-0AA0 is a relevant replacement component for existing ET 200S installations. Before purchasing, users should confirm the module's exact model number and verify that its electrical characteristics match the original system configuration.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6ES7132-4BD32-0AA0
Product Series
SIMATIC ET 200S
Product Type
Digital Output Electronic Module
Number of Outputs
4
Output Type
Standard digital output, sourcing (PNP)
Rated Load Voltage
24 V DC
Rated Output Current
2 A per channel
Permissible Output Current
7 mA to 2.4 A
Maximum Total Output Current
4 A per module
Short-Circuit Protection
Yes
Maximum Switching Frequency (Resistive Load)
1,000 Hz
Maximum Switching Frequency (Inductive Load)
2 Hz
Maximum Switching Frequency (Lamp Load)
10 Hz
Maximum Lamp Load
10 W
Output Status Indicators
Green LED per channel
Diagnostic Function
No
Isolation Between Channels
No
Isolation from Backplane Bus
Yes
Typical Power Dissipation
1.6 W
Module Width
15 mm
Dimensions (W × H × D)
15 × 81 × 52 mm
Weight
0.184 kg / 0.41 lb
Recommended Related Models
The following Siemens modules belong to the SIMATIC ET 200S distributed I/O family and may be relevant when configuring or maintaining a similar system:
6ES7132-4BD30-0AA0 – Digital Output Electronic Module
6ES7132-4BD30-0AB0 – Digital Output Electronic Module
6ES7132-4BD00-0AB0 – Digital Output Electronic Module
6ES7132-4BB31-0AA0 – Digital Output Electronic Module
6ES7132-4BB31-0AB0 – Digital Output Electronic Module
These models have different output configurations and electrical characteristics. Verify the complete part number and technical specifications before selecting a replacement.
Popular Related Models
Other Siemens automation components that may be useful for ET 200S system maintenance and spare-parts procurement include:
6ES7131-4BB00-0AA0 – Digital Input Electronic Module
6ES7134-4GB01-0AB0 – Analog Input Electronic Module
6ES7135-4GB01-0AB0 – Analog Output Electronic Module
6ES7193-4CA50-0AA0 – Terminal Module
6ES7138-4CA01-0AA0 – Power Module
For replacement or expansion projects, check the station layout, terminal module, power supply arrangement, and controller configuration to ensure the selected components are suitable for the intended ET 200S installation.
Applications
The Siemens 6ES7132-4BD32-0AA0 is a four-channel digital output electronic module designed for the SIMATIC ET 200S distributed I/O system. It provides standard 24 V DC switching outputs with a rated output current of 2 A per channel, making it suitable for controlling various electrical loads in automated production environments.
Typical applications include:
Industrial machinery control: Switching solenoid valves, contactors, relays, and other 24 V DC control devices.
Manufacturing automation: Operating actuators and electrical components in automated production lines.
Process control systems: Providing digital output signals for field devices in distributed control architectures.
Packaging equipment: Controlling pneumatic components and auxiliary electrical loads.
Material handling systems: Operating conveyors, positioning mechanisms, and other machine-control devices.
PLC-based automation: Expanding the digital output capacity of compatible SIMATIC ET 200S stations.
Key Advantages and Product Features
Four Independent Digital Output Channels
The module provides four digital output channels, allowing multiple field devices to be controlled through one compact electronic module. Each channel supports a rated output current of 2 A.
24 V DC Output Operation
Designed for 24 V DC load circuits, the module supports common industrial control applications and integrates into appropriately configured ET 200S stations.
Compact 15 mm Module Width
Its narrow design helps conserve control cabinet space, making it practical for installations where multiple I/O modules must be arranged in a limited area.
Short-Circuit Protection
The electronic outputs include short-circuit protection, helping protect the module and connected circuits under specified operating conditions.
Flexible Output Switching
The module supports switching frequencies up to 1,000 Hz with resistive loads, allowing it to handle a range of standard digital control tasks.
Modular System Integration
As part of the SIMATIC ET 200S platform, the module works with the appropriate terminal module, power module, and station components to create a modular distributed I/O configuration.
Technical FAQs
Q1: What is the primary function of the Siemens 6ES7132-4BD32-0AA0?
It is a four-channel digital output module for the SIMATIC ET 200S distributed I/O system. It switches 24 V DC signals to control external electrical loads.
Q2: How many digital output channels does this module provide?
It provides four digital output channels, allowing four separate output signals to be controlled.
Q3: What is the rated output voltage?
The rated load voltage is 24 V DC, supplied through the ET 200S power module.
Q4: What is the rated current of each output channel?
Each output has a rated current of 2 A, with a permitted operating range of 7 mA to 2.4 A under the specified conditions.
Q5: What is the maximum total output current?
The maximum total output current for the module is 4 A. The combined load of all channels must remain within this limit.
Q6: Does the 6ES7132-4BD32-0AA0 provide short-circuit protection?
Yes. Its digital outputs include electronic short-circuit protection. Correct wiring and appropriate load selection are still necessary.
Q7: Can two output channels be connected in parallel?
Two outputs can be connected in parallel for redundant control of a load, as specified by Siemens. They must not be paralleled to increase the available output current.
Q8: Does the module provide electrical isolation?
The digital outputs are not isolated from one another. They are electrically isolated from the ET 200S backplane bus, with isolation tested at 500 V DC.
Q9: Does this module support high-frequency switching?
Yes. The maximum switching frequency is 1,000 Hz for resistive loads. The permitted frequency is lower for inductive and lamp loads, so the load characteristics must be considered.
Q10: What should be checked before replacing this module?
Confirm the complete order number, output configuration, rated voltage, current requirements, terminal module, and ET 200S station configuration. Also verify the wiring and parameter settings before returning the system to operation.
