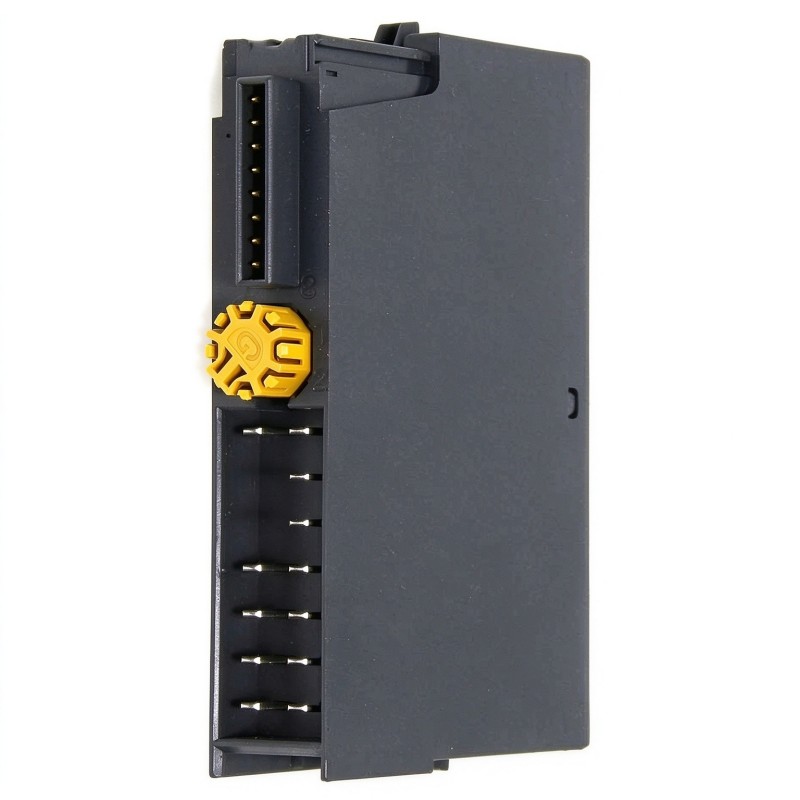

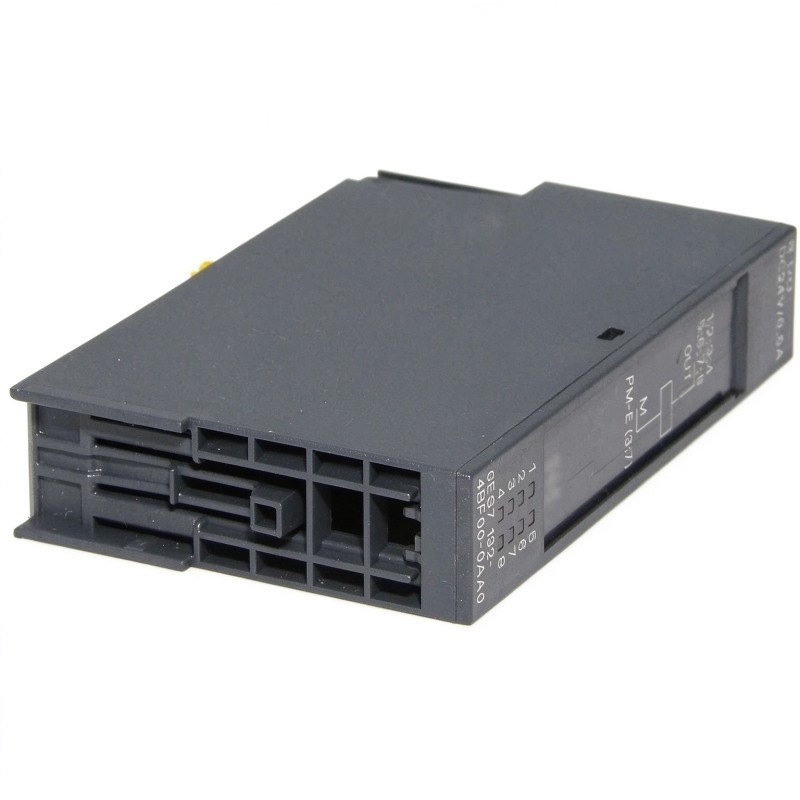

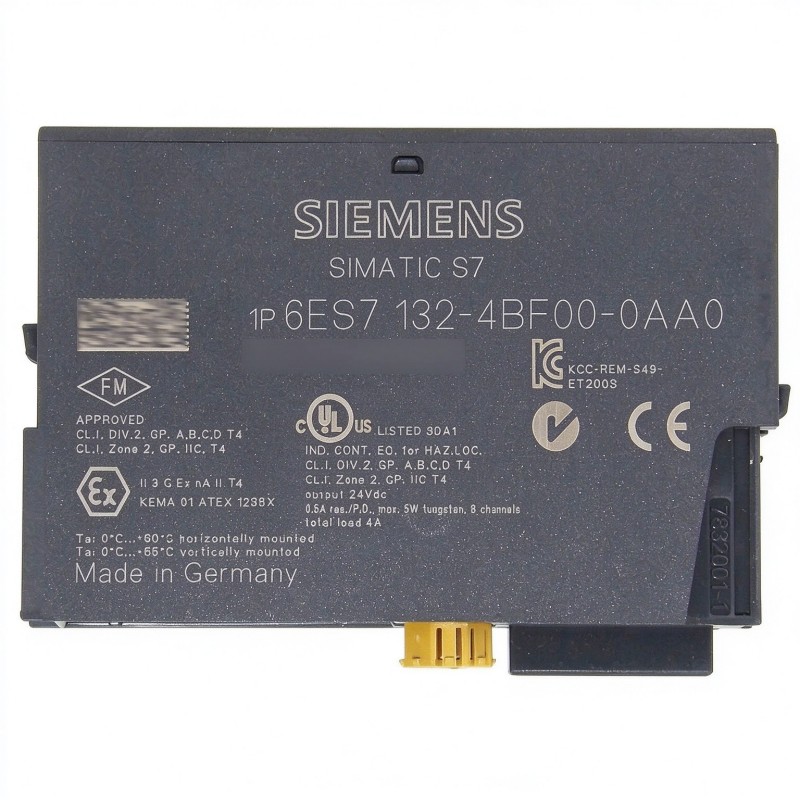

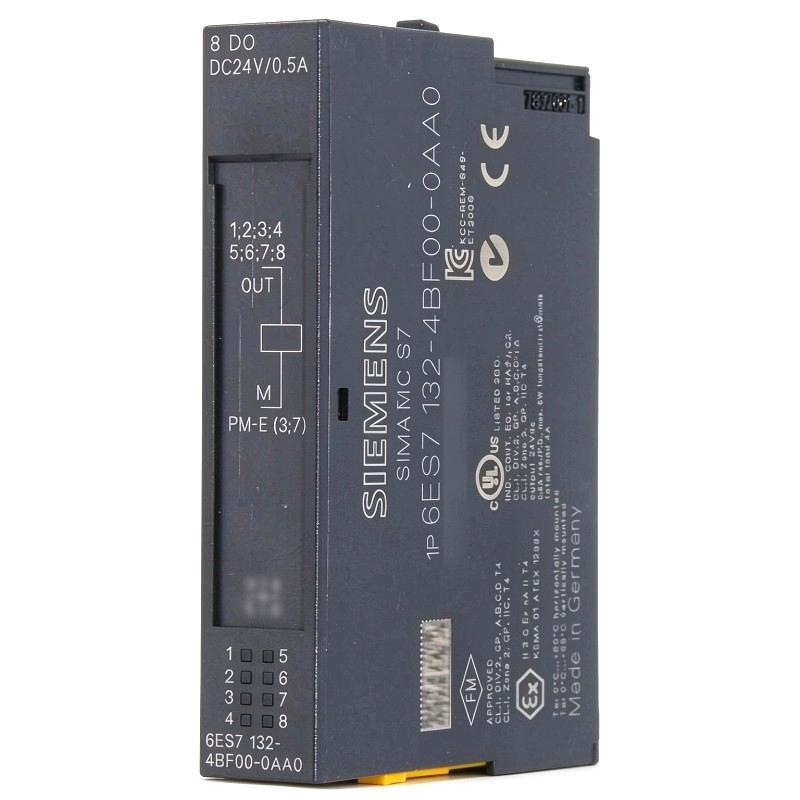

Siemens 6ES7132-4BF00-0AA0 Digital Output Electronic Module
Siemens 6ES7132-4BF00-0AA0 Digital Output Electronic Module
0.0
Points
Brand:Siemens Item No.:6ES7132-4BF00-0AA0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.044 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6ES7132-4BF00-0AA0 Digital Output Electronic Module is a standard output component in the SIMATIC ET 200S distributed I/O family. It is designed to provide reliable digital signal switching between a PLC control system and connected industrial field devices.
The module features eight sourcing PNP outputs operating at 24 V DC, with a rated output current of 0.5 A per channel. This configuration makes it suitable for controlling low-current electrical loads in manufacturing equipment, automated production lines, and distributed control installations.
For practical operation, the module incorporates electronic short-circuit protection and individual green output status indicators. Its compact 15 mm width allows it to be installed in space-efficient ET 200S configurations, helping simplify distributed I/O arrangements.
The 6ES7132-4BF00-0AA0 is intended for use with compatible ET 200S station components, including the appropriate terminal and power modules. It is important to distinguish this standard 8-channel version from other ET 200S output modules with different channel counts, current ratings, or diagnostic capabilities.
For maintenance and spare-parts procurement, checking the complete Siemens part number is essential to ensure the replacement matches the existing system requirements.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6ES7132-4BF00-0AA0
Product Series
SIMATIC ET 200S
Product Type
Digital Output Electronic Module
Number of Digital Outputs
8
Output Type
Sourcing output (PNP)
Rated Load Voltage
24 V DC
Rated Output Current
0.5 A per channel
Permissible Output Current
7 mA to 600 mA
Maximum Total Output Current
4 A per module
Short-Circuit Protection
Yes
Typical Short-Circuit Response Threshold
1.5 A
Maximum Switching Frequency (Resistive Load)
100 Hz
Maximum Switching Frequency (Inductive Load)
2 Hz
Maximum Switching Frequency (Lamp Load)
10 Hz
Maximum Lamp Load
5 W
Output Delay (OFF to ON, Resistive Load)
300 μs
Output Delay (ON to OFF, Resistive Load)
600 μs
Output Status Indicators
Green LED per channel
Diagnostic Function
No
Isolation Between Channels
No
Isolation from Backplane Bus
Yes
Typical Power Dissipation
1.5 W
Module Width
15 mm
Dimensions (W × H × D)
15 × 81 × 52 mm
Weight
0.044 kg / 0.10 lb
Recommended Related Models
The following Siemens modules belong to the SIMATIC ET 200S product family and may be relevant for distributed I/O maintenance or system expansion:
6ES7132-4BF00-0AB0 – Digital Output Electronic Module, High Feature
6ES7132-4BF50-0AA0 – Digital Output Electronic Module, Sinking Output
6ES7132-4BD00-0AB0 – Digital Output Electronic Module
6ES7132-4BD30-0AB0 – Digital Output Electronic Module
6ES7132-4BB31-0AA0 – Digital Output Electronic Module
These modules have different output characteristics and configurations. Check the electrical specifications and system compatibility before selecting an alternative.
Popular Related Models
Other Siemens components commonly associated with SIMATIC ET 200S distributed I/O installations include:
6ES7131-4BB00-0AA0 – Digital Input Electronic Module
6ES7134-4GB01-0AB0 – Analog Input Electronic Module
6ES7135-4GB01-0AB0 – Analog Output Electronic Module
6ES7193-4CA50-0AA0 – Terminal Module
6ES7138-4CA01-0AA0 – Power Module
When purchasing replacement parts, confirm the exact model, electrical ratings, terminal arrangement, and station configuration to ensure the selected components are suitable for the intended application.
Applications
The Siemens 6ES7132-4BF00-0AA0 Digital Output Electronic Module is designed for the SIMATIC ET 200S distributed I/O system. Featuring eight 24 V DC digital outputs with a rated current of 0.5 A per channel, it provides a compact solution for controlling low-current industrial loads.
Typical applications include:
Factory automation: Switching relays, indicator lamps, and other control devices.
Machine control: Operating solenoid valves and small electrical actuators.
Conveyor systems: Controlling auxiliary equipment and distributed output signals.
Packaging machinery: Managing pneumatic components and machine functions.
Process automation: Sending digital control signals to field devices.
Distributed PLC installations: Expanding output capacity in SIMATIC ET 200S stations.
Key Advantages and Features
Eight Digital Output Channels
The module provides eight independent digital output channels, allowing several field devices to be controlled within a compact installation space.
24 V DC PNP Output Design
Its sourcing output configuration supports standard 24 V DC industrial control circuits and is suitable for compatible electronic loads.
0.5 A Rated Current per Channel
Each output has a rated current of 0.5 A, making the module suitable for switching relays, indicator devices, and other low-current loads.
Electronic Short-Circuit Protection
Integrated short-circuit protection helps protect the output circuits when abnormal load conditions occur.
Compact ET 200S Construction
With a 15 mm module width, the unit supports high-density I/O configurations and helps optimize control cabinet space.
Output Status Indicators
Green LEDs provide individual output status indication, helping technicians monitor signal states during commissioning and maintenance.
Technical FAQs
Q1: What is the main function of the Siemens 6ES7132-4BF00-0AA0?
It is an eight-channel digital output module for the SIMATIC ET 200S distributed I/O system. It converts controller commands into 24 V DC switching signals for external loads.
Q2: How many digital outputs are available?
The module provides eight digital output channels.
Q3: What is the rated load voltage?
The rated load voltage is 24 V DC. The load voltage is supplied through the appropriate ET 200S power module.
Q4: What is the rated output current per channel?
Each channel has a rated output current of 0.5 A. The permissible current range is 7 mA to 600 mA under the specified operating conditions.
Q5: What is the maximum total output current?
The maximum total current for all outputs is 4 A per module. The actual load distribution must comply with the specified operating limits.
Q6: Does the module have short-circuit protection?
Yes. The electronic outputs include short-circuit protection, with a typical response threshold of approximately 1.5 A.
Q7: What type of digital output does this module use?
It uses sourcing PNP outputs. When an output is switched on, it supplies positive voltage to a compatible connected load.
Q8: Can two output channels be connected in parallel?
Two outputs may be connected in parallel for redundant control of a load. However, parallel connection must not be used to increase the output current capacity.
Q9: Does the module provide diagnostic functions?
No. This standard version does not provide module diagnostic functions. Individual green LEDs indicate the digital output status.
Q10: What should be checked when replacing this module?
Verify the complete order number, output type, 24 V DC load supply, current requirements, terminal module, and ET 200S station configuration. Confirm the wiring and controller configuration before commissioning the replacement.
