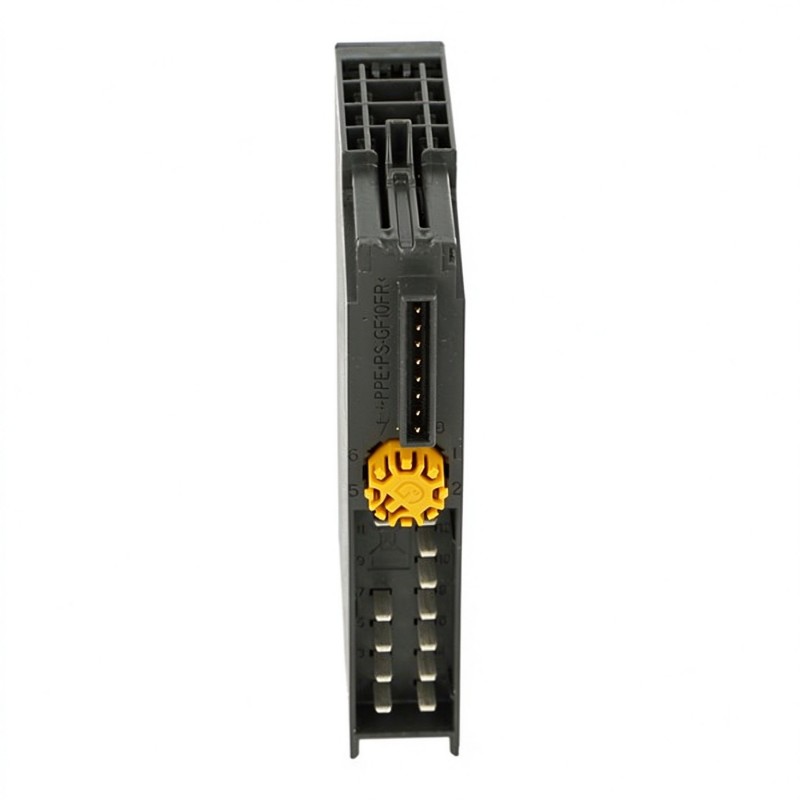

Siemens 6ES7132-4BF00-0AB0 Digital Output Electronic Module
Siemens 6ES7132-4BF00-0AB0 Digital Output Electronic Module
0.0
Points
Brand:Siemens Item No.:6ES7132-4BF00-0AB0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.043 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Siemens 6ES7132-4BF00-0AB0 Digital Output Electronic Module is a High Feature output component in the SIMATIC ET 200S distributed I/O family. It is designed to provide reliable digital switching and diagnostic capabilities for industrial automation systems.
The module features eight 24 V DC sourcing outputs, each with a rated current of 0.5 A. This configuration supports the control of relays, indicator devices, solenoid valves, and other compatible industrial loads. Its maximum total output current is 4 A per module.
As a High Feature module, the 6ES7132-4BF00-0AB0 provides diagnostic capabilities, including short-circuit reporting. Individual green LEDs display output status, while the red SF LED indicates group faults. These functions help maintenance personnel identify output problems and reduce troubleshooting time.
The module is designed for installation in a compatible SIMATIC ET 200S station using the appropriate terminal module and power supply arrangement. Its compact 15 mm width makes it suitable for control cabinets requiring high-density distributed I/O.
For industrial maintenance, equipment upgrades, and spare-parts procurement, the 6ES7132-4BF00-0AB0 is a useful option where an eight-channel, 24 V DC High Feature output module is required. Buyers should verify the complete order number and system requirements before selecting a replacement.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6ES7132-4BF00-0AB0
Product Series
SIMATIC ET 200S
Product Type
Digital Output Electronic Module
Module Version
High Feature
Number of Digital Outputs
8
Output Type
Sourcing output (PNP)
Rated Load Voltage
24 V DC
Rated Output Current
0.5 A per channel
Permissible Output Current
7 mA to 0.6 A
Maximum Total Output Current
4 A per module
Short-Circuit Protection
Yes
Short-Circuit Diagnostics
Yes
Maximum Switching Frequency (Resistive Load)
100 Hz
Maximum Switching Frequency (Inductive Load)
2 Hz
Maximum Switching Frequency (Lamp Load)
10 Hz
Maximum Lamp Load
5 W
Output Delay (OFF to ON)
300 μs
Output Delay (ON to OFF)
600 μs
Output Status Indicators
Green LED per channel
Group Fault Indicator
Red SF LED
Electrical Isolation Between Channels
No
Isolation from Backplane Bus
Yes
Typical Power Dissipation
1.5 W
Module Width
15 mm
Dimensions (W × H × D)
15 × 81 × 52 mm
Weight
0.043 kg / 0.09 lb
Recommended Related Models
The following Siemens digital output modules belong to the SIMATIC ET 200S family and may be relevant for system maintenance or configuration planning:
6ES7132-4BF00-0AA0 – 8-Channel Digital Output Electronic Module, Standard
6ES7132-4BF50-0AA0 – 8-Channel Digital Output Electronic Module, Sinking Output
6ES7132-4BD00-0AB0 – 4-Channel Digital Output Electronic Module, High Feature
6ES7132-4BD30-0AB0 – 4-Channel Digital Output Electronic Module, High Feature
6ES7132-4BB31-0AB0 – 2-Channel Digital Output Electronic Module, High Feature
These models differ in channel count, output current, and functional characteristics. Confirm the electrical specifications and compatibility before ordering.
Popular Related Models
Other Siemens SIMATIC ET 200S components that may be useful for distributed I/O installations include:
6ES7131-4BB00-0AA0 – Digital Input Electronic Module
6ES7134-4GB01-0AB0 – Analog Input Electronic Module
6ES7135-4GB01-0AB0 – Analog Output Electronic Module
6ES7193-4CA50-0AA0 – Terminal Module
6ES7138-4CA01-0AA0 – Power Module
When selecting related components, check the station configuration, terminal module, power supply arrangement, and controller requirements to ensure proper integration into the existing automation system.
Applications
The Siemens 6ES7132-4BF00-0AB0 is an eight-channel digital output electronic module designed for the SIMATIC ET 200S distributed I/O system. It provides 24 V DC transistor outputs with a rated current of 0.5 A per channel, making it suitable for controlling low-current industrial devices and automated equipment.
Typical applications include:
Factory automation: Switching indicator lamps, relays, and other electrical control devices.
Machine control: Operating solenoid valves and compatible 24 V DC actuators.
Packaging machinery: Managing pneumatic components and auxiliary machine functions.
Conveyor systems: Controlling distributed electrical loads and operating signals.
Process automation: Sending digital control signals to field devices.
PLC-based installations: Expanding the output capacity of SIMATIC ET 200S distributed I/O stations.
Key Advantages and Features
Eight Independent Digital Outputs
The module provides eight digital output channels, allowing multiple field devices to be controlled through one compact electronic module.
24 V DC PNP Output Configuration
Its sourcing output design supports standard industrial 24 V DC control circuits and connects to compatible loads through the appropriate terminal arrangement.
0.5 A Rated Output Current
Each channel supports a rated output current of 0.5 A, making the module suitable for low-current switching applications.
High-Feature Diagnostic Capability
Unlike the standard 6ES7132-4BF00-0AA0 version, this High Feature model supports diagnostic functions, including short-circuit reporting. A red SF LED provides group fault indication.
Electronic Short-Circuit Protection
Integrated short-circuit protection helps safeguard the output circuits under abnormal load conditions.
Individual Output Status Indicators
Green LEDs indicate the status of individual output channels, supporting commissioning, troubleshooting, and routine maintenance.
Compact Modular Design
With a 15 mm width, the module helps optimize cabinet space in distributed I/O installations.
Technical FAQs
Q1: What is the main function of the Siemens 6ES7132-4BF00-0AB0?
It is an eight-channel digital output module for the SIMATIC ET 200S system. It converts PLC output commands into 24 V DC switching signals for connected field devices.
Q2: How many output channels does this module provide?
It provides eight digital output channels, allowing eight output signals to be controlled independently.
Q3: What is the rated load voltage?
The rated load voltage is 24 V DC, supplied through the appropriate ET 200S power module.
Q4: What is the rated output current per channel?
Each output channel has a rated current of 0.5 A, with a permissible operating range of 7 mA to 0.6 A.
Q5: What is the maximum total output current?
The maximum total output current is 4 A per module. The combined load must remain within this limit.
Q6: Does the module support short-circuit diagnostics?
Yes. This High Feature version supports short-circuit diagnostics. A group fault can be indicated through the red SF LED.
Q7: What type of output does the module use?
It uses sourcing PNP transistor outputs. When an output is activated, it supplies positive voltage to the connected compatible load.
Q8: Can two output channels be connected in parallel?
Two outputs can be connected in parallel for redundant control of a load. They must not be connected in parallel to increase the available output current.
Q9: Does the module provide electrical isolation?
The output channels are not electrically isolated from one another. The digital outputs are isolated from the ET 200S backplane bus, with an insulation test voltage of 500 V DC.
Q10: What should be checked before replacing this module?
Confirm the complete order number, output configuration, load voltage, current requirements, terminal module, and diagnostic requirements. The High Feature version should not automatically be replaced with a standard version without checking the system configuration.
