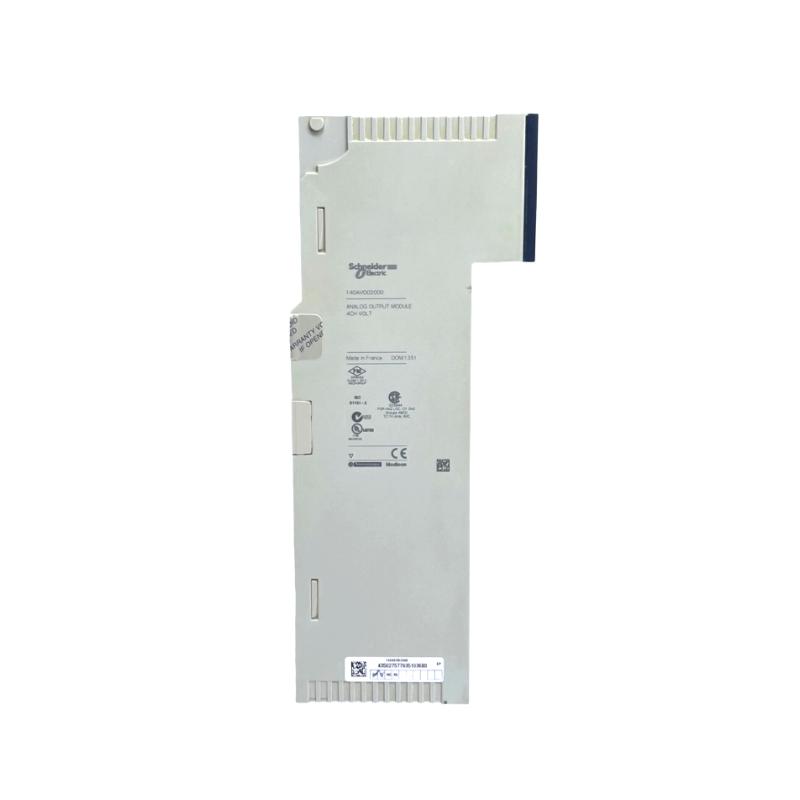

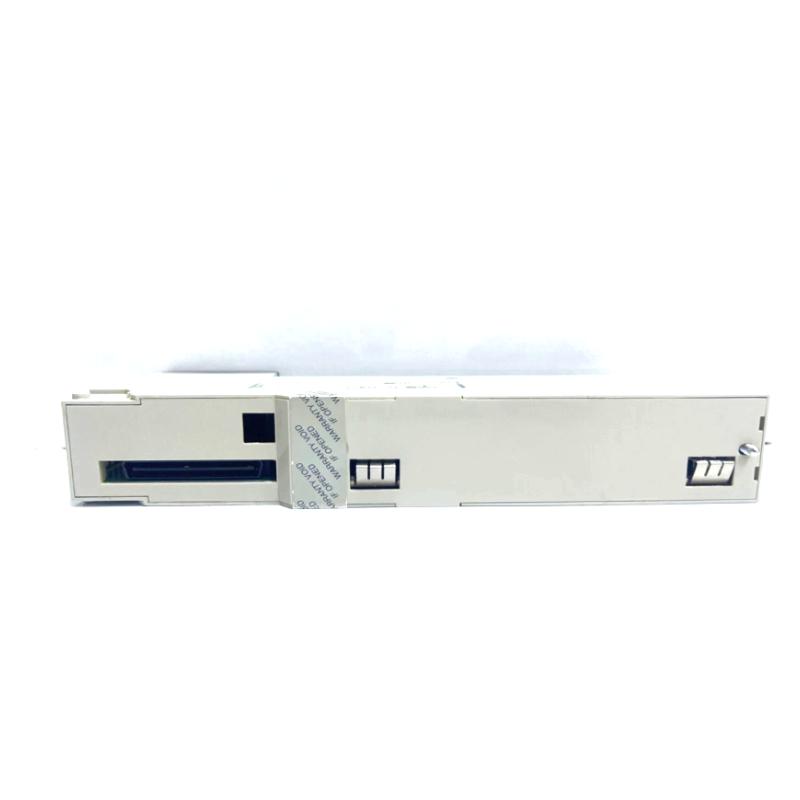

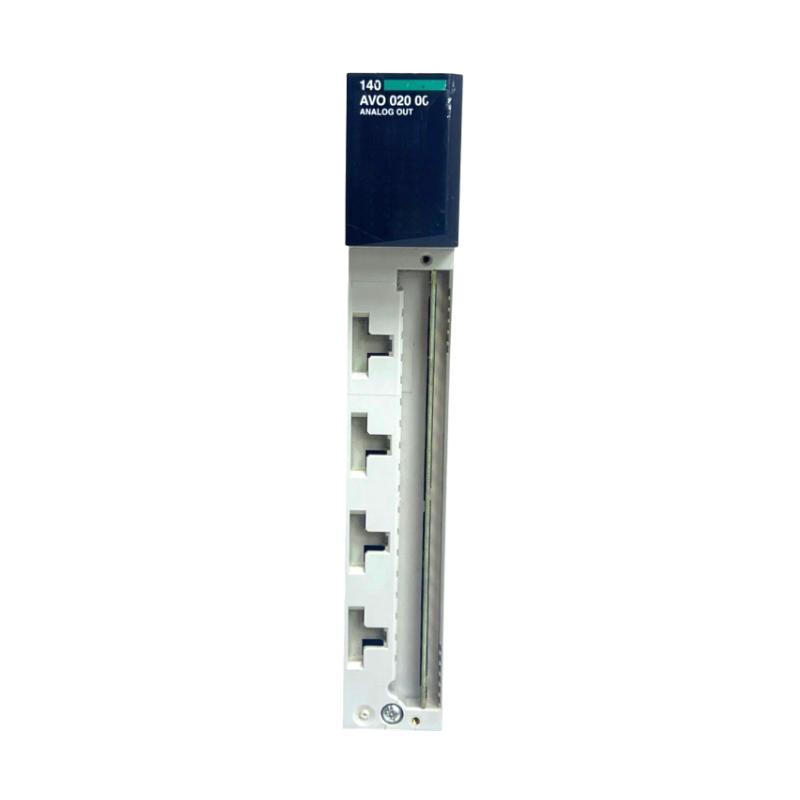

The Schneider Electric 140AVO02000C is a high-precision analog output module designed for use with Modicon M340 and Modicon M580 PLC systems. This module offers exceptional accuracy and flexibility, supporting two 16-bit analog output channels for precise control over field devices. Whether you are working with sensors, actuators, or other analog devices, the 140AVO02000C ensures smooth communication and real-time signal processing. Built to handle industrial-grade applications, it’s ideal for process control, automation, and other critical systems where high-performance analog output is required.

Technical Specifications

Specification	Details
Model	140AVO02000C
Module Type	Analog Output Module
Number of Output Channels	2 Channels (16-bit resolution)
Output Range	±10V, 0-20mA, 4-20mA
Accuracy	0.1% of Full Scale
Power Supply	Supplied by the base PLC
Dimensions (L x W x H)	4.9 x 3.2 x 5.4 inches (125 x 82 x 137 mm)
Weight	0.75 lbs (0.34 kg)
Operating Temperature Range	0°C to 60°C (32°F to 140°F)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Humidity Range	5% to 95% non-condensing
Isolation	500V AC between channels and system

Recommended Related Models

Schneider Electric 140CRP31200 – Powerful processor for Modicon M340 with advanced control capabilities.
Schneider Electric 140DAO78100 – 8-channel analog output module with support for a variety of output ranges.
Schneider Electric 140ACR11000 – Analog input module that integrates seamlessly with the 140AVO02000C for full analog control and monitoring.

Popular Schneider Electric Models

Modicon M340 PLC – A modular and flexible PLC system ideal for medium to large automation applications.
Modicon M580 ePAC – Advanced distributed control system with integrated Ethernet connectivity and cybersecurity features.
140CPS11100 Power Supply Module – Reliable power module that ensures stable operation for Modicon PLC systems.
140DDI35300 Digital Input Module – A digital input module for monitoring discrete signals in a wide variety of industrial environments.

Applications

The 140AVO02000C analog output module is designed for high-precision control in a variety of industrial applications, including:

Process Control: Perfect for industries requiring accurate analog output for control loops such as in chemical, pharmaceutical, and food processing industries.
Automated Manufacturing: Provides analog output to drive motors, actuators, or other machinery that requires fine control signals.
Building Automation: Integrates with HVAC and lighting systems to deliver precise control signals for various applications in building management systems.
Energy Management: Used to control variable frequency drives (VFDs) and other power-related systems in industrial energy management applications.
Test and Measurement: Ideal for use in laboratories or manufacturing processes that require reliable analog signal output for testing and calibration.

Advantages

High Precision: The 16-bit resolution ensures that the module provides very fine control, essential for applications requiring exact analog signal output.
Versatile Output Ranges: Supports multiple output ranges such as ±10V, 0-20mA, and 4-20mA, making it adaptable to a variety of field devices.
Accurate Signal Generation: With an accuracy of 0.1% of full scale, this module guarantees highly reliable and precise analog output.
Compact and Efficient Design: The module’s small size allows for easy integration into any control panel or automation system.
Durability and Longevity: Designed to withstand industrial conditions, ensuring long-term operation with minimal downtime and maintenance.
Flexible Integration: Easily integrates with Modicon M340 and M580 PLCs, as well as a wide variety of other Schneider Electric I/O modules.
Improved System Performance: Enables the precise control of field devices, which directly enhances the overall efficiency of automation and process control systems.
High Isolation: Offers 500V AC isolation between output channels and the system, ensuring safety and preventing signal interference.
Energy Efficient: Designed to be low-power, contributing to overall energy efficiency in your system.
Scalable: The module is easily scalable, making it a great choice for both small systems and large-scale industrial automation setups.

Technical FAQs

What output ranges are supported by the 140AVO02000C module?
The module supports ±10V, 0-20mA, and 4-20mA output ranges for a variety of analog control applications.
How many output channels does the 140AVO02000C module have?
This module has 2 analog output channels, both offering 16-bit resolution for precise signal output.
What is the accuracy of the 140AVO02000C module?
The accuracy is 0.1% of full scale, ensuring reliable and precise analog outputs for sensitive applications.
What is the operating temperature range for the module?
The module operates within a temperature range of 0°C to 60°C (32°F to 140°F), making it suitable for most industrial environments.
What is the weight of the 140AVO02000C module?
The module weighs approximately 0.75 lbs (0.34 kg).
What type of isolation does the 140AVO02000C provide?
The module provides 500V AC isolation between output channels and the system to ensure safety and signal integrity.
What is the typical application of the 140AVO02000C?
The module is ideal for process control, automated manufacturing, building automation, energy management, and test and measurement applications.
How is the 140AVO02000C configured?
Configuration is done via Schneider Electric’s EcoStruxure Automation Expert or Unity Pro software, both offering user-friendly setup options.
Can the 140AVO02000C module be used with other Schneider Electric PLC systems?
While it is designed for Modicon M340 and M580, it can also integrate into other compatible Schneider Electric systems with the right configuration.
What are the dimensions of the 140AVO02000C module?
The module measures 4.9 x 3.2 x 5.4 inches (125 x 82 x 137 mm), making it compact enough for various installation scenarios.
