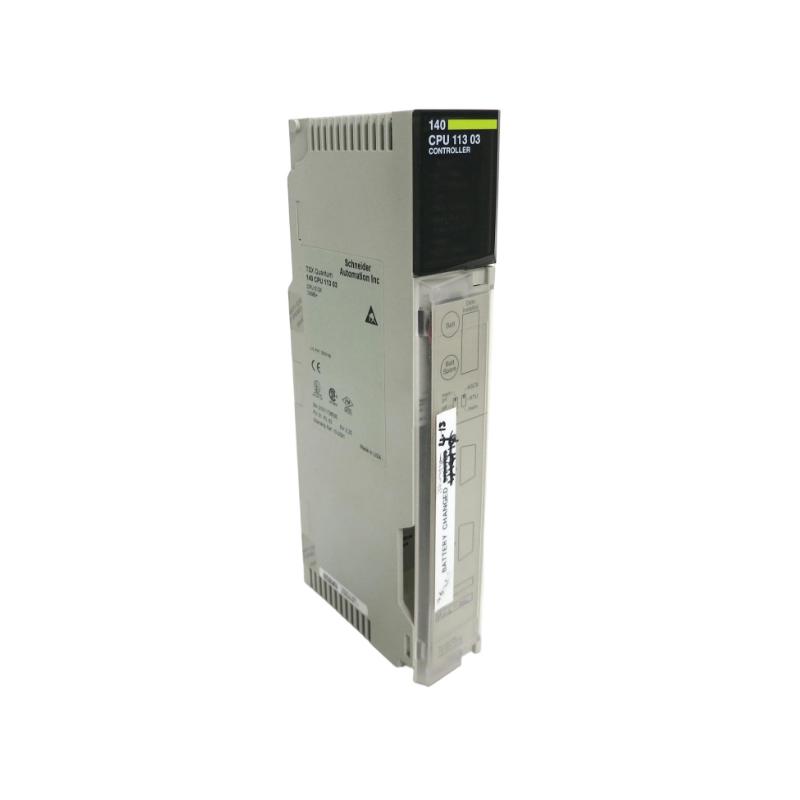

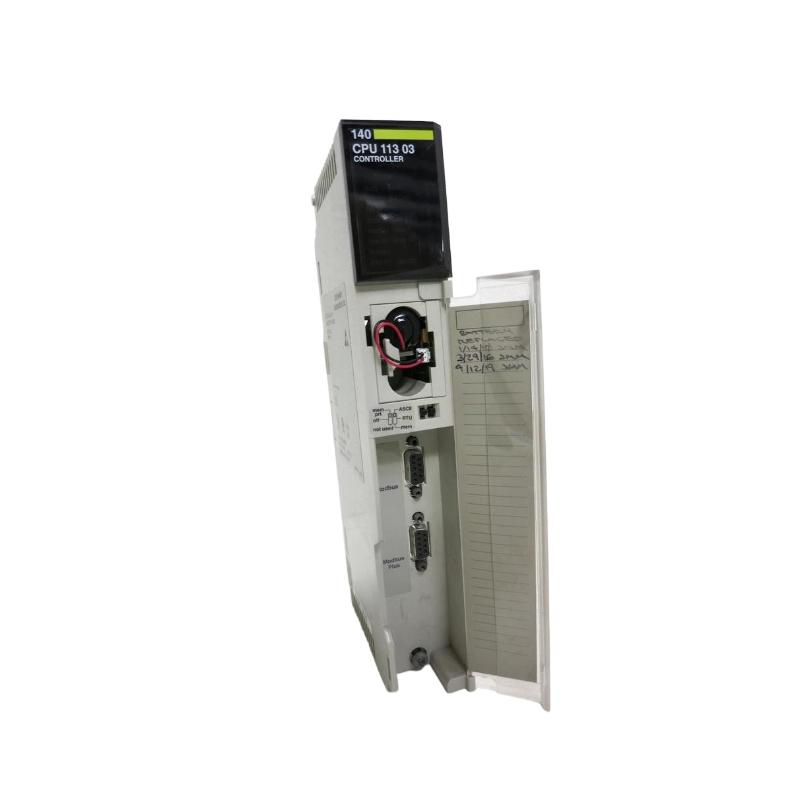

The Schneider Electric 140CPU11303 is an advanced Modicon M340 processor module designed for industrial automation systems that demand high-speed processing, real-time control, and flexibility. This high-performance PLC processor is part of the Modicon M340 series, offering a robust solution for controlling complex industrial applications across various industries like automotive, pharmaceuticals, food and beverage, and energy management.
The 140CPU11303 offers enhanced processing power, supporting up to 2048 I/O points, making it ideal for both medium and large-scale applications. With its built-in Ethernet connectivity and Modbus TCP/IP communication protocol, this module allows easy integration into Ethernet-based control networks, ensuring seamless data exchange and system monitoring in real-time.
With its 2 MHz processing speed, extended memory capacity, and diagnostic features, the 140CPU11303 is well-suited for mission-critical applications requiring precise control, reliable operation, and scalability.
Key Features
-
Processor Type: The 140CPU11303 is a Modicon M340 processor designed for medium to large-scale automation systems. It provides powerful control capabilities for industrial applications requiring high performance and flexibility.
-
High-Speed Processing: With 2 MHz processor speed, the 140CPU11303 delivers fast execution of control functions and enables real-time responses for complex industrial systems.
-
Memory: Comes with 4 MB of embedded memory, which can be expanded via SD card to accommodate large programs and data sets.
-
Communication Ports: Features Ethernet communication and Modbus TCP/IP protocols, offering seamless integration with Ethernet-based networks and remote programming.
-
I/O Capacity: Supports up to 2,048 I/O points, making it suitable for large and scalable systems with multiple input/output devices.
-
Real-Time Diagnostics: Built-in diagnostic tools help continuously monitor the health of the system, providing valuable insights for proactive troubleshooting and reducing system downtime.
-
Scalability: Easily integrates with additional I/O modules and can be expanded to meet increasing system demands.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 140CPU11303 |
| Processor Type | Modicon M340 CPU |
| Processor Speed | 2 MHz (max processing speed) |
| Program Memory | 4 MB |
| Communication Ports | 2 x Ethernet ports (Modbus TCP/IP) |
| I/O Capacity | Up to 2,048 I/O points (expandable) |
| Memory Expansion | 1 x SD card slot for memory expansion |
| Embedded Ethernet | Yes, for Ethernet communication and remote programming |
| Diagnostics | Built-in diagnostic capabilities for monitoring system health |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Protection Rating | IP20 (for module only) |
| Dimensions (L x W x H) | 160 x 100 x 120 mm |
| Weight | 0.6 kg (1.32 lbs) |
Recommended Related Models
-
Schneider Electric 140CPU11302 – A slightly lower-performance version in the Modicon M340 series, providing moderate control capabilities for smaller applications.
-
Schneider Electric 140CPU11304 – A higher-performance model in the Modicon M340 series, offering faster processing speeds and greater memory capacity for larger, more complex applications.
-
Schneider Electric 140CPS51100 – A 24V DC power supply module that ensures reliable power delivery for Modicon M340 PLC systems.
-
Schneider Electric 140CRA31200 – A Modicon M340 processor designed for more complex and scalable industrial automation applications requiring advanced control and I/O integration.
Popular Schneider Electric Models
-
Modicon M340 PLC – The Modicon M340 family of PLCs is ideal for industrial automation systems that require high processing power and advanced communication features. The 140CPU11303 is the central processor in the system, offering high flexibility and scalability.
-
Modicon M580 ePAC – A high-end, Ethernet-enabled PLC offering cutting-edge features for process control and critical system management. The 140CPU11303 can serve as a more cost-effective solution for similar applications.
-
Schneider Electric 140CPU11301 – A smaller scale Modicon M340 CPU that supports lower-performance applications with fewer I/O points and simpler processing requirements.
-
Schneider Electric 140CPS12400 – A 24V DC power supply module for Modicon M340, ideal for larger systems requiring reliable and continuous power.
