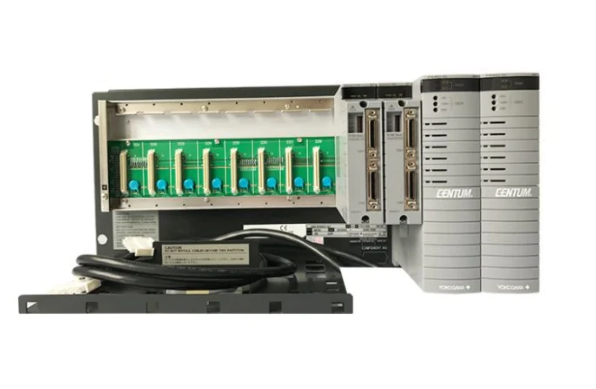

AFF50D-H41201

The Yokogawa AFF50D-H41201 is a specialized Fieldbus Interface Module designed for seamless integration and communication between field devices and Yokogawa’s process control systems. It is specifically built for industries that require precise, high-speed data communication, such as oil & gas, chemical processing, power generation, and pharmaceuticals. This module supports Foundation Fieldbus (FF) and HART communication protocols, offering reliable and real-time data transfer from field instruments like sensors, actuators, and transmitters to the control system. The AFF50D-H41201 is engineered to optimize process automation, enabling improved device diagnostics, real-time monitoring, and enhanced operational efficiency.

Technical Specifications

Model: AFF50D-H41201
Type: Fieldbus Interface Module
Dimensions: 7.2 inches x 5.1 inches x 3.9 inches (183 mm x 130 mm x 100 mm)
Weight: 1.4 lbs (0.64 kg)
Power Supply: 24V DC ± 10%
Power Consumption: 8 W
Communication Ports:
- 1x Fieldbus Port (Foundation Fieldbus, HART)
- 1x Ethernet Port (10/100 Mbps)
- 2x Serial Ports (RS-232/RS-485)
Supported Protocols: Foundation Fieldbus (FF), HART, Modbus RTU, Modbus TCP/IP
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Bus Current: 250 mA at 24V DC
Data Rate: 100 Mbps (Ethernet)

Recommended Related Models

Yokogawa CENTUM VP: A fully integrated Distributed Control System (DCS), ideal for pairing with the AFF50D-H41201 for complete process control and automation.
Yokogawa STARDOM FCN: A modular and scalable controller designed for distributed control and monitoring, which works well with the AFF50D-H41201 to increase system flexibility and scalability.
Yokogawa ADMAG AXF: A magnetic flow meter for precise flow measurement that integrates easily with the AFF50D-H41201 to provide real-time data and enhanced process monitoring.
Yokogawa PRM (Plant Resource Manager): A comprehensive asset management system that can be integrated with the AFF50D-H41201 for efficient diagnostics, monitoring, and predictive maintenance.

Popular Yokogawa Models

Yokogawa CENTUM VP DCS: A robust and scalable Distributed Control System (DCS) that enables efficient integration with the AFF50D-H41201 for real-time process monitoring and control.
Yokogawa DX1000 Controller: A compact and high-performance controller that complements the AFF50D-H41201, offering enhanced control and communication capabilities.
Yokogawa PRM (Plant Resource Manager): An asset management tool designed to improve maintenance workflows and minimize downtime when integrated with the AFF50D-H41201.

Applications

The Yokogawa AFF50D-H41201 is engineered for high-performance communication in a variety of demanding industrial applications:

Field Device Integration: The AFF50D-H41201 enables seamless communication between Yokogawa’s control systems and field devices, such as transmitters, sensors, and actuators, using Foundation Fieldbus (FF) and HART protocols.
Process Control: It allows for real-time data exchange in critical process control applications, helping operators optimize production processes in industries like oil & gas, chemical processing, and energy.
Predictive Maintenance: By transmitting field device diagnostics and performance data, the AFF50D-H41201 enhances predictive maintenance strategies, improving equipment reliability and reducing unplanned downtime.
Energy Management: Integrate with energy management systems for real-time monitoring and management of energy consumption, helping to optimize energy use and reduce costs.
Data Logging and Analysis: The module supports data collection from field devices, enabling detailed analysis and reporting for improved decision-making and process optimization.

Advantages

Multi-Protocol Communication: The AFF50D-H41201 supports Foundation Fieldbus (FF), HART, Modbus TCP/IP, and Modbus RTU, making it adaptable to various field devices and systems.
Real-Time Data Transfer: The 100 Mbps Ethernet port ensures fast and efficient data transfer, reducing latency and providing real-time insights into critical processes.
Flexible Integration: With 1 Fieldbus port, 1 Ethernet port, and 2 serial ports, the AFF50D-H41201 offers multiple connection options for seamless integration into a variety of industrial networks.
Compact and Reliable Design: The AFF50D-H41201 is compact, with a rugged design built to withstand harsh industrial conditions, ensuring high reliability and longevity.
Low Power Consumption: At 8 W power consumption, this module offers an energy-efficient solution for continuous operation without compromising performance.

Technical FAQs

What communication protocols does the AFF50D-H41201 support?
The AFF50D-H41201 supports Foundation Fieldbus (FF), HART, Modbus TCP/IP, and Modbus RTU protocols, allowing compatibility with a wide range of field devices.
How many communication ports are available on the AFF50D-H41201?
The module includes 1 Fieldbus port, 1 Ethernet port (10/100 Mbps), and 2 serial ports (RS-232/RS-485), providing flexible options for device integration.
What is the power consumption of the AFF50D-H41201?
The AFF50D-H41201 consumes 8 W, making it an energy-efficient option for continuous operation in industrial environments.
What is the data rate of the Ethernet port on the AFF50D-H41201?
The 100 Mbps Ethernet port allows for fast and efficient data transfer, ensuring real-time communication in critical applications.
Can the AFF50D-H41201 be used for predictive maintenance?
Yes, the AFF50D-H41201 integrates with Yokogawa's asset management systems to provide device diagnostics and performance data for predictive maintenance, reducing downtime and enhancing system reliability.
Is the AFF50D-H41201 suitable for hazardous environments?
The AFF50D-H41201 has an IP20 rating, making it suitable for indoor environments. It should be installed in areas free from dust and moisture for optimal performance.
What is the operating temperature range for the AFF50D-H41201?
The AFF50D-H41201 operates within a temperature range of -20°C to 60°C (-4°F to 140°F), suitable for most industrial environments.
Can the AFF50D-H41201 be integrated with Yokogawa’s CENTUM VP system?
Yes, the AFF50D-H41201 is fully compatible with the Yokogawa CENTUM VP DCS, enabling seamless communication and integration for enhanced control and monitoring.
How does the AFF50D-H41201 help with process control?
The AFF50D-H41201 integrates field devices with the control system, allowing for real-time data exchange and enhanced process monitoring, improving overall system efficiency and productivity.
What is the weight of the AFF50D-H41201?
The AFF50D-H41201 weighs approximately 1.4 lbs (0.64 kg), making it lightweight and easy to install in various industrial settings.
