Introduction

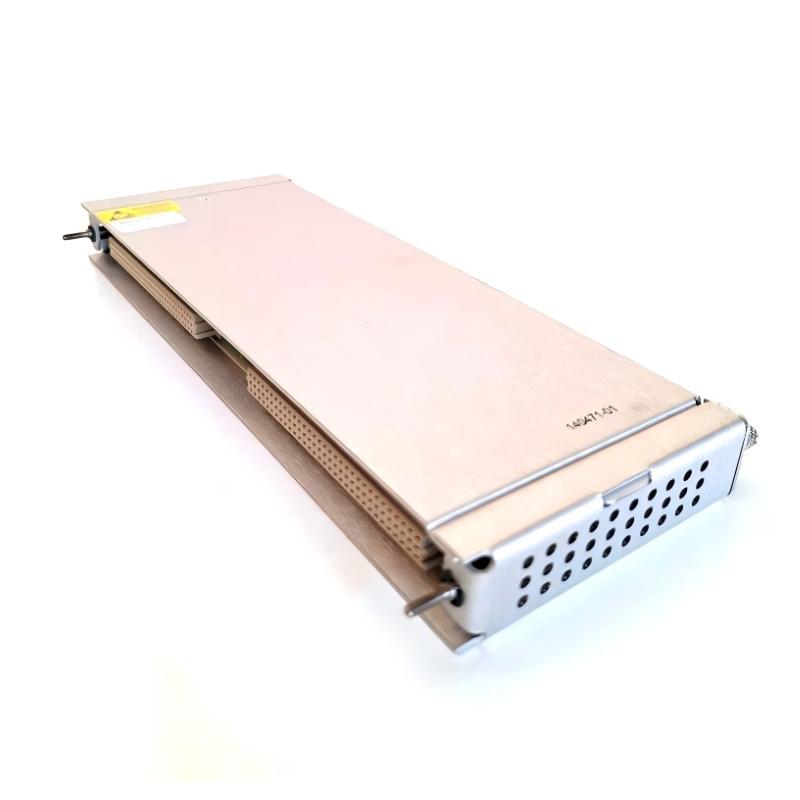

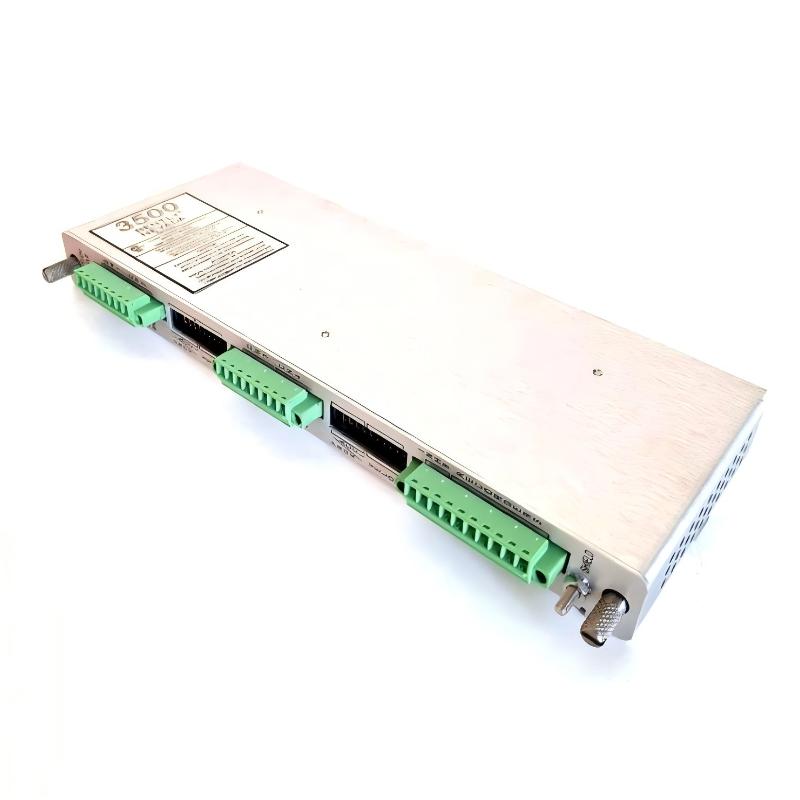

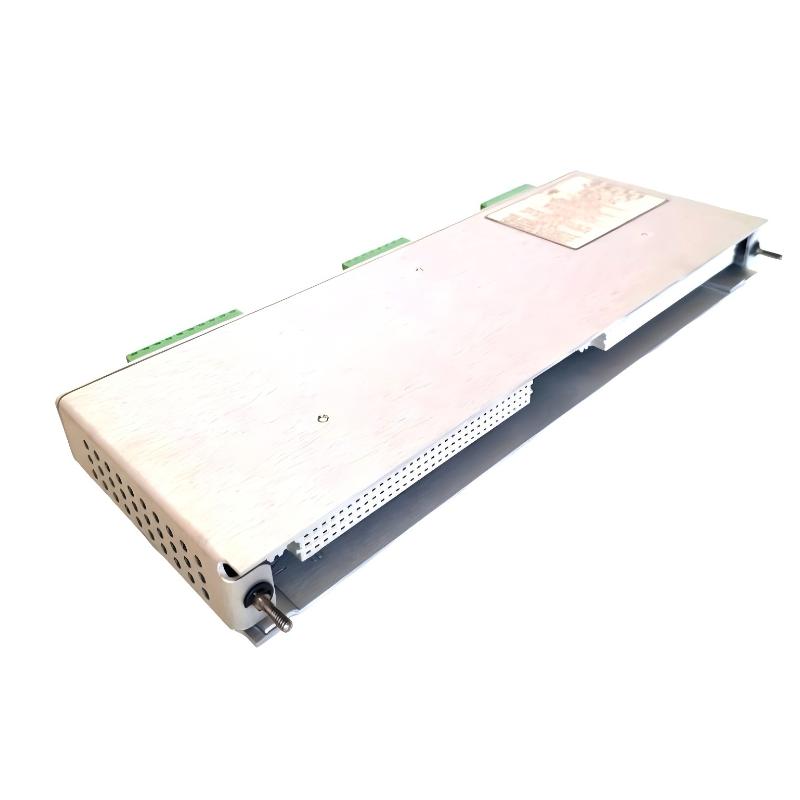

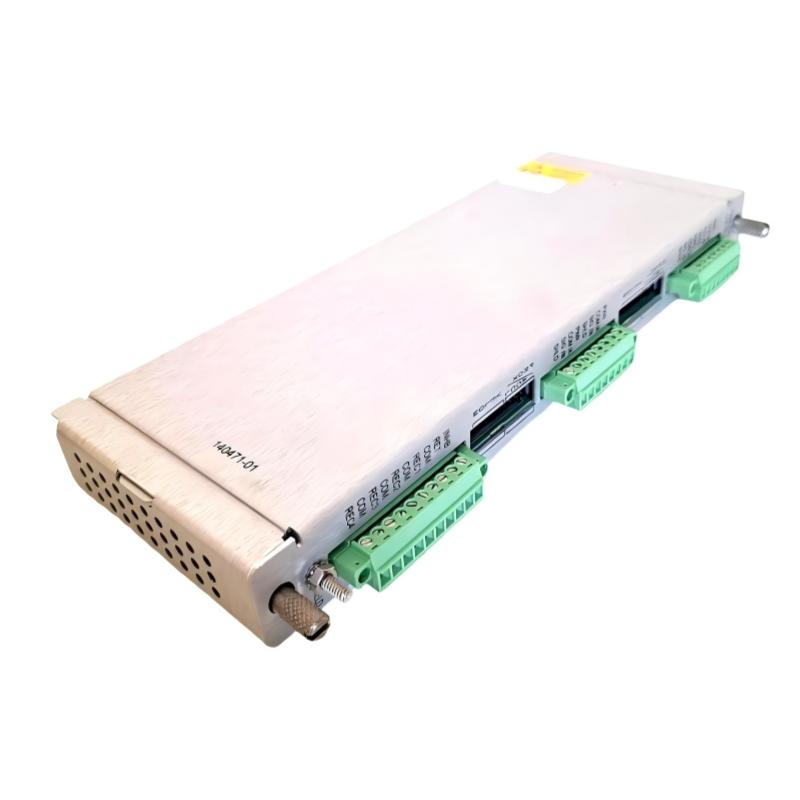

The Bently Nevada 3500/42M 140471-01 Prox/Velom Input/Output Module with Internal Termination provides precise management of proximity and velocity signals for industrial machinery monitoring. Designed for seamless integration with 3500 series monitoring systems, it combines I/O functionality with internal termination, supporting redundancy and fail-safe operation. Compact and reliable, it is ideal for mission-critical machinery monitoring applications.

Technical Specifications

Parameter	Details
Manufacturer	Bently Nevada
Model	3500/42M 140471-01
Product Type	Proximity/Velocity Input/Output Module with Internal Termination
Dimensions	241.3 × 24.4 × 99.1 mm
Weight	0.2 kg
Compatibility	Bently Nevada 3500 System Modules & Racks
Environment	Industrial / Machinery Monitoring

Recommended Related Models

Bently Nevada 3500/05 System Rack – 14-slot 19-inch monitoring rack
Bently Nevada 3500/22 – System Power Supply Module
Bently Nevada 3500/42 138700-01 – Axis Absolute I/O Module

Popular Related Models

Bently Nevada 330104-01-05-50-02-00 – 8 mm Proximity Probe
Bently Nevada 330101-00-20-05-02-00 – 8 mm Proximity Probe
Bently Nevada 3500/92 – Display and Alarm Module

Applications

The Bently Nevada 3500/42M 140471-01 module is designed for precision machinery monitoring where proximity and velocity signals require reliable input/output management. Typical applications include:

Measuring proximity and velocity signals from rotating machinery
Integrating with Bently Nevada 3500 series monitoring systems
Supporting condition-based maintenance and fault diagnostics
Enabling precise input/output monitoring for critical machinery
Providing simplified internal termination for efficient system integration

Advantages

Industrial-grade construction for rugged environments
Combines proximity and velocity I/O functionality in a single module
Internal termination simplifies wiring and integration
Fully compatible with Bently Nevada 3500 series monitoring systems
Supports redundant and fail-safe monitoring configurations
Compact, lightweight, and modular for flexible installation
Enhances machinery diagnostics and system reliability

Technical FAQs

What is the main function of this module?
It provides input and output management for proximity and velocity signals.
What are the physical dimensions?
241.3 × 24.4 × 99.1 mm.
What is the weight?
0.2 kg.
Is it suitable for industrial environments?
Yes, designed for harsh machinery monitoring conditions.
Can it be used in redundant monitoring systems?
Yes, supports fail-safe and redundant configurations.
Is it compatible with Bently Nevada 3500 modules?
Yes, fully compatible with the 3500 series.
Does it provide internal termination?
Yes, simplifies wiring and module integration.
Does it simplify installation into system racks?
Yes, modular design allows easy integration into 3500/05 racks.
Is it suitable for continuous operation?
Yes, built for long-term industrial use.
Can it enhance machinery diagnostics?
Yes, it supports accurate condition monitoring and fault detection.
