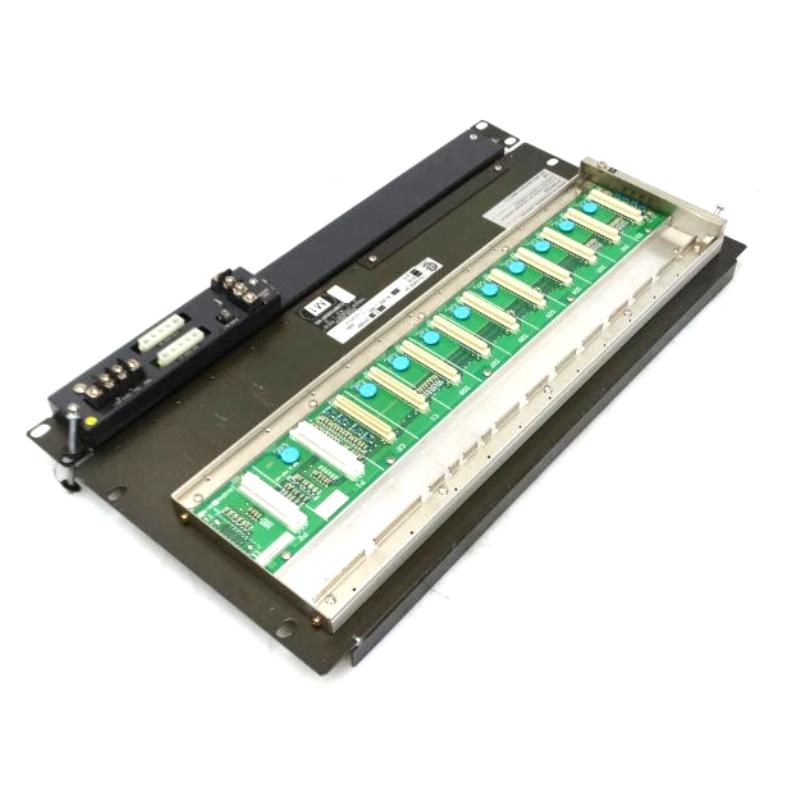

The Yokogawa AFG20D is a powerful and flexible Fieldbus Gateway that bridges the gap between field devices and Yokogawa’s process control systems. Designed for industries that require high-precision monitoring and real-time data exchange, the AFG20D facilitates communication using Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS protocols. This module supports the seamless integration of field devices such as sensors, actuators, and transmitters into Yokogawa’s automation and control systems, enhancing operational efficiency, reliability, and system diagnostics. Whether you’re working in chemical, power generation, oil & gas, or pharmaceutical sectors, the AFG20D ensures a robust and streamlined communication interface that helps optimize complex processes and improve plant performance.

Technical Specifications

Model: AFG20D
Type: Fieldbus Gateway
Dimensions: 7.5 inches x 5.5 inches x 4.0 inches (190 mm x 140 mm x 102 mm)
Weight: 1.5 lbs (0.68 kg)
Power Supply: 24V DC ± 10%
Power Consumption: 8 W
Communication Ports:
- 1x Fieldbus Port (Foundation Fieldbus, HART, PROFIBUS)
- 1x Ethernet Port (10/100 Mbps)
- 2x Serial Ports (RS-232/RS-485)
Supported Protocols: Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, PROFIBUS DP
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Bus Current: 250 mA at 24V DC
Data Rate: 100 Mbps (Ethernet)

Recommended Related Models

Yokogawa CENTUM VP: A Distributed Control System (DCS) that pairs seamlessly with the AFG20D, offering high-performance automation and process control.
Yokogawa STARDOM FCN: A flexible, modular control system that integrates easily with the AFG20D, providing a scalable solution for distributed process control.
Yokogawa ADMAG AXF: A reliable magnetic flow meter that interfaces directly with the AFG20D to enhance flow measurement accuracy and real-time process monitoring.
Yokogawa PRM (Plant Resource Manager): A complete asset management system that integrates with the AFG20D to optimize maintenance and monitoring for critical assets.

Popular Yokogawa Models

Yokogawa CENTUM VP DCS: A highly flexible, scalable, and reliable Distributed Control System (DCS) for large-scale process control that integrates seamlessly with the AFG20D.
Yokogawa DX1000: A powerful, compact controller that offers high-speed communication and integration with the AFG20D for effective field device management.
Yokogawa PRM (Plant Resource Manager): An asset management solution that provides detailed diagnostics and performance data when integrated with the AFG20D for improved maintenance efficiency.

Applications

The Yokogawa AFG20D serves a critical role in various industrial applications where reliable and real-time communication is essential:

Field Device Integration: The AFG20D enables smooth and reliable communication between Yokogawa’s control systems and field devices, using Foundation Fieldbus (FF), HART, PROFIBUS, and Modbus protocols.
Process Automation and Control: Designed to optimize the management of complex processes, the AFG20D supports industries such as oil & gas, chemical processing, pharmaceuticals, and energy generation, enabling better control and monitoring of critical operations.
Energy Management: The AFG20D can integrate with energy management systems to monitor and analyze energy consumption in real-time, contributing to cost savings and optimized energy efficiency.
Predictive Maintenance: By providing continuous diagnostics from connected field devices, the AFG20D aids in predictive maintenance, reducing unplanned downtime and extending the life of equipment.
Data Logging and Reporting: The module allows for efficient data collection, enabling robust logging and reporting for regulatory compliance, audit trails, and process optimization.

Advantages

Multi-Protocol Communication: The AFG20D supports multiple protocols, including Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, ensuring compatibility with a wide variety of field devices.
High-Speed Data Transfer: With 100 Mbps Ethernet, the AFG20D ensures fast, low-latency communication, which is crucial for time-sensitive industrial applications.
Multiple Connectivity Options: The AFG20D provides 1 Ethernet port, 1 Fieldbus port, and 2 serial ports (RS-232/RS-485), offering great flexibility in system integration and network configuration.
Rugged and Compact Design: Despite its compact size, the AFG20D is designed to withstand the rigors of industrial environments, ensuring continuous and reliable operation in harsh conditions.
Energy-Efficient Operation: Operating at just 8 W, the AFG20D provides a highly energy-efficient solution that minimizes power consumption while maintaining top-tier performance.

Technical FAQs

What communication protocols does the AFG20D support?
The AFG20D supports Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, providing compatibility with a variety of field devices and networks.
How many communication ports are available on the AFG20D?
The AFG20D offers 1 Fieldbus port, 1 Ethernet port (10/100 Mbps), and 2 serial ports (RS-232/RS-485), allowing for flexible system integration.
What is the power consumption of the AFG20D?
The AFG20D consumes 8 W, making it an energy-efficient choice for continuous communication and data exchange in industrial environments.
What is the data rate of the AFG20D’s Ethernet port?
The 100 Mbps Ethernet port provides high-speed data transfer, ensuring near-instantaneous communication between control systems and field devices.
Can the AFG20D be used for predictive maintenance?
Yes, the AFG20D is ideal for predictive maintenance applications. It provides continuous device diagnostics, helping detect issues before they lead to system failure, reducing downtime and improving equipment reliability.
Is the AFG20D suitable for use in hazardous environments?
The AFG20D is designed for indoor use with an IP20 environmental rating, so it should be used in environments that are free from excessive dust, moisture, and hazardous gases.
What is the operating temperature range for the AFG20D?
The AFG20D operates within a temperature range of -20°C to 60°C (-4°F to 140°F), suitable for most industrial environments.
Can the AFG20D be integrated with Yokogawa’s CENTUM VP system?
Yes, the AFG20D integrates seamlessly with the Yokogawa CENTUM VP DCS, providing reliable communication and enhanced process control capabilities.
How does the AFG20D improve process control?
The AFG20D facilitates high-speed data transfer and reliable communication between field devices and control systems, enabling better decision-making, improved control, and optimized process performance.
What is the weight of the AFG20D?
The AFG20D weighs approximately 1.5 lbs (0.68 kg), making it a lightweight, easy-to-install solution for field device communication.
