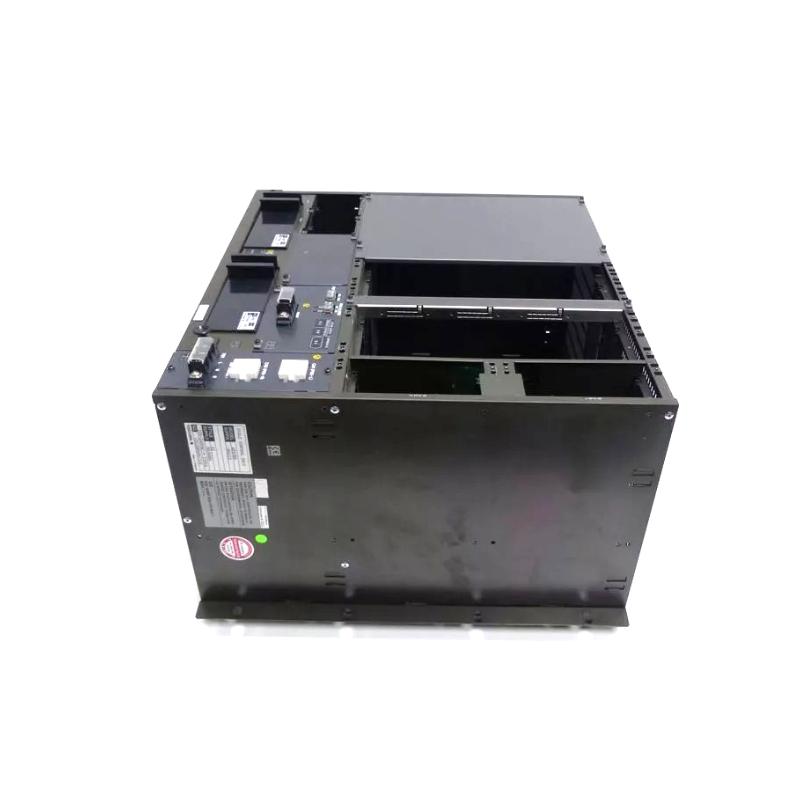

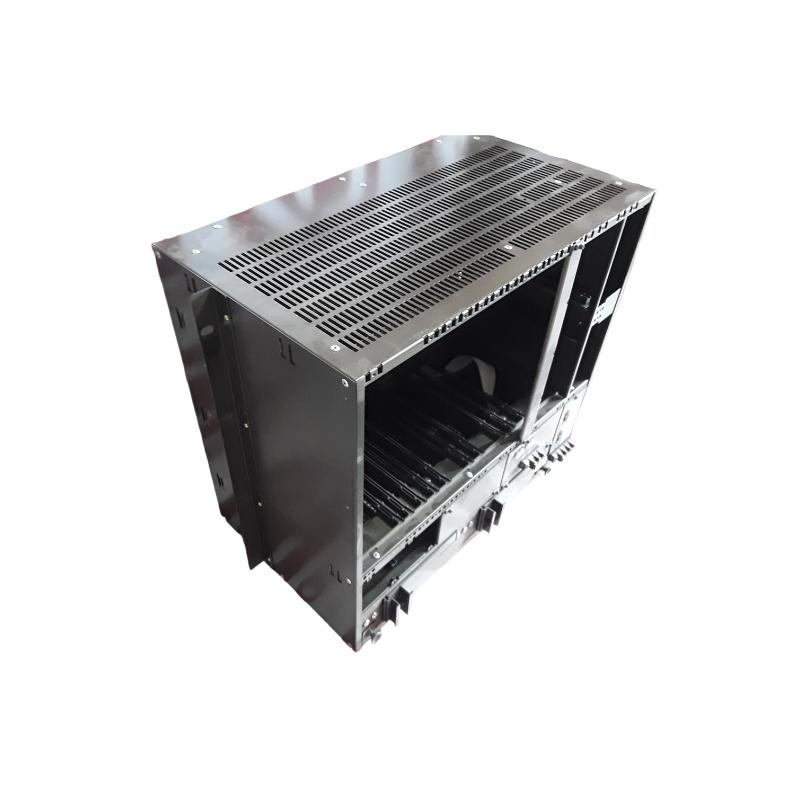

The Yokogawa AFS30S is a high-performance Fieldbus Gateway designed to enhance communication and integration between field devices and Yokogawa's process control systems. Optimized for industries such as oil & gas, chemical processing, power generation, and pharmaceuticals, the AFS30S ensures reliable, real-time data transfer between field devices and control systems. By supporting a wide range of protocols including Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS, this gateway delivers flexibility and compatibility with a diverse set of devices and networks. The AFS30S improves operational efficiency by enabling easy integration, high-speed data transfer, and enhanced diagnostics, ensuring optimal process performance and reducing downtime.

Technical Specifications

Model: AFS30S
Type: Fieldbus Gateway
Dimensions: 9.1 inches x 6.2 inches x 4.4 inches (231 mm x 157 mm x 112 mm)
Weight: 2.0 lbs (0.91 kg)
Power Supply: 24V DC ± 10%
Power Consumption: 10 W
Communication Ports:
- 1x Fieldbus Port (Foundation Fieldbus, HART, PROFIBUS)
- 1x Ethernet Port (10/100 Mbps)
- 2x Serial Ports (RS-232/RS-485)
Supported Protocols: Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, PROFIBUS DP
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Bus Current: 250 mA at 24V DC
Data Rate: 100 Mbps (Ethernet)

Recommended Related Models

Yokogawa CENTUM VP: A powerful Distributed Control System (DCS) that integrates seamlessly with the AFS30S to provide centralized control and real-time monitoring for industrial operations.
Yokogawa STARDOM FCN: A Distributed Control System (DCS) for decentralized applications, combining modularity and flexibility to optimize performance in diverse industrial settings when paired with the AFS30S.
Yokogawa ADMAG AXF: A magnetic flow meter that integrates with the AFS30S for accurate, real-time measurement and flow data transmission, particularly beneficial in fluid measurement applications.
Yokogawa PRM (Plant Resource Manager): A comprehensive asset management system that integrates with the AFS30S, providing predictive maintenance, continuous diagnostics, and enhanced system reliability.

Popular Yokogawa Models

Yokogawa CENTUM VP DCS: This Distributed Control System (DCS) seamlessly integrates with the AFS30S to enable real-time control, diagnostics, and automated process optimization across various industrial applications.
Yokogawa DX1000: A compact controller that integrates effectively with the AFS30S for real-time process control, improving system efficiency and communication.
Yokogawa PRM (Plant Resource Manager): A sophisticated asset management system that integrates with the AFS30S, providing continuous monitoring and diagnostics for better maintenance and asset optimization.

Applications

The Yokogawa AFS30S is ideal for a wide range of industrial applications that require high-performance communication and integration:

Field Device Integration: The AFS30S supports Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS protocols, enabling seamless integration of a variety of field devices into Yokogawa’s control systems for real-time data exchange.
Process Control and Automation: In industries such as chemical, oil & gas, and pharmaceuticals, the AFS30S optimizes process control by providing high-speed communication between field devices and central control systems.
Predictive Maintenance: The AFS30S offers continuous diagnostics and monitoring, enabling early detection of potential device failures and minimizing unplanned downtime with predictive maintenance.
Energy Management: The AFS30S supports energy management by integrating with energy monitoring systems to provide real-time data on energy consumption, allowing for better resource allocation and cost reduction.
Data Logging and Reporting: The AFS30S ensures accurate, reliable data logging and reporting from field devices, supporting regulatory compliance and providing the necessary insights for informed decision-making.

Advantages

Multi-Protocol Compatibility: The AFS30S supports multiple communication protocols, including Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, offering compatibility with a wide range of field devices and control systems.
High-Speed Communication: With 100 Mbps Ethernet connectivity, the AFS30S delivers fast and efficient data transfer, ensuring minimal latency in time-sensitive applications and real-time process control.
Flexible Connectivity: The AFS30S features 1 Ethernet port, 1 Fieldbus port, and 2 serial ports (RS-232/RS-485), offering multiple connectivity options to meet the diverse needs of industrial networks.
Compact and Durable Design: The AFS30S is compact, lightweight, and built to withstand harsh industrial environments, ensuring durability and reliability in a variety of applications.
Energy Efficient: With a low 10 W power consumption, the AFS30S provides an energy-efficient solution, reducing operational costs while maintaining high performance and reliabilit

Technical FAQs

What communication protocols does the AFS30S support?
The AFS30S supports Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, ensuring flexibility and compatibility with various field devices and control systems.
How many communication ports does the AFS30S have?
The AFS30S includes 1 Fieldbus port, 1 Ethernet port (10/100 Mbps), and 2 serial ports (RS-232/RS-485), providing versatile connectivity options for various industrial applications.
What is the power consumption of the AFS30S?
The AFS30S consumes 10 W, offering an energy-efficient solution without compromising performance or reliability.
What is the data rate of the AFS30S’s Ethernet port?
The 100 Mbps Ethernet port ensures fast and efficient data transfer, ideal for real-time communication and minimizing latency in time-sensitive processes.
Can the AFS30S support predictive maintenance?
Yes, the AFS30S provides continuous diagnostics and real-time monitoring, enabling predictive maintenance to detect potential issues early and reduce unplanned downtime.
Is the AFS30S suitable for hazardous environments?
The AFS30S is rated IP20, meaning it is designed for indoor use in environments that are free from excessive dust, moisture, and hazardous substances.
What is the operating temperature range for the AFS30S?
The AFS30S operates in a temperature range from -20°C to 60°C (-4°F to 140°F), making it suitable for use in most industrial environments.
Can the AFS30S integrate with Yokogawa’s CENTUM VP system?
Yes, the AFS30S integrates seamlessly with the Yokogawa CENTUM VP DCS, enabling centralized control, process optimization, and real-time monitoring.
How does the AFS30S improve process control?
The AFS30S facilitates seamless communication between field devices and control systems, providing real-time data exchange, enhanced visibility, and better control over industrial operations.
What is the weight of the AFS30S?
The AFS30S weighs approximately 2.0 lbs (0.91 kg), making it a compact and lightweight solution that delivers reliable performance in a variety of industrial environments.
