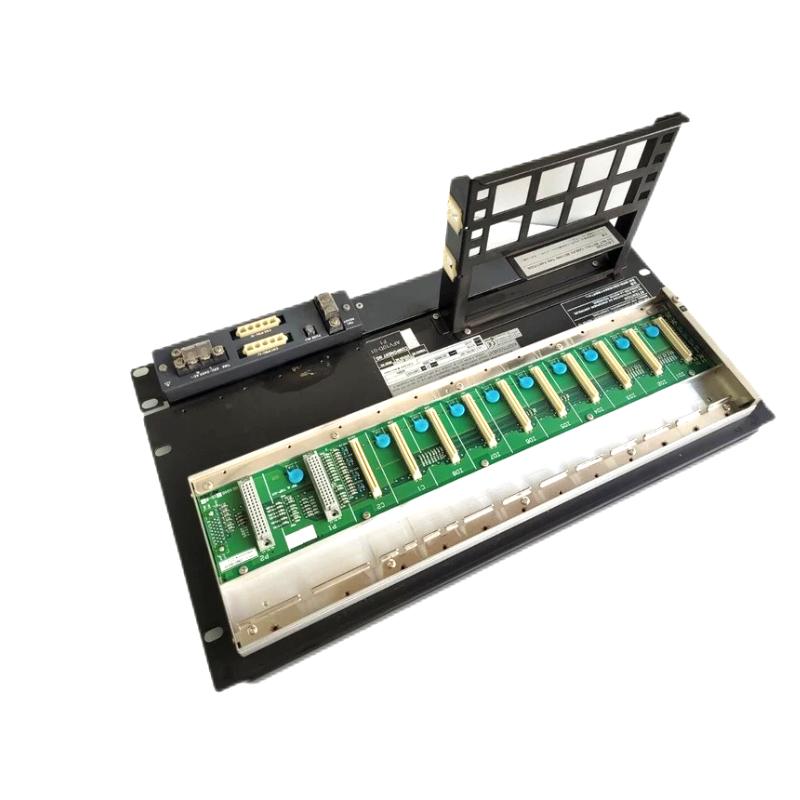

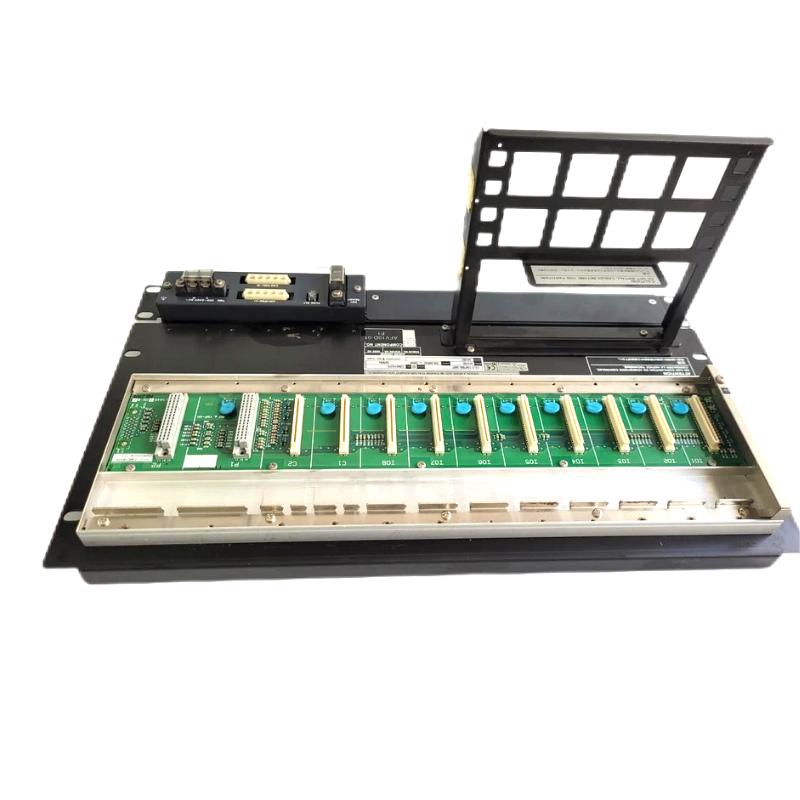

AFV10D-S41201 S2 - 4 AFV10D-S41201 S2 - 3 AFV10D-S41201 S2 - 2 AFV10D-S41201 S2 - 1

The Yokogawa AFV10D-S41201 S2 is a powerful Fieldbus Gateway designed to bridge the communication gap between Yokogawa’s advanced control systems and a variety of field devices, offering improved integration, monitoring, and control in industrial environments. This model is particularly valuable in sectors such as chemical processing, oil & gas, power generation, and pharmaceuticals, where continuous, real-time data flow is essential for optimizing performance and minimizing downtime. Supporting multiple industrial communication protocols like Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS, the AFV10D-S41201 S2 enables seamless integration of field devices into complex process control systems, allowing for more efficient data transmission, better diagnostics, and real-time monitoring.

The S2 version includes enhanced features for faster data processing, higher reliability, and robust diagnostics that improve system performance and reduce maintenance costs.

Technical Specifications

Model: AFV10D-S41201 S2
Type: Fieldbus Gateway
Dimensions: 10.6 inches x 7.2 inches x 5.1 inches (270 mm x 182 mm x 130 mm)
Weight: 2.7 lbs (1.22 kg)
Power Supply: 24V DC ± 10%
Power Consumption: 27 W
Communication Ports:
- 1x Fieldbus Port (Foundation Fieldbus, HART, PROFIBUS)
- 1x Ethernet Port (10/100 Mbps)
- 2x Serial Ports (RS-232/RS-485)
Supported Protocols: Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, PROFIBUS DP
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Bus Current: 400 mA at 24V DC
Data Rate: 100 Mbps (Ethernet)

Recommended Related Models

Yokogawa CENTUM VP: Integrating the AFV10D-S41201 S2 with the CENTUM VP system offers centralized control and real-time monitoring for optimized operations, improving decision-making and operational efficiency.
Yokogawa STARDOM FCN: The STARDOM FCN system is ideal for decentralized applications and, when paired with the AFV10D-S41201 S2, ensures seamless data exchange across different parts of the process.
Yokogawa ADMAG AXF: The ADMAG AXF series of magnetic flow meters integrates smoothly with the AFV10D-S41201 S2, providing reliable and accurate flow measurement data.
Yokogawa PRM (Plant Resource Manager): Paired with Yokogawa PRM, the AFV10D-S41201 S2 offers enhanced asset management and real-time diagnostics, enabling proactive maintenance strategies and better overall system health.

Popular Yokogawa Models

Yokogawa CENTUM VP DCS: This model, when used with the AFV10D-S41201 S2, enables high-performance centralized control and real-time monitoring, ideal for large-scale industrial operations in sectors like oil & gas and chemical processing.
Yokogawa DX1000: A high-performance controller that, when integrated with the AFV10D-S41201 S2, provides fast, accurate data handling and seamless communication across process control systems.
Yokogawa PRM (Plant Resource Manager): PRM helps maximize asset reliability and uptime by integrating with the AFV10D-S41201 S2 for continuous monitoring and predictive maintenance.

Applications

The AFV10D-S41201 S2 excels in applications requiring high-performance communication and integration between field devices and central control systems:

Field Device Integration: The AFV10D-S41201 S2 connects Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS devices to central control systems, enabling streamlined communication and efficient data handling.
Process Control and Automation: In industries like chemical, oil & gas, and power generation, it improves process optimization by providing continuous real-time data, allowing for timely decision-making and system adjustments.
Predictive Maintenance: With enhanced diagnostic features, the AFV10D-S41201 S2 continuously monitors system health, offering insights into potential issues before they become costly problems.
Energy Management: Used in energy management systems, it helps track energy usage in real-time, optimizing energy consumption and reducing costs.
Data Logging and Reporting: The AFV10D-S41201 S2 ensures reliable data logging, meeting industry compliance standards and providing valuable performance insights for continuous improvement.

Advantages

Multiple Protocols Supported: The AFV10D-S41201 S2 supports Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, making it versatile and highly compatible with various industrial field devices.
Enhanced Performance: With faster data processing and improved reliability, the S2 version delivers quicker response times and better system stability, especially in mission-critical applications.
High-Speed Data Transfer: The 100 Mbps Ethernet port ensures fast, reliable communication for time-sensitive applications that require low-latency data transfer.
Multiple Connection Options: The AFV10D-S41201 S2 features 1 Ethernet port, 1 Fieldbus port, and 2 serial ports (RS-232/RS-485), providing flexible connectivity to meet a variety of network configurations.
Compact and Robust Design: Despite its small footprint, the AFV10D-S41201 S2 is built for long-lasting durability and reliable operation in harsh industrial environments.
Energy Efficient: With a power consumption of just 27 W, the AFV10D-S41201 S2 is an energy-efficient solution for industrial data communication, minimizing operational costs while ensuring optimal performance.

Technical FAQs

What communication protocols does the AFV10D-S41201 S2 support?
The AFV10D-S41201 S2 supports Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, ensuring compatibility with a wide range of field devices and networks.
How many communication ports does the AFV10D-S41201 S2 have?
The AFV10D-S41201 S2 includes 1 Fieldbus port, 1 Ethernet port (10/100 Mbps), and 2 serial ports (RS-232/RS-485), providing multiple connectivity options for flexible integration.
What is the power consumption of the AFV10D-S41201 S2?
The AFV10D-S41201 S2 consumes 27 W, providing an energy-efficient solution while maintaining high-performance standards.
What is the data rate of the AFV10D-S41201 S2’s Ethernet port?
The 100 Mbps Ethernet port allows the AFV10D-S41201 S2 to transfer data quickly and efficiently, supporting time-critical applications requiring real-time processing.
Can the AFV10D-S41201 S2 support predictive maintenance?
Yes, the AFV10D-S41201 S2 includes advanced diagnostic capabilities to monitor field devices in real-time, supporting predictive maintenance and minimizing downtime.
Is the AFV10D-S41201 S2 suitable for use in hazardous environments?
The AFV10D-S41201 S2 is designed for indoor use, with an IP20 rating. It is ideal for environments where dust and moisture are minimal.
What is the operating temperature range for the AFV10D-S41201 S2?
The AFV10D-S41201 S2 operates within a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for a wide range of industrial environments.
Can the AFV10D-S41201 S2 integrate with Yokogawa’s CENTUM VP DCS?
Yes, the AFV10D-S41201 S2 seamlessly integrates with Yokogawa’s CENTUM VP DCS, providing optimized process control, advanced diagnostics, and real-time monitoring.
How does the AFV10D-S41201 S2 improve process control?
The AFV10D-S41201 S2 ensures efficient data exchange between field devices and control systems, enabling real-time control, system optimization, and enhanced decision-making capabilities.
What is the weight of the AFV10D-S41201 S2?
The AFV10D-S41201 S2 weighs 2.7 lbs (1.22 kg), providing a compact and reliable solution for field
