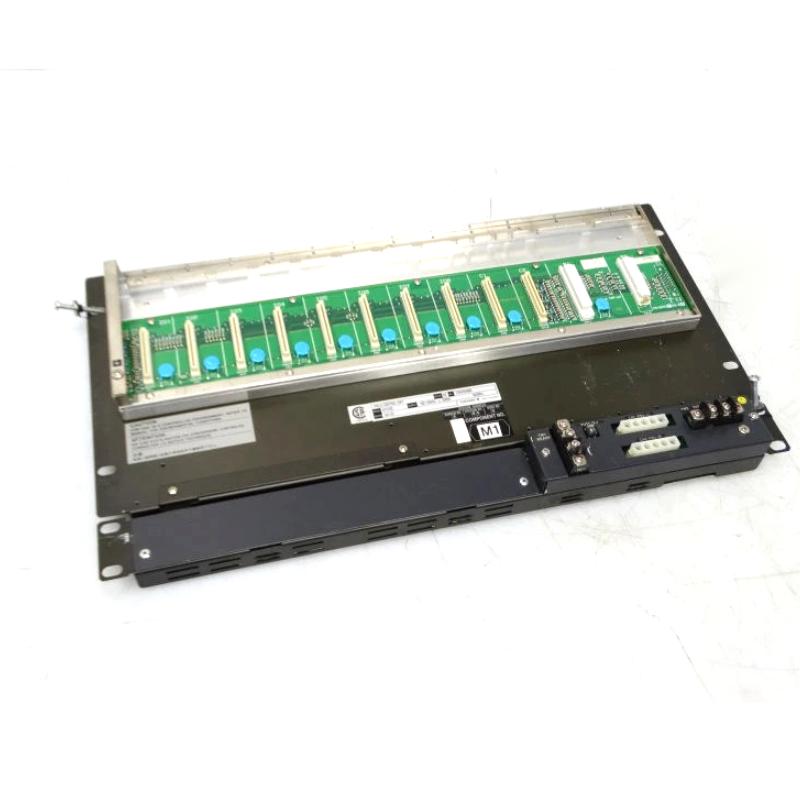

The Yokogawa AFV10S is a powerful Fieldbus Gateway that enables seamless communication between field devices and central control systems in a wide range of industrial applications. Designed with flexibility and reliability in mind, the AFV10S is ideal for industries like oil & gas, chemical processing, power generation, and pharmaceuticals, where continuous data flow and real-time monitoring are crucial. This model supports multiple communication protocols, including Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS, ensuring smooth and efficient integration with a variety of field devices. The AFV10S offers high-speed data transfer, robust diagnostics, and a compact design, making it a reliable choice for mission-critical operations that demand high uptime and optimal performance.

Technical Specifications

Model: AFV10S
Type: Fieldbus Gateway
Dimensions: 10.4 inches x 7.0 inches x 4.9 inches (264 mm x 178 mm x 125 mm)
Weight: 2.5 lbs (1.13 kg)
Power Supply: 24V DC ± 10%
Power Consumption: 25 W
Communication Ports:
- 1x Fieldbus Port (Foundation Fieldbus, HART, PROFIBUS)
- 1x Ethernet Port (10/100 Mbps)
- 2x Serial Ports (RS-232/RS-485)
Supported Protocols: Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, PROFIBUS DP
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Bus Current: 400 mA at 24V DC
Data Rate: 100 Mbps (Ethernet)

Recommended Related Models

Yokogawa CENTUM VP: The CENTUM VP DCS, when combined with the AFV10S, provides a comprehensive and reliable solution for process control, offering efficient management of large-scale industrial operations.
Yokogawa STARDOM FCN: The STARDOM FCN controller, when used alongside the AFV10S, offers flexibility and scalability, making it an excellent solution for decentralized automation in a range of industrial applications.
Yokogawa ADMAG AXF: The ADMAG AXF magnetic flow meters integrate seamlessly with the AFV10S to provide real-time, accurate flow measurement and data collection for process optimization.
Yokogawa PRM (Plant Resource Manager): PRM works in conjunction with the AFV10S, offering real-time diagnostics, predictive maintenance, and asset management capabilities to ensure the optimal performance of field devices and systems.

Popular Yokogawa Models

Yokogawa CENTUM VP DCS: When paired with the AFV10S, the CENTUM VP DCS offers centralized control, real-time monitoring, and optimization across a variety of process industries.
Yokogawa DX1000: A high-performance controller that integrates with the AFV10S, offering improved data processing speeds and seamless communication across industrial systems.
Yokogawa PRM (Plant Resource Manager): Integrated with the AFV10S, PRM provides proactive monitoring and diagnostics, reducing unplanned downtime and improving overall asset reliability.

Applications

The Yokogawa AFV10S is designed to excel in applications where efficient, reliable communication between field devices and control systems is critical:

Field Device Integration: The AFV10S enables seamless connection between various Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS devices and central control systems, ensuring reliable data flow and improved system performance.
Process Control and Automation: In sectors such as oil & gas, chemical, and power generation, the AFV10S supports continuous data exchange, enabling optimized control, real-time decision-making, and operational efficiency.
Predictive Maintenance: The AFV10S offers advanced diagnostic capabilities, allowing operators to monitor device health and perform predictive maintenance to prevent unexpected equipment failures and reduce downtime.
Energy Management: The AFV10S plays an essential role in energy management systems, helping industries monitor energy consumption in real-time, optimize usage, and reduce energy costs.
Data Logging and Reporting: With reliable data logging and reporting capabilities, the AFV10S ensures compliance with industry standards and provides valuable insights into system performance, helping with decision-making and process improvements.

Advantages

Multi-Protocol Support: The AFV10S supports Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, making it compatible with a wide range of industrial field devices and automation systems.
High-Speed Data Transfer: With its 100 Mbps Ethernet port, the AFV10S ensures fast and reliable data communication, crucial for time-sensitive applications requiring real-time monitoring and decision-making.
Flexible Connectivity: The AFV10S offers 1 Ethernet port, 1 Fieldbus port, and 2 serial ports (RS-232/RS-485), providing flexible communication options for integration into various network configurations.
Compact and Durable: Despite its compact design, the AFV10S is built to withstand harsh industrial environments, ensuring long-term durability and reliable operation.
Energy-Efficient: The 25 W power consumption of the AFV10S provides an energy-efficient solution that reduces operational costs without sacrificing performance.

Technical FAQs

What communication protocols does the AFV10S support?
The AFV10S supports Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, allowing seamless integration with a variety of industrial field devices.
How many communication ports are available on the AFV10S?
The AFV10S provides 1 Fieldbus port, 1 Ethernet port (10/100 Mbps), and 2 serial ports (RS-232/RS-485), offering a variety of connection options for flexible system integration.
What is the power consumption of the AFV10S?
The AFV10S has a power consumption of 25 W, offering a power-efficient solution that ensures reliable operation without increasing energy costs.
What is the data rate of the Ethernet port on the AFV10S?
The Ethernet port on the AFV10S supports a 100 Mbps data rate, ensuring fast and reliable communication for time-sensitive industrial operations.
Does the AFV10S support predictive maintenance?
Yes, the AFV10S includes built-in diagnostic capabilities, enabling real-time monitoring of field devices and supporting predictive maintenance to help minimize unplanned downtime.
Is the AFV10S suitable for hazardous environments?
The AFV10S is rated IP20 and is designed for indoor use, making it suitable for environments with limited exposure to dust or moisture.
What is the operating temperature range for the AFV10S?
The AFV10S operates within the temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for various industrial environments.
Can the AFV10S integrate with Yokogawa’s CENTUM VP DCS?
Yes, the AFV10S can seamlessly integrate with Yokogawa CENTUM VP DCS, enabling centralized control and monitoring for large-scale process systems.
How does the AFV10S improve process control?
The AFV10S facilitates real-time data exchange between field devices and central control systems, enhancing process control, operational efficiency, and decision-making.
What is the weight of the AFV10S?
The AFV10S weighs 2.5 lbs (1.13 kg), providing a compact, reliable, and durable solution for industrial communication and process control.
