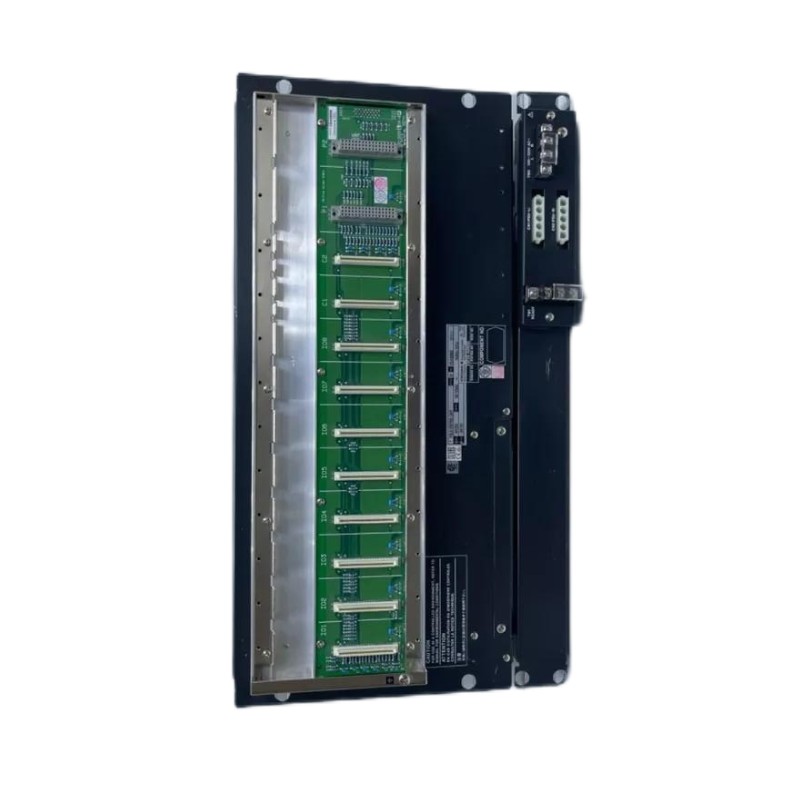

The Yokogawa AFV30D is an advanced Fieldbus Gateway that ensures seamless communication and integration between field devices and central control systems in various industrial applications. Designed for demanding environments in industries such as oil & gas, chemical processing, power generation, and pharmaceuticals, the AFV30D offers robust, high-performance data communication solutions. Supporting multiple protocols such as Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS, the gateway ensures reliable real-time data exchange for continuous monitoring, control, and optimization of industrial processes. With its flexible configuration options and high-speed connectivity, the AFV30D is the ideal choice for ensuring operational reliability, maximizing uptime, and optimizing process efficiency.

Technical Specifications

Model: AFV30D
Type: Fieldbus Gateway
Dimensions: 12.2 inches x 8.0 inches x 5.6 inches (310 mm x 203 mm x 143 mm)
Weight: 3.4 lbs (1.54 kg)
Power Supply: 24V DC ± 10%
Power Consumption: 40 W
Communication Ports:
- 1x Fieldbus Port (Foundation Fieldbus, HART, PROFIBUS)
- 1x Ethernet Port (10/100 Mbps)
- 2x Serial Ports (RS-232/RS-485)
Supported Protocols: Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, PROFIBUS DP
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Bus Current: 400 mA at 24V DC
Data Rate: 100 Mbps (Ethernet)

Recommended Related Models

Yokogawa CENTUM VP: When integrated with the AFV30D, the CENTUM VP DCS provides a unified control and monitoring platform, enabling real-time process optimization and high-level decision-making.
Yokogawa STARDOM FCN: The STARDOM FCN controller, combined with the AFV30D, offers flexibility and scalability for decentralized control systems, ideal for modular and expandable automation applications.
Yokogawa ADMAG AXF: The ADMAG AXF magnetic flow meters seamlessly integrate with the AFV30D for real-time flow measurement and data collection, improving process accuracy and performance.
Yokogawa PRM (Plant Resource Manager): PRM works in conjunction with the AFV30D, offering comprehensive asset management, predictive maintenance, and real-time diagnostics to ensure optimal performance across the plant.

Popular Yokogawa Models

Yokogawa CENTUM VP DCS: The CENTUM VP DCS is a widely used distributed control system that, when paired with the AFV30D, ensures seamless communication between field devices and control systems for optimized industrial operations.
Yokogawa DX1000: The DX1000 controller integrates with the AFV30D, offering fast data processing, real-time monitoring, and highly reliable control of industrial systems.
Yokogawa PRM (Plant Resource Manager): When combined with the AFV30D, PRM provides predictive diagnostics, continuous monitoring, and advanced asset management capabilities, ensuring operational continuity and efficiency.

Applications

The Yokogawa AFV30D is designed for high-performance applications in industries that require reliable, real-time communication between field devices and control systems:

Field Device Integration: The AFV30D connects Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS devices to centralized control systems, ensuring accurate and reliable data transmission for better process monitoring.
Process Control and Automation: In industries like chemical, oil & gas, and power generation, the AFV30D enables efficient process control by facilitating continuous, real-time data exchange between control systems and field devices.
Predictive Maintenance: The gateway's advanced diagnostic capabilities allow for real-time monitoring of field devices, helping identify potential issues and enabling predictive maintenance to prevent unplanned downtime.
Energy Management: The AFV30D can be employed in energy management systems to monitor and optimize energy consumption in real-time, helping companies reduce costs and improve efficiency.
Data Logging and Reporting: The AFV30D provides comprehensive data logging and reporting capabilities, making it easy to track system performance, generate reports, and comply with regulatory standards

Advantages

Multi-Protocol Support: The AFV30D supports a wide range of communication protocols, including Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, ensuring compatibility with a variety of field devices and systems.
High-Speed Communication: With a 100 Mbps Ethernet port, the AFV30D ensures rapid and reliable data transfer, which is critical for real-time applications that require fast and accurate data exchange.
Flexible Connectivity: The AFV30D offers 1 Ethernet port, 1 Fieldbus port, and 2 serial ports (RS-232/RS-485), providing flexible options for integration into diverse network architectures.
Compact and Durable: Despite its compact size, the AFV30D is designed to operate reliably in harsh industrial environments, ensuring long-lasting performance even in demanding conditions.
Energy-Efficient: The 40 W power consumption of the AFV30D ensures energy-efficient operation, reducing overall operational costs while maintaining optimal system performance.

Technical FAQs

What communication protocols are supported by the AFV30D?
The AFV30D supports Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, making it compatible with a wide range of industrial devices and systems.
How many communication ports does the AFV30D offer?
The AFV30D provides 1 Fieldbus port, 1 Ethernet port (10/100 Mbps), and 2 serial ports (RS-232/RS-485), offering flexibility in communication and network integration.
What is the power consumption of the AFV30D?
The AFV30D consumes 40 W, offering an energy-efficient solution without compromising on performance.
What is the data rate of the Ethernet port on the AFV30D?
The Ethernet port on the AFV30D supports a 100 Mbps data rate, providing fast and reliable communication, particularly for time-sensitive industrial applications.
Does the AFV30D support predictive maintenance?
Yes, the AFV30D includes advanced diagnostic capabilities that allow for real-time monitoring of field devices, enabling predictive maintenance and minimizing unplanned downtime.
Is the AFV30D suitable for hazardous environments?
The AFV30D is rated IP20 and is designed for indoor use, making it suitable for environments where dust or moisture exposure is minimal.
What is the operating temperature range for the AFV30D?
The AFV30D operates within the temperature range of -20°C to 60°C (-4°F to 140°F), ensuring reliable performance across a wide variety of industrial conditions.
Can the AFV30D integrate with Yokogawa’s CENTUM VP DCS?
Yes, the AFV30D integrates seamlessly with Yokogawa’s CENTUM VP DCS, providing a centralized control system that improves efficiency, reduces downtime, and optimizes process control.
How does the AFV30D enhance process control?
The AFV30D facilitates continuous, real-time data communication between field devices and central control systems, enabling more precise process control and faster decision-making.
What is the weight of the AFV30D?
The AFV30D weighs 3.4 lbs (1.54 kg), offering a compact yet durable solution for industrial communication and automation needs.
