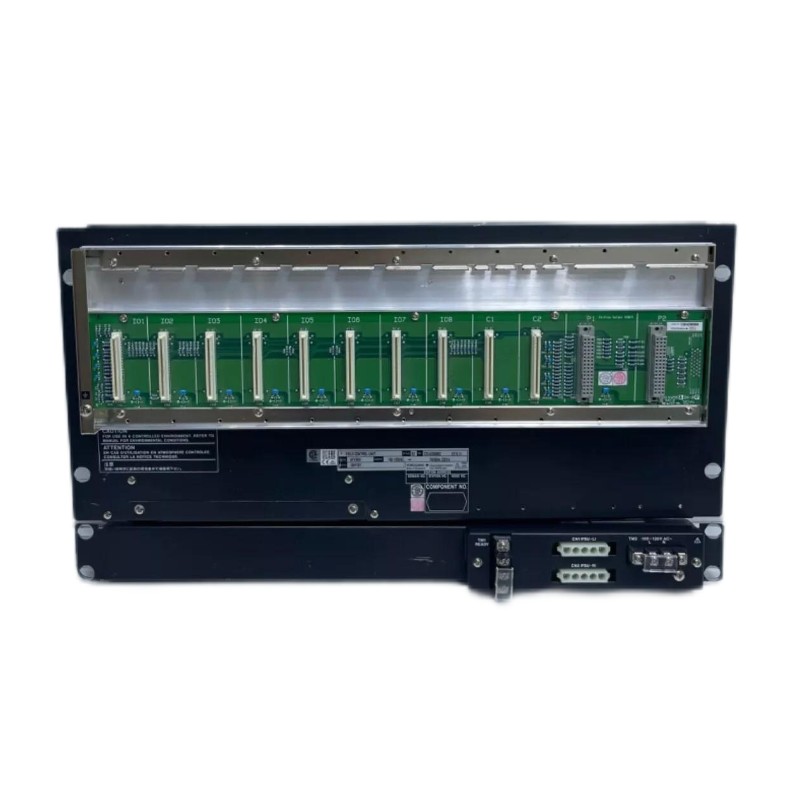

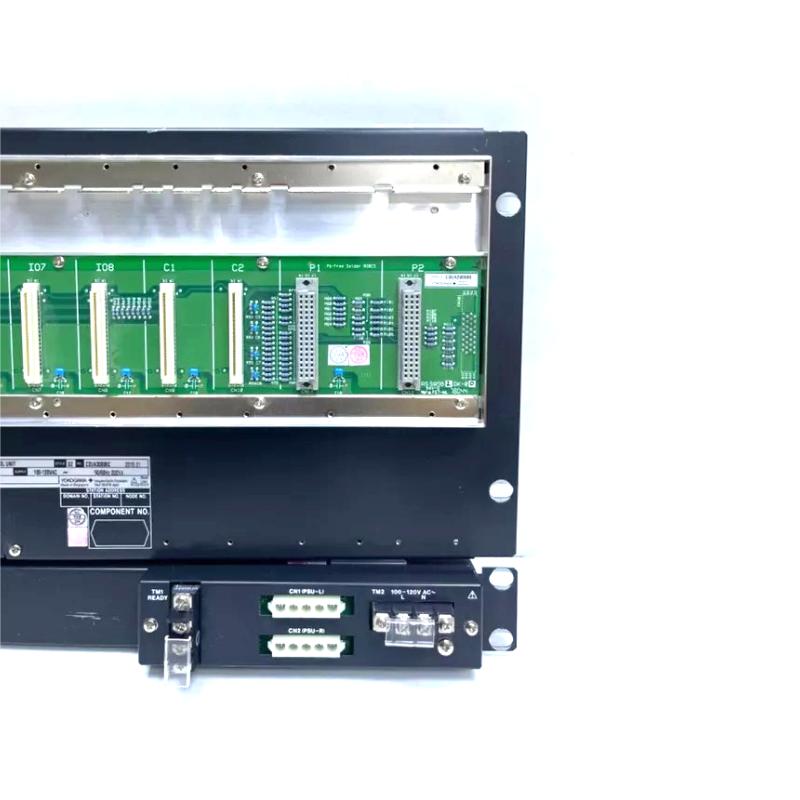

The Yokogawa AFV30D-A41252 is a high-performance Fieldbus Gateway that enables seamless communication and integration between field devices and central control systems. As part of the AFV30D series, this model is designed to meet the stringent requirements of industries such as oil & gas, chemical processing, power generation, and pharmaceuticals. Offering multi-protocol support, including Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS, the AFV30D-A41252 is an ideal solution for continuous, real-time data exchange, enhancing process control and monitoring capabilities. It delivers advanced diagnostics, high-speed data transfer, and flexible connectivity, ensuring that systems operate with maximum efficiency, uptime, and reliability.

Technical Specifications

Model: AFV30D-A41252
Type: Fieldbus Gateway
Dimensions: 12.2 inches x 8.1 inches x 5.7 inches (310 mm x 206 mm x 144 mm)
Weight: 3.6 lbs (1.63 kg)
Power Supply: 24V DC ± 10%
Power Consumption: 40 W
Communication Ports:
- 1x Fieldbus Port (Foundation Fieldbus, HART, PROFIBUS)
- 1x Ethernet Port (10/100 Mbps)
- 2x Serial Ports (RS-232/RS-485)
Supported Protocols: Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, PROFIBUS DP
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Bus Current: 400 mA at 24V DC
Data Rate: 100 Mbps (Ethernet)

Recommended Related Models

Yokogawa CENTUM VP: The CENTUM VP DCS, when paired with the AFV30D-A41252, provides a centralized control system that integrates seamlessly with field devices for optimized process control, real-time monitoring, and decision-making.
Yokogawa STARDOM FCN: The STARDOM FCN distributed control system, when combined with the AFV30D-A41252, offers flexibility and scalability for decentralized automation, making it ideal for modular applications.
Yokogawa ADMAG AXF: The ADMAG AXF magnetic flow meters, integrated with the AFV30D-A41252, ensure real-time, accurate flow measurement and data collection for improved process accuracy.
Yokogawa PRM (Plant Resource Manager): Integrated with the AFV30D-A41252, PRM provides predictive maintenance, real-time diagnostics, and comprehensive asset management to ensure system reliability and uptime.

Popular Yokogawa Models

Yokogawa CENTUM VP DCS: The CENTUM VP distributed control system, when combined with the AFV30D-A41252, enables streamlined communication between field devices and control systems, allowing for efficient process management and monitoring.
Yokogawa DX1000: The DX1000 controller, integrated with the AFV30D-A41252, offers high-speed data processing and enhanced control capabilities for critical industrial applications.
Yokogawa PRM (Plant Resource Manager): Integrated with the AFV30D-A41252, PRM helps ensure efficient asset management, continuous monitoring, and predictive diagnostics for plant-wide optimization.

Applications

The Yokogawa AFV30D-A41252 is ideal for a variety of industrial applications that require real-time data communication and seamless integration of field devices with central control systems:

Field Device Integration: The AFV30D-A41252 provides connectivity for Foundation Fieldbus (FF), HART, Modbus, and PROFIBUS field devices, ensuring efficient data exchange between the field level and control systems.
Process Control and Automation: In industries like oil & gas, chemical, and power generation, the AFV30D-A41252 facilitates continuous, reliable communication for process control, improving system stability and operational efficiency.
Predictive Maintenance: The AFV30D-A41252 offers advanced diagnostic capabilities, enabling real-time monitoring of field devices and reducing the risk of unplanned downtime by supporting predictive maintenance strategies.
Energy Management: In energy-intensive industries, the AFV30D-A41252 helps monitor and optimize energy consumption, improving operational efficiency and reducing energy costs.
Data Logging and Reporting: With robust data logging and reporting functionality, the AFV30D-A41252 ensures compliance with industry regulations and provides valuable insights into system performance, helping optimize operations.

Advantages

Multi-Protocol Support: The AFV30D-A41252 supports a variety of industrial communication protocols, including Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, ensuring broad compatibility with diverse field devices and control systems.
High-Speed Communication: With a 100 Mbps Ethernet port, the AFV30D-A41252 delivers fast, reliable data transfer, ensuring real-time communication for mission-critical applications.
Flexible Connectivity: The AFV30D-A41252 is equipped with 1 Ethernet port, 1 Fieldbus port, and 2 serial ports (RS-232/RS-485), offering multiple connectivity options to suit various network configurations.
Compact and Durable Design: Despite its compact form factor, the AFV30D-A41252 is built to withstand harsh industrial conditions, ensuring long-term reliability and performance.
Energy-Efficient Operation: The AFV30D-A41252 is designed for energy efficiency, consuming only 40 W, minimizing operational costs while ensuring optimal system performance.

Technical FAQs

What communication protocols are supported by the AFV30D-A41252?
The AFV30D-A41252 supports Foundation Fieldbus (FF), HART, Modbus TCP/IP, Modbus RTU, and PROFIBUS DP, ensuring compatibility with a wide range of field devices and communication standards.
How many communication ports does the AFV30D-A41252 have?
The AFV30D-A41252 offers 1 Fieldbus port, 1 Ethernet port (10/100 Mbps), and 2 serial ports (RS-232/RS-485), providing versatile connectivity options for various system architectures.
What is the power consumption of the AFV30D-A41252?
The AFV30D-A41252 consumes 40 W, offering an energy-efficient solution that minimizes power usage without compromising on performance.
What is the data rate of the Ethernet port on the AFV30D-A41252?
The Ethernet port on the AFV30D-A41252 supports a 100 Mbps data rate, ensuring rapid, reliable communication for time-sensitive applications.
Does the AFV30D-A41252 support predictive maintenance?
Yes, the AFV30D-A41252 includes advanced diagnostic features that allow for real-time monitoring of field devices, enabling predictive maintenance and reducing the risk of unexpected system failures.
Is the AFV30D-A41252 suitable for hazardous environments?
The AFV30D-A41252 is rated IP20, making it suitable for indoor environments where exposure to dust or moisture is minimal.
What is the operating temperature range of the AFV30D-A41252?
The AFV30D-A41252 operates in the range of -20°C to 60°C (-4°F to 140°F), making it suitable for a wide range of industrial environments.
Can the AFV30D-A41252 integrate with Yokogawa’s CENTUM VP DCS?
Yes, the AFV30D-A41252 integrates seamlessly with Yokogawa’s CENTUM VP DCS, enabling centralized control and real-time monitoring of field devices in complex industrial systems.
How does the AFV30D-A41252 improve process control?
By providing real-time, reliable communication between field devices and control systems, the AFV30D-A41252 helps enhance process control, reduce operational inefficiencies, and enable optimized decision-making.
What is the weight of the AFV30D-A41252?
The AFV30D-A41252 weighs 3.6 lbs (1.63 kg), offering a compact and durable solution for industrial communication and process control applications.
