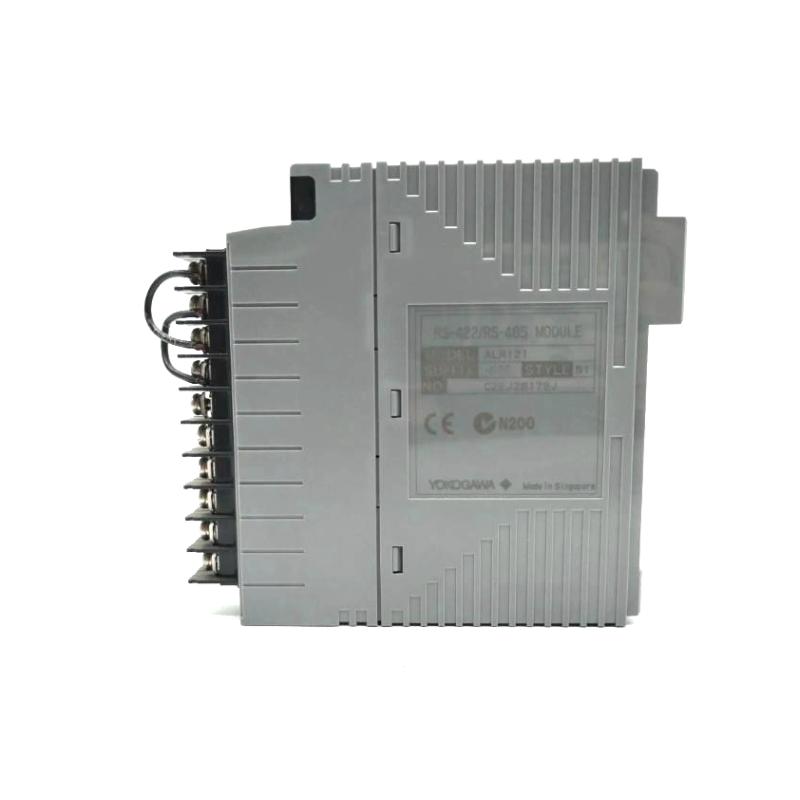

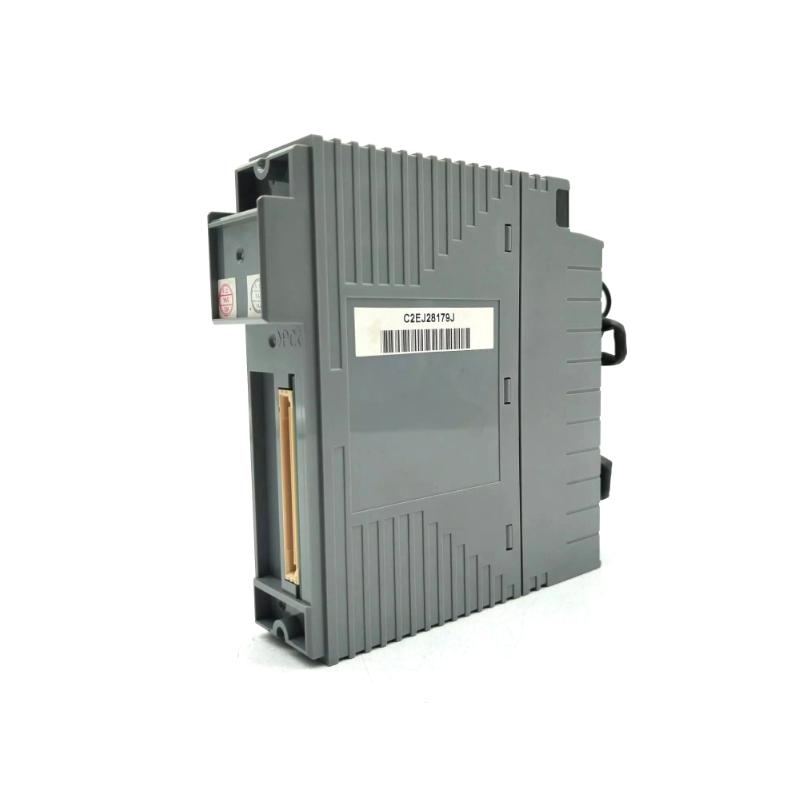

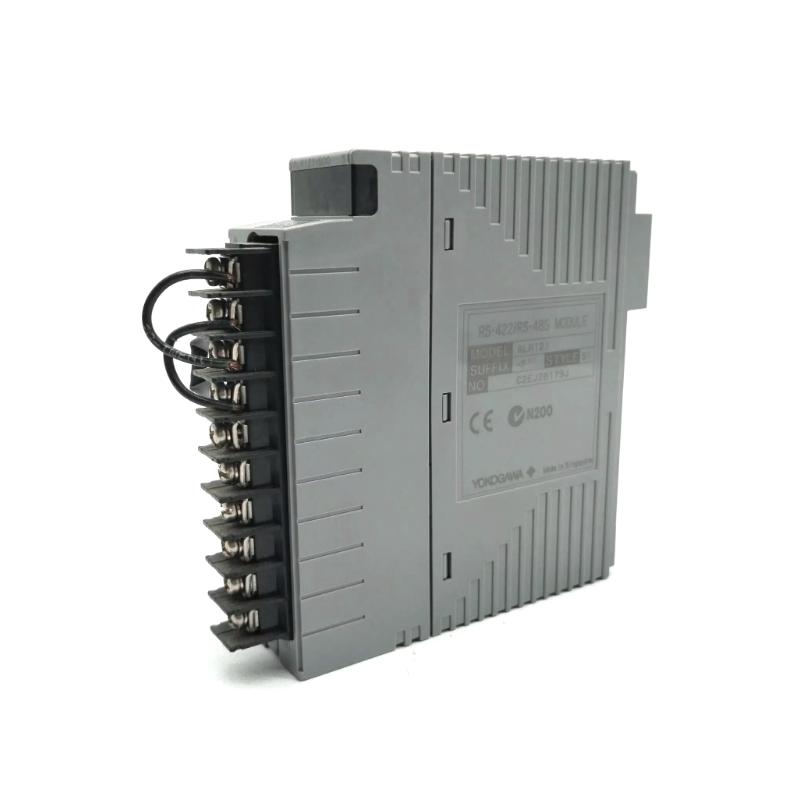

The Yokogawa ALR121-SE1 is a cutting-edge industrial automation processor specifically designed to meet the demands of industries requiring precise control, monitoring, and data processing. Engineered for high reliability, exceptional performance, and seamless integration into automation systems, the ALR121-SE1 is a vital component in industries such as oil & gas, chemical processing, pharmaceuticals, and energy production. With its support for real-time data processing, advanced diagnostics, and multi-protocol communication, the ALR121-SE1 enhances operational efficiency, minimizes downtime, and provides consistent performance in mission-critical applications. Its compact, rugged design and ease of integration make it ideal for both centralized and distributed control systems.

Technical Specifications

Model: ALR121-SE1
Type: Industrial Automation Processor
Dimensions: 8.3 inches x 6.7 inches x 4.1 inches (210 mm x 170 mm x 104 mm)
Weight: 2.6 lbs (1.18 kg)
Power Supply: 24V DC ± 10%
Power Consumption: 40 W
Communication Ports:
- 2x Ethernet Ports (10/100/1000 Mbps)
- 2x Serial Ports (RS-232/RS-485)
- 1x USB Port (for local connection)
Supported Protocols: Ethernet/IP, Modbus TCP/IP, OPC, Profibus DP, HART, DeviceNet
Operating Temperature: -10°C to 60°C (14°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Mounting: DIN Rail Mountable
Data Processing: Multi-core processor with real-time data processing

Recommended Related Models

Yokogawa CENTUM VP: The CENTUM VP distributed control system, when integrated with the ALR121-SE1, provides robust, centralized control for large-scale industrial operations, ensuring efficient data processing and real-time communication.
Yokogawa STARDOM FCN: For decentralized control applications, the ALR121-SE1 pairs well with the STARDOM FCN system to deliver flexibility, scalability, and reliability in distributed automation solutions.
Yokogawa PRM (Plant Resource Manager): The ALR121-SE1 enhances the performance of PRM systems by providing real-time monitoring and diagnostics of field devices, improving predictive maintenance and reducing downtime.
Yokogawa ADMAG AXF: When integrated with the ALR121-SE1, ADMAG AXF magnetic flow meters provide accurate flow measurement and help optimize fluid management in industrial processes such as chemical and pharmaceutical manufacturing.

Popular Yokogawa Models

Yokogawa CENTUM VP DCS: The CENTUM VP DCS, combined with the ALR121-SE1, offers seamless integration for complex industrial systems, enabling centralized control and real-time data processing for optimized operation.
Yokogawa DX1000: The DX1000 controller, when coupled with the ALR121-SE1, supports high-speed data acquisition and control, making it ideal for demanding automation tasks.
Yokogawa PRM (Plant Resource Manager): When paired with the ALR121-SE1, the PRM system ensures the continuous monitoring and maintenance of field devices, reducing the risk of unplanned downtime.

Applications

The Yokogawa ALR121-SE1 is highly adaptable for various industrial applications that require real-time data processing, precise control, and seamless communication:

Centralized Control Systems: The ALR121-SE1 plays a central role in control systems, handling large volumes of real-time data and enabling smooth communication between field devices and central control units.
Distributed Control Systems (DCS): In decentralized control setups, the ALR121-SE1 integrates with Yokogawa’s CENTUM VP or STARDOM FCN to provide scalable solutions for industries requiring flexible control architectures.
Predictive Maintenance: The ALR121-SE1 works in conjunction with PRM for real-time diagnostics and predictive maintenance, helping to extend the lifespan of assets and avoid costly downtime.
Process Monitoring and Data Acquisition: The ALR121-SE1 excels in data acquisition for process control, especially in industries such as oil & gas, chemical, and pharmaceuticals, where monitoring and real-time data analysis are critical.
Energy Optimization: The processor’s high-speed data handling capabilities also make it ideal for energy management, enabling the analysis of energy consumption data and improving energy efficiency.

Advantages

Real-Time Data Processing: The ALR121-SE1 features a multi-core processor optimized for real-time data processing, ensuring fast response times and minimal latency in control systems.
Multi-Protocol Communication: The ALR121-SE1 supports several industrial communication protocols, including Ethernet/IP, Modbus TCP/IP, OPC, Profibus DP, HART, and DeviceNet, ensuring compatibility with a wide range of devices and systems.
Flexible Connectivity: The ALR121-SE1 offers 2 Ethernet ports and 2 serial ports, providing ample communication options for both local and remote system integration.
Compact Design: With a space-saving design and DIN rail mounting, the ALR121-SE1 can be easily installed into control panels or other compact spaces, making it ideal for modern industrial environments.
Energy Efficiency: The processor consumes only 40 W of power, providing energy-efficient performance while mai ntaining high processing capability, reducing operational costs in industrial settings.

Technical FAQs

What communication protocols are supported by the ALR121-SE1?
The ALR121-SE1 supports Ethernet/IP, Modbus TCP/IP, OPC, Profibus DP, HART, and DeviceNet, offering wide compatibility with field devices and control systems.
How many Ethernet ports are available on the ALR121-SE1?
The ALR121-SE1 is equipped with 2 Ethernet ports (10/100/1000 Mbps) to ensure fast and reliable data communication.
What is the power consumption of the ALR121-SE1?
The ALR121-SE1 has a power consumption of 40 W, providing an energy-efficient solution for industrial automation without compromising on performance.
What is the temperature range for operating the ALR121-SE1?
The ALR121-SE1 operates in a temperature range of -10°C to 60°C (14°F to 140°F), making it suitable for various industrial environments.
Can the ALR121-SE1 be used in decentralized control systems?
Yes, the ALR121-SE1 integrates with Yokogawa’s CENTUM VP and STARDOM FCN systems to provide flexible and scalable solutions for decentralized control applications.
Does the ALR121-SE1 support real-time data processing?
Yes, the ALR121-SE1 is equipped with a multi-core processor designed for real-time data processing, ensuring minimal latency and efficient handling of time-sensitive tasks.
What is the weight of the ALR121-SE1?
The ALR121-SE1 weighs 2.6 lbs (1.18 kg), making it compact and easy to integrate into various industrial control systems.
Can the ALR121-SE1 be used for predictive maintenance?
Yes, when used with Yokogawa PRM, the ALR121-SE1 provides real-time diagnostics and predictive maintenance capabilities, reducing the risk of unplanned downtime.
What is the storage temperature range for the ALR121-SE1?
The ALR121-SE1 can be stored in temperatures ranging from -40°C to 85°C (-40°F to 185°F), ensuring it operates reliably in extreme conditions.
Is the ALR121-SE1 DIN rail mountable?
Yes, the ALR121-SE1 is designed to be DIN rail mountable, offering easy installation and space-saving integration into industrial control panels.
