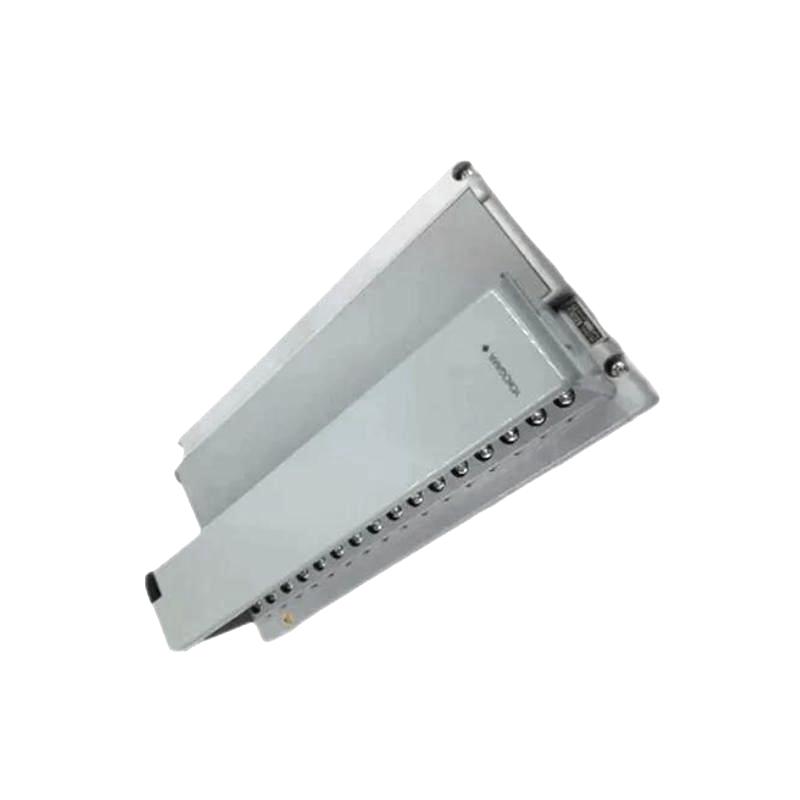

The Yokogawa AMM32TJ is a cutting-edge multi-function analyzer designed to meet the advanced needs of industries requiring high-precision measurement of key process parameters. Known for its reliability and accuracy, the AMM32TJ is ideal for a wide range of applications, including chemical processing, water and wastewater treatment, pharmaceutical manufacturing, food and beverage, and power generation. This analyzer can measure critical parameters such as pH, ORP (Oxidation-Reduction Potential), dissolved oxygen, conductivity, and temperature, providing operators with real-time, reliable data for optimal process control, safety, and compliance. The AMM32TJ is engineered for environments where continuous, real-time monitoring and precise control are essential to ensuring the highest levels of process efficiency, safety, and product quality.

Technical Specifications

Model: AMM32TJ
Type: Multi-Function Analyzer
Dimensions: 10.8 inches x 8.9 inches x 4.3 inches (274 mm x 226 mm x 110 mm)
Weight: 3.4 lbs (1.55 kg)
Power Supply: 100-240V AC, 50/60Hz
Power Consumption: 30 W
Input Channels:
- 4x Analog Inputs (for pH, ORP, dissolved oxygen, conductivity, temperature, and customizable parameters)
Display: 7.0-inch color LCD touchscreen
Communication Ports:
- 1x Ethernet (10/100 Mbps)
- 2x RS-485 (Modbus RTU)
- 1x USB (for configuration, data export, and diagnostics)
Measurement Parameters: pH, ORP, Dissolved Oxygen, Conductivity, Temperature, and customizable parameters
Accuracy:
- pH: ±0.01 pH
- Conductivity: ±1% FS
- Temperature: ±0.5°C
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Relative Humidity: 5% to 95% (non-condensing)
Environmental Rating: IP65 (for front panel)
Mounting: Panel Mount or Wall Mountable
Software: Data logging, trend graphs, alarm management, diagnostic tools, and event reporting
Certifications: CE, UL, Ex (for hazardous environments)

Recommended Related Models

Yokogawa FLXA202: The FLXA202 can be paired with the AMM32TJ to measure additional parameters such as turbidity, ideal for industries like water treatment and environmental monitoring.
Yokogawa SC200: For centralized control and integration, the SC200 system controller works seamlessly with the AMM32TJ, enabling more efficient monitoring and process control.
Yokogawa PRM (Plant Resource Manager): Integrating the AMM32TJ with PRM allows for predictive maintenance, real-time diagnostics, and efficient data management across industrial plants.
Yokogawa ADMAG AXF: For flow measurement applications, pairing the AMM32TJ with the ADMAG AXF magnetic flow meter ensures high-accuracy flow data, critical for industries like chemical processing and water treatment.

Popular Yokogawa Models

Yokogawa CENTUM VP: The AMM32TJ is fully compatible with the CENTUM VP Distributed Control System (DCS), providing a comprehensive solution for process control and automation across complex industrial environments.
Yokogawa SCADA Systems: When integrated with SCADA systems, the AMM32TJ offers real-time monitoring, alarm management, and data collection, allowing operators to manage large-scale operations with ease.
Yokogawa OpreX Analytical Solutions: As part of the OpreX Analytical Solutions portfolio, the AMM32TJ delivers continuous, high-precision monitoring, helping optimize processes, reduce downtime, and ensure regulatory compliance.

Applications

The Yokogawa AMM32TJ is ideal for industries requiring continuous, real-time monitoring of multiple process parameters to ensure product quality, efficiency, and compliance:

Chemical Processing: The AMM32TJ plays a vital role in ensuring optimal reaction conditions by monitoring pH, ORP, and conductivity, helping to reduce waste and improve product consistency.
Water and Wastewater Treatment: In water treatment plants, the AMM32TJ ensures water quality by accurately measuring dissolved oxygen, pH, and conductivity, ensuring compliance with environmental regulations.
Pharmaceutical Manufacturing: The AMM32TJ supports pharmaceutical processes by continuously monitoring pH, conductivity, and temperature, ensuring that processes stay within optimal parameters for consistent product quality.
Food and Beverage: The AMM32TJ ensures product consistency and safety in food and beverage manufacturing by monitoring parameters such as pH, conductivity, and temperature throughout production.
Power Generation: The AMM32TJ monitors conductivity, ORP, and temperature in cooling and boiler water systems to prevent scaling, corrosion, and other issues that could impact efficiency and safety.

Advantages

Multi-Parameter Monitoring: The AMM32TJ measures multiple parameters simultaneously, including pH, ORP, dissolved oxygen, conductivity, and temperature, enabling comprehensive process control with a single device.
High Accuracy: With ±0.01 pH accuracy for pH, ±1% FS for conductivity, and ±0.5°C for temperature, the AMM32TJ delivers precise measurements for reliable process monitoring.
User-Friendly Interface: The 7.0-inch color LCD touchscreen ensures that operators can easily view real-time data, alarms, and trends, simplifying process management and decision-making.
Flexible Installation: The AMM32TJ can be mounted in either panel-mount or wall-mount configurations, offering versatility in different industrial settings.
IP65 Protection: With an IP65-rated front panel, the AMM32TJ is protected against dust and water ingress, making it ideal for harsh industrial environments.
Ex Certification: The AMM32TJ is Ex certified, ensuring safe operation in hazardous environments, such as in chemical plants, pharmaceutical facilities, and oil & gas applications.
Advanced Alarm Management: The AMM32TJ features advanced alarm management capabilities, allowing operators to respond promptly to parameter deviations and prevent potential disruptions to the process.

Technical FAQs

What parameters can the AMM32TJ measure?
The AMM32TJ can measure pH, ORP, dissolved oxygen, conductivity, temperature, and other customizable parameters, enabling comprehensive real-time monitoring of industrial processes.
How many input channels does the AMM32TJ support?
The AMM32TJ supports 4 analog input channels, allowing for simultaneous measurement of several key process parameters.
What is the accuracy of the AMM32TJ for pH and conductivity?
The AMM32TJ offers ±0.01 pH accuracy for pH, ±1% FS for conductivity, and ±0.5°C for temperature, ensuring highly reliable readings.
Can the AMM32TJ be used in hazardous environments?
Yes, the AMM32TJ is Ex certified, making it suitable for use in hazardous areas where explosive gases or flammable substances are present.
What is the power consumption of the AMM32TJ?
The AMM32TJ consumes 30 W, making it energy-efficient while providing continuous, high-performance monitoring.
What type of display does the AMM32TJ have?
The AMM32TJ features a 7.0-inch color LCD touchscreen, offering an intuitive, user-friendly interface for monitoring data, trends, and alarm management.
Does the AMM32TJ support remote communication?
Yes, the AMM32TJ supports Ethernet, RS-485 (Modbus RTU), and USB communication, allowing easy integration with other systems for data export and remote diagnostics.
What is the environmental rating of the AMM32TJ?
The AMM32TJ is rated IP65 for the front panel, providing protection from dust and water ingress, making it ideal for harsh industrial environments.
What is the operating temperature range for the AMM32TJ?
The AMM32TJ operates within the temperature range of -10°C to 55°C (14°F to 131°F), ensuring reliable performance in various industrial settings.
Which industries can benefit from the AMM32TJ?
The AMM32TJ is beneficial for industries such as chemical processing, water treatment, pharmaceutical manufacturing, food & beverage, and power generation, where precise and continuous measurement is essential.
