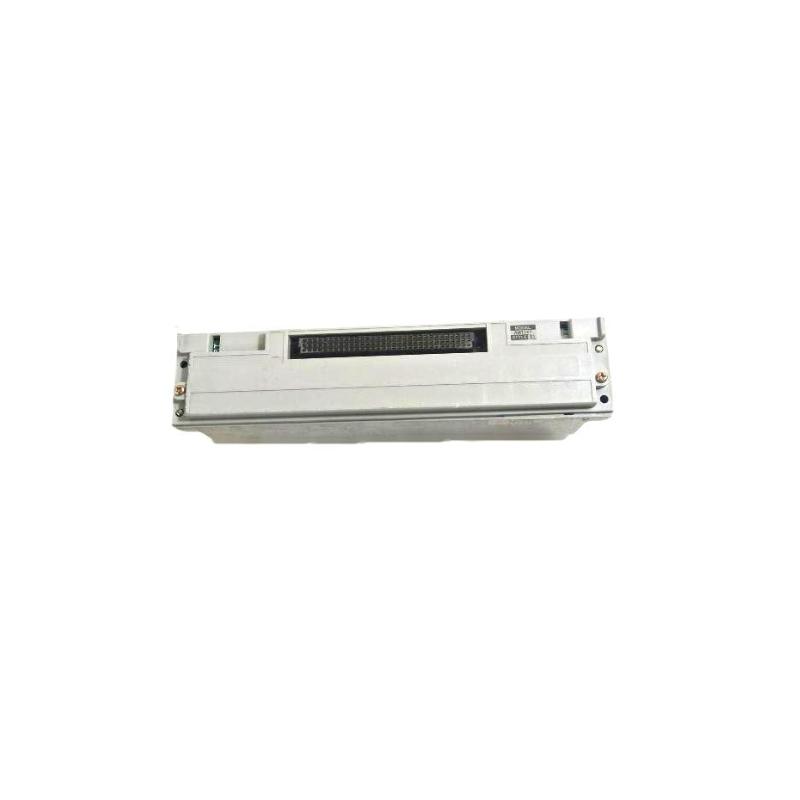

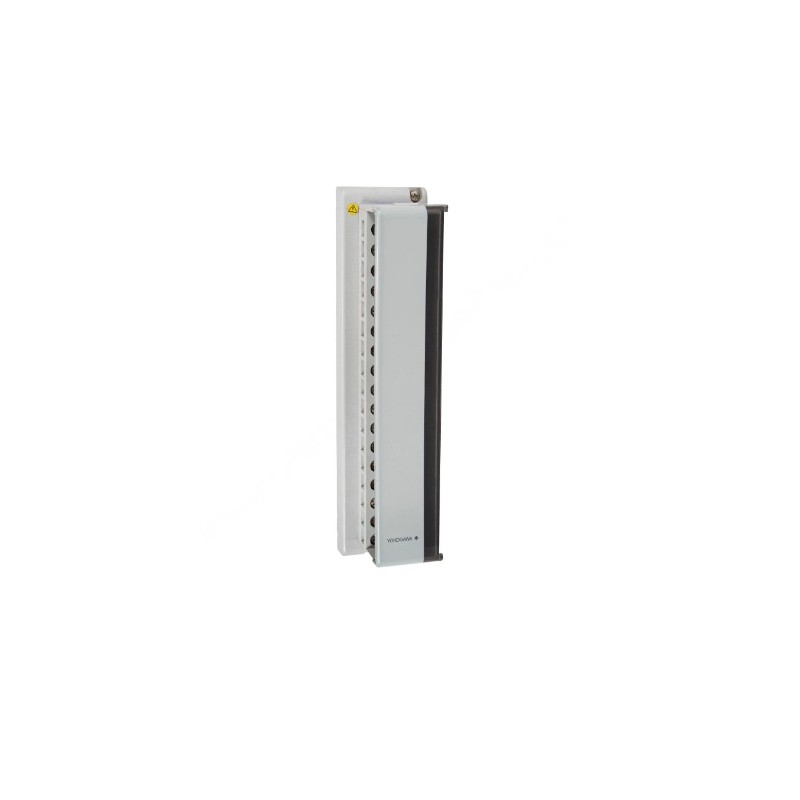

AMM52T AMM52T-3 AMM52T-2 AMM52T-1

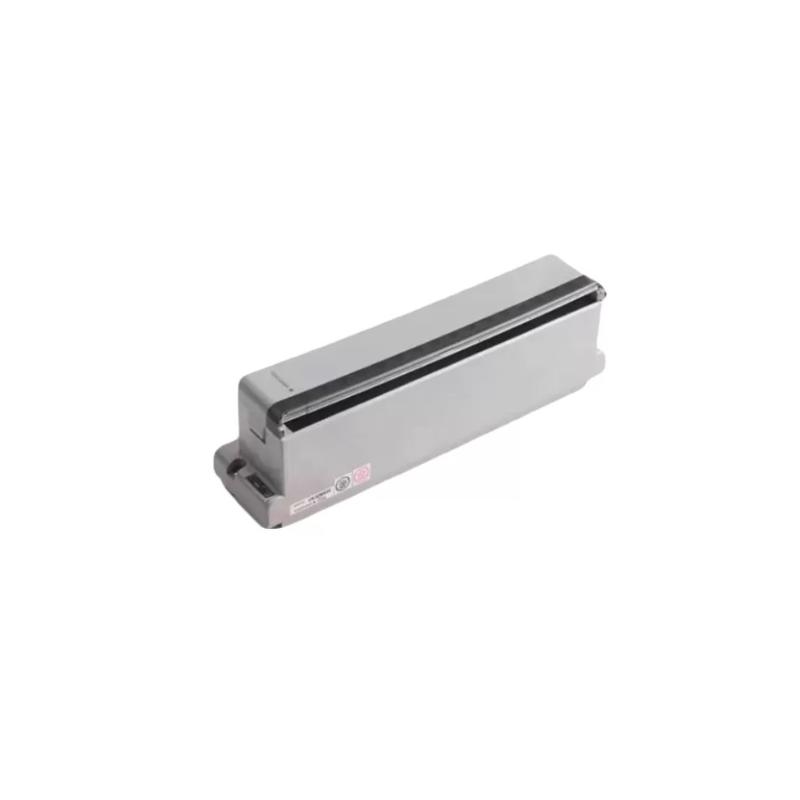

The Yokogawa AMM52 is a cutting-edge multi-function analyzer designed for industrial applications that require high-precision measurement and monitoring of critical process parameters. Ideal for industries such as chemical processing, water and wastewater treatment, pharmaceutical manufacturing, food and beverage, and power generation, the AMM52 offers advanced capabilities to measure key parameters like pH, ORP (Oxidation-Reduction Potential), dissolved oxygen, conductivity, and temperature with unparalleled accuracy. This analyzer ensures that your processes are running optimally, delivering superior product quality, reducing downtime, and maintaining compliance with stringent industry regulations. The AMM52 is designed for demanding industrial environments, offering real-time, reliable data to improve operational efficiency and safety.

Technical Specifications

Model: AMM52
Type: Multi-Function Analyzer
Dimensions: 10.8 inches x 8.9 inches x 4.3 inches (274 mm x 226 mm x 110 mm)
Weight: 3.5 lbs (1.6 kg)
Power Supply: 100-240V AC, 50/60Hz
Power Consumption: 30 W
Input Channels:
- 4x Analog Inputs (for pH, ORP, dissolved oxygen, conductivity, temperature, and customizable parameters)
Display: 7.0-inch color LCD touchscreen
Communication Ports:
- 1x Ethernet (10/100 Mbps)
- 2x RS-485 (Modbus RTU)
- 1x USB (for configuration, data export, and diagnostics)
Measurement Parameters: pH, ORP, Dissolved Oxygen, Conductivity, Temperature, and customizable parameters
Accuracy:
- pH: ±0.01 pH
- Conductivity: ±1% FS
- Temperature: ±0.5°C
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Relative Humidity: 5% to 95% (non-condensing)
Environmental Rating: IP65 (for front panel)
Mounting: Panel Mount or Wall Mountable
Software: Data logging, trend graphs, alarm management, diagnostic tools, and event reporting
Certifications: CE, UL, Ex (for hazardous environments)

Recommended Related Models

Yokogawa FLXA402: An excellent companion to the AMM52, the FLXA402 offers turbidity measurement, which is crucial for water and wastewater treatment, enabling comprehensive process monitoring.
Yokogawa SC200: The SC200 controller can be integrated with the AMM52 for central monitoring and control of large industrial processes, providing seamless data aggregation and decision support.
Yokogawa PRM (Plant Resource Manager): With PRM, the AMM52 benefits from real-time diagnostics, predictive maintenance, and operational insights, optimizing plant performance.
Yokogawa ADMAG AXF: Integrating the AMM52 with the ADMAG AXF magnetic flow meter allows for highly accurate flow measurements in critical applications such as chemical production and water treatment.

Popular Yokogawa Models

Yokogawa CENTUM VP: The AMM52 is fully compatible with the CENTUM VP Distributed Control System (DCS), enabling precise control and integration into larger automation systems.
Yokogawa SCADA Systems: By integrating the AMM52 with SCADA systems, operators gain access to real-time data monitoring, trend analysis, and proactive alarm management, improving operational efficiency.
Yokogawa OpreX Analytical Solutions: As part of the OpreX series, the AMM52 ensures compliance with regulatory requirements, providing real-time data and actionable insights for process optimization.

Applications

The Yokogawa AMM52 is versatile and can be used across a wide range of industries that require accurate, continuous measurement of vital process parameters:

Chemical Processing: The AMM52 monitors pH, ORP, and conductivity in chemical plants, ensuring reactions are carried out under optimal conditions and helping minimize product variability.
Water and Wastewater Treatment: The AMM52 is perfect for measuring dissolved oxygen, pH, and conductivity in water treatment plants, ensuring water quality meets regulatory standards and optimizing the treatment process.
Pharmaceutical Manufacturing: The AMM52 plays a critical role in ensuring the integrity of pharmaceutical products by monitoring pH, conductivity, and temperature in production processes, guaranteeing consistency and regulatory compliance.
Food and Beverage: In food and beverage production, the AMM52 ensures consistent product quality by monitoring key parameters like pH, conductivity, and temperature, preventing quality issues and ensuring safety.
Power Generation: The AMM52 helps maintain the integrity of cooling water systems in power plants by monitoring conductivity, ORP, and temperature, preventing scaling and corrosion.

Advantages

Multi-Parameter Monitoring: The AMM52 offers simultaneous measurement of pH, ORP, dissolved oxygen, conductivity, and temperature, ensuring comprehensive process control and reducing the need for multiple devices.
High Accuracy: The AMM52 provides ±0.01 pH accuracy for pH, ±1% FS for conductivity, and ±0.5°C for temperature, ensuring that process parameters are monitored with high precision.
User-Friendly Interface: The 7.0-inch color LCD touchscreen provides an intuitive and interactive display for real-time monitoring, trend analysis, and alarm management, improving operator efficiency.
Flexible Installation: The AMM52 can be mounted in panel-mount or wall-mount configurations, offering flexibility for various installation environments.
IP65 Protection: The AMM52 is equipped with an IP65-rated front panel, ensuring protection against dust and water ingress, making it suitable for harsh industrial environments.
Ex Certification: With Ex certification, the AMM52 can be safely used in hazardous environments where there is a risk of explosive gases or flammable materials.
Advanced Alarm Management: The AMM52 includes sophisticated alarm management features, allowing for early detection of process deviations and enabling quick corrective actions to prevent disruptions.

Technical FAQs

What parameters can the AMM52 measure?
The AMM52 measures pH, ORP, dissolved oxygen, conductivity, temperature, and other customizable parameters for comprehensive process monitoring.
How many input channels does the AMM52 support?
The AMM52 supports 4 analog input channels, allowing the simultaneous measurement of multiple process parameters.
What is the accuracy of the AMM52 for pH and conductivity?
The AMM52 offers ±0.01 pH accuracy for pH, ±1% FS for conductivity, and ±0.5°C for temperature, ensuring precise and reliable measurements.
Can the AMM52 be used in hazardous environments?
Yes, the AMM52 is Ex certified, making it suitable for use in hazardous environments where explosive gases or flammable materials are present.
What is the power consumption of the AMM52?
The AMM52 consumes 30 W, ensuring energy-efficient operation while maintaining reliable performance.
What type of display does the AMM52 have?
The AMM52 features a 7.0-inch color LCD touchscreen, providing an intuitive interface for monitoring process parameters, trend analysis, and alarm management.
Does the AMM52 support remote communication?
Yes, the AMM52 supports Ethernet, RS-485 (Modbus RTU), and USB communication, enabling remote access and seamless integration with other systems.
What is the environmental rating of the AMM52?
The AMM52 is IP65-rated for the front panel, providing protection against dust and water ingress, making it ideal for harsh industrial environments.
What is the operating temperature range for the AMM52?
The AMM52 operates in temperatures ranging from -10°C to 55°C (14°F to 131°F), making it suitable for a wide range of industrial conditions.
Which industries benefit most from the AMM52?
The AMM52 is ideal for chemical processing, water treatment, pharmaceutical manufacturing, food & beverage, and power generation, where high-precision and continuous monitoring is essential for maintaining quality and optimizing processes.
