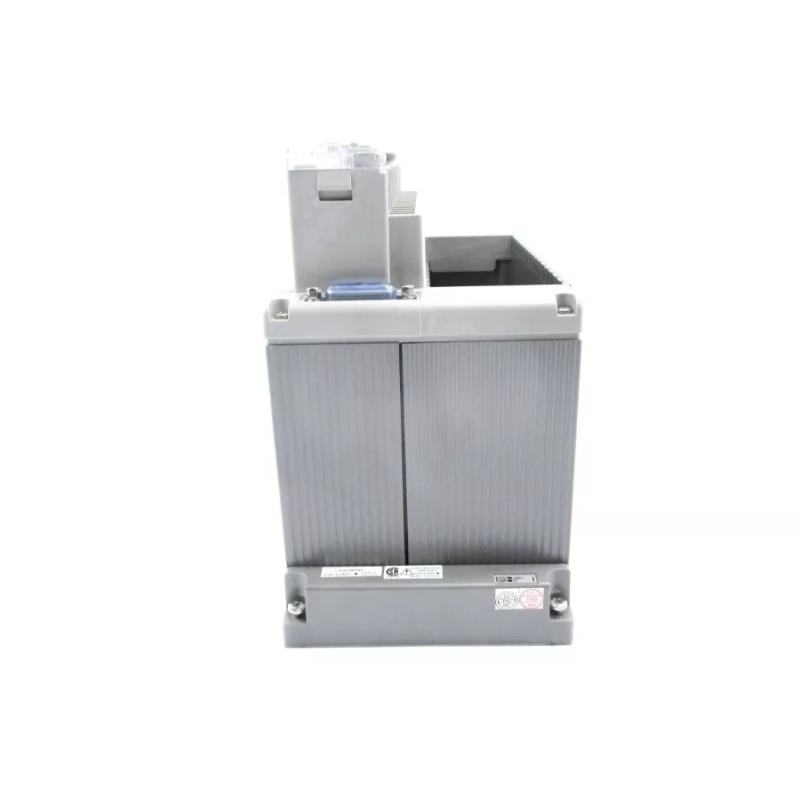

AMN11-S1 3 AMN11-S1 2 AMN11-S1 4

The Yokogawa AMN11-S1 is a sophisticated, high-precision multi-function analyzer designed for industries that demand accurate and continuous monitoring of key process parameters. Tailored for applications in chemical processing, water and wastewater treatment, pharmaceutical manufacturing, food and beverage, and power generation, the AMN11-S1 provides precise measurements of parameters such as pH, ORP (Oxidation-Reduction Potential), dissolved oxygen, conductivity, and temperature. Its reliable performance, real-time monitoring capabilities, and ease of integration with control systems make the AMN11-S1 an essential tool for optimizing process efficiency, ensuring product quality, and maintaining compliance with stringent industry regulations.

The AMN11-S1 offers advanced features such as data logging, alarm management, and trend analysis, empowering operators with the tools to enhance decision-making and improve operational reliability. Its compact design and flexible mounting options also allow for easy installation in a variety of environments.

Technical Specifications

Model: AMN11-S1
Type: Multi-Function Analyzer
Dimensions: 10.8 inches x 8.9 inches x 4.3 inches (274 mm x 226 mm x 110 mm)
Weight: 3.4 lbs (1.55 kg)
Power Supply: 100-240V AC, 50/60Hz
Power Consumption: 30 W
Input Channels:
- 4x Analog Inputs (for pH, ORP, dissolved oxygen, conductivity, temperature, and other customizable parameters)
Display: 7.0-inch color LCD touchscreen
Communication Ports:
- 1x Ethernet (10/100 Mbps)
- 2x RS-485 (Modbus RTU)
- 1x USB (for configuration, data export, and diagnostics)
Measurement Parameters: pH, ORP, Dissolved Oxygen, Conductivity, Temperature, and customizable parameters
Accuracy:
- pH: ±0.01 pH
- Conductivity: ±1% FS
- Temperature: ±0.5°C
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Relative Humidity: 5% to 95% (non-condensing)
Environmental Rating: IP65 (for front panel)
Mounting: Panel Mount or Wall Mountable
Software: Data logging, trend graphs, alarm management, diagnostic tools, and event reporting
Certifications: CE, UL, Ex (for hazardous environments)

Recommended Related Models

Yokogawa FLXA202: For applications involving turbidity measurement, the FLXA202 turbidity analyzer complements the AMN11-S1, providing a complete solution for water treatment and pharmaceutical applications.
Yokogawa SC200: The SC200 system controller, when integrated with the AMN11-S1, allows for centralized monitoring and control of large industrial systems, enhancing data management and operational efficiency.
Yokogawa PRM (Plant Resource Manager): By integrating with PRM, the AMN11-S1 provides predictive maintenance and advanced diagnostics, ensuring optimal process performance and reducing unexpected downtime.
Yokogawa ADMAG AXF: The ADMAG AXF magnetic flow meter pairs well with the AMN11-S1 for accurate flow measurement in applications like chemical processing and water treatment, ensuring process stability and accuracy.

Popular Yokogawa Models

Yokogawa CENTUM VP: The AMN11-S1 can be seamlessly integrated with the CENTUM VP Distributed Control System (DCS) for centralized monitoring and control of industrial processes, improving system efficiency and reducing operational complexity.
Yokogawa SCADA Systems: Integration with SCADA systems enables real-time data monitoring, trend analysis, and alarm management for improved operational performance and faster response to process changes.
Yokogawa OpreX Analytical Solutions: As part of the OpreX Analytical Solutions portfolio, the AMN11-S1 supports regulatory compliance and process optimization, making it a critical tool for enhancing operational efficiency in various industries.

Applications

The Yokogawa AMN11-S1 is suitable for a wide range of applications in industries that require continuous and precise monitoring of critical parameters:

Chemical Processing: The AMN11-S1 is ideal for monitoring pH, ORP, and conductivity in chemical reactions, ensuring optimal process control and improving product consistency.
Water and Wastewater Treatment: The AMN11-S1 measures dissolved oxygen, pH, and conductivity in water treatment processes, ensuring that environmental regulations are met and improving the overall efficiency of the treatment system.
Pharmaceutical Manufacturing: In the pharmaceutical industry, the AMN11-S1 is used to monitor pH, conductivity, and temperature during critical manufacturing steps, ensuring that the final products meet quality and regulatory standards.
Food and Beverage: The AMN11-S1 is essential for ensuring product quality and consistency in food and beverage production, by accurately measuring pH, conductivity, and temperature to maintain high standards of food safety and quality control.
Power Generation: The AMN11-S1 is used in power plants to monitor conductivity, ORP, and temperature in cooling water systems, helping prevent scaling, corrosion, and other issues that can affect system performance and efficiency.

Advantages

Multi-Parameter Measurement: The AMN11-S1 allows the simultaneous measurement of pH, ORP, dissolved oxygen, conductivity, and temperature, providing a comprehensive solution for process monitoring and control.
High Accuracy: The AMN11-S1 offers ±0.01 pH accuracy for pH, ±1% FS for conductivity, and ±0.5°C for temperature, ensuring reliable, precise measurements.
User-Friendly Interface: The 7.0-inch color LCD touchscreen simplifies data visualization and operation, with features such as trend analysis, alarm management, and easy access to diagnostic tools.
Flexible Installation: The AMN11-S1 can be installed as either a panel mount or wall mount unit, providing flexibility to meet diverse installation requirements.
IP65 Protection: The AMN11-S1 has an IP65-rated front panel, ensuring protection from dust and water ingress, making it suitable for use in challenging industrial environments.
Ex Certification: The AMN11-S1 is Ex certified, allowing safe operation in hazardous environments where explosive gases or flammable materials are present.
Advanced Diagnostics and Alarm Management: With built-in diagnostic tools and customizable alarm management features, the AMN11-S1 enables early detection of potential issues, reducing downtime and optimizing maintenance schedules.

Technical FAQs

What parameters can the AMN11-S1 measure?
The AMN11-S1 can measure pH, ORP, dissolved oxygen, conductivity, temperature, and other customizable parameters to monitor various process variables.
How many input channels does the AMN11-S1 support?
The AMN11-S1 supports 4 analog input channels, allowing the simultaneous measurement of multiple critical process parameters.
What is the accuracy of the AMN11-S1 for pH and conductivity?
The AMN11-S1 provides ±0.01 pH accuracy for pH, ±1% FS for conductivity, and ±0.5°C for temperature, ensuring highly precise measurements.
Can the AMN11-S1 be used in hazardous environments?
Yes, the AMN11-S1 is Ex certified, making it suitable for use in hazardous areas with explosive gases or flammable materials.
What is the power consumption of the AMN11-S1?
The AMN11-S1 consumes 30 W, making it energy-efficient while maintaining high performance.
What type of display does the AMN11-S1 have?
The AMN11-S1 features a 7.0-inch color LCD touchscreen, providing an intuitive interface for real-time data monitoring, trend analysis, and alarm management.
Does the AMN11-S1 support remote communication?
Yes, the AMN11-S1 supports Ethernet, RS-485 (Modbus RTU), and USB communication for easy integration with other systems and remote diagnostics.
What is the environmental rating of the AMN11-S1?
The AMN11-S1 is IP65-rated for the front panel, ensuring protection from dust and water ingress, making it suitable for harsh environments.
What is the operating temperature range for the AMN11-S1?
The AMN11-S1 operates within the temperature range of -10°C to 55°C (14°F to 131°F), ensuring reliable performance in a variety of industrial conditions.
Which industries benefit most from the AMN11-S1?
The AMN11-S1 is ideal for industries like chemical processing, water treatment, pharmaceutical manufacturing, food and beverage, and power generation, where continuous and accurate monitoring is essential for optimal performance.
