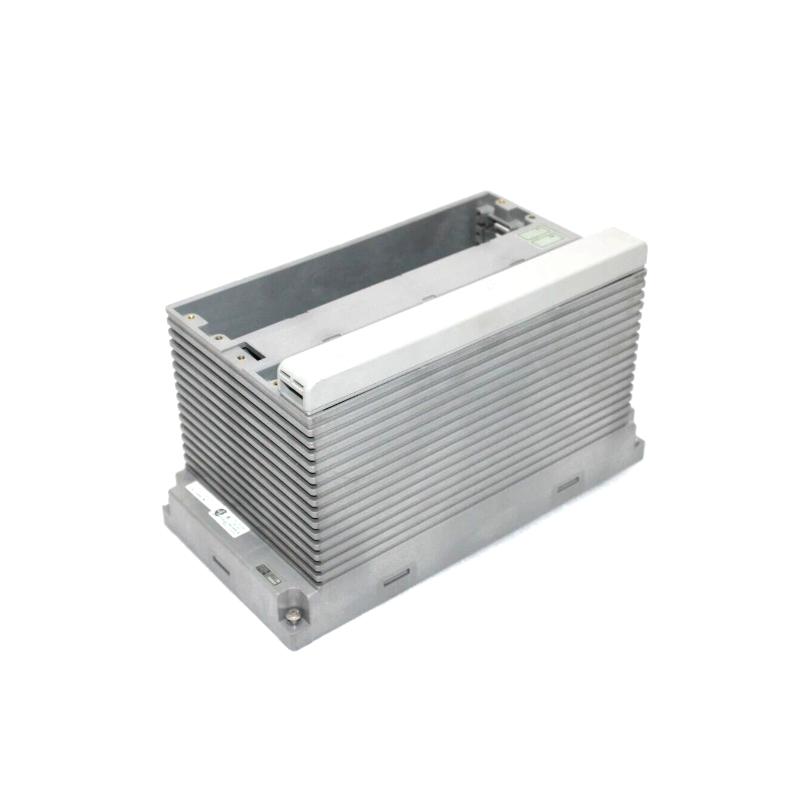

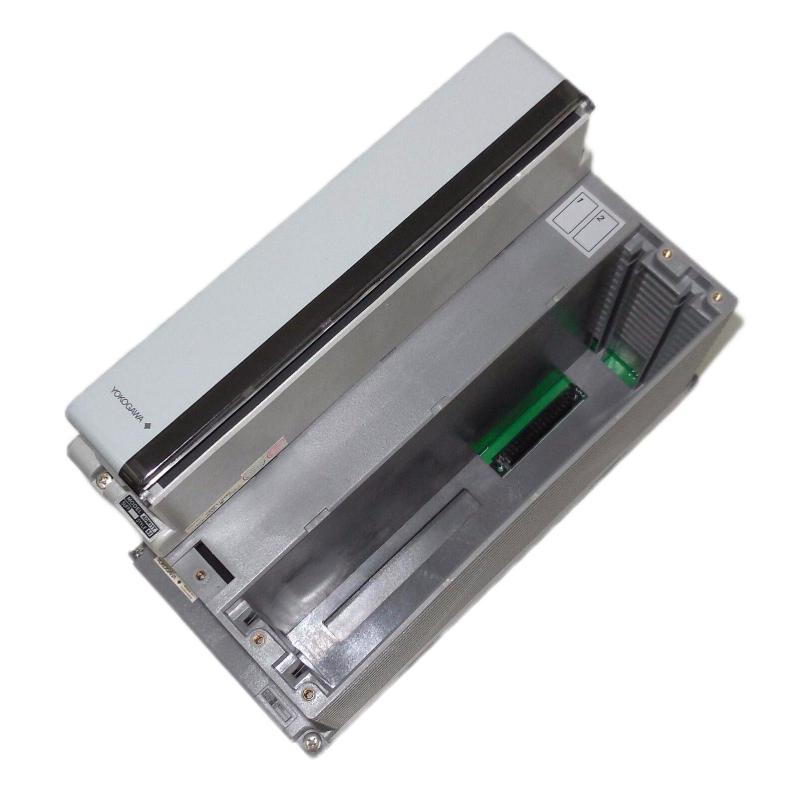

The Yokogawa AMN31 Communication Module is engineered to meet the needs of modern industrial automation, offering high-speed, reliable communication for large-scale, distributed control systems. A key component of the CENTUM VP distributed control system (DCS), the AMN31 supports seamless integration and secure data transfer across complex network configurations.

Designed for industries such as power generation, chemical processing, and petrochemical, the AMN31 enables real-time data exchange between control systems, field devices, and operator stations. Its robust capabilities ensure that industrial operations run efficiently, safely, and with minimal downtime, making it an essential tool for optimizing plant performance.

Technical Specifications

Feature	Specification
Model	AMN31
Communication Protocol	Modbus TCP/IP, EtherNet/IP, OPC-UA, PROFIBUS
Interface Type	Dual Ethernet Ports (10/100/1000 Mbps)
Power Supply	24V DC
Mounting	Rack Mount
Dimensions (WxHxD)	8.27” x 4.13” x 9.84” (210 mm x 105 mm x 250 mm)
Weight	3.5 lbs (1.6 kg)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Maximum Power Consumption	12W
Status Indicators	LED indicators for communication, power, and status

Recommended Related Models

AMN21 – A versatile communication module with dual Ethernet ports for medium-sized industrial networks.
AMN32 – Advanced model with additional features for high-capacity systems, offering enhanced security and redundancy.
CS3000 – A comprehensive DCS solution for process industries, offering full integration and monitoring capabilities.
FLXA21 – A multi-parameter analyzer that can be used in conjunction with the AMN31 for real-time process measurement.

Popular Yokogawa Models

CS3000: A robust distributed control system that integrates seamlessly with other Yokogawa products for large-scale automation and control.
AMN32: An advanced communication module designed for high-demand applications, featuring enhanced scalability and redundancy features.
Vigilant Plant™: A suite of software tools that integrates with the AMN31, offering remote monitoring, diagnostics, and plant optimization.
FLXA21: A field analyzer that provides precise measurements and supports multiple communication protocols, ideal for process control applications.

Applications

The Yokogawa AMN31 Communication Module is ideal for industries that require high-performance, real-time communication across large, distributed systems:

Power Generation: Facilitates communication between distributed energy systems, ensuring seamless data transfer between turbines, generators, and control centers.
Petrochemical & Chemical Processing: Supports complex data exchange between process control systems and field instruments in demanding chemical and petrochemical environments.
Oil & Gas: Ensures reliable communication for remote and offshore installations, connecting wellheads, drilling platforms, and central control stations.
Water Treatment: Optimizes communication for monitoring and controlling water treatment facilities, ensuring process accuracy and regulatory compliance.
Manufacturing & Automation: Helps coordinate communication across various machines and automated production lines in large-scale manufacturing plants.

Advantages

Dual Ethernet Ports: The 10/100/1000 Mbps Ethernet ports provide fast, secure communication and redundancy, ensuring minimal downtime and high-speed data transfer.
Multi-Protocol Support: The AMN31 supports a wide range of communication protocols, including Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, offering unparalleled flexibility for system integration.
High Reliability: Built to withstand harsh industrial environments, the AMN31 operates effectively within a wide temperature range of -20°C to +60°C, ensuring reliable performance even in extreme conditions.
Scalability: Easily scalable, the AMN31 is designed for large, distributed systems and can support the addition of more devices as systems grow.
Compact Design: Despite its high functionality, the AMN31 has a compact rack-mountable design, making it ideal for space-limited environments.
Energy Efficient: At just 12W of power consumption, the AMN31 offers efficient performance without unnecessary energy use, contributing to lower operational costs.
Secure Data Transfer: Supports secure communication protocols like OPC-UA, ensuring encrypted, reliable data transfer between devices and control systems.

Technical FAQs

What communication protocols are supported by the AMN31?
The AMN31 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, allowing for easy integration with a wide variety of control systems and network configurations.
How does the AMN31 support system scalability?
The AMN31 is designed to be scalable, enabling users to expand their network easily by adding additional modules and devices as needed.
What is the maximum power consumption of the AMN31?
The AMN31 has a maximum power consumption of 12W, ensuring efficient energy use even in large-scale applications.
Can the AMN31 be used in outdoor environments?
The AMN31 is built to operate in industrial settings with temperatures ranging from -20°C to +60°C, making it suitable for various outdoor applications depending on the environment.
Does the AMN31 support redundancy for critical applications?
Yes, the AMN31 supports dual Ethernet ports, enabling network redundancy for mission-critical applications that require continuous, reliable communication.
What is the installation process for the AMN31?
The AMN31 is rack-mountable and designed for easy installation into standard industrial control panels, with simple integration into existing Yokogawa systems.
Is the AMN31 compatible with third-party control systems?
Yes, the AMN31’s support for Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS makes it highly compatible with other industrial control systems and devices.
How does the AMN31 improve plant efficiency?
By providing real-time, high-speed communication, the AMN31 allows for faster decision-making, quicker troubleshooting, and more efficient coordination of automated systems, directly improving overall plant performance.
Can the AMN31 be used in hazardous environments?
While the AMN31 is robust and reliable in industrial settings, specific certifications for use in hazardous areas (such as ATEX or IECEx) must be verified based on the installation environment.
What are the physical dimensions of the AMN31?
The AMN31 has the following dimensions: 210 mm (W) x 105 mm (H) x 250 mm (D), offering a compact and space-efficient form factor.
