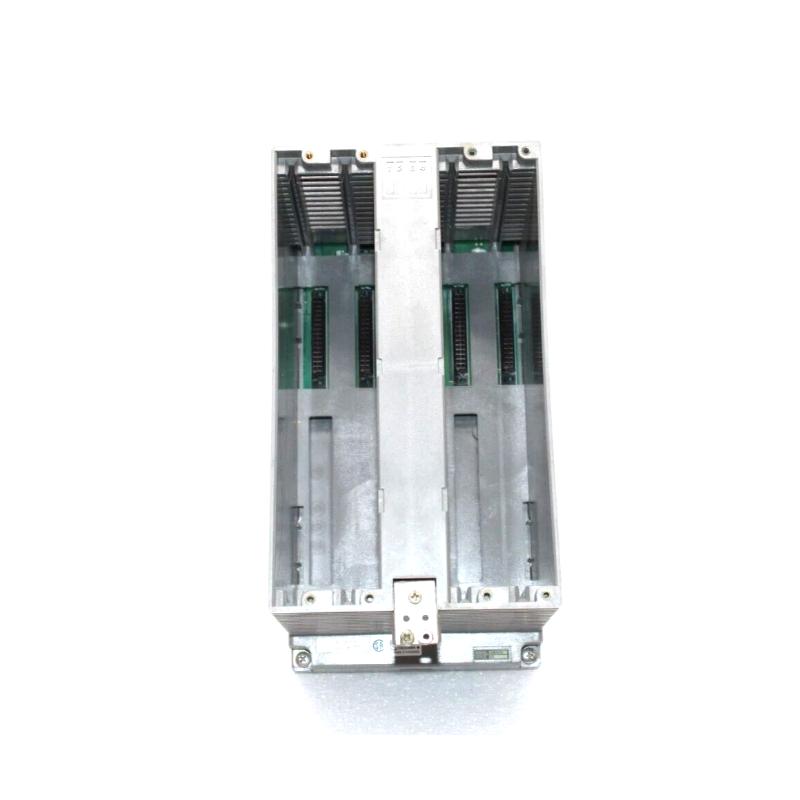

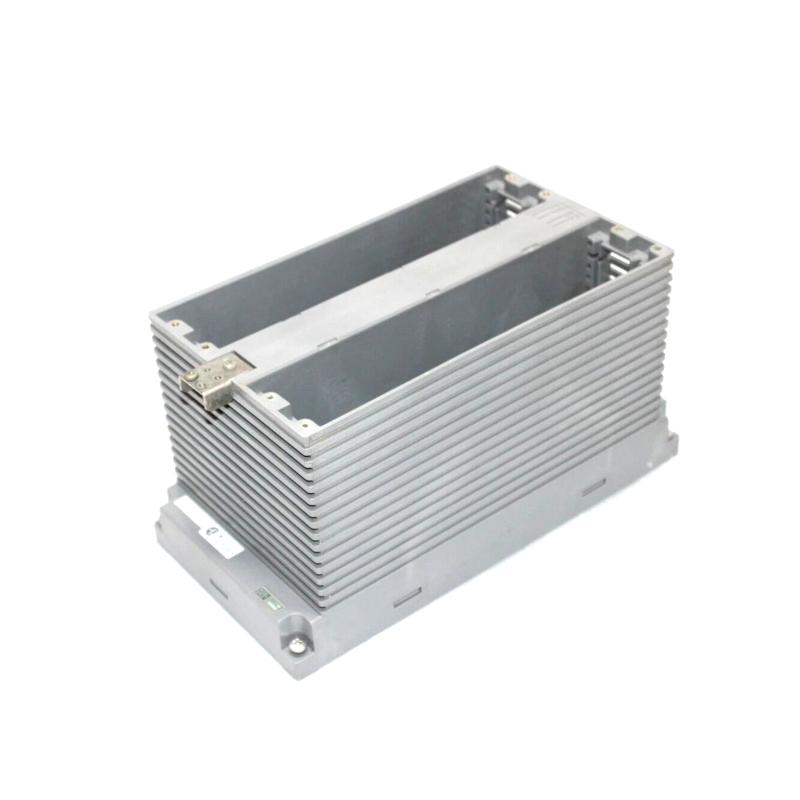

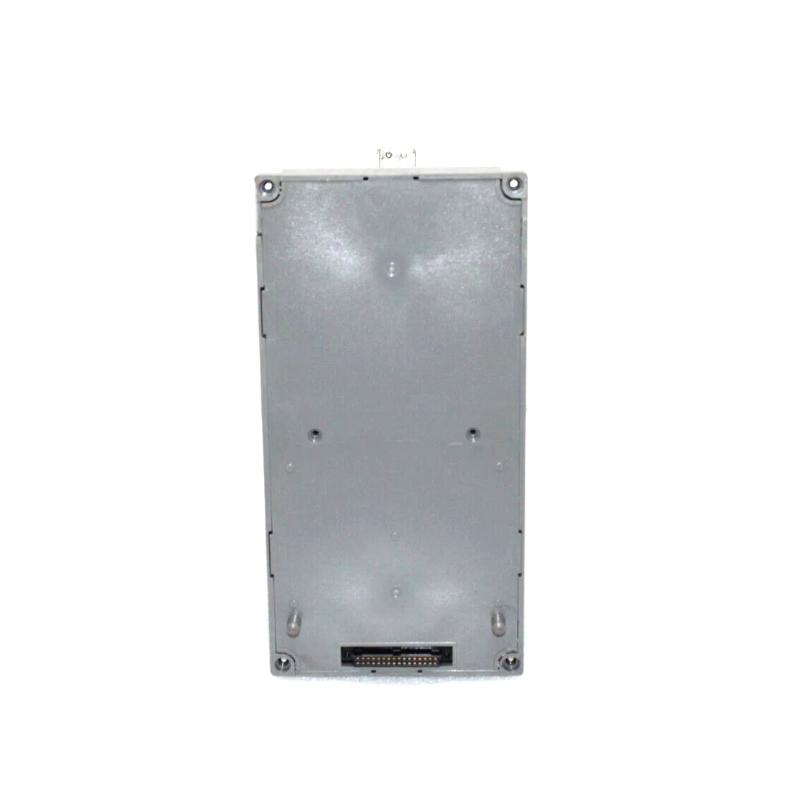

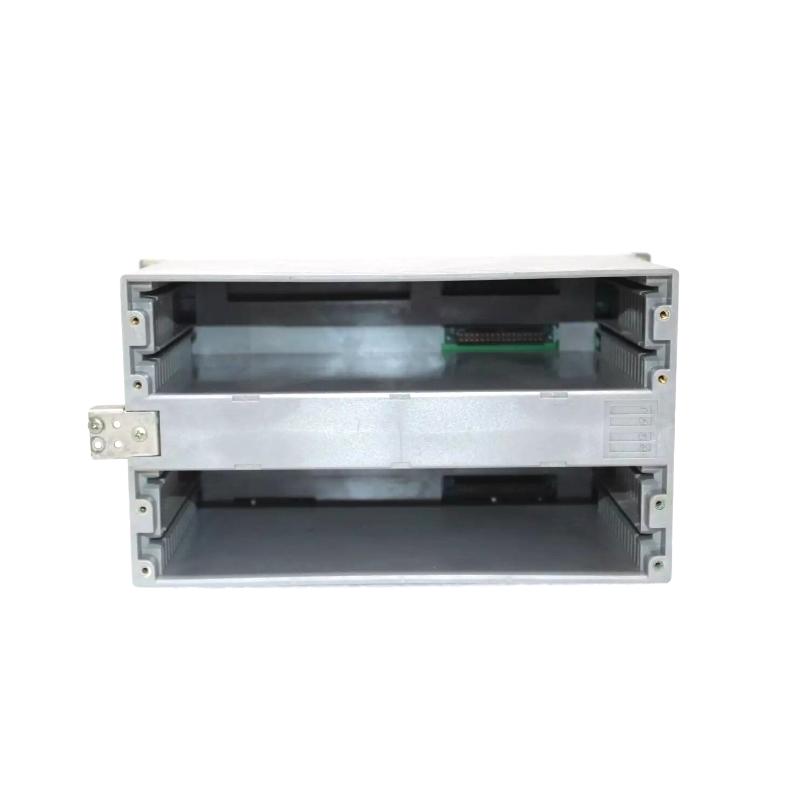

The Yokogawa AMN32-S1 Communication Module is a powerful and versatile networking solution designed to optimize communication within Yokogawa’s CENTUM VP Distributed Control Systems (DCS) and ProSafe-RS safety instrumented systems. Ideal for large-scale, mission-critical industrial applications, the AMN32-S1 ensures seamless data transfer, robust security, and high-speed communication across diverse industrial environments.

Whether you're managing a power plant, refining oil and gas, or overseeing complex manufacturing processes, the AMN32-S1 enhances system performance by providing reliable communication between control systems, field devices, and operator stations. Its ability to support multiple industrial protocols and scalable integration options makes it an essential tool for achieving operational efficiency, minimizing downtime, and future-proofing your network.

Technical Specifications

Feature	Specification
Model	AMN32-S1
Communication Protocol	Modbus TCP/IP, EtherNet/IP, OPC-UA, PROFIBUS
Interface Type	Dual Ethernet Ports (10/100/1000 Mbps)
Power Supply	24V DC
Mounting	Rack Mount
Dimensions (WxHxD)	8.27” x 4.13” x 9.84” (210 mm x 105 mm x 250 mm)
Weight	3.8 lbs (1.7 kg)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Maximum Power Consumption	14W
Status Indicators	LED indicators for communication, power, and status

Recommended Related Models

AMN31-S1 – A powerful communication module offering similar features with added redundancy and scalability for demanding systems.
AMN21 – A versatile, cost-effective communication module for medium-scale systems with dual Ethernet ports and robust protocol support.
CS3000 – A comprehensive DCS solution designed to provide control, monitoring, and diagnostics across industrial applications.
FLXA21 – A field analyzer that integrates seamlessly with the AMN32-S1, offering enhanced real-time process measurements and diagnostics.

Popular Yokogawa Models

CS3000: Yokogawa's flagship DCS solution, providing comprehensive process control, monitoring, and optimization for large-scale systems.
AMN31-S1: A highly reliable communication module featuring dual Ethernet ports and support for multiple communication protocols in demanding industrial environments.
AMN21: A cost-efficient, versatile communication module for medium-sized control systems, offering secure and high-speed data transfer.
FLXA21: A field analyzer that supports advanced process measurement and diagnostic capabilities, ensuring optimal system performance.

Applications

The Yokogawa AMN32-S1 is designed for high-performance applications across industries where communication reliability, security, and scalability are key:

Power Generation: Provides seamless communication between turbines, generators, and grid systems, improving the efficiency and reliability of power plants.
Petrochemical & Chemical Processing: Ensures real-time communication between process control systems and field devices, enabling safe, efficient, and regulatory-compliant operations in the chemical industry.
Oil & Gas: Facilitates reliable data transfer in remote, harsh environments, optimizing operations across drilling platforms, refineries, and pipeline monitoring stations.
Water Treatment: Enhances communication between sensors, control systems, and monitoring stations, improving operational efficiency and ensuring compliance with environmental regulations.
Manufacturing & Automation: Supports data integration across machines, control systems, and automated production lines, reducing downtime and improving productivity.

Advantages

Dual Ethernet Ports: The 10/100/1000 Mbps Ethernet ports provide high-speed data transfer and ensure network redundancy, preventing downtime in mission-critical applications.
Multiple Protocol Support: The AMN32-S1 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, offering seamless integration into diverse industrial networks and systems.
High Scalability: With its modular design and protocol flexibility, the AMN32-S1 is designed to scale as your system grows, supporting future expansion needs.
Secure Communication: OPC-UA support enables encrypted, secure communication across devices, safeguarding the integrity of your system data.
Compact, Rack-Mountable Design: Despite its advanced features, the AMN32-S1’s rack-mountable design ensures efficient use of space in control rooms and industrial enclosures.
Energy Efficient: The maximum power consumption of 14W ensures that the AMN32-S1 operates efficiently, reducing overall energy costs in large systems.
Reliable in Harsh Environments: Operating within a temperature range of -20°C to +60°C, the AMN32-S1 is built to withstand industrial environments, providing reliable performance in tough conditions.

Technical FAQs

What communication protocols are supported by the AMN32-S1?
The AMN32-S1 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, ensuring compatibility with a wide range of industrial control systems.
Is the AMN32-S1 suitable for large-scale applications?
Yes, the AMN32-S1 is designed for large-scale systems, providing high-speed, reliable communication and the ability to scale as your network expands.
What is the power consumption of the AMN32-S1?
The AMN32-S1 has a maximum power consumption of 14W, making it an energy-efficient solution for demanding applications.
What is the temperature range for operating the AMN32-S1?
The AMN32-S1 operates in temperatures ranging from -20°C to +60°C, making it suitable for diverse environments, from harsh outdoor conditions to controlled indoor spaces.
Does the AMN32-S1 support redundancy?
Yes, the AMN32-S1 features dual Ethernet ports, providing redundancy for critical systems that require uninterrupted communication.
What mounting options are available for the AMN32-S1?
The AMN32-S1 is rack-mountable, designed to fit into standard control panels and enclosures for easy installation.
Can the AMN32-S1 be used with other Yokogawa systems?
Yes, the AMN32-S1 is fully compatible with Yokogawa's CENTUM VP and ProSafe-RS, enabling seamless integration into these systems.
How does the AMN32-S1 ensure system reliability?
The dual Ethernet ports, high-speed communication, and support for secure protocols such as OPC-UA ensure that the AMN32-S1 provides continuous, reliable communication across the system.
What industries benefit from using the AMN32-S1?
Industries such as power generation, oil & gas, chemical processing, manufacturing, and water treatment benefit from the AMN32-S1’s ability to deliver high-speed, reliable communication and scalability.
What are the physical dimensions of the AMN32-S1?
The AMN32-S1 measures 210 mm (W) x 105 mm (H) x 250 mm (D), making it compact and easy to install in rack-mounted setups.
