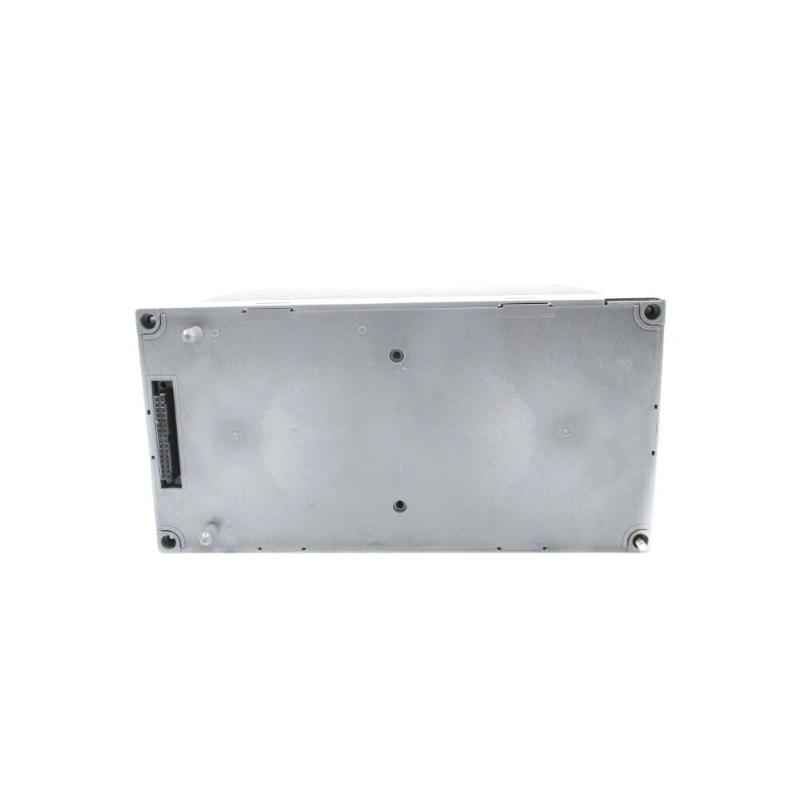

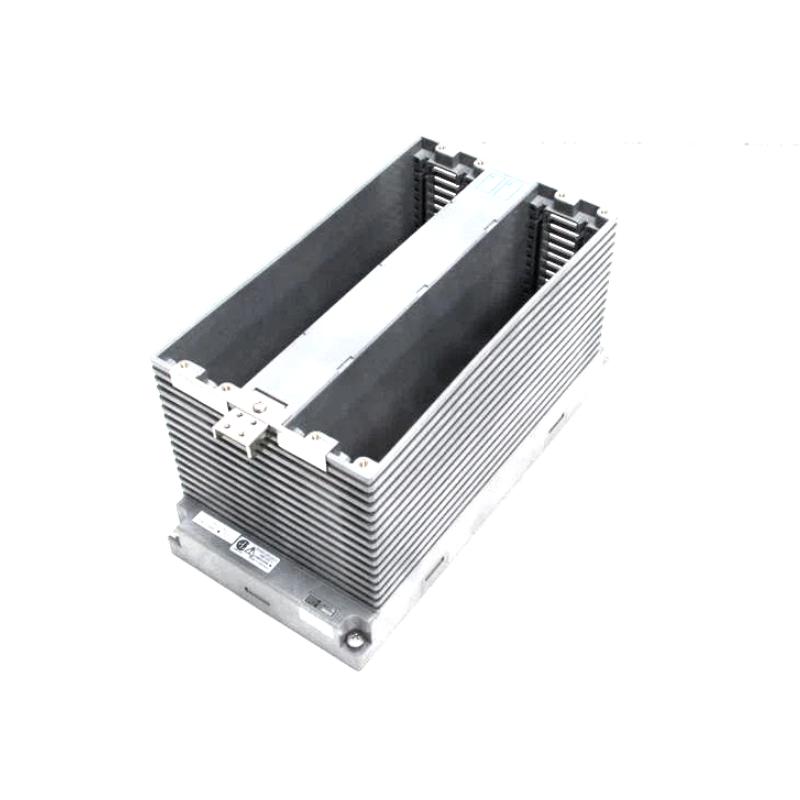

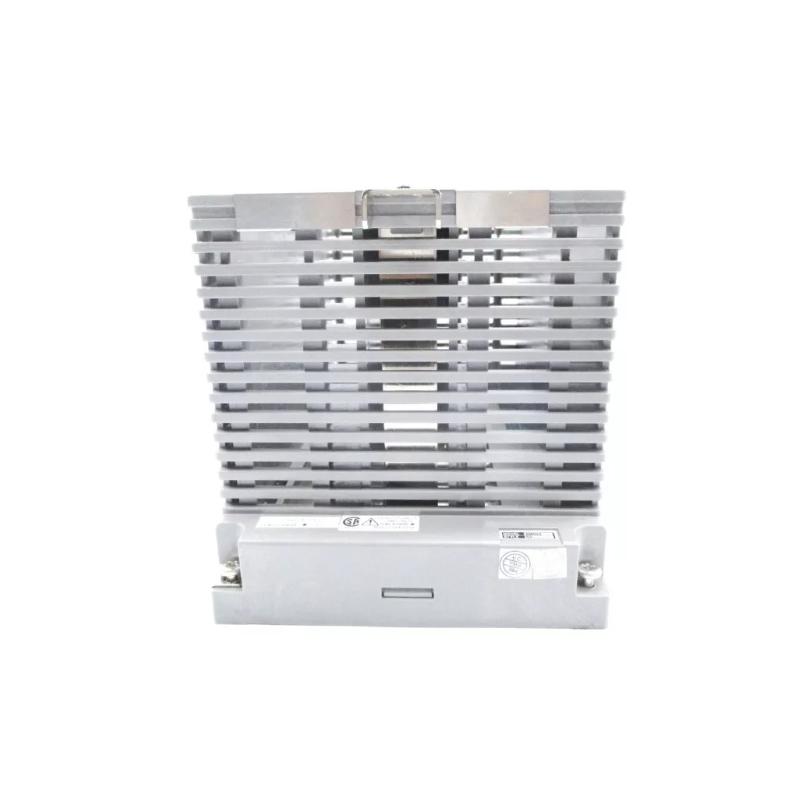

AMN33-S2 2 AMN33-S2 4 AMN33-S2 3

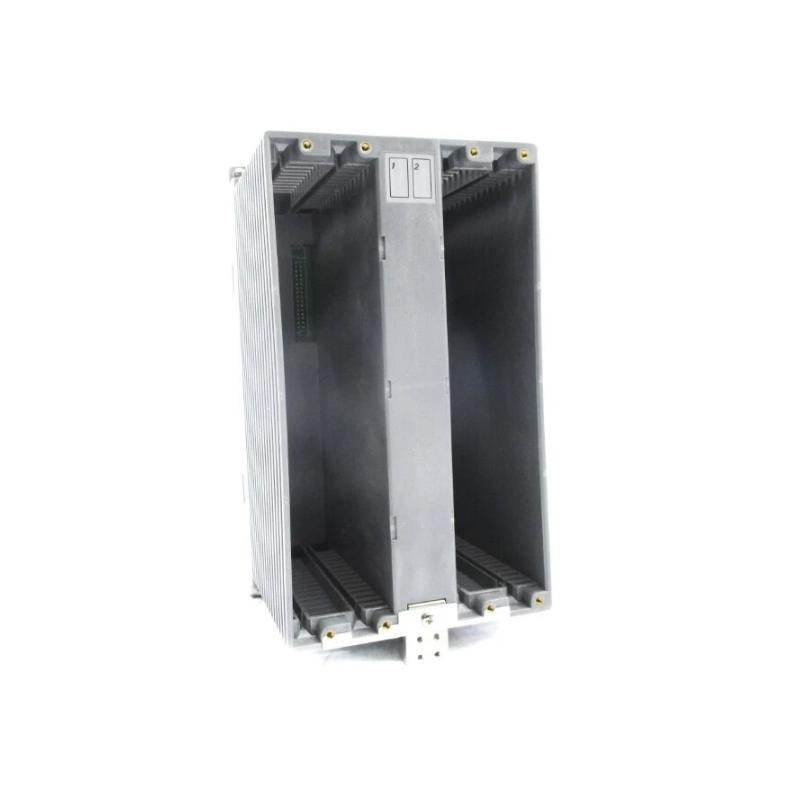

The Yokogawa AMN33 Communication Module is a high-performance, versatile solution for industrial network integration, specifically designed for Yokogawa’s CENTUM VP and ProSafe-RS systems. This module enables fast, reliable, and secure communication between process control systems, field devices, and operator stations, ensuring operational continuity and seamless data flow across complex industrial networks.

Ideal for industries such as power generation, oil & gas, petrochemicals, and water treatment, the AMN33 enhances system scalability and performance. It supports multiple communication protocols and ensures integration across a wide range of automation systems, making it a critical component for modern industrial networks that demand both speed and reliability.

Technical Specifications

Feature	Specification
Model	AMN33
Communication Protocol	Modbus TCP/IP, EtherNet/IP, OPC-UA, PROFIBUS
Interface Type	Dual Ethernet Ports (10/100/1000 Mbps)
Power Supply	24V DC
Mounting	Rack Mount
Dimensions (WxHxD)	8.27” x 4.13” x 9.84” (210 mm x 105 mm x 250 mm)
Weight	3.8 lbs (1.7 kg)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Maximum Power Consumption	14W
Status Indicators	LED indicators for communication, power, and status

Recommended Related Models

AMN32-S1 – A high-performance communication module offering enhanced features for demanding applications, including network redundancy and secure communication.
AMN21 – A more affordable solution for medium-sized systems with robust communication capabilities and flexibility.
CS3000 – A scalable DCS solution offering integrated control, monitoring, and data analysis for large-scale industrial processes.
FLXA21 – A multi-parameter field analyzer that integrates seamlessly with AMN33, providing real-time data collection and diagnostics.

Popular Yokogawa Models

CS3000: A full-featured DCS solution that integrates control, monitoring, and diagnostic capabilities for industrial processes, enabling optimized performance.
AMN32-S1: A reliable communication module designed for large-scale industrial systems, offering multiple protocols and robust data transfer features.
AMN21: A versatile communication module for medium-scale applications, featuring dual Ethernet ports and broad protocol support for various industrial networks.
FLXA21: A field analyzer designed to measure various process parameters and provide real-time diagnostics, making it ideal for integration with the AMN33.

Applications

The Yokogawa AMN33 Communication Module is perfect for industries where communication speed, reliability, and scalability are essential for smooth operations:

Power Generation: Enables real-time communication between control systems, turbines, generators, and grid management systems, improving the overall efficiency of power plants.
Oil & Gas: Ensures reliable communication between offshore platforms, refineries, and central control rooms, helping to optimize operations and ensure safety in remote environments.
Petrochemical & Chemical Processing: Facilitates fast data transfer across chemical processing plants, ensuring safety, regulatory compliance, and optimal production efficiency.
Water Treatment: Provides seamless communication between field sensors, control systems, and monitoring stations, enhancing the efficiency of water treatment processes and ensuring environmental compliance.
Manufacturing & Automation: Connects automated machinery, sensors, and control systems, enabling efficient production lines and minimizing downtime in industrial settings.

Advantages

Dual Ethernet Ports: Featuring 10/100/1000 Mbps Ethernet ports, the AMN33 provides high-speed communication and redundancy, ensuring continuous data flow for mission-critical applications.
Flexible Protocol Support: The AMN33 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, allowing easy integration with a wide range of devices and systems.
High Scalability: The AMN33 is designed to grow with your system, supporting large-scale networks and the addition of more devices as your operational needs evolve.
Secure Communication: The module supports OPC-UA for encrypted, secure communication, ensuring that sensitive data remains protected across the network.
Compact, Rack-Mountable Design: With a compact design and rack-mountable form factor, the AMN33 fits into space-constrained environments while offering full-scale functionality.
Energy Efficient: With a maximum power consumption of only 14W, the AMN33 ensures that power consumption is kept to a minimum, reducing operating costs and environmental impact.
Reliable in Harsh Environments: Designed to operate in temperatures ranging from -20°C to +60°C, the AMN33 is built to withstand tough industrial environments, providing reliable performance in all conditions.

Technical FAQs

What communication protocols are supported by the AMN33?
The AMN33 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, providing flexibility and compatibility across a wide variety of industrial systems.
Is the AMN33 suitable for large-scale industrial systems?
Yes, the AMN33 is designed for high-performance, large-scale systems, offering fast, reliable communication and scalability for expansive networks.
What is the power consumption of the AMN33?
The AMN33 has a maximum power consumption of 14W, making it energy-efficient while still providing powerful networking capabilities.
What is the operating temperature range for the AMN33?
The AMN33 operates effectively within a temperature range from -20°C to +60°C, making it suitable for a variety of industrial environments, including outdoor and extreme conditions.
Does the AMN33 provide redundancy for mission-critical systems?
Yes, the AMN33 features dual Ethernet ports to provide network redundancy, ensuring continuous communication even if one port fails.
What mounting options are available for the AMN33?
The AMN33 is rack-mountable, providing flexibility for installation in control panels and other industrial enclosures.
Can the AMN33 be used with other Yokogawa systems?
Yes, the AMN33 is fully compatible with Yokogawa’s CENTUM VP and ProSafe-RS, ensuring seamless integration with other Yokogawa control and safety systems.
How does the AMN33 enhance system reliability?
The AMN33’s dual Ethernet ports, high-speed communication, and support for secure protocols like OPC-UA ensure that the system operates reliably with minimal risk of communication failure.
What industries benefit from using the AMN33?
Industries such as power generation, petrochemical, oil & gas, water treatment, and manufacturing benefit from the AMN33’s high-performance networking capabilities.
What are the physical dimensions of the AMN33?
The AMN33 measures 210 mm (W) x 105 mm (H) x 250 mm (D), providing a compact form factor that is ideal for rack-mounted installations.
