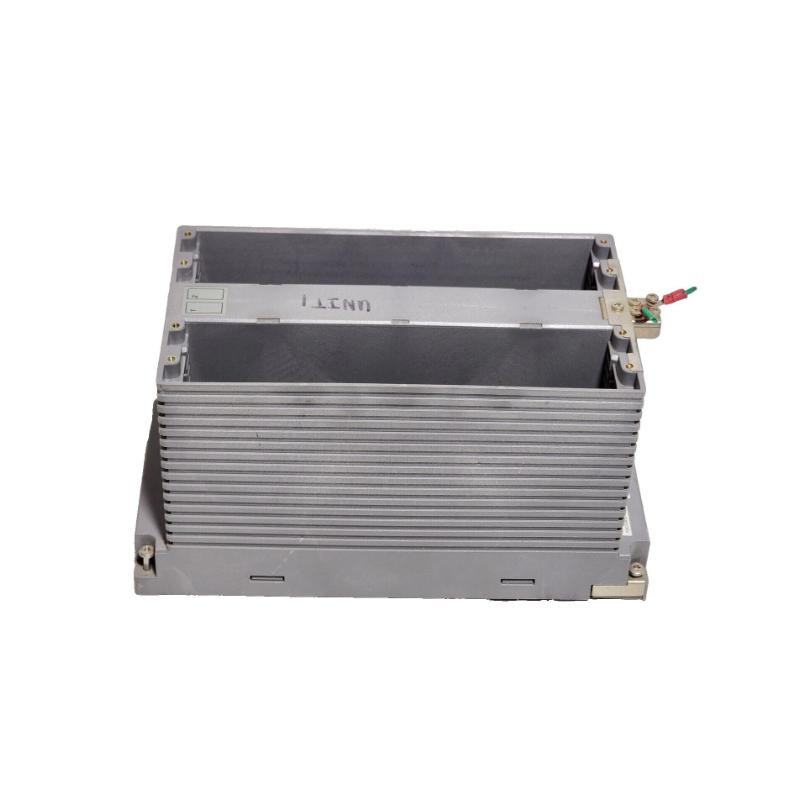

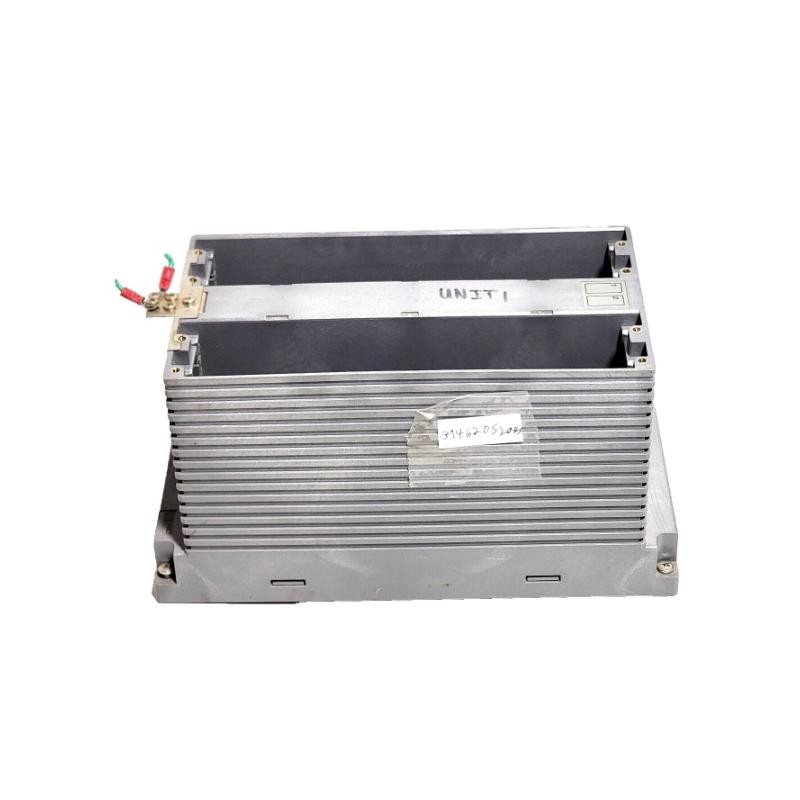

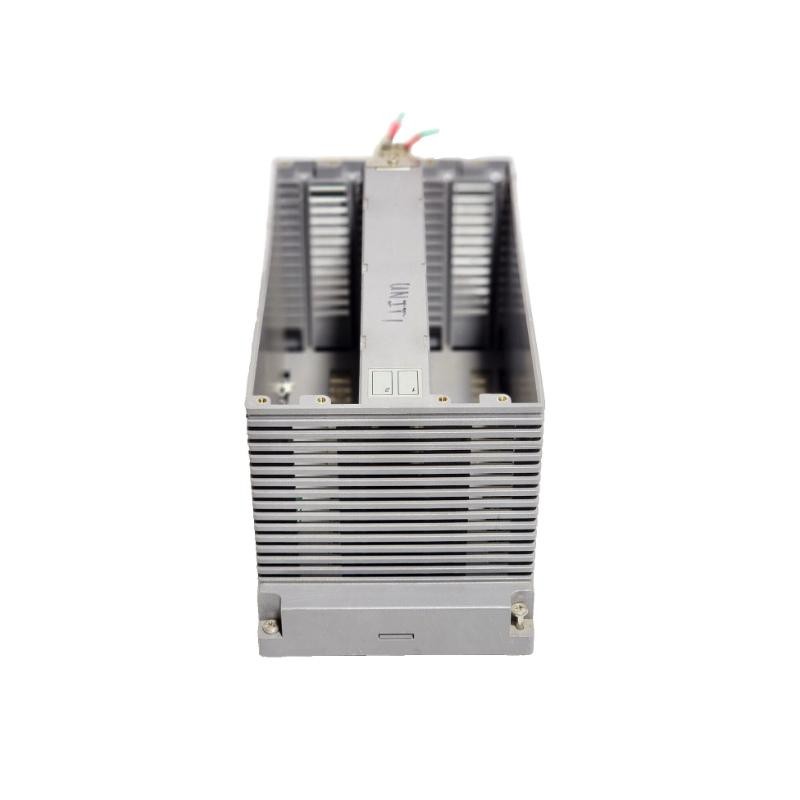

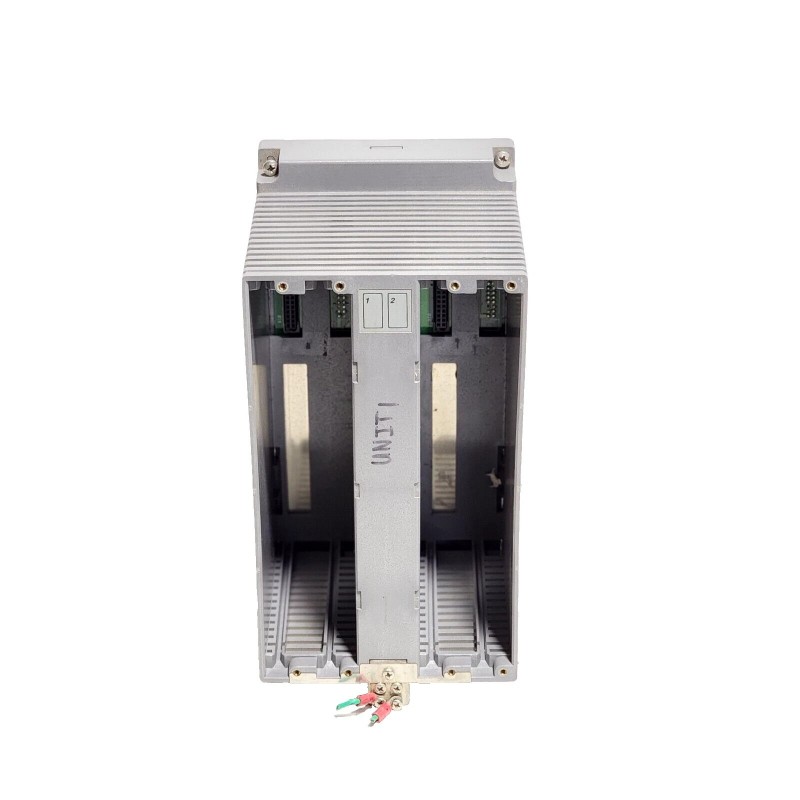

The Yokogawa AMN34 Communication Module is a high-performance industrial network module, designed to provide seamless, reliable, and secure communication for Yokogawa's CENTUM VP and ProSafe-RS systems. Tailored for mission-critical industrial environments, the AMN34 excels in delivering high-speed, real-time data transmission across complex networks. It is ideal for both small and large-scale systems, offering high scalability and flexibility for expanding industrial operations.

Whether used in power plants, chemical processing facilities, or oil & gas platforms, the AMN34 facilitates smooth communication between control systems, field devices, and operator workstations, ensuring that your system operates efficiently, safely, and with minimal downtime.

Technical Specifications

Feature	Specification
Model	AMN34
Communication Protocol	Modbus TCP/IP, EtherNet/IP, OPC-UA, PROFIBUS
Interface Type	Dual Ethernet Ports (10/100/1000 Mbps)
Power Supply	24V DC
Mounting	Rack Mount
Dimensions (WxHxD)	8.27” x 4.13” x 9.84” (210 mm x 105 mm x 250 mm)
Weight	3.8 lbs (1.7 kg)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Maximum Power Consumption	14W
Status Indicators	LED indicators for communication, power, and status

Recommended Related Models

AMN32-S1 – A highly reliable communication module, providing advanced redundancy features and support for demanding large-scale applications.
AMN33-S2 – Offers high-speed data transfer and secure communication, suitable for medium-to-large-scale systems in various industries.
CS3000 – A scalable DCS solution designed to handle large industrial networks and complex systems, providing comprehensive control and monitoring.
FLXA21 – A field analyzer for process measurement and diagnostics that integrates with the AMN34 for enhanced real-time control and analysis.

Popular Yokogawa Models

CS3000: A full-featured and scalable distributed control system (DCS), ideal for large-scale and complex process control environments.
AMN32-S1: A highly efficient communication module that supports redundancy, ideal for industrial systems with high reliability demands.
AMN33-S2: A versatile and secure communication module that integrates with diverse control and safety systems, ensuring efficient network management.
FLXA21: A multi-parameter field analyzer designed to enhance real-time process measurements, compatible with various Yokogawa systems for optimized diagnostics.

Applications

The Yokogawa AMN34 Communication Module is well-suited for industries requiring robust, reliable, and scalable network communication for control systems, field devices, and operator workstations:

Power Generation: Ensures seamless communication between turbine control systems, grid management systems, and operator stations for reliable power generation.
Oil & Gas: Provides real-time data exchange across distributed control systems, offshore platforms, and central control rooms, ensuring safe and efficient operations.
Chemical & Petrochemical Processing: Facilitates high-speed communication between control systems and field devices in chemical production plants, improving efficiency and regulatory compliance.
Water Treatment: Integrates sensors, monitoring stations, and control systems, providing real-time communication to ensure optimal water quality and process control.
Manufacturing & Automation: Connects machines, sensors, and controllers to improve operational performance, reduce downtime, and streamline production processes.

Advantages

Dual Ethernet Ports: The 10/100/1000 Mbps Ethernet ports provide high-speed communication and network redundancy, ensuring continuous system operation without data loss.
Multiple Protocol Support: The AMN34 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, providing flexibility to integrate with diverse industrial systems and networks.
High Scalability: Designed to grow with your system, the AMN34 allows seamless expansion of network devices and integration of additional control systems as operational demands increase.
Secure Data Transmission: With OPC-UA support, the AMN34 ensures encrypted, secure communication between control devices and systems, protecting sensitive operational data.
Compact Rack-Mountable Design: The AMN34 is engineered with a rack-mountable design that fits perfectly in control panels, providing a space-efficient solution without compromising performance.
Energy Efficient: With a maximum power consumption of just 14W, the AMN34 delivers excellent performance while minimizing energy usage, making it an environmentally friendly solution.
Reliable in Harsh Environments: The AMN34 operates within a wide temperature range of -20°C to +60°C, ensuring reliable communication even in extreme industrial environments.

Technical FAQs

What communication protocols are supported by the AMN34?
The AMN34 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, making it compatible with a variety of industrial systems.
Is the AMN34 suitable for large-scale industrial applications?
Yes, the AMN34 is designed for both large-scale and smaller applications, providing high-speed, reliable communication and scalability.
What is the maximum power consumption of the AMN34?
The maximum power consumption of the AMN34 is 14W, which makes it an energy-efficient solution for demanding industrial environments.
What is the operating temperature range for the AMN34?
The AMN34 operates in temperatures ranging from -20°C to +60°C, ensuring reliable performance even in harsh environmental conditions.
Does the AMN34 support network redundancy?
Yes, the dual Ethernet ports ensure network redundancy, preventing system downtime by maintaining continuous communication.
Can the AMN34 be integrated with other Yokogawa systems?
Yes, the AMN34 is fully compatible with Yokogawa’s CENTUM VP and ProSafe-RS systems, ensuring seamless integration with other Yokogawa control and safety solutions.
How does the AMN34 improve system security?
The AMN34 supports OPC-UA, which encrypts data during transmission, ensuring secure communication and safeguarding operational data from unauthorized access.
What mounting options are available for the AMN34?
The AMN34 is rack-mountable, designed to be easily installed in standard industrial control panels and enclosures.
What industries benefit from using the AMN34?
Industries such as power generation, oil & gas, chemical processing, water treatment, and manufacturing benefit from the AMN34’s scalability, reliability, and advanced networking capabilities.
What are the physical dimensions of the AMN34?
The AMN34 measures 210 mm (W) x 105 mm (H) x 250 mm (D), offering a compact and easy-to-install solution for industrial control systems.
