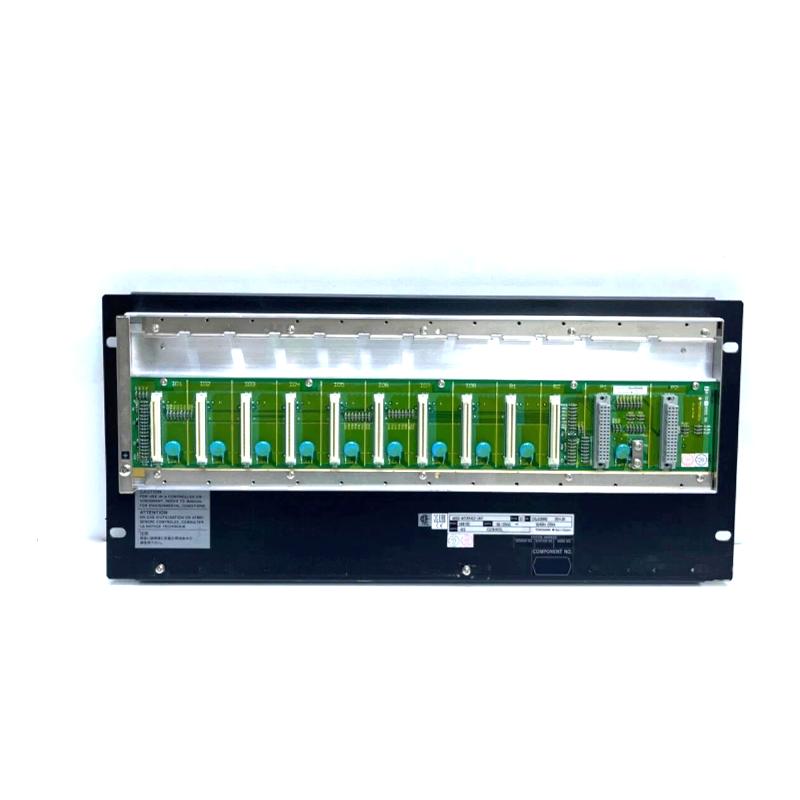

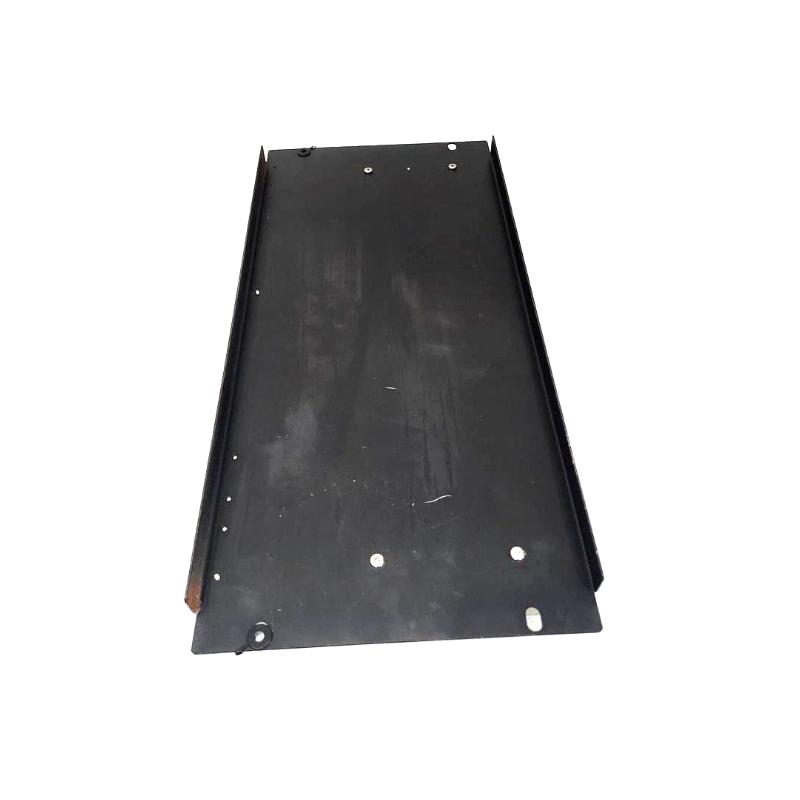

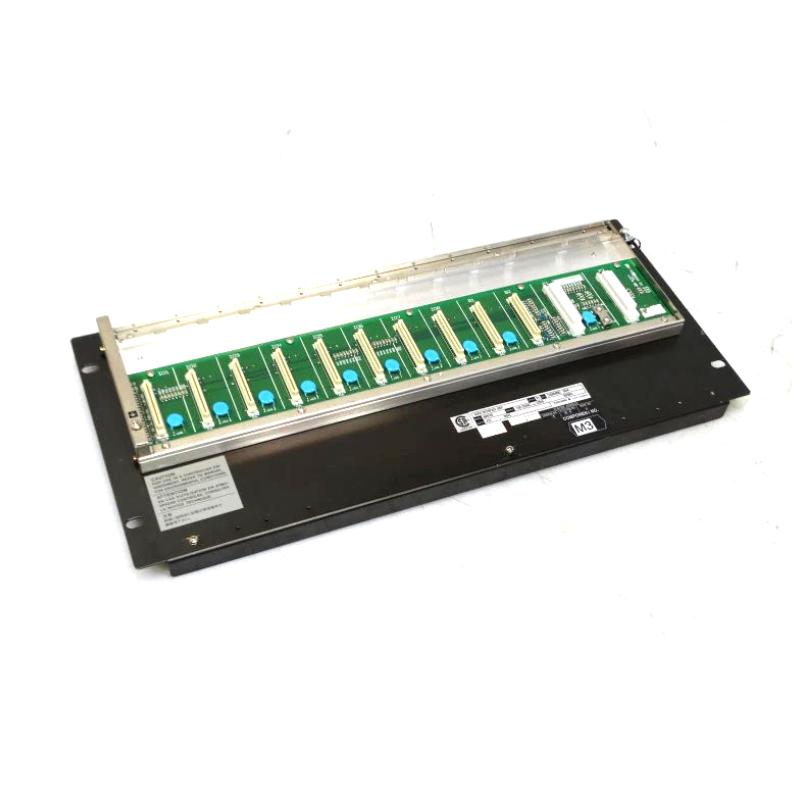

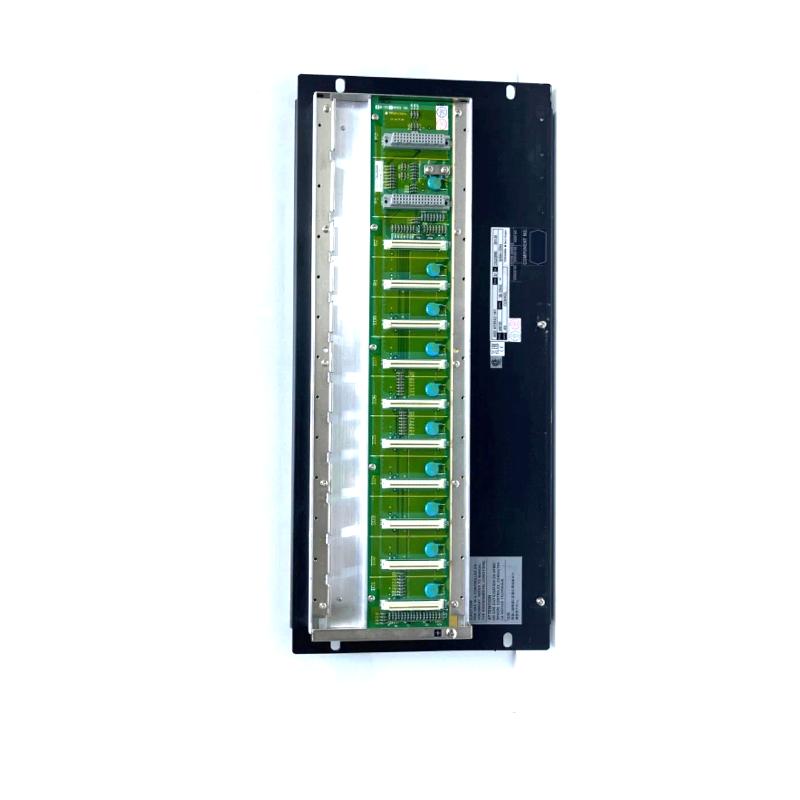

The Yokogawa ANB10D-223 S2 Communication Module is an enhanced, high-performance communication solution designed to provide seamless, secure, and high-speed data transfer across Yokogawa’s CENTUM VP and ProSafe-RS systems. This advanced module offers robust networking capabilities, ensuring that critical industrial control systems remain connected and functional in complex, mission-critical environments. Ideal for industries like power generation, oil & gas, petrochemical, and manufacturing, the ANB10D-223 S2 excels in facilitating real-time communication between control systems, field devices, and operator stations.

The ANB10D-223 S2 version builds on its predecessors by offering enhanced network redundancy, improved data throughput, and additional security features to address the growing demands of modern industrial operations. Whether used in large-scale systems or remote applications, this module ensures smooth integration and reliable performance.

Technical Specifications

Feature	Specification
Model	ANB10D-223 S2
Communication Protocol	Modbus TCP/IP, EtherNet/IP, OPC-UA, PROFIBUS
Interface Type	Dual Ethernet Ports (10/100/1000 Mbps)
Power Supply	24V DC
Mounting	Rack Mount
Dimensions (WxHxD)	8.27” x 4.13” x 9.84” (210 mm x 105 mm x 250 mm)
Weight	3.8 lbs (1.7 kg)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Maximum Power Consumption	14W
Status Indicators	LED indicators for communication, power, and status

Recommended Related Models

AMN31 – A highly reliable communication module with redundancy features for large-scale industrial applications requiring secure and continuous data transfer.
AMN33-S2 – A communication module designed for high-speed data transmission, ideal for complex industrial systems requiring flexibility and reliability.
CS3000 – A fully integrated Distributed Control System (DCS) for large-scale operations, ensuring real-time control and monitoring of complex industrial networks.
FLXA21 – A field analyzer that integrates seamlessly with communication modules like the ANB10D-223 S2 to provide real-time diagnostics, enhancing operational efficiency.

Popular Yokogawa Models

CS3000: A distributed control system (DCS) providing full-process monitoring and control with built-in diagnostics, ideal for large-scale industrial facilities.
AMN31: A versatile communication module that supports redundancy and high-speed data transfer, ensuring reliable performance in demanding applications.
AMN33-S2: A communication module offering flexible network integration and redundancy, designed for medium to large-scale systems.
FLXA21: A field analyzer offering multi-parameter analysis, optimized for real-time diagnostics and measurement in industrial settings.

Applications

The Yokogawa ANB10D-223 S2 Communication Module is designed for industries that require high-speed, reliable, and secure communication networks for control systems, field devices, and operator workstations:

Power Generation: Facilitates real-time data transfer between turbine systems, power grids, and central control units, enhancing operational efficiency and reliability.
Oil & Gas: Ensures secure communication between remote offshore platforms, oil refineries, and central control rooms, helping optimize operations while maintaining safety and reliability.
Petrochemical & Chemical Processing: Provides secure and fast communication between process control systems and field devices, ensuring safety, compliance, and operational optimization.
Water Treatment: Supports real-time data transmission between water treatment plants, sensors, and monitoring systems, improving water quality management and efficiency.
Manufacturing & Automation: Connects automated machinery, sensors, and control systems, improving production efficiency, reducing downtime, and streamlining operations.

Advantages

Dual Ethernet Ports: With 10/100/1000 Mbps Ethernet ports, the ANB10D-223 S2 ensures high-speed communication and supports network redundancy for increased reliability.
Multiple Communication Protocols: The module supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, allowing it to integrate seamlessly with a wide variety of industrial automation systems.
Enhanced Redundancy Features: The ANB10D-223 S2 offers improved network redundancy, ensuring continuous data transfer even in case of network failures, making it ideal for mission-critical applications.
Scalable Architecture: Designed to be highly scalable, the ANB10D-223 S2 allows easy expansion of network devices, making it suitable for both small and large applications.
Secure Communication: With OPC-UA support, the ANB10D-223 S2 ensures secure, encrypted communication, protecting sensitive data and ensuring system integrity.
Compact and Rack-Mountable Design: The rack-mountable form factor is optimized for industrial control panels, saving space without compromising functionality.
Energy Efficient: The module consumes only 14W of power, making it an energy-efficient solution that helps reduce operational costs while maintaining high performance.
Wide Temperature Range: Operating at temperatures from -20°C to +60°C, the ANB10D-223 S2 performs reliably in harsh industrial environments, ensuring dependable communication even in extreme conditions.

Technical FAQs

What communication protocols does the ANB10D-223 S2 support?
The ANB10D-223 S2 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, offering compatibility with a wide range of industrial control systems.
Is the ANB10D-223 S2 suitable for large-scale applications?
Yes, the ANB10D-223 S2 is designed for both small and large-scale systems, providing high-speed communication, scalability, and robust performance for demanding industrial networks.
What is the maximum power consumption of the ANB10D-223 S2?
The maximum power consumption of the ANB10D-223 S2 is 14W, making it an energy-efficient solution that reduces operational costs.
What is the operating temperature range of the ANB10D-223 S2?
The ANB10D-223 S2 operates within a temperature range of -20°C to +60°C, making it ideal for use in challenging industrial environments.
Does the ANB10D-223 S2 support redundancy?
Yes, the dual Ethernet ports support network redundancy, ensuring continuous data transfer and communication even in case of a network failure.
Can the ANB10D-223 S2 be integrated with other Yokogawa systems?
Yes, the ANB10D-223 S2 integrates seamlessly with Yokogawa’s CENTUM VP and ProSafe-RS systems, ensuring smooth and reliable integration with other Yokogawa automation solutions.
How does the ANB10D-223 S2 ensure secure communication?
The ANB10D-223 S2 supports OPC-UA, providing secure, encrypted data transmission to protect sensitive operational data.
What mounting options are available for the ANB10D-223 S2?
The ANB10D-223 S2 is rack-mountable, making it easy to install in control panels or industrial enclosures, providing a space-efficient solution for your network infrastructure.
What industries benefit from the ANB10D-223 S2?
Industries such as power generation, oil & gas, chemical processing, water treatment, and manufacturing benefit from the module’s reliability, scalability, and secure communication features.
What are the physical dimensions of the ANB10D-223 S2?
The ANB10D-223 S2 has dimensions of 210 mm (W) x 105 mm (H) x 250 mm (D), providing a compact form factor suitable for industrial environments.
