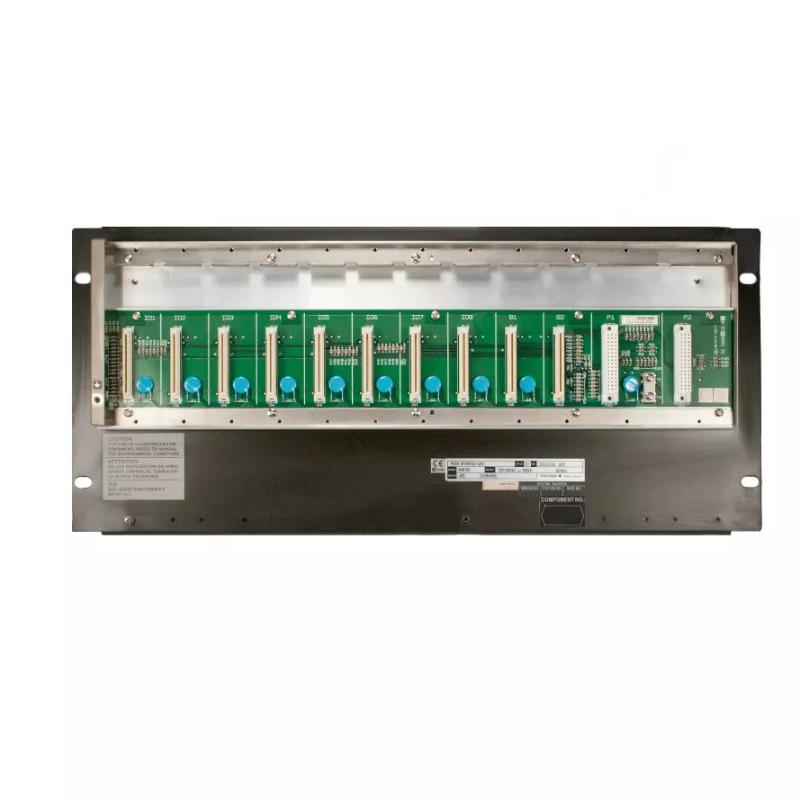

The Yokogawa ANB10D-420 S2 Communication Module is a high-performance, next-generation communication interface designed to support secure, high-speed, and reliable network integration for industrial control systems. It is part of the Yokogawa CENTUM VP and ProSafe-RS series, providing an essential link between control systems, field devices, and operator stations.

Building on the success of the earlier models, the ANB10D-420 S2 introduces additional improvements in redundancy, data throughput, and security, making it ideal for industries where network uptime and data integrity are paramount, such as in power generation, oil & gas, petrochemicals, and manufacturing.

The ANB10D-420 S2 is engineered to support a variety of communication protocols, ensuring seamless integration across different industrial systems and applications, while delivering high performance and fault tolerance for mission-critical environments.

Technical Specifications

Feature	Specification
Model	ANB10D-420 S2
Communication Protocol	Modbus TCP/IP, EtherNet/IP, OPC-UA, PROFIBUS
Interface Type	Dual Ethernet Ports (10/100/1000 Mbps)
Power Supply	24V DC
Mounting	Rack Mount
Dimensions (WxHxD)	8.27” x 4.13” x 9.84” (210 mm x 105 mm x 250 mm)
Weight	3.8 lbs (1.7 kg)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Maximum Power Consumption	14W
Status Indicators	LED indicators for communication, power, and status

Recommended Related Models

AMN32-S1 – A high-performance communication module supporting multiple protocols and redundancy, making it ideal for large-scale industrial systems.
AMN33-S2 – A communication module offering secure and fast data transfer with high redundancy features, perfect for fault-tolerant applications.
CS3000 – A complete Distributed Control System (DCS) for advanced process control, monitoring, and diagnostics in large-scale industrial operations.
FLXA21 – A field analyzer for real-time process diagnostics and measurement, complementing communication modules like the ANB10D-420 S2 to enhance process efficiency.

Popular Yokogawa Models

CS3000: A DCS solution providing full control, monitoring, and diagnostics for complex industrial processes in power plants, chemical refineries, and more.
AMN32-S1: A versatile communication module ideal for secure and high-speed data transfer, featuring multiple protocol support and redundancy.
AMN33-S2: A robust and reliable communication module designed for large-scale industrial networks, ensuring continuous, secure, and high-speed data transfer.
FLXA21: A multi-parameter field analyzer offering real-time measurement and diagnostics, essential for improving operational efficiency and data accuracy.

Applications

The Yokogawa ANB10D-420 S2 Communication Module is designed for industries requiring high-performance, secure, and redundant communication systems for efficient process control:

Power Generation: Provides seamless communication between turbines, generators, and control systems to ensure optimized plant operations and grid stability.
Oil & Gas: Facilitates real-time data transfer between offshore platforms, refineries, and control rooms, enabling safer and more efficient operations in remote environments.
Petrochemical & Chemical Processing: Supports continuous communication between control systems and field devices to enhance safety, compliance, and production efficiency.
Water Treatment: Enables integration between sensors, monitoring devices, and control systems, ensuring real-time optimization and regulatory compliance in water treatment plants.
Manufacturing & Automation: Connects machines, sensors, and control systems, streamlining production processes and reducing downtime for improved operational performance.

Advantages

Dual Ethernet Ports: The 10/100/1000 Mbps Ethernet ports ensure fast, reliable data transfer and support network redundancy, which is essential for high-availability applications.
Multiple Protocol Support: The ANB10D-420 S2 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, offering flexibility and seamless integration with a wide range of industrial automation systems.
Enhanced Redundancy: The ANB10D-420 S2 has improved redundancy features, ensuring uninterrupted communication even in the event of network failures, which is critical for mission-critical applications.
Secure Data Transmission: Using OPC-UA, the ANB10D-420 S2 offers encrypted communication, providing a high level of security for sensitive industrial data.
Scalable and Flexible: The module allows for easy expansion of your network, accommodating growing industrial systems by supporting additional devices and connections.
Compact, Rack-Mountable Design: The rack-mountable form factor is ideal for control rooms and industrial enclosures, optimizing space while delivering powerful communication capabilities.
Energy Efficient: With a low power consumption of just 14W, the ANB10D-420 S2 provides energy savings while maintaining reliable, high-speed data transfer.
Wide Operating Temperature Range: The ANB10D-420 S2 operates reliably in temperatures ranging from -20°C to +60°C, ensuring stable performance in diverse and extreme industrial environments.

Technical FAQs

What communication protocols are supported by the ANB10D-420 S2?
The ANB10D-420 S2 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, ensuring compatibility with various industrial automation systems.
Is the ANB10D-420 S2 suitable for large-scale industrial systems?
Yes, the ANB10D-420 S2 is designed for both small and large-scale industrial systems, offering high-speed, reliable communication and scalability.
What is the maximum power consumption of the ANB10D-420 S2?
The maximum power consumption of the ANB10D-420 S2 is 14W, providing an energy-efficient solution for long-term use in industrial environments.
What is the operating temperature range for the ANB10D-420 S2?
The ANB10D-420 S2 operates within a temperature range of -20°C to +60°C, ensuring reliable performance in a variety of industrial environments.
Does the ANB10D-420 S2 support redundancy?
Yes, the dual Ethernet ports support network redundancy, ensuring that communication continues even during network failures, which is essential for mission-critical applications.
Can the ANB10D-420 S2 integrate with other Yokogawa systems?
Yes, the ANB10D-420 S2 is designed to integrate seamlessly with Yokogawa’s CENTUM VP and ProSafe-RS systems, ensuring efficient communication and data transfer.
How does the ANB10D-420 S2 ensure secure communication?
The OPC-UA protocol ensures encrypted, secure communication between devices, protecting sensitive industrial data from unauthorized access.
What mounting options are available for the ANB10D-420 S2?
The ANB10D-420 S2 is rack-mountable, allowing for flexible and space-efficient installation in control rooms or industrial enclosures.
Which industries benefit from the ANB10D-420 S2?
The ANB10D-420 S2 is ideal for industries such as power generation, oil & gas, petrochemical, water treatment, and manufacturing, where high-speed and secure communication is crucial.
What are the physical dimensions of the ANB10D-420 S2?
The ANB10D-420 S2 has dimensions of 210 mm (W) x 105 mm (H) x 250 mm (D), making it a compact and space-efficient solution for industrial applications.
