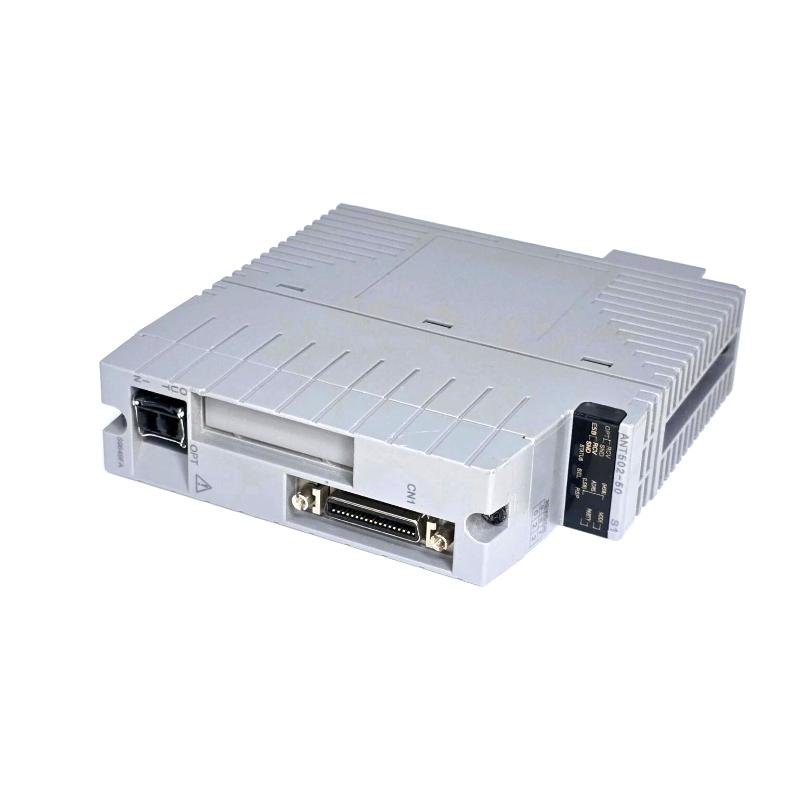

The Yokogawa ANT502 Communication Module is a high-performance solution designed to deliver robust, high-speed communication between Yokogawa’s CENTUM VP and ProSafe-RS systems, as well as third-party field devices. Built for mission-critical applications, the ANT502 ensures secure, reliable, and real-time data exchange, making it an ideal choice for industries requiring continuous and uninterrupted communication.

With support for multiple industrial communication protocols and a dual Ethernet interface, the ANT502 is engineered to provide enhanced system reliability, redundancy, and fault tolerance. Whether you’re working in power generation, chemical processing, or manufacturing, the ANT502 enables streamlined integration, system scalability, and enhanced operational efficiency.

Technical Specifications

Feature	Specification
Model	ANT502
Communication Protocol	Modbus TCP/IP, EtherNet/IP, OPC-UA, PROFIBUS
Interface Type	Dual Ethernet Ports (10/100/1000 Mbps)
Power Supply	24V DC
Mounting	Rack Mount
Dimensions (WxHxD)	8.27” x 4.13” x 9.84” (210 mm x 105 mm x 250 mm)
Weight	3.8 lbs (1.7 kg)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Maximum Power Consumption	14W
Status Indicators	LED indicators for communication, power, and status
