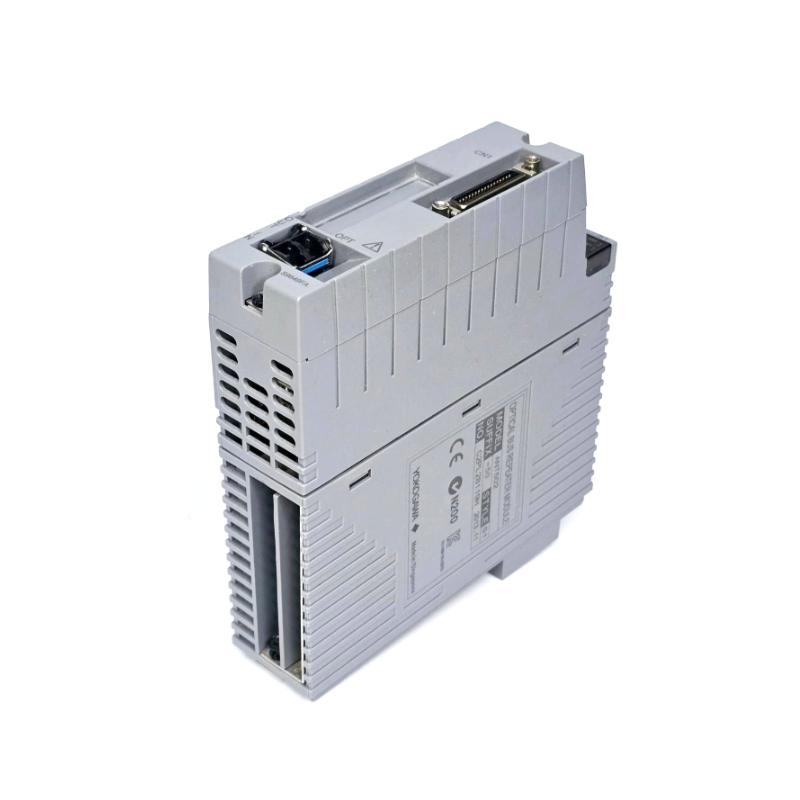

The Yokogawa ANT502-50 Communication Module is a cutting-edge communication solution designed to provide fast, secure, and reliable data exchange between Yokogawa’s CENTUM VP and ProSafe-RS systems. This module is particularly suited for industries that require high-performance communication in demanding and mission-critical environments. The ANT502-50 integrates seamlessly with industrial control systems, enabling real-time monitoring, enhanced automation, and improved process control.

Built with dual Ethernet ports for redundancy and support for multiple communication protocols, the ANT502-50 offers flexibility, fault tolerance, and future scalability. Whether you're managing a power plant, refinery, or manufacturing line, the ANT502-50 ensures uninterrupted communication, ensuring system reliability and boosting operational efficiency.

Technical Specifications

Feature	Specification
Model	ANT502-50
Communication Protocol	Modbus TCP/IP, EtherNet/IP, OPC-UA, PROFIBUS
Interface Type	Dual Ethernet Ports (10/100/1000 Mbps)
Power Supply	24V DC
Mounting	Rack Mount
Dimensions (WxHxD)	8.27” x 4.13” x 9.84” (210 mm x 105 mm x 250 mm)
Weight	3.8 lbs (1.7 kg)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Maximum Power Consumption	14W
Status Indicators	LED indicators for communication, power, and status

Recommended Related Models

AMN32-S1 – A highly reliable communication module designed for large-scale, mission-critical industrial systems, providing high-speed communication and redundancy.
AMN33-S2 – A fault-tolerant, secure communication module for mission-critical applications, offering continuous operation in harsh environments.
CS3000 – Yokogawa’s advanced Distributed Control System (DCS), which integrates seamlessly with the ANT502-50, providing centralized control for industrial automation.
FLXA21 – A field analyzer designed for process measurement and diagnostics, integrating well with the ANT502-50 for real-time data collection and monitoring.

Popular Yokogawa Models

CS3000: A powerful Distributed Control System (DCS) used in large-scale industrial plants, which integrates smoothly with the ANT502-50 for enhanced communication and centralized control.
AMN32-S1: A robust communication module with dual Ethernet ports, ideal for large industrial systems requiring redundancy, reliability, and high-speed data transmission.
AMN33-S2: A secure and fault-tolerant communication module designed for continuous operation in mission-critical systems.
FLXA21: A field analyzer that integrates seamlessly with the ANT502-50, providing real-time diagnostics, process monitoring, and control.

Applications

The Yokogawa ANT502-50 Communication Module is engineered to meet the needs of industries that require high-speed, secure, and reliable communication:

Power Generation: The ANT502-50 enables reliable communication between power plants, turbines, and central control systems, ensuring optimized energy production and efficient grid integration.
Oil & Gas: In the oil and gas industry, the ANT502-50 facilitates real-time data exchange between offshore platforms, refineries, and control centers, ensuring safe and efficient operations.
Petrochemical & Chemical Processing: The ANT502-50 ensures continuous and secure communication between control systems and field devices, enhancing process control, safety, and compliance with regulations.
Water Treatment: Connects sensors, monitoring systems, and controllers to central systems, ensuring optimal operation and compliance with environmental regulations in water treatment plants.
Manufacturing & Automation: Enables communication between industrial machines, sensors, and control systems, enhancing automation, reducing downtime, and improving productivity in manufacturing settings.

Advantages

Dual Ethernet Ports: The ANT502-50 features dual Ethernet ports for network redundancy, ensuring that communication remains intact even in the event of a failure.
Multiple Protocol Support: This module supports various communication protocols, including Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, ensuring compatibility with diverse industrial control systems.
Fault Tolerance: With its dual Ethernet ports, the ANT502-50 offers redundancy to maintain system reliability and reduce the risk of communication breakdowns.
Secure Communication: The OPC-UA protocol ensures that all data exchanges are encrypted, offering secure, reliable communication between devices and systems.
Scalable and Flexible Integration: The ANT502-50 is designed to easily integrate with existing systems and scale to meet growing industrial demands, providing flexibility for system expansion.
Compact Design: The rack-mountable form factor allows the ANT502-50 to be installed in control panels or enclosures, optimizing valuable space in industrial settings.
Energy-Efficient: Consuming only 14W of power, the ANT502-50 is energy-efficient, reducing operational costs without compromising communication performance.
Wide Temperature Range: The ANT502-50 operates within a temperature range of -20°C to +60°C, ensuring reliable performance in harsh environments.

Technical FAQs

What communication protocols are supported by the ANT502-50?
The ANT502-50 supports Modbus TCP/IP, EtherNet/IP, OPC-UA, and PROFIBUS, making it compatible with a variety of industrial systems.
Can the ANT502-50 be used in large-scale industrial applications?
Yes, the ANT502-50 is designed for both small and large-scale systems, offering high-speed communication, redundancy, and scalability to meet the demands of complex, mission-critical environments.
What is the power consumption of the ANT502-50?
The ANT502-50 has a maximum power consumption of 14W, providing an energy-efficient communication solution for industrial environments.
What is the operating temperature range of the ANT502-50?
The ANT502-50 operates in a temperature range of -20°C to +60°C, ensuring reliable communication even in extreme industrial environments.
Does the ANT502-50 support network redundancy?
Yes, the ANT502-50 features dual Ethernet ports, offering network redundancy for continuous communication and enhanced system reliability.
Can the ANT502-50 be integrated with other Yokogawa systems?
Yes, the ANT502-50 integrates seamlessly with Yokogawa’s CENTUM VP and ProSafe-RS systems, providing reliable communication for process control and automation.
How does the ANT502-50 ensure secure communication?
The OPC-UA protocol ensures encrypted communication, safeguarding sensitive data and ensuring the integrity of information during transmission.
What mounting options are available for the ANT502-50?
The ANT502-50 is rack-mountable, allowing for easy installation in control panels or enclosures to optimize space.
Which industries benefit from the ANT502-50?
The ANT502-50 is ideal for industries such as power generation, oil & gas, petrochemical, water treatment, and manufacturing, where secure and continuous communication is essential.
What are the physical dimensions of the ANT502-50?
The ANT502-50 measures 210 mm (W) x 105 mm (H) x 250 mm (D), making it a compact, easy-to-integrate solution for industrial applications.
