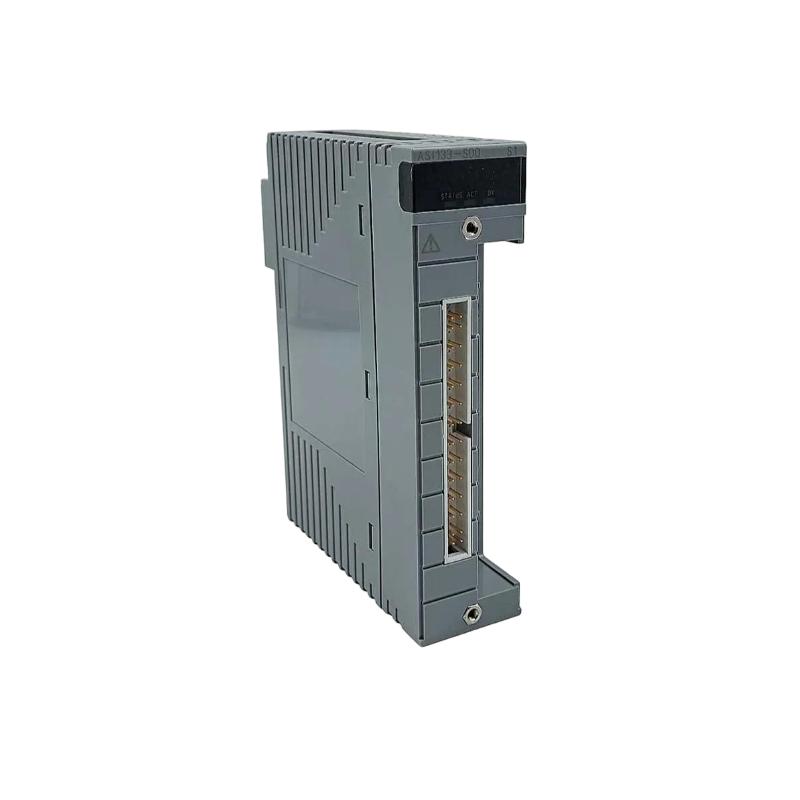

The Yokogawa ASI133-S00 Signal Conditioning Module is a high-performance, versatile module designed for precise signal conversion and conditioning in industrial automation systems. Tailored to meet the demands of critical applications, the ASI133-S00 provides robust functionality for processing a wide range of input signals, including voltage, current, temperature, and resistance. This module is ideal for integration within Yokogawa’s CENTUM VP and other advanced control systems, ensuring seamless operation in industries where real-time data and precision are crucial.

The ASI133-S00 excels in high-speed signal processing and ensures that field sensor data, including temperature, pressure, and flow, is accurately converted into usable data for system controllers. Designed for reliability and scalability, this module supports a broad spectrum of industrial applications in power generation, oil & gas, chemical processing, and manufacturing automation.

Technical Specifications

Feature	Specification
Model	ASI133-S00
Signal Inputs	Voltage, Current, RTD, Thermocouple, Potentiometer
Signal Outputs	Voltage, Current
Input/Output Range	4-20mA, 0-10V, 0-1000Ω (depending on configuration)
Mounting	Rack Mount
Dimensions (WxHxD)	3.54” x 5.91” x 7.48” (90 mm x 150 mm x 190 mm)
Weight	1.6 lbs (0.73 kg)
Power Supply	24V DC
Accuracy	±0.1% of Full Scale (FS)
Response Time	≤ 200 ms (depending on input signal type)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Protection	IP20 (dustproof and water-resistant)

Recommended Related Models

ASI134 – A higher capacity signal conditioning module that offers additional input/output channels and enhanced flexibility for complex industrial systems.
CS3000 – A comprehensive distributed control system (DCS) by Yokogawa, integrating with ASI133-S00 for high-precision signal conditioning and process control.
FLXA21 – A versatile field analyzer that integrates seamlessly with the ASI133-S00 to provide continuous measurement, diagnostics, and real-time monitoring.

Popular Yokogawa Models

CS3000: This DCS system works harmoniously with the ASI133-S00 to provide real-time control, monitoring, and diagnostics across large-scale industrial applications.
ASI134: The ASI134 module extends the capabilities of the ASI133-S00, supporting additional I/O options and more complex system integrations.
FLXA21: An advanced field analyzer that integrates with ASI133-S00, offering multi-parameter measurement and monitoring to support industrial processes.
AMN32: A communication module designed to complement the ASI133-S00 and provide high-speed data exchange across networks in automated systems.

Applications

The Yokogawa ASI133-S00 Signal Conditioning Module is designed for a wide range of industrial applications, ensuring precise signal conversion and integration with control systems:

Power Generation: Essential in power plants, the ASI133-S00 conditions signals from temperature, pressure, and flow sensors to ensure safe and efficient power generation. It helps maintain plant performance and safety by ensuring accurate data transmission to control systems.
Oil & Gas: The module is widely used in both upstream and downstream oil & gas applications. It provides real-time data from field sensors to centralized control systems, ensuring optimal operations and safety.
Chemical Processing: In chemical plants, the ASI133-S00 ensures accurate measurement of various parameters such as flow, pressure, and temperature, supporting optimal process control and product quality.
Water Treatment: For water treatment facilities, the ASI133-S00 processes signals from water quality sensors, ensuring compliance with regulatory standards and contributing to safe and efficient water treatment operations.
Manufacturing Automation: The ASI133-S00 supports manufacturing industries by converting and conditioning signals from factory automation equipment, contributing to more precise and automated production lines.

Advantages

Exceptional Precision: With ±0.1% accuracy, the ASI133-S00 ensures precise signal conditioning and data conversion, which is critical for applications requiring high fidelity in monitoring and control.
Wide Input/Output Compatibility: The module supports multiple types of input signals, including voltage, current, RTD, thermocouple, and potentiometer, making it ideal for diverse industrial systems.
Fast Signal Processing: The ASI133-S00 features a response time of ≤ 200 ms, ensuring that the module can handle rapid changes in input signals and provide timely feedback for process control.
Compact and Space-Efficient: The rack-mounted design of the ASI133-S00 allows it to be installed in limited space while maintaining high performance, ideal for integration into control panels or systems where space is a premium.
Energy Efficient: The ASI133-S00 is powered by a 24V DC supply, ensuring low power consumption while maintaining high operational efficiency.
Robust Design: Built for industrial environments, the module is IP20-rated, ensuring dust resistance and protection from external elements, offering long-term durability.
Seamless Integration: The ASI133-S00 integrates effortlessly with Yokogawa’s CENTUM VP and ProSafe-RS systems, providing a seamless flow of data between field devices, controllers, and operator stations.

Technical FAQs

What types of signals can the ASI133-S00 handle?
The ASI133-S00 is capable of handling a variety of signals including voltage, current, RTD, thermocouple, and potentiometer inputs.
What is the accuracy of the ASI133-S00?
The ASI133-S00 offers ±0.1% accuracy of Full Scale (FS), ensuring precise signal conversion for demanding applications.
What is the response time of the ASI133-S00?
The ASI133-S00 has a response time of ≤ 200 ms, providing fast signal processing for real-time feedback.
What power supply does the ASI133-S00 require?
The ASI133-S00 operates on a 24V DC power supply, which is common in most industrial automation systems.
Can the ASI133-S00 be used in hazardous environments?
The ASI133-S00 is IP20-rated, meaning it is dustproof but not water-resistant. Additional protection may be required for harsher environments.
What are the mounting options for the ASI133-S00?
The ASI133-S00 is designed to be rack-mounted, making it suitable for installation in industrial control panels and system racks.
Can the ASI133-S00 integrate with Yokogawa’s CENTUM VP system?
Yes, the ASI133-S00 integrates seamlessly with Yokogawa’s CENTUM VP system for high-precision signal conditioning and data management.
What industries benefit the most from the ASI133-S00?
The ASI133-S00 is perfect for industries like power generation, oil & gas, chemical processing, water treatment, and manufacturing, where accurate signal conditioning is critical.
What are the physical dimensions of the ASI133-S00?
The ASI133-S00 measures 90 mm (W) x 150 mm (H) x 190 mm (D), providing a compact form factor for easy integration into control panels.
What is the weight of the ASI133-S00?
The ASI133-S00 weighs 1.6 lbs (0.73 kg), making it lightweight and easy to handle during installation.
