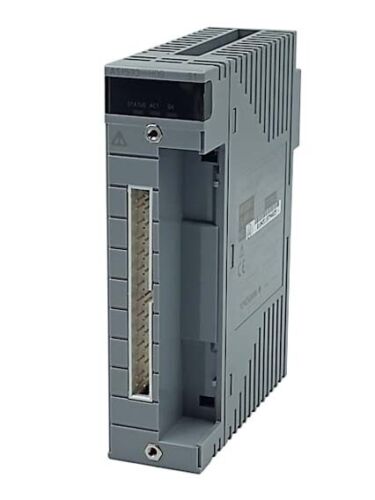

The Yokogawa ASI533 Signal Conditioning Module is a high-precision, versatile solution designed to ensure accurate signal conversion and conditioning in industrial automation systems. As part of Yokogawa’s advanced instrumentation and control systems, the ASI533 offers exceptional performance in processing a wide range of input signals, including voltage, current, temperature, and resistance. This module is engineered for applications where reliable data conversion is essential, supporting industries like power generation, oil & gas, chemical processing, and manufacturing.
The ASI533 ensures that input signals from various sensors such as thermocouples, RTDs, and pressure transmitters are reliably conditioned into usable data for control systems. With its robust design and rapid signal processing capabilities, the ASI533 is well-suited for applications requiring high accuracy and real-time data feedback. Seamlessly integrated with Yokogawa’s CENTUM VP and other advanced systems, the ASI533 enables optimized monitoring and control of critical processes.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ASI533 |
| Signal Inputs | Voltage, Current, RTD, Thermocouple, Potentiometer |
| Signal Outputs | Voltage, Current |
| Input/Output Range | 4-20mA, 0-10V, 0-1000Ω (depending on configuration) |
| Mounting | Rack Mount |
| Dimensions (WxHxD) | 3.54” x 5.91” x 7.48” (90 mm x 150 mm x 190 mm) |
| Weight | 1.8 lbs (0.82 kg) |
| Power Supply | 24V DC |
| Accuracy | ±0.1% of Full Scale (FS) |
| Response Time | ≤ 200 ms (depending on input signal type) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection | IP20 (dustproof and water-resistant) |
