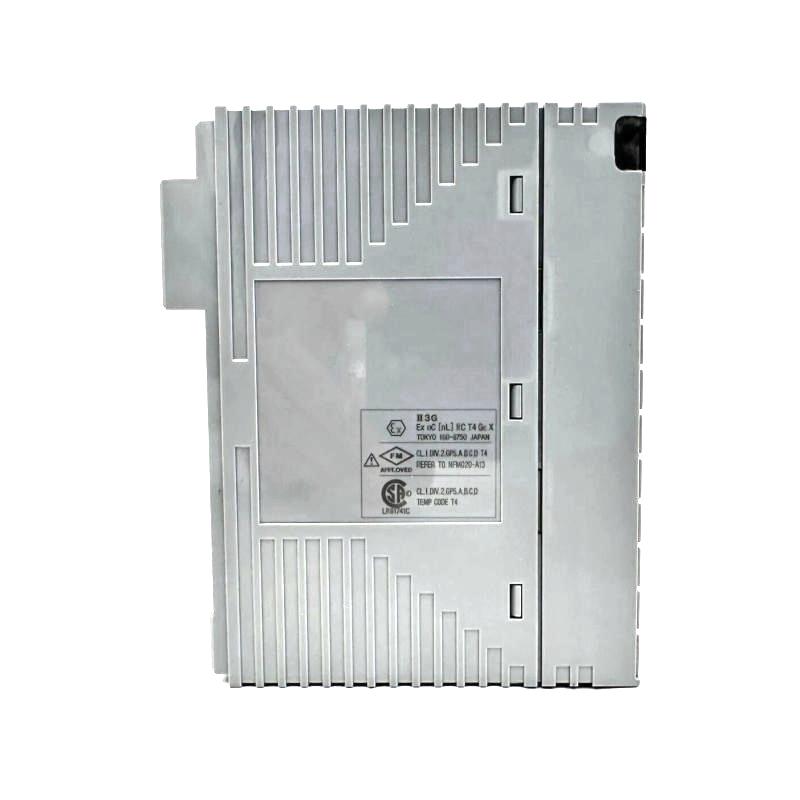

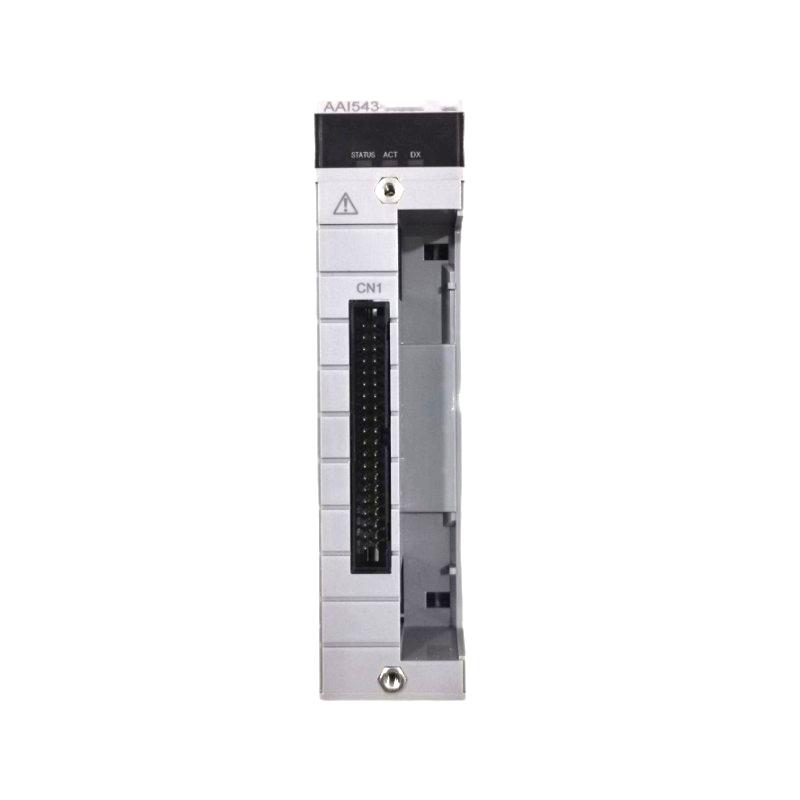

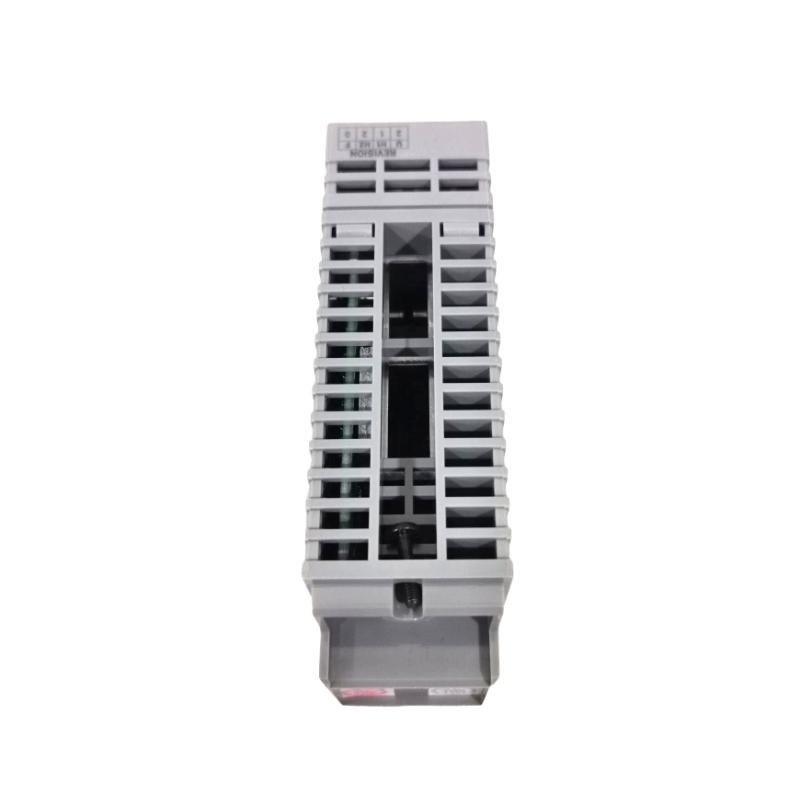

The Yokogawa ATA4S-00 Signal Conditioning Module is a high-performance device designed to handle a wide range of signal conditioning applications in industrial environments. Tailored for integration into Yokogawa’s CENTUM VP and other control systems, this module ensures seamless processing and conversion of input signals, such as voltage, current, temperature, and resistance, into data suitable for real-time monitoring and control.
The ATA4S-00 offers reliable signal conversion for various sensors, including thermocouples, RTDs, and pressure transmitters, ensuring that your system operates with maximum precision. Ideal for industries such as power generation, oil & gas, chemical processing, and manufacturing automation, the ATA4S-00 provides the reliability, speed, and accuracy needed for critical industrial applications.
With its rugged design and easy integration, the ATA4S-00 ensures consistent performance and optimized process control in dynamic environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ATA4S-00 |
| Signal Inputs | Voltage, Current, RTD, Thermocouple, Potentiometer |
| Signal Outputs | Voltage, Current |
| Input/Output Range | 4-20mA, 0-10V, 0-1000Ω (depending on configuration) |
| Mounting | Rack Mount |
| Dimensions (WxHxD) | 3.54” x 5.91” x 7.48” (90 mm x 150 mm x 190 mm) |
| Weight | 1.7 lbs (0.77 kg) |
| Power Supply | 24V DC |
| Accuracy | ±0.1% of Full Scale (FS) |
| Response Time | ≤ 200 ms (depending on input signal type) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection | IP20 (dustproof and water-resistant) |
Recommended Related Models
-
ATA5S-00 – A higher-performance model with enhanced signal conditioning capabilities and expanded input/output options.
-
CS3000 – Yokogawa's Distributed Control System (DCS), ideal for integration with ATA4S-00 to provide precise process control, monitoring, and diagnostics.
-
FLXA21 – A multi-parameter analyzer that integrates well with the ATA4S-00 for continuous measurement, real-time diagnostics, and performance monitoring.
Popular Yokogawa Models
-
CS3000: The CS3000 DCS system works seamlessly with the ATA4S-00, providing optimal data conversion and process control across large-scale industrial applications.
-
ATA5S-00: This upgraded model offers greater flexibility and extended I/O capabilities for more complex systems compared to the ATA4S-00.
-
FLXA21: This analyzer offers multi-parameter measurement and diagnostics, complementing the ATA4S-00 for advanced process control and monitoring.
-
AMN32: A communication module that enhances connectivity for the ATA4S-00, enabling fast data exchange between control systems and field devices.
