Introduction

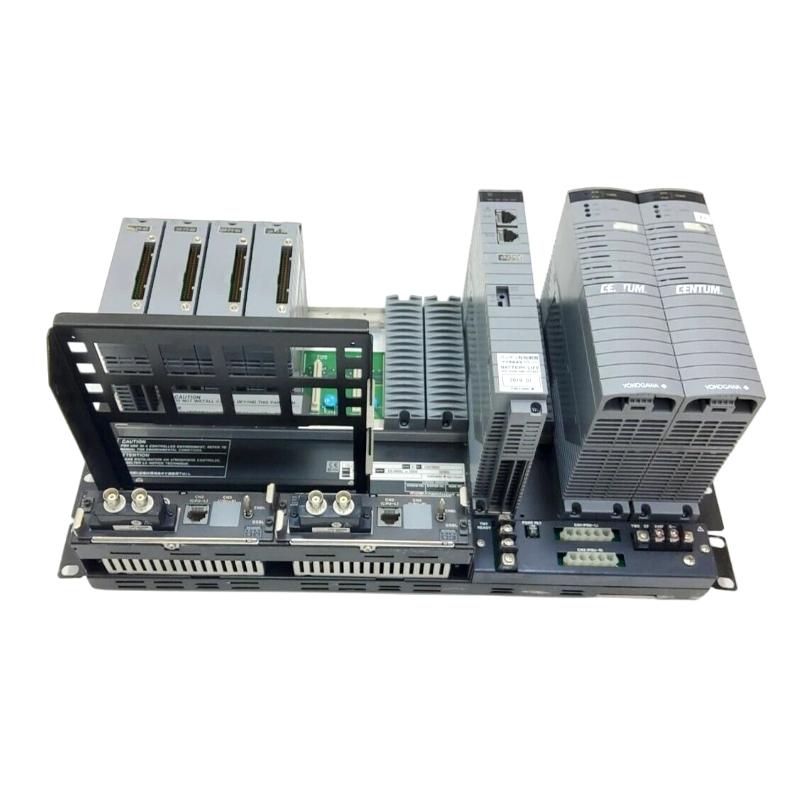

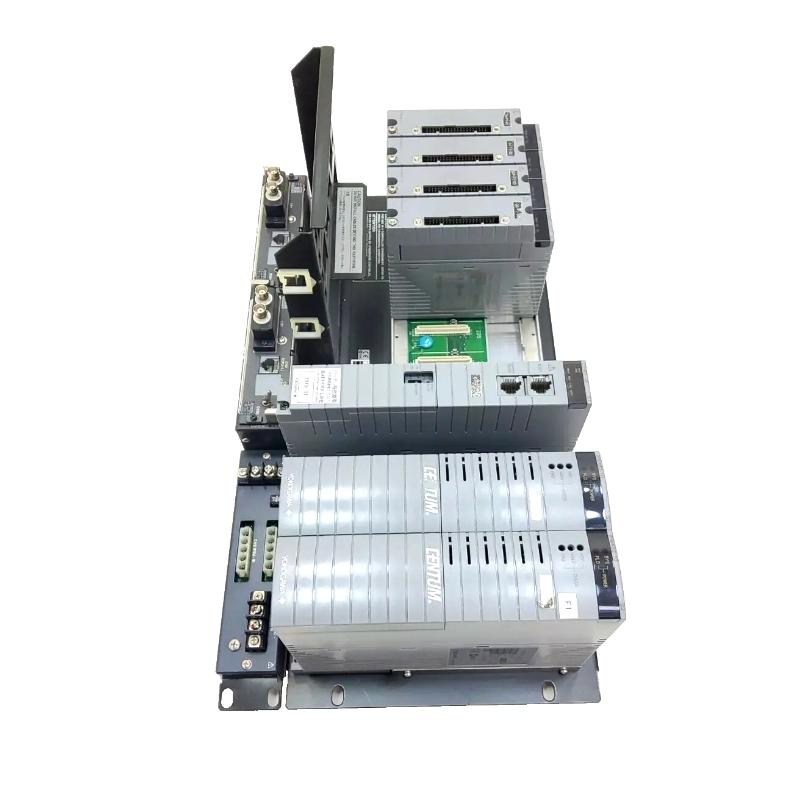

The Yokogawa AFV30S-S31262 Field Control Unit is a high-performance solution for precise monitoring and control of industrial processes. Its robust construction and modular design make it ideal for demanding field environments, ensuring reliable operation while protecting critical equipment. Compact yet powerful, this FCU allows engineers to implement advanced automation strategies and expand DCS capabilities efficiently.

Technical Specifications

Specification	Details
Model Number	AFV30S-S31262
Function	Field Control Unit
Compatible Systems	Yokogawa CENTUM VP, DCS Networks
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Dimensions	207 mm × 265.9 mm × 482.6 mm
Weight	7 kg
Mounting Type	Wall-mounted or rack-mounted
Channels	Multi-channel I/O
Isolation	Standard industrial protection

Recommended Related Models

Yokogawa AFV30S-S31260 Field Control Unit
Yokogawa AFV30S-S31261 Remote I/O Module
Yokogawa AFV30S-S31263 Field Control Expansion Unit
Yokogawa AFV30S-S31264 Analog Input Module
Yokogawa AFV30S-S31265 Digital Input Module

Popular Related Models

Yokogawa AFV30S-S31266 Remote Output Module
Yokogawa AFV30S-S31267 Multi-Channel I/O Module
Yokogawa AFV30S-S31268 Field Control Interface Unit
Yokogawa AFV30S-S31269 Analog Output Module
Yokogawa AFV30S-S31270 Digital Output Module

Applications

The AFV30S-S31262 Field Control Unit (FCU) is designed for reliable control and monitoring in complex industrial automation systems. Typical applications include:

Distributed control systems (DCS) for chemical, power, and manufacturing plants.
Real-time monitoring and control of process variables in field environments.
Interface for multiple field instruments, including sensors and actuators.
Remote field automation and process data acquisition.
Upgrading or expanding existing control networks with advanced field control capabilities.

Advantages

Robust Performance: Designed to operate reliably in harsh industrial environments.
High Precision: Ensures accurate process control and signal handling.
Seamless Integration: Compatible with Yokogawa CENTUM VP and related DCS systems.
Modular Design: Simplifies installation, maintenance, and system upgrades.
Durable Construction: Rugged housing protects against vibration, dust, and temperature fluctuations.

Technical FAQs

What is the primary function of the AFV30S-S31262?
Provides control and monitoring of field instruments in distributed control systems.
Can it be integrated with existing Yokogawa DCS systems?
Yes, fully compatible with Yokogawa CENTUM VP and other DCS platforms.
Is this unit suitable for harsh environments?
Yes, it is built to withstand vibration, dust, and standard industrial temperatures.
Operating temperature range?
Typically -20°C to 60°C (-4°F to 140°F), standard for Yokogawa field units.
Mounting options available?
Wall-mounted or rack-mounted depending on field requirements.
What communication protocols does it support?
Standard DCS fieldbus protocols and Yokogawa proprietary communication interfaces.
Maintenance requirements?
Minimal; periodic inspection and cleaning recommended for optimal performance.
Can it handle multiple input/output channels?
Yes, designed for multi-channel signal acquisition and control.
Weight of the unit?
7 kg for safe and manageable installation.
Expected lifespan?
Typically over 10 years under normal industrial operating conditions.
