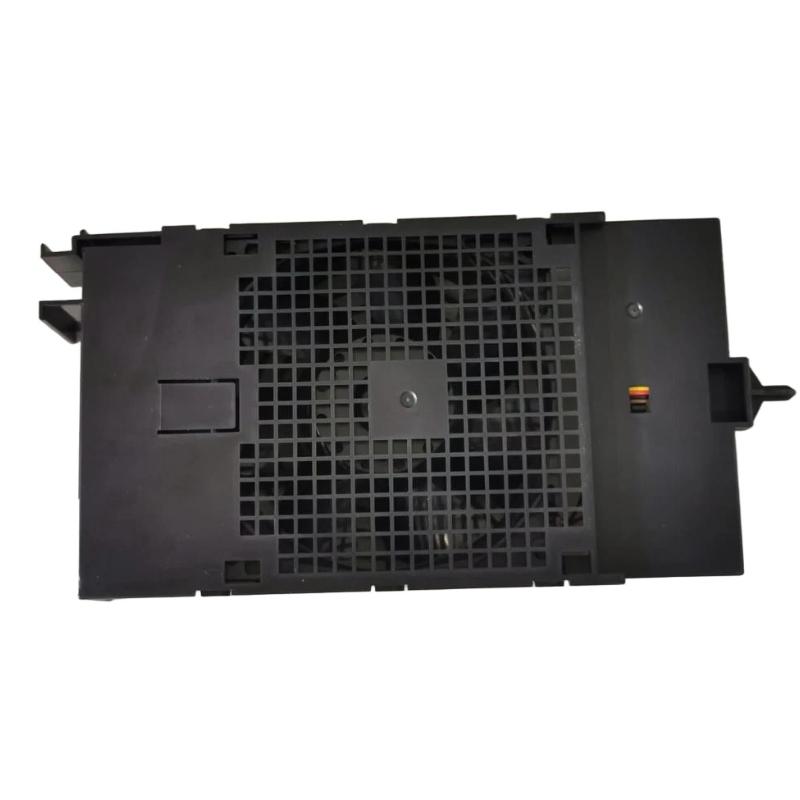

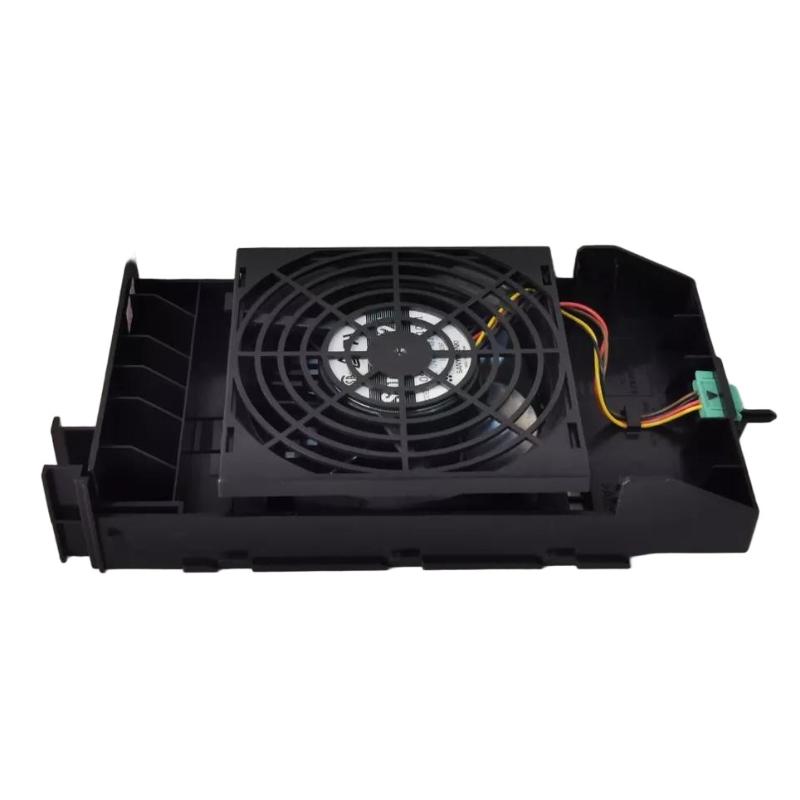

Yokogawa AIP601 S1 Fan Unit

Applications

The AIP601 S1 Fan Unit is designed to provide efficient cooling and thermal management for industrial control modules and automation systems. Typical applications include:

• Maintaining optimal operating temperatures for Yokogawa DCS and field modules.

• Cooling electronic enclosures in chemical, power, and manufacturing plants.

• Preventing overheating in high-density control panels.

• Supporting continuous operation of distributed control systems (DCS).

• Ensuring reliable performance of critical automation and instrumentation equipment.

Advantages

• Efficient Cooling: Provides reliable airflow to maintain safe operating temperatures.

• Compact Design: Slim 45 mm profile allows easy installation in space-constrained panels.

• Lightweight Construction: Only 0.3 kg, enabling easy handling and mounting.

• Durable and Reliable: Industrial-grade fan designed for continuous operation in harsh environments.

• Low Maintenance: Modular design simplifies replacement and maintenance.

Technical FAQs

1. What is the primary function of the AIP601 S1?
   Provides cooling and thermal management for industrial control and field modules.

2. Is it compatible with Yokogawa DCS systems?
   Yes, designed for use with Yokogawa CENTUM VP and other compatible modules.

3. Operating temperature range?
   -20°C to 60°C (-4°F to 140°F).

4. Can the fan be hot-swapped?
   Yes, designed for safe replacement without powering down adjacent modules.

5. What are the fan unit dimensions?
   129 mm × 262.8 mm × 45 mm.

6. What is the weight of the unit?
   0.3 kg, making it lightweight and easy to handle.

7. Mounting type?
   Panel or rack-mounted depending on module configuration.

8. Maintenance requirements?
   Minimal; occasional cleaning recommended to maintain airflow efficiency.

9. Expected lifespan?
   Typically exceeds 5–7 years under standard industrial conditions.

10. Noise level during operation?
    Designed for low-noise operation suitable for control rooms.
