Brand:Yokogawa Electric Item No.:A2PW503-S0002 Product Origin:Japan Product Dimensions:200 × 80 × 250 mm Product Weight:1.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

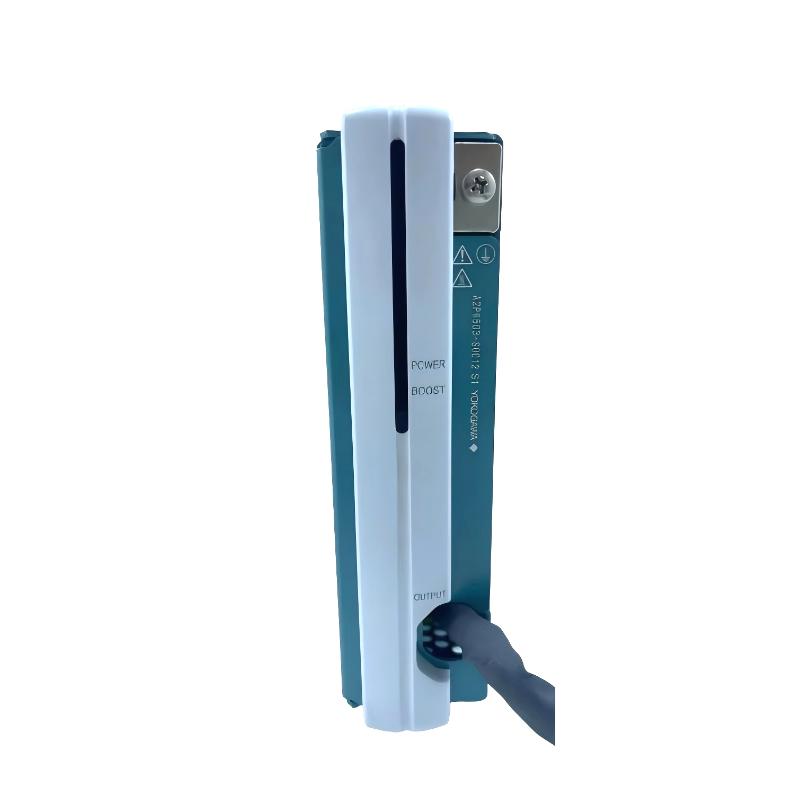

The Yokogawa A2PW503-S0002 Power Supply Unit delivers stable and reliable DC power to Yokogawa automation systems. Its robust industrial design, protection features, and compatibility with A2 series PLCs make it an essential component for continuous, safe, and efficient operation in process control environments. Compact yet powerful, it ensures uninterrupted performance for critical automation applications.
Technical Specifications
Parameter
Details
Model
A2PW503-S0002
Type
Power Supply Unit
Input Voltage
100–240 V AC
Output Voltage
24 V DC
Output Current
5 A
Dimensions
200 × 80 × 250 mm
Weight
1.2 kg
Protections
Overload, overvoltage, short-circuit
Cooling
Natural convection
Mounting
Panel or DIN rail
Applications
PLCs, field I/O, process control systems
Recommended Related Models
Model
Description
A2PW503-S0001
Similar power supply unit with 3 A output
A2PW504-S0002
Higher power 10 A version
A2PW502-S0001
Compact 24 V DC supply
A2PW503-R0002
Redundant PSU for A2 series
A2PW505-S0001
48 V DC industrial power supply
A2PW506-S0001
Extended temperature range PSU
A2PW507-S0002
High-efficiency power supply module
A2PW508-S0001
Backup power unit for critical systems
A2PW503-S0010
Industrial-grade 24 V supply
A2PW503-S0020
Redundant 24 V DC supply
Popular Related Models
Model
Description
A2PW501-S0001
Standard 24 V PSU for A2 PLC
A2PW502-S0002
Compact industrial DC supply
A2PW503-R0001
Redundant power supply module
A2PW504-S0001
Higher current 24 V PSU
A2PW505-S0002
48 V DC PSU for A2 series
A2PW506-S0002
High-temperature rated PSU
A2PW507-S0001
Industrial efficiency PSU
A2PW508-S0002
Backup power module
A2PW509-S0001
Specialized industrial DC PSU
A2PW510-S0001
Extended-range power supply
Applications
The Yokogawa A2PW503-S0002 Power Supply Unit is designed for industrial automation and process control systems. It provides reliable DC power to Yokogawa PLCs, controllers, and field I/O modules. Its robust design ensures stable operation in factories, chemical plants, power stations, and critical process environments, supporting both continuous production and mission-critical applications.
Advantages
High stability and efficiency, ensuring consistent DC output under varying load conditions
Compact form factor suitable for limited-space control cabinets
Wide input voltage range for flexibility in different industrial environments
Overload and short-circuit protection to safeguard connected equipment
Reliable long-term operation, minimizing downtime and maintenance costs
FAQs
What is the nominal output voltage of the A2PW503-S0002?
24 V DC standard output suitable for Yokogawa PLC and I/O modules.
What is the maximum output current?
Rated for up to 5 A continuous load.
What protections are included?
Overvoltage, overload, and short-circuit protection are built-in.
Can it operate in high-temperature environments?
Yes, it is designed for industrial temperature ranges up to 60°C.
Is it compatible with other Yokogawa modules?
Fully compatible with the A2 series PLCs and standard field I/O modules.
What is the expected efficiency of the unit?
Typically above 85% under nominal load conditions.
Does it require external cooling?
No external cooling is needed; built-in design supports natural convection.
Can multiple units be used in parallel for redundancy?
Yes, parallel operation is supported for critical power supply redundancy.
What is the typical MTBF (Mean Time Between Failures)?
Designed for high reliability, exceeding 50,000 hours under nominal conditions.
How is the unit mounted?
Panel or DIN-rail mounting is supported depending on the cabinet design.
