Introduction

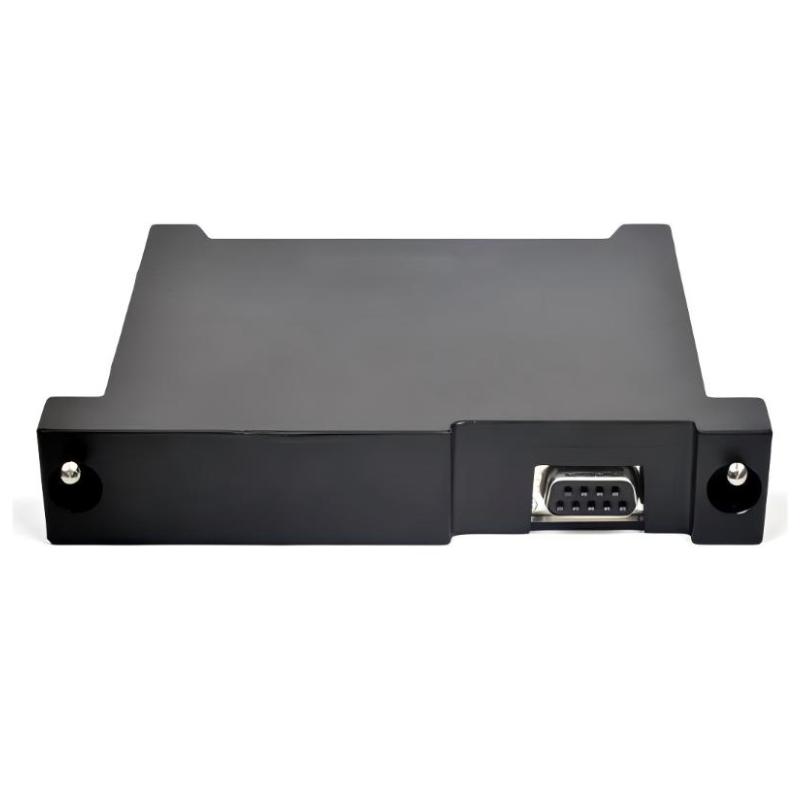

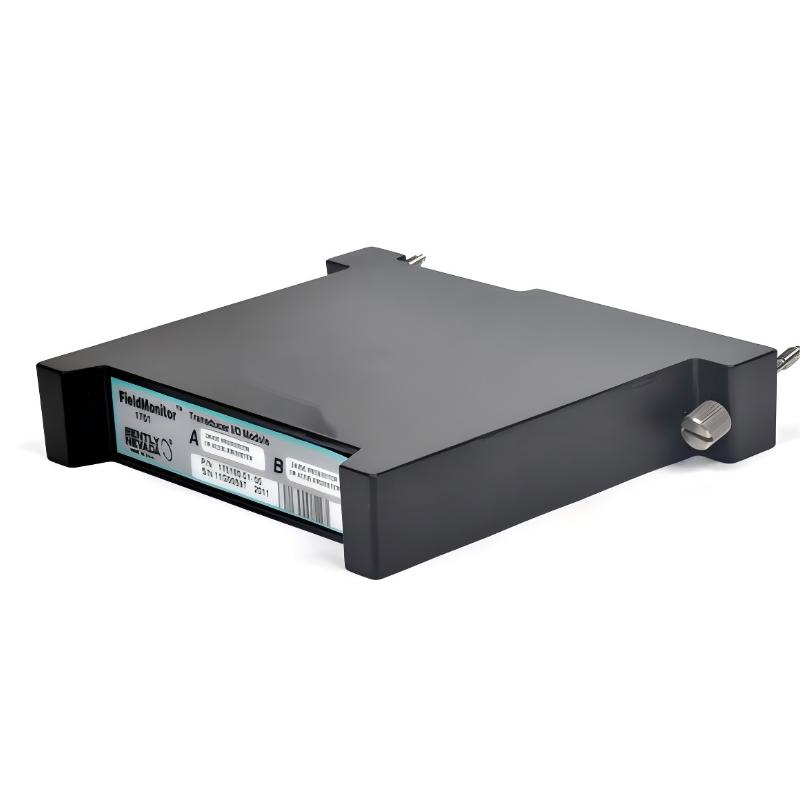

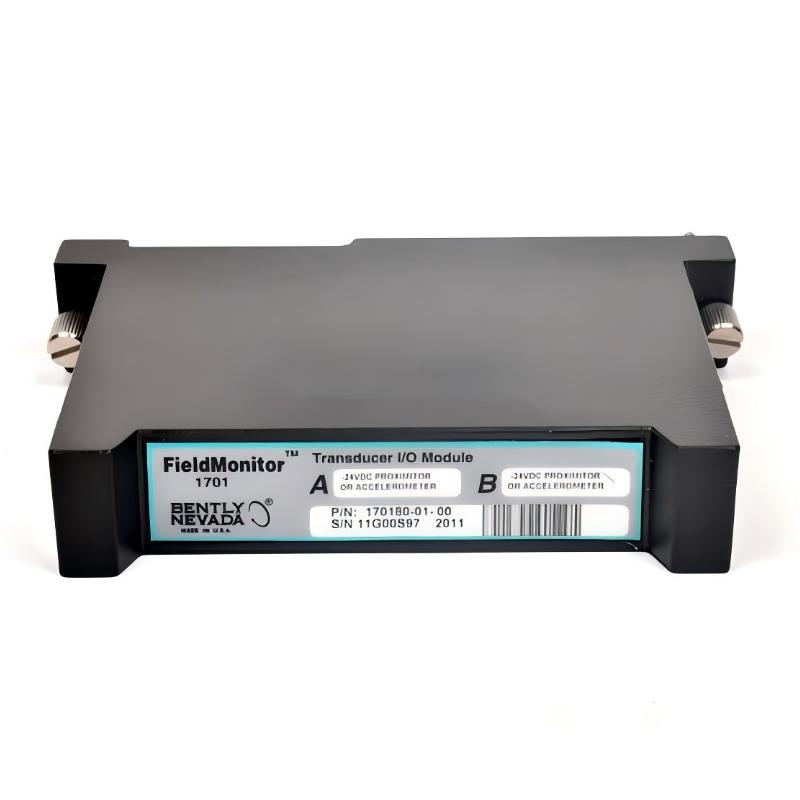

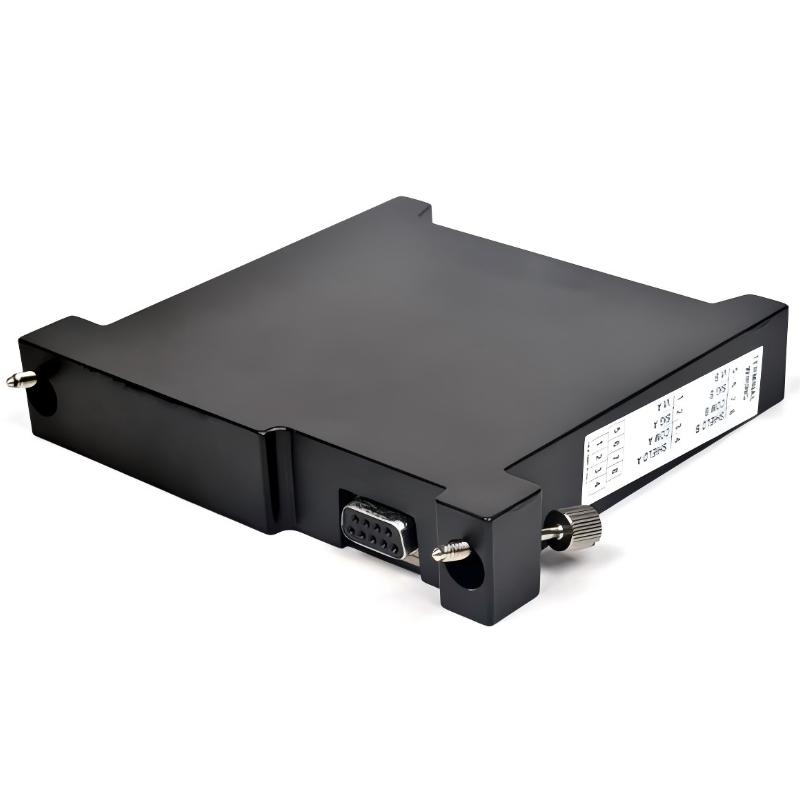

The Bently Nevada 170180-01-00 1034549-70 External Sensor I/O Module provides a compact and reliable interface for connecting additional field sensors to industrial machinery monitoring systems. Designed for seamless integration with 3300 XL and 170180 series monitoring systems, it enhances predictive maintenance capabilities and simplifies the expansion of condition monitoring networks. Its rugged construction ensures dependable performance in demanding industrial environments.

Technical Specifications

Parameter	Value
Product Type	External Sensor I/O Module
Input Type	External vibration, proximity, and speed sensors
Output	Conditioned signals to monitoring system
Mounting	Field or panel installation
Dimensions	105.3 × 126.9 × 21.6 mm
Weight	0.277 kg

Recommended Related Models

Bently Nevada 170180-01-10 – External sensor I/O module for expanded field monitoring
Bently Nevada 1701/15 1034549-20 – Field monitor preamplifier for proximity probe inputs
Bently Nevada 330104-01-05-05-02-05 – 8 mm proximity probe for machinery monitoring
Bently Nevada 330130-045-01-05 – Extension cord for 3300 XL field sensors

Popular Related Models

Bently Nevada 170180-01-20 – External sensor I/O module for additional field connections
Bently Nevada 330101-00-16-05-02-05 – 8 mm proximity probe for turbines and compressors
Bently Nevada 330104-00-11-50-02-00 – Field-ready 8 mm proximity probe for industrial applications
Bently Nevada 1701/20 – Field monitor preamplifier for vibration and displacement sensors

Applications

Connecting external sensors to 3300 XL and other Bently Nevada monitoring systems
Integrating additional vibration, proximity, or speed sensors into control panels
Expanding machinery condition monitoring capabilities in industrial plants
Use in predictive maintenance and early-warning monitoring systems

Advantages

Compact, lightweight module suitable for space-constrained field installations
Provides reliable and precise I/O connectivity for multiple external sensors
Compatible with Bently Nevada 170180 series and 3300 XL monitoring systems
Rugged design ensures performance in harsh industrial environments
Simplifies wiring and integration of additional field devices

Technical FAQs

What is the purpose of the 170180-01-00 module?
It functions as an external sensor interface, connecting additional field sensors to monitoring systems.
Which sensors can it support?
Vibration, proximity (eddy-current), and speed sensors for machinery monitoring.
Is it compatible with 3300 XL monitoring systems?
Yes, designed for seamless integration with Bently Nevada 3300 XL systems.
Can it operate in harsh industrial conditions?
Yes, engineered for industrial temperature ranges, vibration, and electrical noise immunity.
How does it simplify sensor wiring?
Centralized connections allow easier integration of multiple external sensors.
Does it provide signal conditioning?
Yes, it ensures reliable signal transmission from sensors to monitoring systems.
Can it be used for retrofitting existing monitoring setups?
Absolutely, it fits standard 170180 series and 3300 XL field configurations.
Does it require external power?
Yes, powered through the monitoring system interface.
Which industries commonly use this module?
Power generation, petrochemical, oil & gas, and heavy manufacturing.
What makes it different from standard I/O modules?
Its external sensor support allows easy expansion of existing condition monitoring systems.
