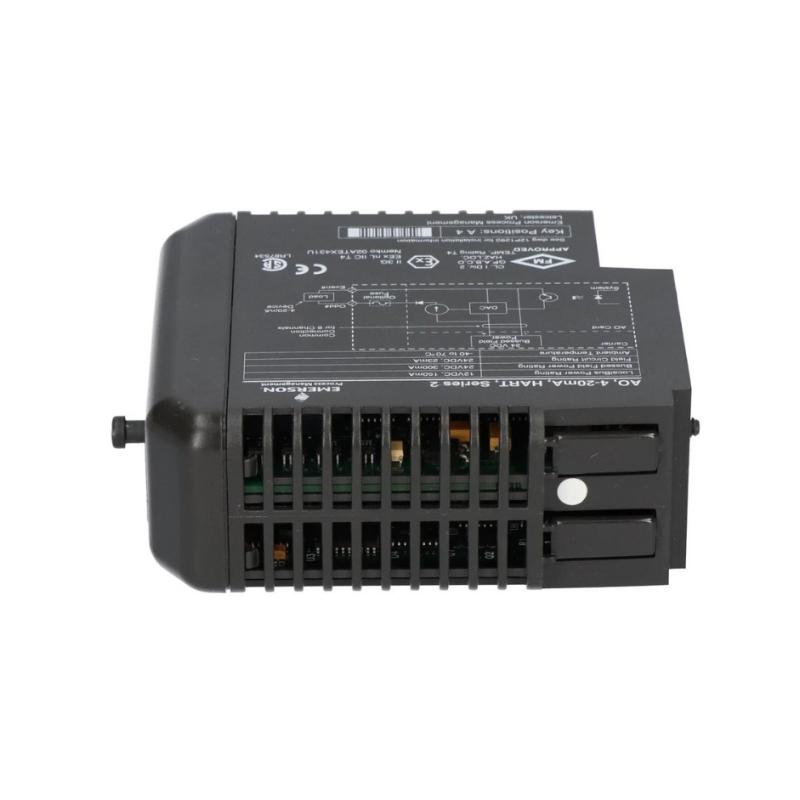

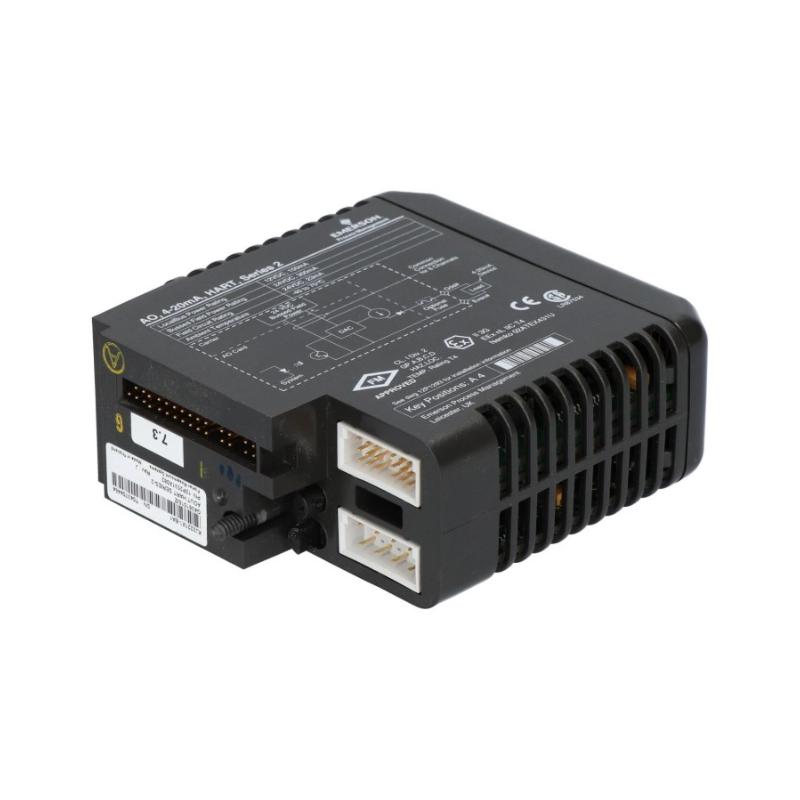

VE4035S2B1 KJ3221X1-BA1+KJ32211

The Emerson KJ3221X1-EA1 Intelligent Field Transmitter is a state-of-the-art device designed to provide high-accuracy measurements for pressure, flow, and level across a wide range of industrial applications. Utilizing Emerson’s renowned Rosemount™ technology, this model is built to meet the demanding needs of industries such as oil & gas, chemical processing, power generation, and water treatment. With its multi-variable measurement capabilities, real-time diagnostics, and robust communication protocols, the KJ3221X1-EA1 offers an advanced solution for process control, helping operators achieve optimal efficiency, reduce downtime, and enhance safety. The KJ3221X1-EA1 is engineered to perform reliably in the harshest environments, ensuring accurate data even under extreme conditions.

Technical Specifications

Specification	Details
Model	Emerson KJ3221X1-EA1
Module Type	Intelligent Field Transmitter
Measurement Range	0.01 to 5000 m³/h (Flow), 0–15,000 psi (Pressure), 0–100 meters (Level)
Input Type	Differential Pressure, Flow, Level
Communication Protocol	HART®, FOUNDATION™ fieldbus, Profibus PA
Output Signal	4–20 mA, Digital (HART)
Accuracy	±0.05% of Span
Temperature Range	-40°C to 85°C (-40°F to 185°F)
Power Supply	12–42 VDC
Dimensions	9.6" x 7.5" x 7.0" (244 mm x 190 mm x 178 mm)
Weight	3.20 kg (7.05 lbs)
Housing Material	Stainless Steel
Ingress Protection	IP66/IP67

Recommended Related Models

For those seeking more advanced features or different configurations, here are some related models from Emerson:

Emerson KJ3221X1-EB1 – A more advanced model with extended diagnostic capabilities and improved accuracy for complex multi-variable measurement systems.
Emerson Rosemount 3051 – This well-established multi-variable transmitter is perfect for applications requiring high-accuracy pressure, flow, and temperature measurements.
Emerson Rosemount 8700 – Designed for non-intrusive flow measurement, ideal for applications requiring minimal maintenance and high accuracy.

Popular Emerson Models

Emerson’s Rosemount™ series is widely trusted across various industries for its outstanding accuracy and reliability. Here are some of the most popular models:

Emerson Rosemount 3051 – A versatile and reliable multi-variable transmitter for pressure, flow, and temperature measurement across numerous industries.
Emerson Rosemount 2088 – Offers excellent performance for pressure and flow measurement, widely used in process control applications.
Emerson 1151 – A general-purpose transmitter for measuring pressure, level, and temperature, designed for demanding industrial environments.

Applications

The Emerson KJ3221X1-EA1 is designed to provide precise measurements for critical industrial applications:

Oil & Gas: The KJ3221X1-EA1 is ideal for monitoring pressure, flow, and level in pipelines, refineries, offshore rigs, and upstream/downstream oil and gas operations, ensuring operational efficiency and safety.
Chemical Processing: It offers precise measurements for chemical reactors, distillation columns, and storage tanks, enabling improved product quality and regulatory compliance.
Power Generation: The KJ3221X1-EA1 is critical for measuring flow and pressure in boilers, turbines, and cooling systems, optimizing performance and energy efficiency.
Water & Wastewater Treatment: The transmitter excels at monitoring flow and level in water treatment plants, helping to ensure compliance with environmental standards and maintain water quality.
Food & Beverage: The KJ3221X1-EA1 provides reliable measurements in food and beverage production lines, ensuring quality control, consistency, and regulatory compliance.

Advantages

Multi-Variable Measurement: The KJ3221X1-EA1 is capable of simultaneously measuring pressure, flow, and level, providing an integrated solution for complex industrial processes.
Exceptional Accuracy: With ±0.05% of span accuracy, this transmitter ensures high-precision measurements for more accurate process control and decision-making.
Real-Time Diagnostics: Emerson Smart Diagnostics provides real-time insights into the transmitter’s performance, allowing for predictive maintenance and reducing the risk of unplanned downtime.
Durable and Robust: The stainless-steel housing and IP66/IP67 ingress protection ensure that the KJ3221X1-EA1 is built to withstand harsh industrial environments, delivering long-lasting performance and reducing maintenance needs.
Wide Temperature Range: This model operates efficiently in temperatures ranging from -40°C to 85°C (-40°F to 185°F), ensuring reliability in both hot and cold environments.
Flexible Communication: Supports HART®, FOUNDATION™ fieldbus, and Profibus PA protocols, making the KJ3221X1-EA1 compatible with a wide range of industrial control systems and providing easy integration.

Technical FAQs

What is the measurement range of the KJ3221X1-EA1?
The KJ3221X1-EA1 is capable of measuring flow from 0.01 to 5000 m³/h, pressure up to 15,000 psi, and level from 0 to 100 meters.
What communication protocols are supported by the KJ3221X1-EA1?
The transmitter supports HART®, FOUNDATION™ fieldbus, and Profibus PA, ensuring easy integration into a wide range of industrial control systems.
What is the accuracy of the KJ3221X1-EA1?
The KJ3221X1-EA1 provides ±0.05% of span accuracy, offering highly precise measurements for demanding industrial applications.
What temperature range does the KJ3221X1-EA1 support?
This transmitter operates within a temperature range of -40°C to 85°C (-40°F to 185°F), making it suitable for a variety of industrial environments.
What power supply does the KJ3221X1-EA1 require?
The KJ3221X1-EA1 operates on a 12–42 VDC power supply, making it compatible with most industrial systems.
Is the KJ3221X1-EA1 suitable for hazardous environments?
Yes, the KJ3221X1-EA1 features IP66/IP67 ingress protection and a stainless-steel housing, allowing it to withstand harsh environmental conditions.
How is the KJ3221X1-EA1 installed?
This model can be installed using either pipe-mounting or panel-mounting, providing flexibility for different setups.
Does the KJ3221X1-EA1 support multi-variable measurement?
Yes, the KJ3221X1-EA1 can simultaneously measure pressure, flow, and level, making it an excellent choice for complex industrial applications.
Which industries benefit from the KJ3221X1-EA1?
The KJ3221X1-EA1 is perfect for industries such as oil & gas, chemical processing, power generation, water treatment, and food & beverage, where high-precision measurement is essential.
What is the weight of the KJ3221X1-EA1?
The KJ3221X1-EA1 weighs approximately 3.20 kg (7.05 lbs), making it easy to install and integrate into various industrial systems.
